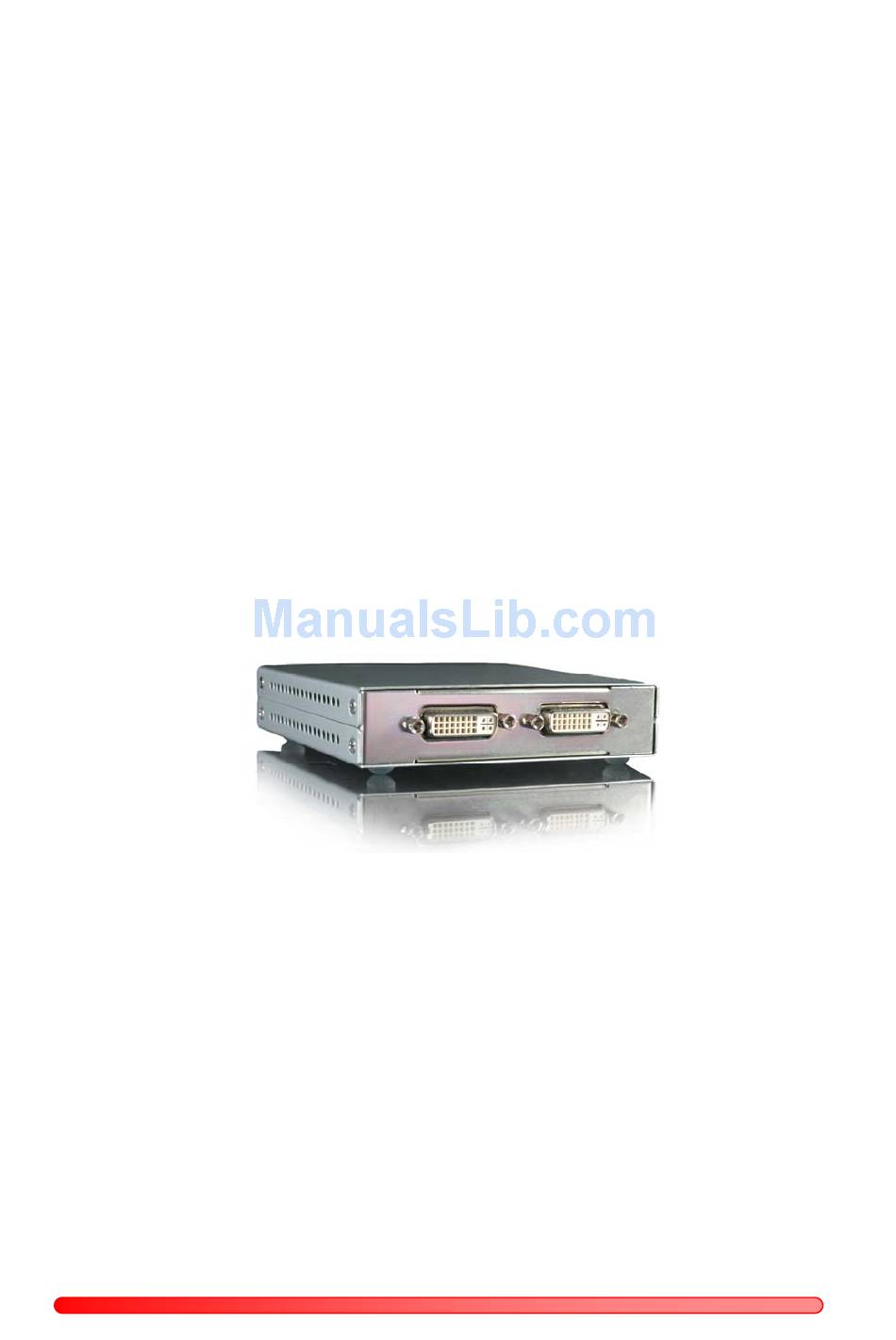

- Page 1 2x4 DVI Matrix AS‐2124 User Manual ...
- Page 2 Introduction The AS‐2124 allows you to switch between two DVI sources and four DVI displays independently with compact pattern generator functionality. Any input can be switched into any output through a remote control. To simplify the switching process, AS‐2124 comes with an IR remote control. If you don’t have an IR remote control nearby, AS‐2124 can also be configured by two DIP switches (one rotary switch and one DIP switch). Furthermore, the AS‐2124 is designed to regenerates every signal carried to itself so that every signal sent out from the AS‐2124 is as crystal clear as the original. ...
-
Page 3: Package Contents
Features Pixel Rate up to 165MHz. Maintains highest resolution digital video with no loss of quality Configured by IR remote control with OSD display. Embedded Pattern Generator. Supports EDID learning. The AS-2124 can get the EDID information for the output device and pass it to the input equipment. DIP switch configuration. -
Page 4: Panel Descriptions
Figure below shows the remote control of the AS-2124. Only four arrow buttons and the menu button works. The remaining buttons are reserved and no use for this product. Press “Menu” to launch OSD menu and use arrow buttons to move around the items in the OSD menu. -
Page 5: Dip Switch
5V DC power jack Plug in one DVI Y-cable here and connect 1 and 2 DVI sources. Rotary switch. For detailed setup, please see the next section. LED indicator (EDID) Power indicator IR receiver DIP Switch When the remote control is not available, the switcher can also be configured by DIP switch shown as the following: Fig.1 Fig.2... -
Page 6: Hardware Installation
DVI Output1 DVI Output2 Rotary Switch Function Source 1 Source 2 Pattern 1 Pattern 2 Reserved, no use Pattern 4 Pattern 5 Reserved, no use Table 2 Fig.1 shows a DIP switch from which you can select a specific output. Fig.2 shows a rotary switch that allows you to select an input source or a test pattern. - Page 7 Display1 Display2 Display3 Display4 All I/O configurations can be readily set up by the remote control through an OSD menu. Below shows the OSD menu tree: Port 3 Port 4 Port Port 2 Source Source Power Off Monitor Test LINE GREEN BLACK WHITE...
- Page 8 Press “Menu” on the remote control and then the OSD menu pops up as below, GOMAX ELECTRONICS Port 1 Port 2 Port 3 Port 4 In this page, you can select any output port you want to configure. After you press the up/down arrow button on the remote control to select a specific port, the menu will automatically be changed to the next page shown as below: GOMAX ELECTRONICS...
- Page 9 When the Monitor Test item is selected, it will turn to the next OSD table shown as the following: ASCALE Enterprise GREEN BLUE BLACK WHITE LINE MOIRE DOT MOIRE In the pattern menu, each item stands for a pattern. For example, the first five patterns...
-
Page 10: Limited Warranty
Should this product fail to be in good working order within 1 year warranty period, Ascale, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges.
