Page 1: Installation Guide
VM-10 USB Desktop Audio Device Installation Guide... -
Page 2: Table Of Contents
WAVE 4.8 Desktop Communicator Software Configuration .......10 Appendix ......................15 Microsoft .NET Framework 4 (Option)............15 ETC Driver Utility Installation (Option)............15 Support........................18 Specifications .....................18 VM-10 Hardware Product Limited Warranty..........18 VM-10 Installation Guide Rev 05.12 Page 2 of 19 Essential Trading Systems Corp. -
Page 3: Introduction

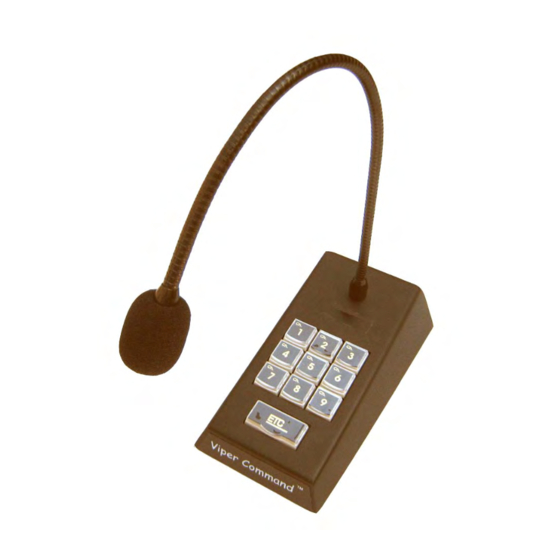

Linux is noted in this manual, although the VM-10 has not been tested with it. Parts List The VM-10) (Figure A) comes equipped with a USB “A/B” 2.0 cable (Figure B) and ETC Utility disc (Figure C) Figure A... -
Page 4: Hardware Connections
Plug the “A” end of the USB 2.0 cable into an available USB 2.0 port on your computer (Figure D) and the “B” end into the back of the VM-10 (Figure E). Upon properly connecting the VM-10 it will install automatically with Windows/Linux drivers when you power on your computer. - Page 5 (Figure 3). Figure 2 Figure 3 To ensure proper VM-10 performance, sound card settings must be adjusted after initial device installation (or sudden disconnect or power loss). Click on the o tab (Figure 4). Click on the e drop down menu (Figure 5) and choose default speakers (not ETC UPM-10) for your system.
- Page 6 Click on the d button in the e box (Figure 6). The ETC VM-10 r mixer window will open. If your window does NOT show a e device you will need to activate it. From the s drop down menu choose s (Figure 7).
- Page 7 You will see a e device for ETC VM-10 in the r window. Using your cursor, move r (master) volume lever up to the recommended playback level shown (Figure 10) Figure 10 e volume lever must be down all the way and the Microphone Mute box must VM-10 Installation Guide Rev 05.12...
- Page 8 Failure to check the Microphone Mute box will result in significant echo, feedback, or signal cancellation on the network. The Recording volume for the VM-10 can now be adjusted. From the s drop down menu choose s (Figure 12). Figure 12 VM-10 Installation Guide Rev 05.12...
- Page 9 NOTE: The VM-10 utilizes standard Windows/Linux USB audio device drivers. If the unit is disconnected without using the ETC Utility, the settings may revert to default levels. These levels should be checked upon reconnection in the event the VM-10 becomes suddenly disconnected or loses power.
-
Page 10: Wave 4.8 Desktop Communicator Software Configuration
WAVE 4.8 Desktop Communicator Software Configuration The VM-10 is now ready to be configured for use with WAVE. The can be started by clicking on the WAVE icon. The first screen to appear in r is your n screen. Click on the : drop down menu and choose the correct WAVE Management Server URL or address (Figure 17). - Page 11 To begin configuration click on the “ W ” button (Figure 24). Figure 23 Figure 24 VM-10 Installation Guide Rev 05.12 Page 11 of 19 Essential Trading Systems Corp.
- Page 12 The Channels & Tabs window will open showing the . Click on the arrow to add the channel to ( default ( Figure 27 Figure 26 Figure 27 VM-10 Installation Guide Rev 05.12 Page 12 of 19 Essential Trading Systems Corp.
- Page 13 Click the o tab. From the : drop down menu choose the audio speakers you are using now (Figure 30). From the : drop down menu choose ETC VM-10 (Figure 31). Figure 30 Figure 31 VM-10 Installation Guide Rev 05.12 Page 13 of 19 Essential Trading Systems Corp.
- Page 14 (Figure 32). The r screen will appear will all programmed channels. You can transmit audio three ways: by clicking on the k button (Figure 33), pressing the VM-10 Microphone button, or using the hot keys sequence on the keyboard. Figure 32...
-
Page 15: Appendix
ETC Driver Utility Installation (Option) ETC’s Driver Utility makes sure the volume settings remain constant. This is a service running in Windows, not actually a driver in the strict sense. As the volume changes these values are written to the Registry. When a microphone is removed and later re-plugged, the previous volume levels are read out of the registry and set in the Windows mixer panel. - Page 16 In the ETC Driver folder click on the e icon (Figure 46). In the o l window click on the l circle (Figure 47). Figure 46 Figure 47 Click the h button (Figure 48). When e is shown , click the e button (Figure 49).
- Page 17 Figure 54 Figure 55 The Disconnect Complete window will self close as soon as the process is successfully stopped. The ETC Volume Control service will automatically restart the next time a microphone is plugged VM-10 Installation Guide Rev 05.12 Page 17 of 19...
-
Page 18: Support
