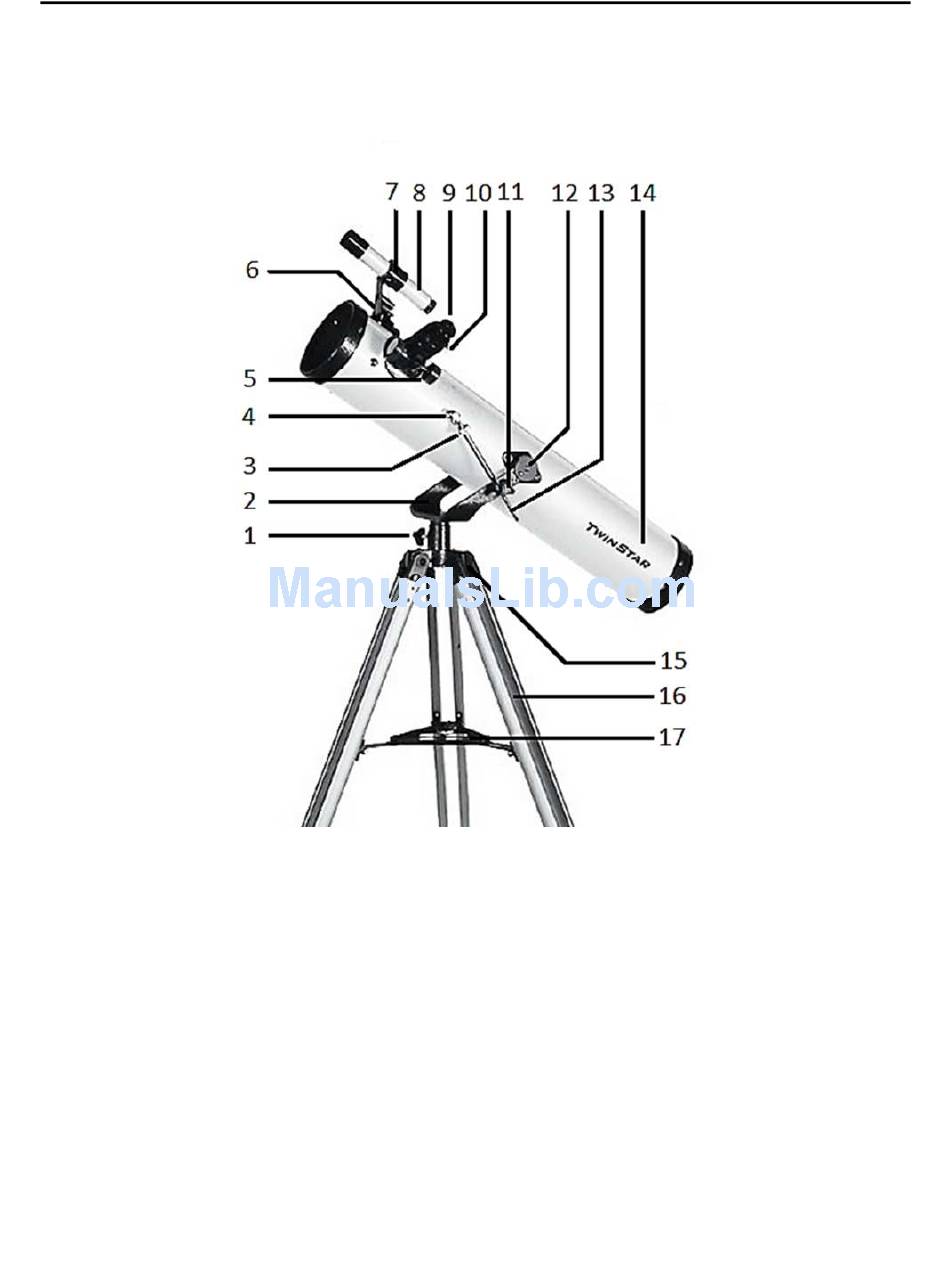

FirstView 3" Reflector Telescope Owner's Manual
1. Horizontal Locking Auxiliary Screw
2. Main Mount
3. Pitching Auxiliary Knob
4. Pitching Shaft Screw
5. Rack and Pinion Focusing Knob
6. Thumb Nut for Finder Scope
7. Finder Scope Bracket
8. Finder Scope
9. Eyepiece
10. Focusing Tube
*Not Pictured: Moon Filter, 2x Barlow Lens, eyepiece cleaning cloth
11. Pitching Clamp Handle Screw
12. Left and Right Blocks
13. Pitching Shaft
14. Main Tube
15. Mount Base
16. Tripod Leg
17. Accessory Tray
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TwinStar FirstView
Summary of Contents for TwinStar FirstView
- Page 1 FirstView 3” Reflector Telescope Owner’s Manual 1. Horizontal Locking Auxiliary Screw 11. Pitching Clamp Handle Screw 2. Main Mount 12. Left and Right Blocks 3. Pitching Auxiliary Knob 13. Pitching Shaft 4. Pitching Shaft Screw 14. Main Tube 5. Rack and Pinion Focusing Knob 15.
- Page 2 ASSEMBLY INSTRUCTIONS 1. Remove the tripod legs (#16) from the box and separately extend them to suitable length from top to bottom. Tighten the locking knobs. 2. Connect each leg to the mount base (#15) with the long screw and wing nuts (Pg. 4, Fig. 2a), but do not tighten yet.
- Page 3 as xylene and alcohol for cleaning purposes is not recommended. Eyepieces should be cared for and cleaned like any other optical element. Eyepieces are constructed so that they can be taken apart. The inexperienced person should not attempt this because the lenses of the eyepiece are carefully aligned during manufacturing and careless handling could lead to misalignment.
- Page 5 Eyepiece & Magnification This telescope is supplied with three different eyepieces (4mm, 12.5mm, and 20mm). The power of each particular eyepiece is directly related to the focal length of the telescope which is 700mm (millimeters); However, the power of each eyepiece is related to the focal length of the objective mirror of the telescope.
- Page 6 For planetary viewing, try observing Venus first, as it is one of the brightest objects in the night sky at most times of the year. The planets will tend to appear like flat discs through your telescope, and you will probably be quite surprised by the rapidity with which they move across the sky.
