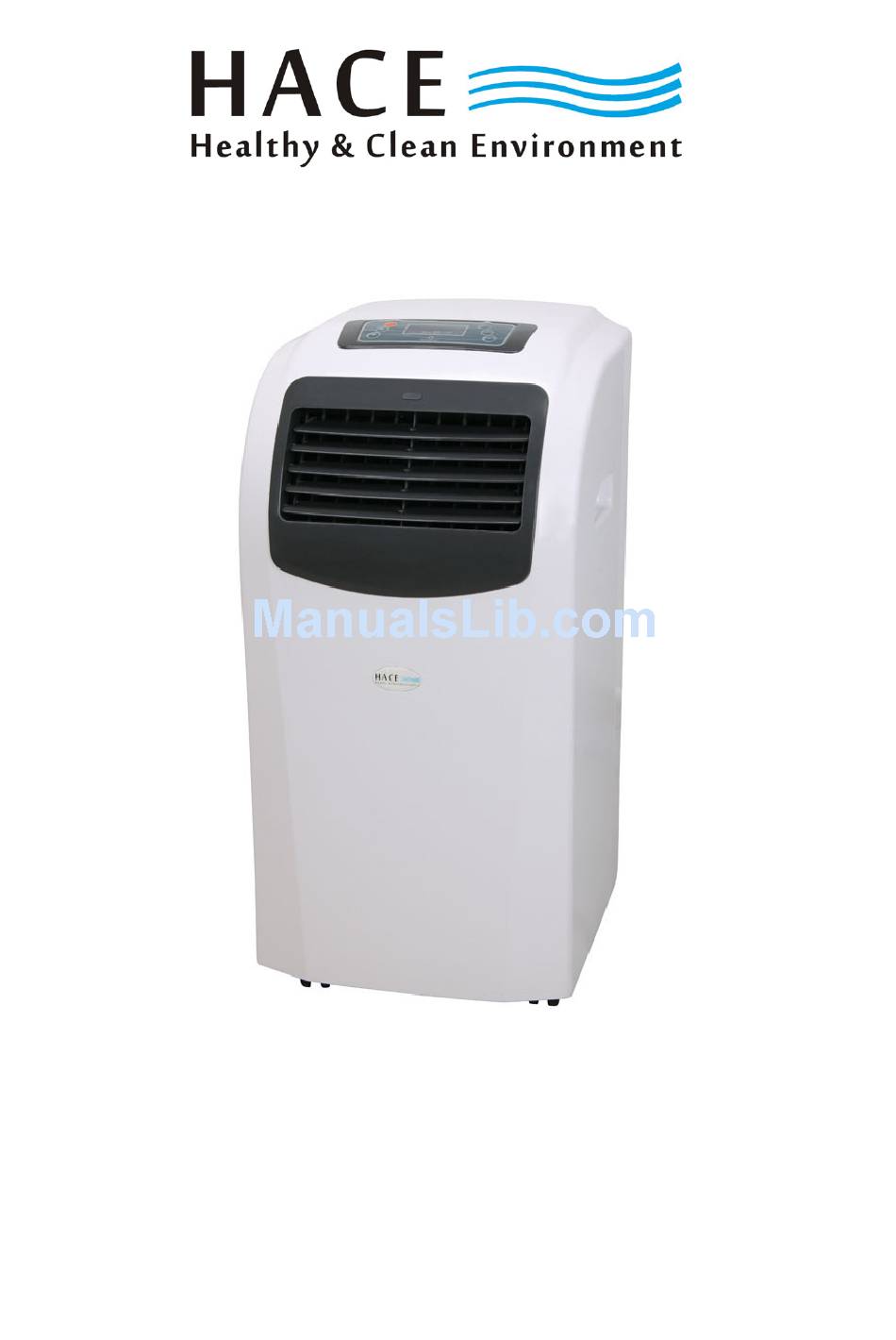

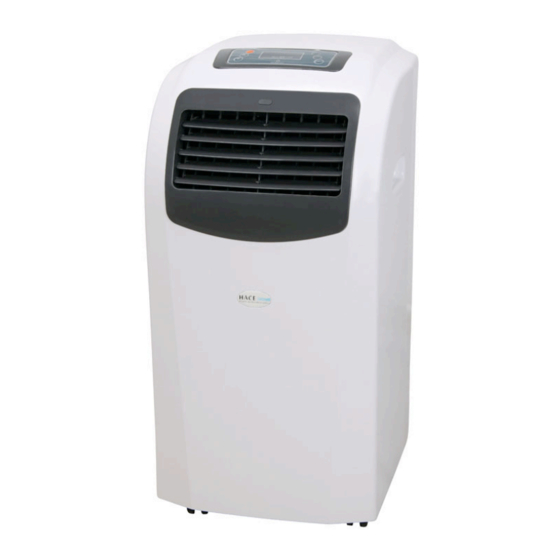

- Page 1 INSTRUCTION MANUAL For model: A002K-17C Portable Air Conditioner Please read this user’s manual carefully to ensure proper use, maintenance and installation...
-
Page 2: Table Of Contents
FOREWORD Portable air-conditioners are pieces of high value. In order to ensure your lawful rights and interests, please have professional technicians to do the installation for you. This instruction manual is the universal-purpose version. The units that you purchase might be slightly different from the ones described in the manual, but it does not affect your proper operations and usage. -
Page 3: Instructions
INTRODUCTIONS This portable air-conditioner is a small size appliance, which can adjust the temperature and humidity in a room. Its flexibility characteristics make it easy to use on different occasions in different rooms. It also has multiple functions, including cooling, dehumidifying and fanning ventilation. This unit was designed especially to be used in a family house, office, etc. -
Page 4: The Name Of Each Part And Its Function
THE NAME OF EACH PART AND ITS FUNCTION FRONT BACK... - Page 5 THE NAME OF EACH PART AND ITS FUNCTION Note: This panel is just for reference. The real product may look different. OPERATION AND INDICTION SECTIONS OF REMOTE...
-
Page 6: Use Of Control Panel
CONTROLLER USE OF CONTROL PANEL POWER SOURCE The AC socket must be firm and reliable. Don’t connect the portable air-conditioner to a multiply socket outlet which is also being used for other electrical appliances. Insert the AC power plug securely into the AC socket before using the unit, when it beeps after two seconds, press ”ON/OFF”... -
Page 7: Maintenance/Service
LED window will show “ ”, the fan speed cannot be adjusted. 3. When used as dehumidifier only, do not use the air exhaust dust. TIME SET FUNCTION 1.To set time to start the machine with the unit off (but power supplied), press “TIMER” button, the LED window will show “... - Page 8 Clean 1. Wash the air filter by immersing it gently into warm (about 40 C or 104 F) water with a neutral detergent, rinse the filter of detergent and dry it thoroughly in a shaded place. Mounting 1. Attach the filters to the filter cover with the attachment hooks on the inside surface of the cover.
-
Page 9: Reservation Methods
RESERVATION METHODS END OF SEASON OPERATIONS 1. Remove the stopper of continuous water drainage. Then operate the unit in fan mode for half a day until the pipe is dry. 2. Switch off the unit and disconnect the plug from the power supply. 3. -
Page 10: Installation
Air conditioner does Is there power? This is normal not operate at all Is it plugged in? Push the plug into the wall Did the fuse or circuit breaker break socket. off? Change the fuse. Is SET TIME suitable? Change SET TIME. Cooling efficiency is Is the air inlet or outlet blocked? Clear the blocking... - Page 11 The air exhaust duct mounting method 1) Fix the square end of the exhaust dust to the exhaust terminal of the unit 2) Put the other end (discharge) to the nearest window. Attention: the length of the air exhaust is between 500mm-1500mm. We suggest using the min. length when working.
- Page 12 If the air exhaust requires bending, see below.
- Page 13 Incorrect hose mounting (air exhaust bend too large, this will easily cause malfunction.) Window Kit Installation Your window kit has been designed to fit most standard “vertical” and “horizontal” window applications. However, it may be necessary for you to improvise/modify some aspects of the installation procedures for certain types of windows.
- Page 14 Installation Accessories Flexible exhaust hose-----------------------1/set Stretches from 50cm up to 150cm Flexible exhaust hose connector-----------1/set Flat exhaust adapter ----------------1/set Window’s kit----------------------------------1/set Adjustable window slider kit is from 67cm up to 129cm Note: The real products may look different.
