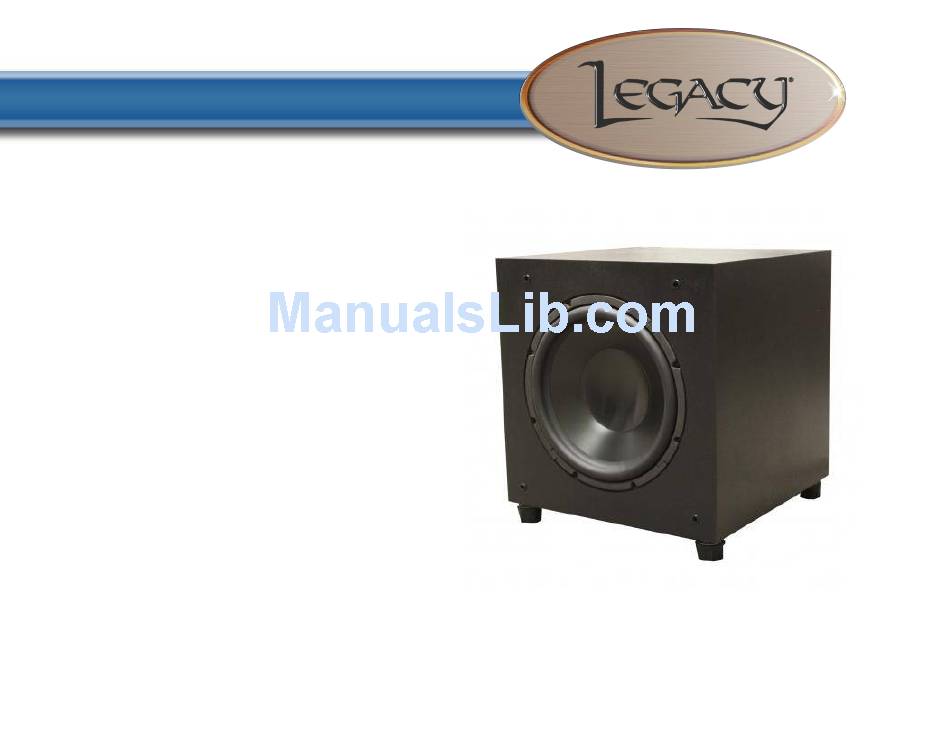

- Page 1 Owners Manual For The Pro 12 Subwoofer System...
-
Page 2: Table Of Contents
Table of Contents Page Registration Owners Record The Cabinetry / Our Commitment Warranty Setup Unpacking Your Speakers Speaker Placement Hooking Up Cables 9-10 Speaker Connections 11-13 Fine Tuning 14-15 Technology Specifications... -
Page 3: Owners Record
Refer to this when calling your dealer regarding this product. Model: Pro 12 Serial No: Date of purchase: Thank you for selecting a Legacy Loudspeaker System. These hand- crafted instruments will provide you with many years of listening en- joyment. -
Page 4: The Cabinetry / Our Commitment
Our Commitment A great deal of forethought, love and satisfaction is instilled in each piece of Legacy workmanship. We take pride in getting to know many of our customers on a first name basis. Your purchase of this product is backed by the renowned “Legacy... -
Page 5: Warranty
Electronic components such as internal amplifiers and digital processors are covered for three (3)years. Please register your product with Legacy Audio. Should you require service Legacy will require a proof of purchase in order to honor the warranty - so please keep your receipt. -
Page 6: Unpacking Your Speakers
V-board corner protectors. Molded foam end caps are used to protect the elegant cabinetry, and a plastic liner is provided as waterproofing. Please save this packing for future transportation. If cartons become damaged or misplaced, new ones can be purchased from Legacy Audio. -
Page 7: Speaker Placement
Speaker Placement Since the human ear is rather poor at localizing radiation frequencies below 125 Hz, good results may be obtained in a variety of room placements. Careful adjustment of the convenient rear panel controls will lead to seamless transition. Low frequency reinforcement occurs whenever woofers are placed near room boundaries. - Page 8 Speaker Placement Now, while such reinforcement might actually be beneficial at very low frequencies, excessive excitation can cause “overhang” or a droning effect at mid-bass frequencies. A way to minimize excitation of these resonances is to place your subwoofer asymmetrically relative to room boundaries.
-
Page 9: Hooking Up Cables
Hooking Up Cables When using the low-level inputs, we suggest using cables that are no longer than 5 meters. Longer lengths of RCA cable can result in greater noise and attenuation of the signal. These can be connected to the outputs of your preamplifier or dedicated LFE output. - Page 10 Hooking Up Cables When utilizing the speaker level inputs, the ideal conductor would have negligible resistance, inductance and capacitance. 12 AWG wire or larger is recommended. In summary, there are no perfect cables. The best way to approximate the ideal would be to keep loudspeaker leads as short as is practical.
-
Page 11: Speaker Connections
If using Left/Right output jacks from the preamp, the internal circuit module of the Pro 12 will sum the two channels together. When using the left and right low level inputs on the subwoofer, the internal crossover of the subwoofer is being used. The crossover frequency and level will be controlled by the appropriately labeled controls on the rear panel of the sub. - Page 12 Connect the preamp/processor’s “sub out” to the left channel RCA input (mono). Option 3: Connecting the Pro 12 using the High Level Inputs (from amplifier) If using the high level inputs it is highly recommended that you connect them in parallel with your main left and right loudspeakers.
-
Page 13: Speaker Connections
Speaker Connections Powering Up the Pro 12 1. Power Cable: The supplied power cable will plug into the socket on the back terminal plate of the unit. NOTE: Try to plug into the same AC circuit as the rest of your audio system, as this will avoid hum from ground loops. -
Page 14: Fine Tuning
Freq.: This control allows you to adjust the low frequency information. The crossover frequency range of Pro 12 is 40 Hz -200 Hz. -
Page 15: Fine Tuning
Fine Tuning Phase (0 °/-180 °): This control is essential in the proper setup of your subwoofer. If not set up properly, your main speakers and subwoofer can actually work against each other. If operating out of phase the subwoofer and mains will cancel, creating nulls at some frequencies (primarily upper bass). -
Page 16: Specifications
Specifications Applications: Studio or smal l er theater sub System Type: Powered 12" long throw driver with sub-bass radiator Mounting: Floor System Directivity: Omni Projection Distance: Up to 4,000 cubic ft room Subwoofer: 12" long throw Low Freqency Alignment: Mass loaded passive radiator Freq. - Page 17 Legacy Audio Distributor in Low Voltage Directive 2006/95/EC your country. A listing of Legacy EMC Directive 2004/108/EC Audio Distributors can be found on the Legacy Audio website www.legacyaudio.com or by contacting Legacy Audio at: 3023 E.
- Page 18 Notes:...
- Page 19 ©2014 Legacy Audio 3023 E Sangamon Ave. Springfield, IL 62702 Phone: 800-283-4644 Fax: 217-544-1483...
