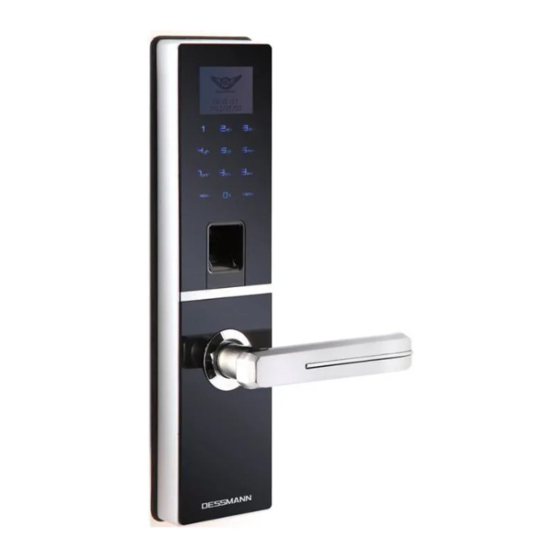

- Page 1 DESSMANN - FINGERPRINT LOCK User Guide G800FPC TX - with SMS Function...
-
Page 2: Table Of Contents
Contents 1 Introduction 1.1 Packing List ..........1.2 Technical Data . - Page 3 CONTENTS CONTENTS 6 Lock Functions 6.1 Alarm Functions ......... . 6.1.1 Illegal Intrusion Alarm .
-
Page 4: Introduction
Chapter 1 Introduction 1.1 Packing List Thank you for choosing a DESSMANN lock. The following accessories are provided in order to set up and use your smart lock: Item Item 01/ Lock Front Panel 1 Pce 06/ Lock Accessories 1 Set... -
Page 5: Technical Data
1.2. TECHNICAL DATA CHAPTER 1. INTRODUCTION 1.2 Technical Data Lock Front Panel (HxLxW) 302x70x28mm Dimensions Back Panel (HxLxW) 302x70x25mm Weather Resistant Body • Locker Mechanism • Hidden Mechanical Lock • Lock Power Supply 2 sets of 4 AA Batteries Emergency Power Supply 9V Battery Lock Tested More Than Durability... -
Page 6: Product Description
Chapter 2 Product Description Numeric Input Password and Name Keys: MENU: Enter Menu or Go to Previous Menu ENTER: Save or Confirm Scroll Up ↑: Scroll Down ↓:... -
Page 7: Basic Instructions
Chapter 3 Basic Instructions 3.1 Batteries Setup One set of 4 AA batteries or two sets of 4 AA batteries are required to power the lock. 3.2 System Start and Shutdown 3.2.1 Start Make sure the batteries are properly installed, then start the system as follows: •... -
Page 8: Sim Card
3.3. SIM CARD CHAPTER 3. BASIC INSTRUCTIONS 3.3 SIM Card If you want the lock to communicate via SMS, you need to install a SIM card into it. Make sure this SIM card can operate in your country and has sufficient credit to to send SMS. At the bottom of the back panel, beside the SIM Card Slot, press the small yellow button of the SIM card slot to release the SIM card case. -
Page 9: Quick Start
Chapter 4 Quick Start Functions Operation 1/ Start the System Enter 2/ Press MENU System Menu 3/ Scan Admin Fingerprint (Default: none) 1/ Enter System Menu 2/ Select ”2.User Setting” Admin 3/ Select ”1.Add Admin FP” 4/ Scan Fingertip Twice 5/ Enter a Name. -
Page 10: Open The Door
4.1. OPEN THE DOOR CHAPTER 4. QUICK START 4.1 Open the Door 4.1.1 with Finger Scan your fingertip on the authentication lens. Push the handle. Best Practices To guarantee an optimal authentication: • Make sure your finger is clean & dry •... -
Page 11: Close The Door
4.2. CLOSE THE DOOR CHAPTER 4. QUICK START Enter password & press ENTER to unlock the door. Push the handle. Smart Password To confuse people looking at you when you type your password, it can be inputted within a random string of number. -
Page 12: Lock Menu
Chapter 5 Lock Menu DESSMANN lock management software let you easily manage your users. Browse with the arrows keys & press ENTER to confirm each step. 5.1 Enter the System Menu System can only be managed with the admin fingerprint. -
Page 13: Set Password
5.2. SYSTEM SETTINGS CHAPTER 5. LOCK MENU • Fingerprint OR Card OR Password - Identification with either fingerprint OR password OR Card • Fingerprint AND Password - Identification with fingerprint AND password Notes: FP for Fingeprint, PWD for Password 5.2.2 Set Password Enter the last password in use and press ENTER. -
Page 14: Connect To Pc
5.3. MANAGER USERS CHAPTER 5. LOCK MENU Use the arrows key & press ENTER to confirm. Admin fingerprint authentication will be required to suc- cessfully reset the lock. 5.2.5 Connect to PC Connect to PC For factory use only, function not supported. 5.3 Manager Users... -
Page 15: Add Admin Fingerprint
5.3. MANAGER USERS CHAPTER 5. LOCK MENU 5.3.1 Add Admin Fingerprint Scan the new admin fingertip twice. Enter a name for this admin using the keypad. The name can only have a maximum of 6 digits or charac- ters. Press MENU to move to the next character. Press ENTER to confirm. Attention Pay special attention to the following: •... -
Page 16: Add Card
5.4. INFORMATION CHAPTER 5. LOCK MENU Best Practices To ensure optimal results, register the same finger 2 to 3 times. 5.3.3 Add Card Scan the new card twice. Enter a name for this card using the keypad. The name can only have a maximum of 6 digits or characters. Press MENU to move to the next character. -
Page 17: Users Log
5.4. INFORMATION CHAPTER 5. LOCK MENU 5.4.1 Users Log Users log informs you about: • User Name • Opening Method – F for Fingerprint – C for Card – P for Password – X for Fingerprint & Password • Opening Time Change page with the arrows keys &... -
Page 18: Chamberlain
5.5. CHAMBERLAIN CHAPTER 5. LOCK MENU 5.5 Chamberlain The Chamberlain option brings you many advanced features that enhance functionality & security. A Sim Card with SMS function from your local provider is required to enjoy these extra functions. 5.5.1 Panic Password Enter the last password in use and press ENTER. -
Page 19: Report User
5.5. CHAMBERLAIN CHAPTER 5. LOCK MENU Panic Function This user will open the door & send the following warning SMS to the numbers selected in 05-5-5 (Panic Numbers): Best Practice Register your right hand first finger for everyday use & your left hand first finger for emergency use. 5.5.3 Report User Select a user &... -
Page 20: Sms Numbers
5.5. CHAMBERLAIN CHAPTER 5. LOCK MENU Enter the desired time zone using the keypad, press MENU to move to the next digit, press ENTER to confirm. In this example, the user can only open the door from the 1st of january 2012 to the 31st of december 2013, from 09:30 to 18:00, from monday (1) to friday (5). - Page 21 5.5. CHAMBERLAIN CHAPTER 5. LOCK MENU • 6.1.1 Illegal Intrusion Alarm • 6.1.2 Multi-attempts Alarm • 6.1.3 Unlocked Door Alarm • 6.2.1 Batteries Low - First Warning SMS Center In order to send a SMS, set-up & select the SMS call center of your SIM Card provider (please contact them for more information).
-
Page 22: Lock Functions
Chapter 6 Lock Functions 6.1 Alarm Functions 6.1.1 Illegal Intrusion Alarm If an illegal intrusion occurs, such a thief trying to pick-lock your door, a buzzer will ring and the following will be displayed: SMS Function When an illegal intrusion occurs, the following warning SMS is sent to the numbers selected in 05-5-5 (Panic Numbers): 6.1.2 Multi-attempts Alarm After 3 failed authentications with fingerprint or password, the system will freeze for 3 minutes. -
Page 23: Unlocked Door Alarm
6.1. ALARM FUNCTIONS CHAPTER 6. LOCK FUNCTIONS SMS Function After 3 failed authentication with fingerprint or password, the following warning SMS is sent to the numbers selected in 05-5-5 (Panic Numbers): 6.1.3 Unlocked Door Alarm If the door is not properly close, a buzzer will ring and the door will display the following for 30 seconds. SMS Function When the door is not properly lock, the following warning SMS is sent to the numbers selected in 05-5-5 (Panic Numbers):... -
Page 24: Batteries Low
6.2. BATTERIES LOW CHAPTER 6. LOCK FUNCTIONS 6.2 Batteries Low • When the batteries are low, a buzzer will bip as a warning when you open the door & a message will be displayed on the screen at the same time. •... -
Page 25: Emergency Battery
6.3. EMERGENCY BATTERY CHAPTER 6. LOCK FUNCTIONS 6.3 Emergency Battery In case the lock runs out of battery. You can power the system with a 9V battery. Just plug a 9V battery on the 2 pins located below the front panel and you can operate your lock as usual. Don’t forget to change your batteries afterward. -
Page 26: Mechanical Key
6.5. MECHANICAL KEY CHAPTER 6. LOCK FUNCTIONS 6.5 Mechanical Key In case of system failure or damage, the lock can still be opened with a key. The keyhole is located at the bottom of the front panel. We advise you to leave the keys outside of your house, so you can get one of them in case of emergency. 6.6 Factory Reset Attention Factory reset will delete all the datas in the system:... - Page 27 6.6. FACTORY RESET CHAPTER 6. LOCK FUNCTIONS...
-
Page 28: Product Warranty
Product Warranty Any local warranty supersedes the following factory warranty. DESSMANN warrants to the original purchaser that the hardware product shall be free from defects in material and workmanship for twelve (12) months from the date of purchase. If a defect covered by this warranty occurs during this warranty period, DESSMANN or a DESSMANN AUTHORIZED REPAIR CENTER will repair the defective hardware product or component, free of charge. -
Page 29: Contact Us
Chapter 8 Contact Us Maintenance, Repair & Operations Tel: +86 571 8711 9266 Fax: +86 571 8711 9299 Mail: mro@dessmannlock.com www.dessmannlock.com...
