Resol DeltaSol BS/4 Quick Manual
Differential temperature controller
Hide thumbs
Also See for DeltaSol BS/4:
- Installation, operation, functions and options, troubleshooting (40 pages) ,
- User manual (20 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
DeltaSol
®
Differential temperature controller

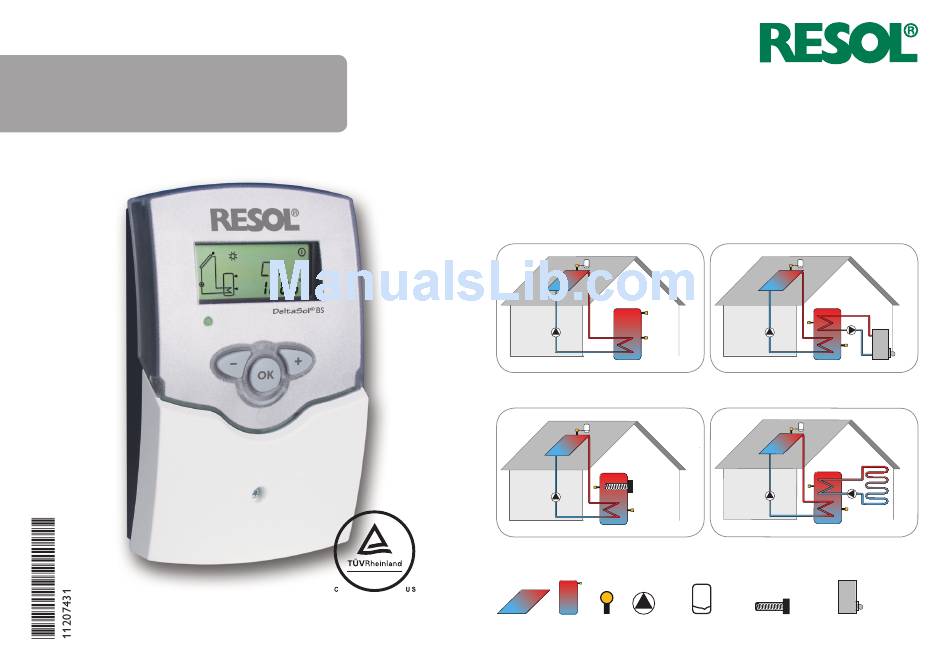

QUICKGUIDE
The cTUVus certification confirms that the controller is
certified to UL 60730-1A and CSA E60730.1.
BS/4
Basic system layouts to choose from:
A
3 sensors, solar collector & solar tank
C
Solar collector & solar tank, electric
booster (via auxiliary relay HR230)
Collector
Tank
Sensor
Pump
SP10 Overvoltage
(roof)
B
Solar collector & solar tank, gas booster
D
Solar collector & solar tank, hydronic
floor system
electric immersion
Afterheating with
protection
heater
burner
