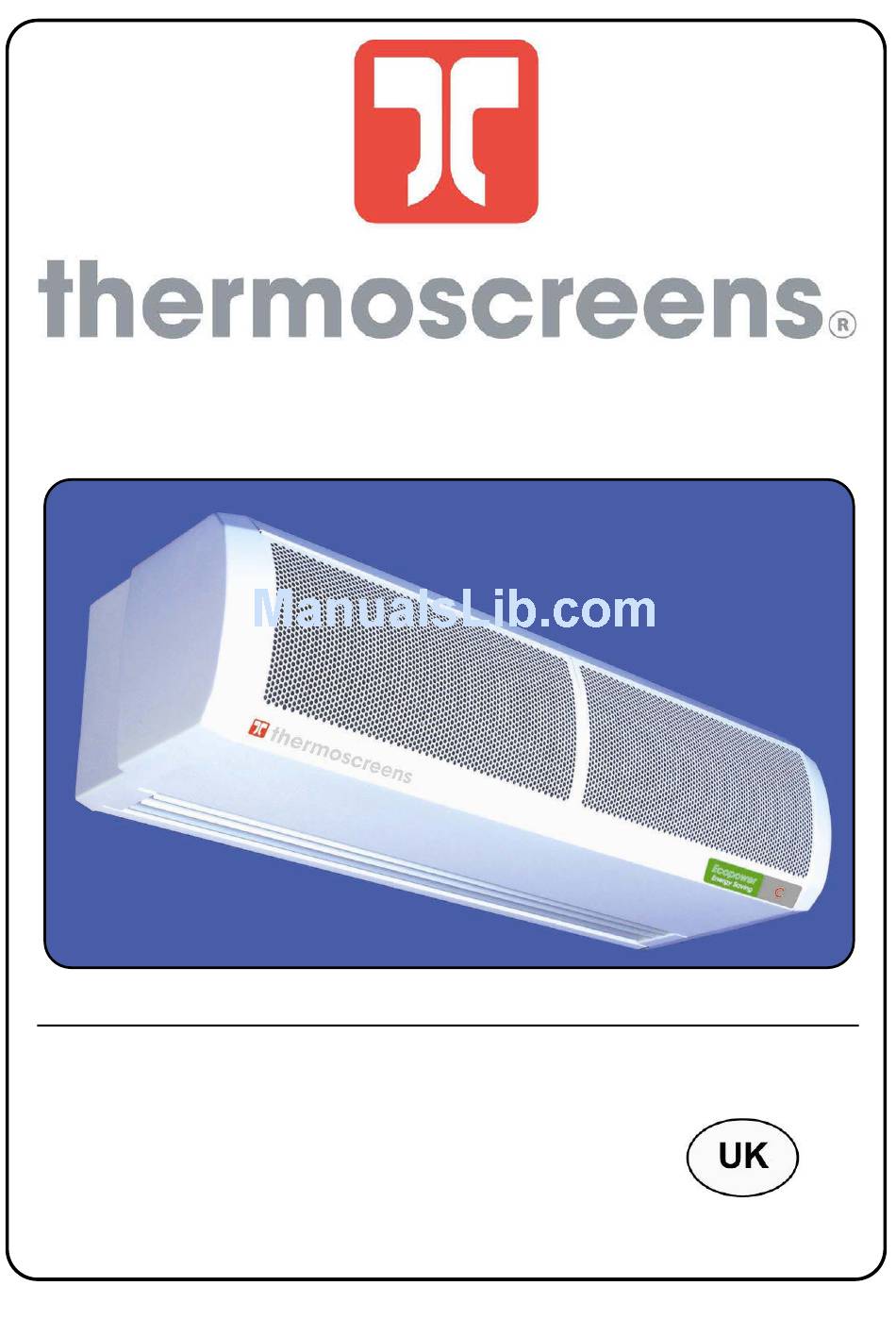

C RANGE AIR CURTAINS
INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING INSTALLATION
Thermoscreens Ltd
St. Mary's Road Nuneaton
Warwickshire England
CV11 5AU
Tel: +44 (0) 24 7638 4646
Fax: +44 (0) 24 7638 8578
4001160-4
Page 1 of 133

Advertisement

loading
Need help?

Need help?

Do you have a question about the C1000A and is the answer not in the manual?

Questions and answers

Summary of Contents for Thermoscreens C1000A

  • Page 1 C RANGE AIR CURTAINS INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING INSTALLATION Thermoscreens Ltd St. Mary’s Road Nuneaton Warwickshire England CV11 5AU Tel: +44 (0) 24 7638 4646 Fax: +44 (0) 24 7638 8578 4001160-4...
  • Page 2: For Your Records

    UN-PACKING YOUR C AIR-CURTAIN The following items are supplied and packaged within the boxes. C Air Curtain Remote Control Ecopower Electric & LPHW Manual Ambient Please note end caps are supplied loose and can be fitted during installation Motorised Valve Wall Brackets &...
  • Page 3: Wall Fixing

    INSTALLATION OF YOUR HORIZONTAL APPLICATION C AIR-CURTAIN The C air curtain has been designed for surface mounting only inside of the building. Location Ensure that the unit is mounted within its height specification of 1.8m minimum to 3.0m maximum (from floor level to the underside of the unit) and that it is situated as close to the door as possible with a 100mm air gap above the air curtain (see adjacent figure).
  • Page 4 4001160-4 Page 4 of 133...
  • Page 5 Cable glands used for the Electrical Input must be rated IP21 or higher. Table 1 Air Curtain Electrical Rated Power Current per Heat Output Weight Supply Input (kW) phase (A) (kW) (kg) (V/ph/Hz) C1000A 230/1/50 0.15 C1500A 230/1/50 0.20 C2000A 230/1/50 0.25 C1000W 230/1/50 0.15 C1500W 230/1/50 0.20...
  • Page 6 Two air inlet grilles are fitted on 1m, three on 1.5m and four on 2.0m models. Remove intake grilles by unfastening two screws on each grille; M4 x 10mm Pozi No.2 screws accessed via larger Optional filter fits inside hole in the bottom of the grille (see curve of inlet grille adjacent figure).
  • Page 7 To Master/Slave two or more air curtains together a suitable RJ lead should be connected from the Master to the Slave unit. Thermoscreens 3.0m RJ extension leads must be ordered separately. Additional air curtains, up to a maximum of eight units, may be connected as indicated below.
  • Page 8 Ecopower Controller Motherboard (v8) Function Control Comments Standard Fan Heat Interlock – DIP1 Option Suitable on vertical electrically heated As supplied, the default Designer air curtain. Maximum heat setting would be for The heat output is dependent on the fan output achieved if maximum fan speed heat and fan settings to speed.
  • Page 9 DIP switches fitted on the Ecopower board provide a selection of optional features as described above. Isolate and switch electrical power off before configuring and/or changing any DIP switch settings. • Easy plug-in arrangement for remote air sensor thermistor on a 1m lead. Plugging-in the remote air sensor to J3 disables the standard air sensor thermistor already fitted on the Ecopower board.
  • Page 10 4001160-4 Page 10 of 133...
  • Page 11 4001160-4 Page 11 of 133...
  • Page 12 4001160-4 Page 12 of 133...
  • Page 13 Ecopower Remote Control Operation Higher Fan Speed Higher Heat Auto Mode On / Off Lower Heat Auto On Indicator Fan Speed Indicator Lower Fan Speed Heating Level Indicator Push On/Off switch to turn On, then operate as follows :- Auto Switches between manual and automatic heat regulation.
  • Page 14 In the case of a fault condition (refer to flowchart) do not attempt to reset the thermal cut outs or replace the fuses, arrange for a Thermoscreens appointed technician or certified electrician to attend the unit to investigate the reason why the thermal cut outs/fuse(s) have operated.
  • Page 15 User Fault Finding Flowchart (for Ecopower Control) Is Electrical Switch on Electrical Power Power switched on Connect remote control Service Agent to and push On/Off switch reset thermal cut- to turn unit on out(s) Are the fans operating correctly Is the remote Do the LED’s Service Agent to control...
  • Page 16: Warranty

    Warranty If any problems are encountered, please contact your installer/supplier. Failing this please contact the Thermoscreens warranty department. All units are covered by a two year warranty period. Care has been taken in compiling these instructions to ensure they are correct, although Thermoscreens disclaims all liability for damage resulting from any inaccuracies and/or deficiencies in this documentation.

This manual is also suitable for:

C2000aC1500aC1000wC1500wC2000wC1000e ... Show all
