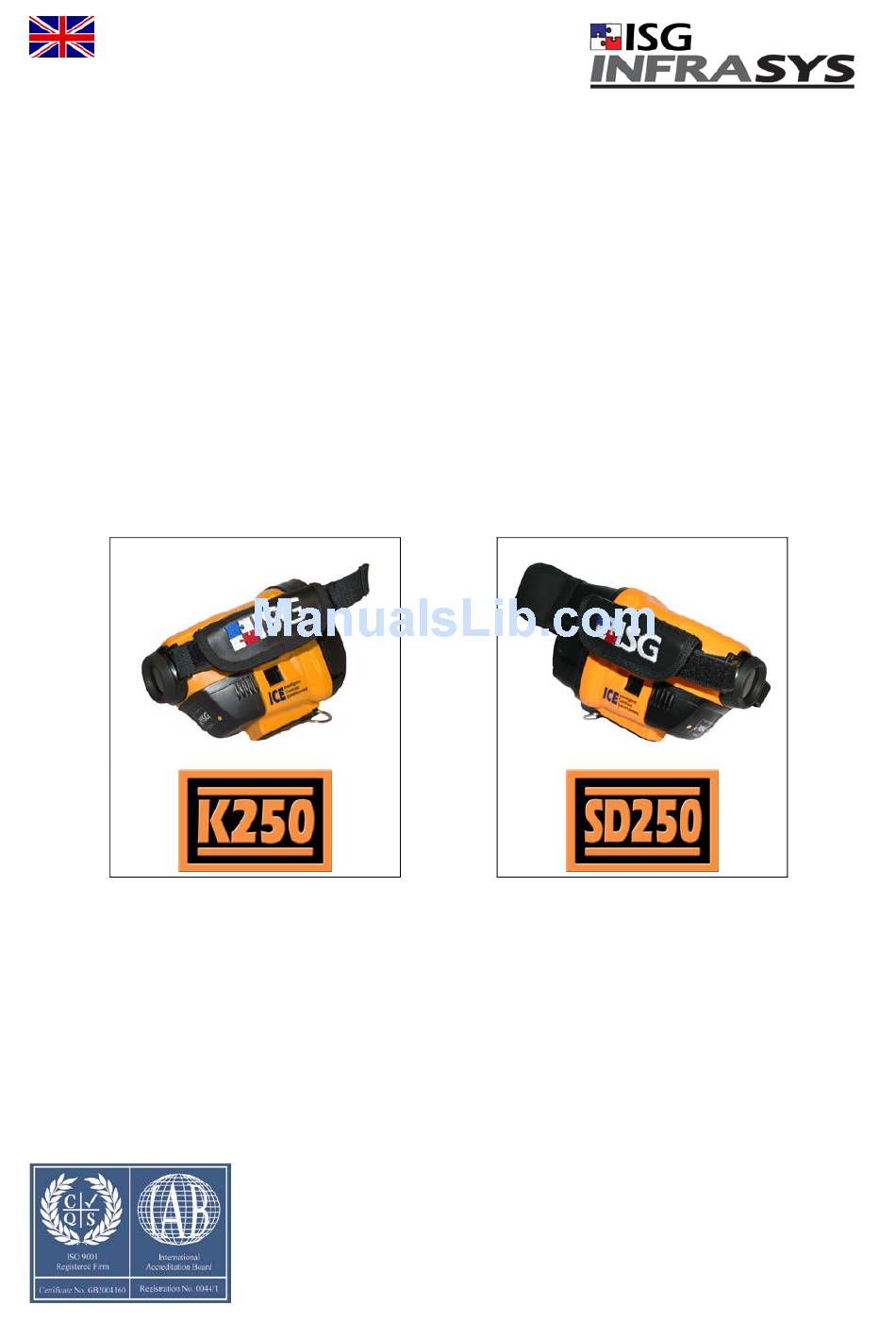

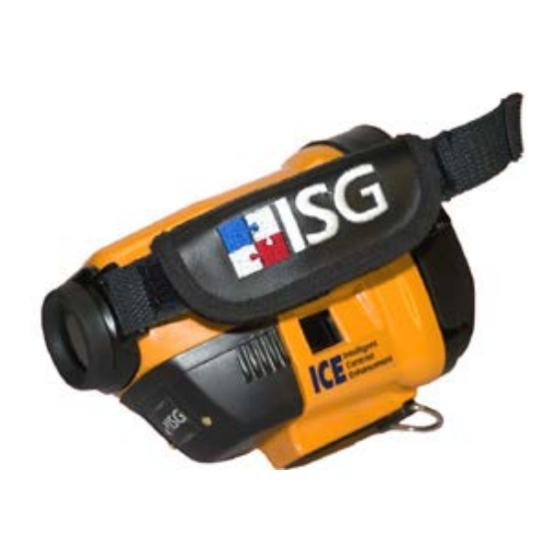

  • Page 1 Operating Manual © 2014, Infrared Systems Group Ltd.

  • Page 2: Table Of Contents

    Maintenance Information ............................15 Warranty ................................15 Technical Specifications ............................17 6.0 ISG INFRASYS Products and Support ........................19 Service Centre ..............................19 PLEASE NOTE: Information given in this Operating Manual is correct at time of going to print, however details are subject to change without notification.

  • Page 3: Regulatory Information

    1.0 Regulatory Information 1.1 Declaration of Conformity The EC Declaration of Conformity for your model of ISG INFRASYS thermal imager is supplied as a separate document on your Product Documents CD-ROM. Complying with the customer’s regulatory environment as stated in the purchase order, the frequency of the thermal imager’s transmitter (if fitted) is recorded inside the battery...

  • Page 4: Safety Warnings And Exclusions

    ISG INFRASYS prior to shipment of the item. 1.3 Safety Warnings and Exclusions All users of ISG INFRASYS Thermal Imagers must read the following safety warnings and exclusions carefully. ISG INFRASYS thermal imagers must only be used by personnel familiar with the usage and limitations of a thermal imaging camera, including a general understanding of thermal images and how they are interpreted.
  • Page 5 14) The ISG INFRASYS thermal imager is not rated as "Intrinsically Safe". Do not use the system in environments or atmospheres where static or a spark could cause explosion.

  • Page 6: Getting Started

    K250 / SD250 Operating Manual 2.0 Getting Started 2.1 Checking the Supplied Accessories Dependent on your order, your thermal imager is supplied with one of following accessory kits: Standard Kit Hard-Case Kit Vehicle Kit Optional Optional Optional (AA) Optional Optional...

  • Page 7: Understanding Parts And Controls

    K250 / SD250 Operating Manual 2.2 Understanding Parts and Controls LCD viewing screen Power indicator (green LED) Red button – Power/Functions BNC Video Connector & Dust-Cap Yellow button – Advanced Menu Functions ‘D’ ring for lanyard Hand straps & Pads...

  • Page 8: Preparing The Aa Alkaline Battery Cassette (Optional)

    K250 / SD250 Operating Manual 2.4 Preparing the AA Alkaline Battery Cassette (optional) Depress release button and allow the inner cassette to slide out. Insert 10 AA size alkaline batteries into the inner cassette, +ve and –ve orientation are shown inside the cassette.

  • Page 9: Preparing For Handling

    K250 / SD250 Operating Manual 2.6 Preparing for Handling Adjusting the Hand Straps 1) Peel back Velcro pad and adjusting straps. 2) Hold your thermal imager with your hand inserted through the hand strap and adjust the straps until comfortably fitted.

  • Page 10: Turning On The Power

    K250 / SD250 Operating Manual 2.7 Turning On the Power 1) Press the red button. 2) The power indicator lights. 3) Start up screen is displayed on LCD viewing screen denoting initialisation. 4) After initialisation, the thermal imager operates in Normal Imaging Mode and a thermal image is displayed.

  • Page 11: Basic Functions

    3.3 Focus Range The thermal imager automatically provides a focussed image of the scene over the range of distances indicated: K250 / SD250 / Elite Lite / M250 (Option A) M250 (Option B) © 2014, Infrared Systems Group Ltd.

  • Page 12: Ice Tm - Intelligent Contrast Enhancement

    3.4 ICE – Intelligent Contrast Enhancement * (Intelligent Contrast Enhancement) is a patented innovation from ISG INFRASYS. This technology operates to automatically enhance background contrast when viewing extremely hot objects. This improves visibility for the user as hot objects and cooler surroundings are clearly visible simultaneously.

  • Page 13: Colour Temperature Scale Indicator

    K250 / SD250 Operating Manual temperature background detail to facilitate rapid egress. Note When the thermal imager switches mode, a momentary interruption of the displayed image may be experienced. 3.6 Colour Temperature Scale Indicator The graduated scale colour palette provides a visual indication of the range of scene temperatures detected, enabling rapid recognition of hot spots.

  • Page 14: Operating The Zoom Feature

    K250 / SD250 Operating Manual 3.8 Operating the Zoom Feature The Zoom feature allows the user to zoom in to the scene using x2 magnification. Press and release the red button to cycle between x1 and x2 magnification. X2 – indicates which magnification the thermal imager is currently using.

  • Page 15: Using A Pc To Transfer Saved Files (Video Capture Only)

    K250 / SD250 Operating Manual To Record a Video Press and hold the Yellow button for 3 seconds (approx.). The Record symbol is displayed. The LED flashes red and green alternately. Press the Yellow button to Stop. 3.10 Using a PC to Transfer Saved Files (Video Capture only) To perform this action you will require a PC and the Mini-USB Video lead (optional accessory).

  • Page 16: Trouble Shooting

    K250 / SD250 Operating Manual 4.0 Trouble Shooting If you have a problem with your thermal imager, refer to this checklist. Consult your dealer or the ISG INFRASYS Service Centre if problem persists. 4.1 Power Source Problem Cause Solution Sect.

  • Page 17: Additional Information

    5.2 Warranty ISG INFRASYS warrants the thermal imager and its accessories to be free from defects in materials and workmanship for a minimum period of twelve (12) Months from the date of shipment from the factory, as specified on the Warranty Certificate. This warranty is in lieu of all other warranties expressed or implied.
  • Page 18 K250 / SD250 Operating Manual Warranty Disclaimer This warranty shall be null and void if ISG INFRASYS determines that the thermal imager or its accessories have been damaged by neglect, misuse, accident, abuse, power surges, over- exposure to heat, abnormal wear and tear, or other perils outside the design tolerances of the thermal imager.

  • Page 19: Technical Specifications

    Non-Warranty Repairs In the event that ISG INFRASYS determines that the repair is not covered by the warranty, ISG INFRASYS shall inform the end user/distributor and provide an estimated cost of repair. Upon receipt of a purchase order from the end user/distributor, ISG INFRASYS shall undertake the repair and return the thermal imager.
  • Page 20 Size (L x W x H): SD250: 485 mm x 392 mm x 192 mm (1.59’ x 1.29’ x 0.63’) K250: 406 mm x 330 mm x 174 mm (1.33’ x 1.08’ x 0.57’) Weight with foam insert: SD250: 4 kg (8.8 lbs) K250: 3 kg (6.6 lbs)

  • Page 21: Isg Infrasys Products And Support

    K250 / SD250 Operating Manual While ISG Infrasys has taken care to ensure the accuracy of the information contained herein, it accepts no responsibility for the consequences of any use thereof and reserves the right to change the specification of goods without notice.
