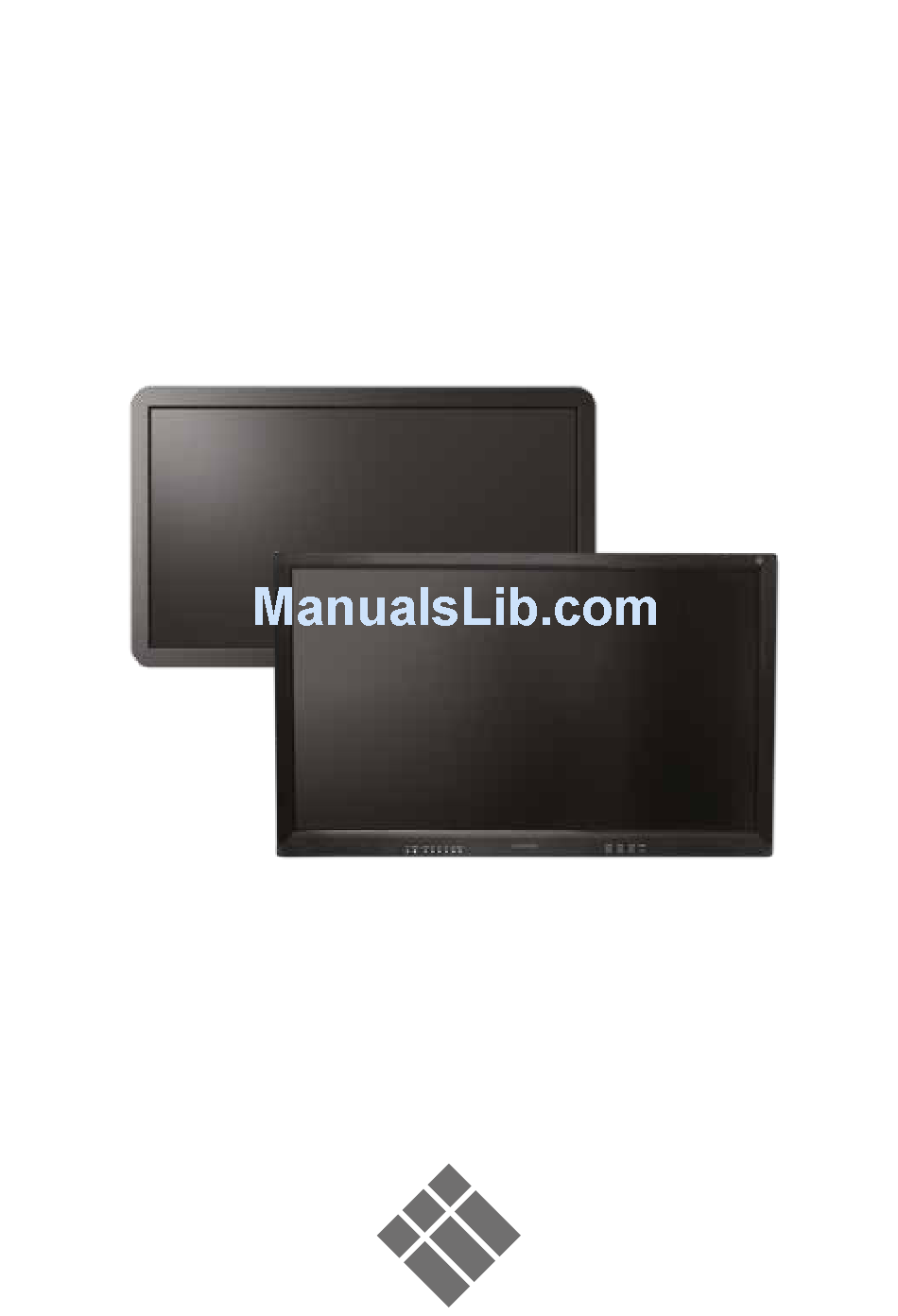

- Page 1 OPERATIONS MANUAL...
-
Page 2: Table Of Contents
Contents Contents Safety precautions..................................2-4 Basic operation....................................5 Accessories....................................... 5 •Installation....................................... 6 - Connect monitor..................................6 - Connect satellite receiver or decoder............................ 6 • Description for the keys on the front panel.......................... 7 • Rear panel interface................................. 8-9 • Remote control description..............................10 •... -
Page 3: Safety Precautions
This is a safety feature. If you are unable to inssert the plug fuly into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to www.i3-learning.com... - Page 4 (Components with this symbol near the circuit board) specified in the safety test documents can be used for replacement during the maintenance. Ask the manufacurer for components if there are no same components for replacement. i3TOUCH OPTICAL SENSE - operations manual...
- Page 5 27. Unplug the power plug and contact the distributor or service center when the monitor has smoke, abnormal noise or odd smell. 28. Don’t knock or scratch the monitor with any hard objects, don’t touch the screen with the fingers so as to avoid smears or scratches. www.i3-learning.com...
-
Page 6: Basic Operation
2. In PC mode, the monitor will switch to standby mode automatically if it does not word for more than 5 minute. • Save before shutdown When PC signal source is used, please set the resolution of PC display card according to below modes; (1360x768 @60Hz, 1024x768@60Hz, 800x600 @60Hz, 1920x1080@60Hz) Accessories i3TOUCH OPTICAL SENSE - operations manual... -
Page 7: Installation
• Connect the satellite receiver (or decorder) with video camera first • Then connect the video camera with the LED monitor, or connect the satellite receiver (or decoder) with the LED monitor directly. www.i3-learning.com... -
Page 8: Description For The Keys On The Front Panel
Receive the signals sent by remote control. receive window Power indicator A red light indicates it is in standy mode; A green light indicates it is in working mode Note: For reference only, please subject to the actual model. i3TOUCH OPTICAL SENSE - operations manual... -
Page 9: Rear Panel Interface
EARPHONE Earphone signal output YPBPR Connect every terminal to the component video. AV IN AUDIO L R Video and Audio signal input. AV AUDIO L R Video and Audio signal input (L R). ON/OFF Power on/off POWER SWITCH power www.i3-learning.com... -
Page 10: Rear Panel Interface
Connect to PC D-Sub terminal VGA2 Connect to PC D-Sub terminal VGA3 Connect to PC D-Sub terminal VGAOUT Link to the rest of the display device Note: For reference only, please subject to the actual model. i3TOUCH OPTICAL SENSE - operations manual... -
Page 11: Remote Control Description
REPEAT : Press to change the playing mode. A-B : Repeat the segment between A and B. Colour buttons : Short cuts-follow the coloured links. Handle the remote control with care. Avoid falling off or being trampled or splashed with liquids. www.i3-learning.com... -
Page 12: Source List
Source List Press Source button to show source list. Press button to choose the mode. Press OK button to enter the mode. i3TOUCH OPTICAL SENSE - operations manual... -
Page 13: Screen Menu
Programme Edit, and then press OK button to enter menu. Signal Information Press button to select Signal Information, and then press OK button to Signal Information. CI Information Press button to select CI Information, and then press OK button to see CI Information. www.i3-learning.com... -
Page 14: Picture
Colour Temp, and then OK button to ener and press button to slect cool/ normal/ warm mode. Noise Reduction to select Noise Reduction mode, and then OK to enter submenu. You can select off/low/middle/ Press high/default by pressing button. i3TOUCH OPTICAL SENSE - operations manual... -
Page 15: Sound
Surround Sound, and then OK button to enter submenu, then press Press button to select off/surround mode. AD Switch to select AD Switch, and then OK button to select on/off, and you can adjust AD volume value by Press pressing button when AD switch is set to on. www.i3-learning.com... -
Page 16: Time
Auto Standby and then OK button to set and select off/3h/4h/5h etc. Time Zone Press to select Time Zone, and then OK button to enter submenu, and press to adjust the time zone. i3TOUCH OPTICAL SENSE - operations manual... -
Page 17: Lock
Block Program Press to select Block Program, and then OK button to enter the submenu and then green button to choose lock/ unlock mode. Parental Guidance to select Parental Guidance, and then OK button to select off/4/5/6/7/8 etc. Press www.i3-learning.com... -
Page 18: Setup
Aspect Ratio to select Aspect Ratio, and then OK button to enter submenu, and then press Press to select Auto/4:3/16:9/ Zoom1/Zoom2. Blue Screen to select Blue screen and OK button to select on/off. Press i3TOUCH OPTICAL SENSE - operations manual... -
Page 19: Usb Mode
OK button to enter submenu. 2. Press 3. Select C:\, press OK button to enter submenu 4. Select the specific music, and press button to play, press button to play previous one, press to play next one. 5. Press Exit button to exit. www.i3-learning.com... -
Page 20: Film Play
3. Select C:\, press OK button to enter submenu 4. Select the specific text, and press button to play, press button to play previous one, press to play next one. 5. Press Exit button to exit. i3TOUCH OPTICAL SENSE - operations manual... -
Page 21: Pc Mode (Vga Input) Specification
1024x768 65.000 48.4 60.00 VESA 1024x768 75.000 56.5 70.00 VESA 1024x768 78.750 60.0 75.00 VESA 1280x960 108.000 60.0 60.00 VESA 1280x1024 108.000 64.0 60.00 VESA 1280x1024 135.000 80.0 75.00 VESA 1360x768 133.200 85.0 47.7 VESA 1920x1080 154.000 66.547 59.988 www.i3-learning.com... -
Page 22: Trouble Shooting
• Audio system: B/G, D/K, l, l, l’ • Power: AC: 110V-240V • Frequency: 50/60 Hz • Maximum audio output power: 10W/8 Ωx2 Television (Note: Specifications are subject to change without prior notice. All pictures are for reference only.) i3TOUCH OPTICAL SENSE - operations manual... -
Page 23: Safety Precautions
1. Where the MAINS plug or an appiance coupler is used as the disconnect device, the disconnect device shall remain readily operable. 2. The I class structural device should be connected to the power output socket with protected GND interlinkage. www.i3-learning.com... - Page 24 OPTICAL SENSE - operations manual...
- Page 25 Grand Rapids, MI 49503 5500 Middelfart 44866 Bochum Danmark Germany T +616-451-7800 T +45 64 41 04 90 T +49 (0) 2327 960 50-0 F +616-451-9698 F +45 64 41 17 47 F +49 (0) 2327 960 50-50 AUTHORISED RESELLER WWW.I3-LEARNING.COM INFO@I3-LEARNING.COM...
