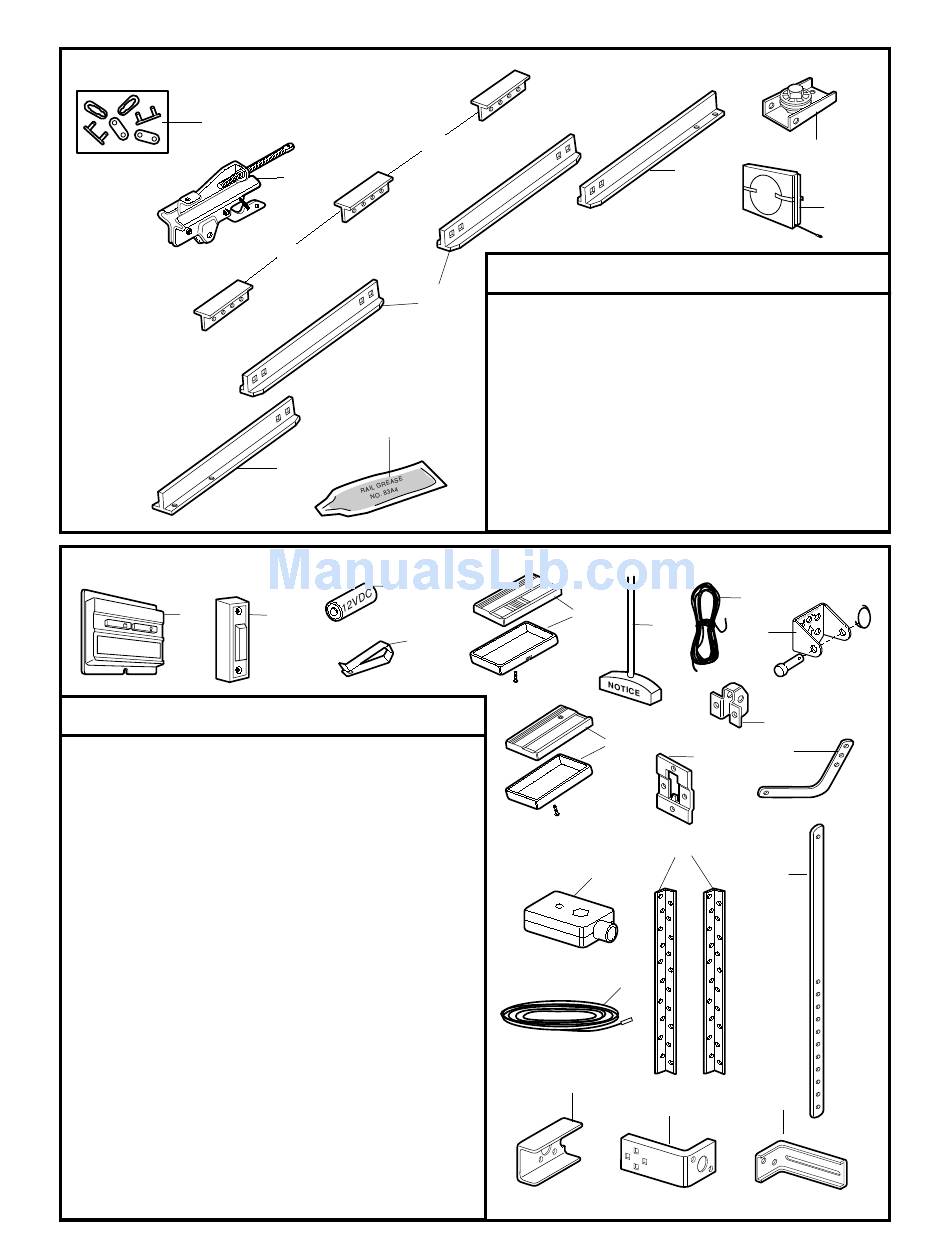

Rail Assembly Parts

1

Installation Parts

1
LO CK
LIG HT
KEY PART
NO. NO. DESCRIPTION
1 41A4251-4A Multi-function door control panel
2 41A4166 Lighted door control button
3 10A14 12V battery
4 29C128 Transmitter visor clip
5 41A3888-6 Multi-function remote control transmitter,
housing & screw (no circuit board)
6 41A4601 Single-function remote control transmitter,
housing & screw (no circuit board)
7 41A2828 Manual release rope & handle assembly
8 217A238 2-conductor bell wire – white & white/red
9 41A4353 Header bracket w/clevis pin & fastener
10 12B374 Door bracket
11 12B380 Door bracket plate
12 178B35 Curved door arm section
13 178B34 Straight door arm section
14 12B350 Hanging brackets
15 41A4373 Safety sensor kit
(receiving and sending eye only)
16 41B4115 2-conductor bell wire with connector
(2 rolls) – white & white/black
17 12B483 C-wrap bracket
18 12B484 Square hole mounting bracket
19 12B485 Slotted hole mounting bracket
NOT SHOWN
41A3475 Installation hardware bag (includes
hardware illustrated on page 7).
41A4116 Safety sensor hardware
114A1858 Owner's manual
Repair Parts
3
2
3
4
8
5
3
2
4
KEY PART
NO. NO. DESCRIPTION
1 1A995 Master link kit
2 41A3489 Complete trolley assembly
3 183B112 Rail braces (each)
4 183B111 T-rail – center sections (each)
5 183B113 T-rail – end sections (each)
6 41A3473 Chain & cable in dispensing carton
7 41B2616 Cable pulley bracket assembly
8 83A4 Rail Grease
NOT SHOWN
41A2848 Rail assembly hardware kit (includes
hardware illustrated on page 7).
5
6
15
16
17
36
7
5
6
8
7
9
10
12
11
14
13
18 19
