TECHNICAL SPECIFICATIONS

Mechanical
Width
Height
Mounting Depth
Power Connector
Included Accessories
Power
+12V Power Consumption
-12V Power Consumption
Inputs and Outputs
Internal Signals (3.5mm Jacks)
External Signals (RCA & S-Video Jacks)
Video Timing
FORMAT
H Sync Frequency
H Sync Pulsewidth
V Sync Frequency
Frame Clock Frequency
Total Scanlines
Active Scanlines
Active Pixels
Frame Clock Frequency
Total Scanlines

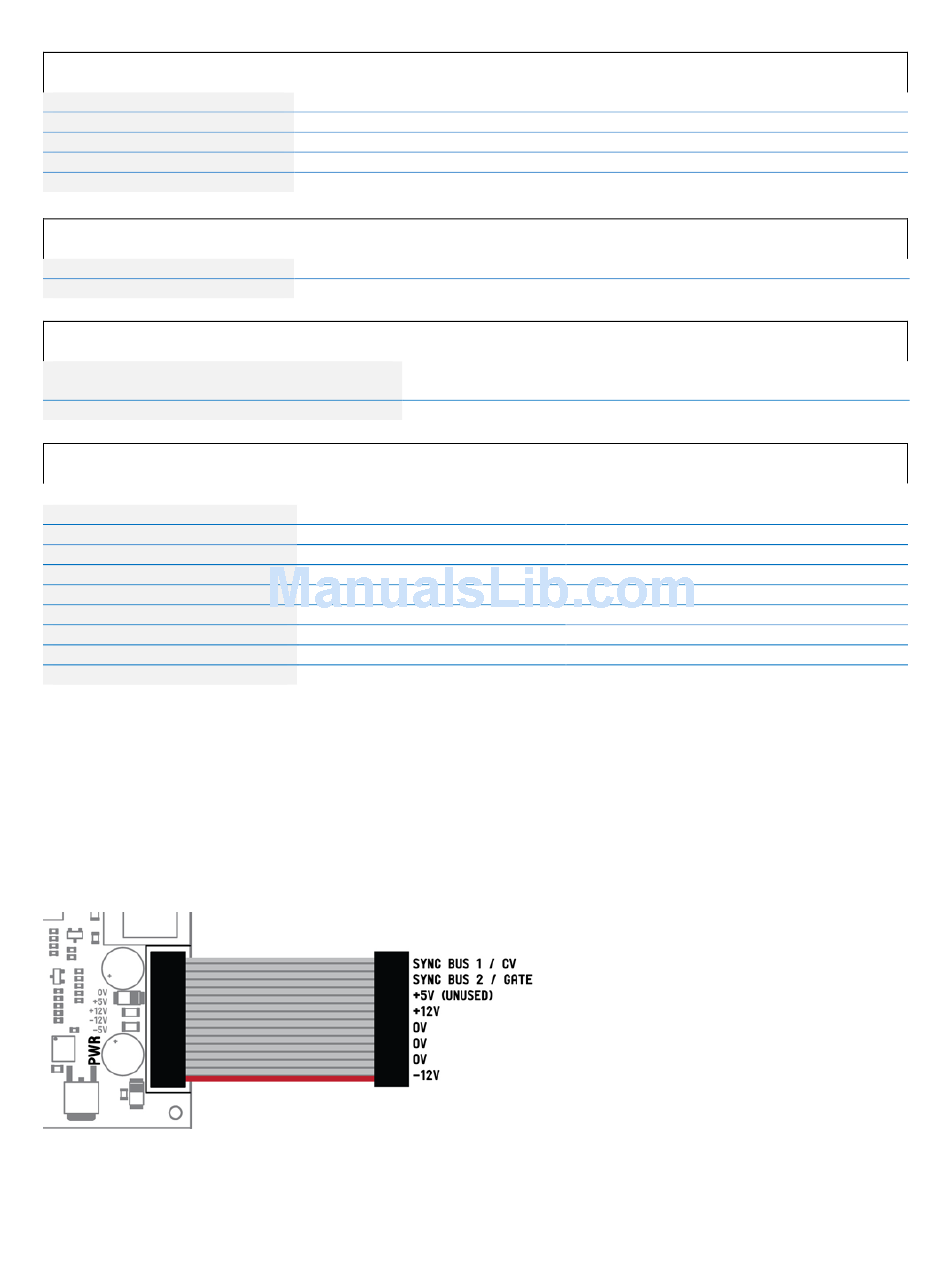

MODULE INSTALLATION

1. Remove module, mounting screws, and power cable from their packaging. Visually inspect all pieces
to ensure there is no obvious damage, such as broken connectors.
2. Power down your synthesizer and disconnect the power cable from the wall outlet.
3. Attach the included power cable to the module's power connector, then connect the other end to the
power distribution bus in your EuroRack synthesizer case as shown below.
4. Position the module on the mounting rails in your EuroRack synthesizer case and screw down all four
mounting screws. After double checking your connections, power your synthesizer back up.
26HP, 5.2 inches
3U EuroRack Standard
1.75 inches
16-pin Male IDC Connector
(4) M3 x 6mm Mounting Screws, (1) 16-pin EuroRack Standard Power Cable
180mA
230mA
0-1V, DC Coupled, +/-12V tolerant, high bandwidth
0.5V threshold for trigger inputs
1V after 75R input termination, AC Coupled, high bandwidth
NTSC/480i
15,734KHz
4.7uS
59.94Hz
29.97Hz
525
480
720
29.97Hz
525
4
PAL/576i
15,625KHz
4.7uS
50Hz
25Hz
625
576
720
25Hz
625
