OUTPUT ENCODER

The Output Encoder section takes the output of the Colourizer & Compositor section, converting
signals inside your video synthesizer into standard video signals which may be displayed and recorded.

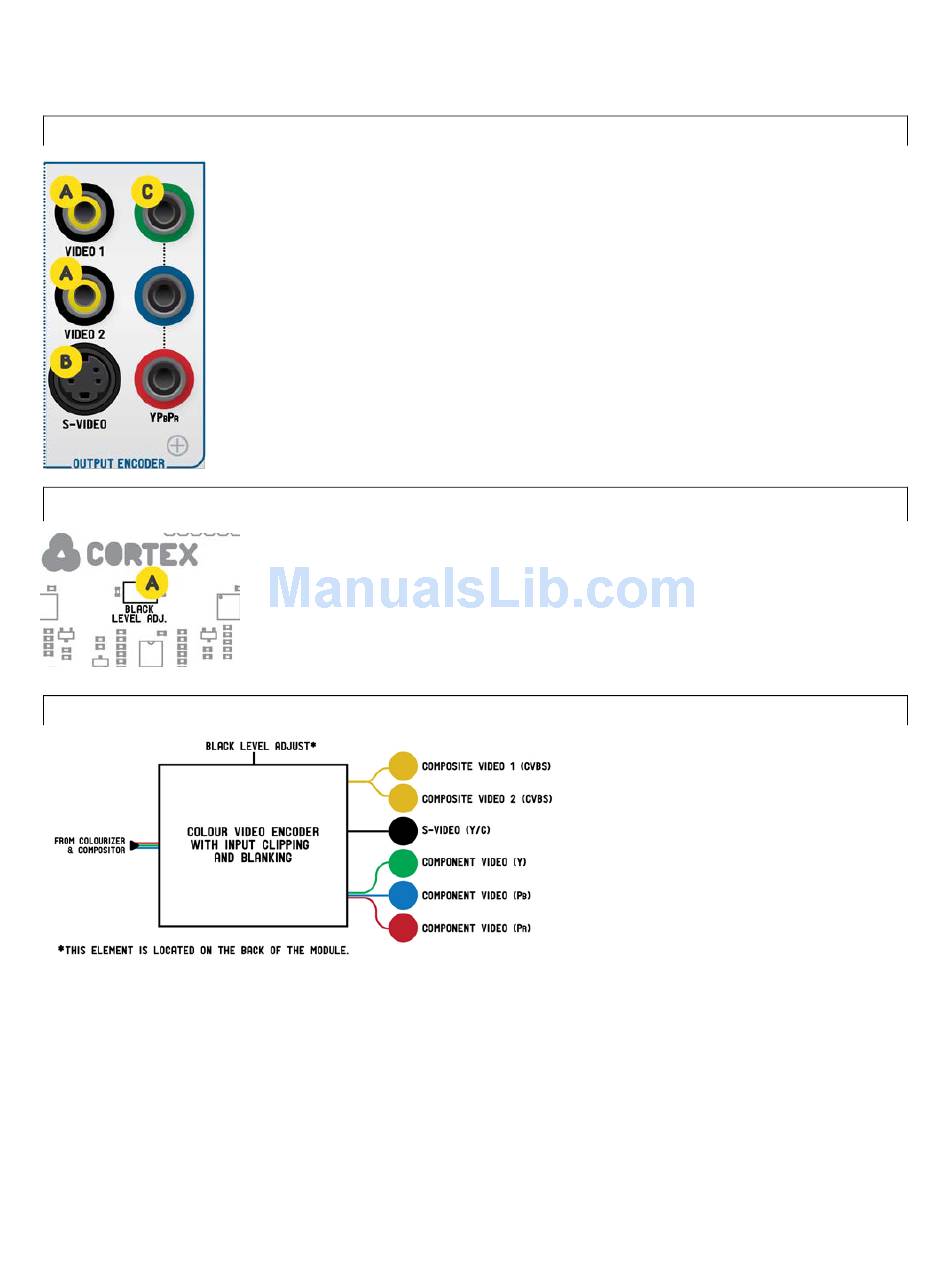

Frontpanel
Rear
Block Diagram
A. Composite video CVBS output jacks. Both jacks output identical video
signals.
B. S-Video Y/C video output jack. Separate luma (Y) and chroma (C) signals to
S-Video format Mini DIN 4 jack.
C. Component YPbPr video output jacks. Component video outputs for the
highest quality full color analogue signal path.
A. Black Level Adjustment trimmer. Adjusting this trimmer will adjust the
brightness level of all the encoder outputs when calibrating for displays and
recording devices.
