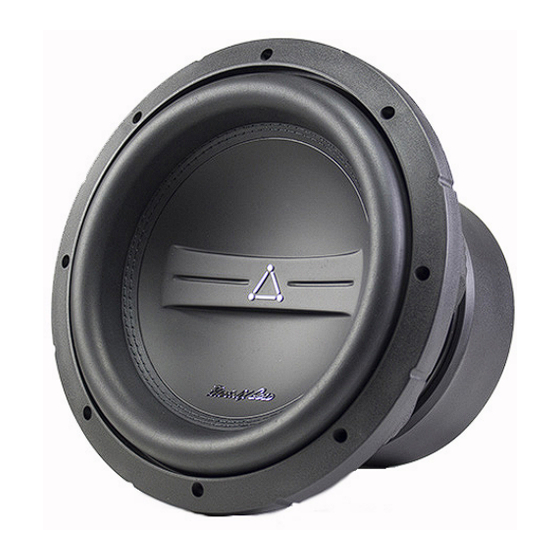

Phoenix Gold Ti310d2 User Manual

Subwoofers

Features

• 40mm of Peak to Peak Excursion

• 2.5" Ultra High Temp Copper Wound Voice Coil

• Radial Backplate Venting System

• Easy Connect Single Location Speaker Terminal

• Long Throw Dual Spider Suspension

• High Excursion CAE/CAD Motor Design

• Woven Tinsel Leads

Subwoofer Manual

Models: Ti310d2, Ti310d4, Ti312d2, Ti312d4

• Black Anodized Aluminum Former

• One Piece Injection Polypropylene Dustcap

• High Roll Butyl Rubber Double Stitched Surround

• Optimized for Sealed or Vented Enclosures

• Rigid Powder Coated Anti-Resonant Castbasket

• Quick Disconnect Series/Parallel Wires Included

Table of Contents

Do you have a question about the Ti310d2 and is the answer not in the manual?

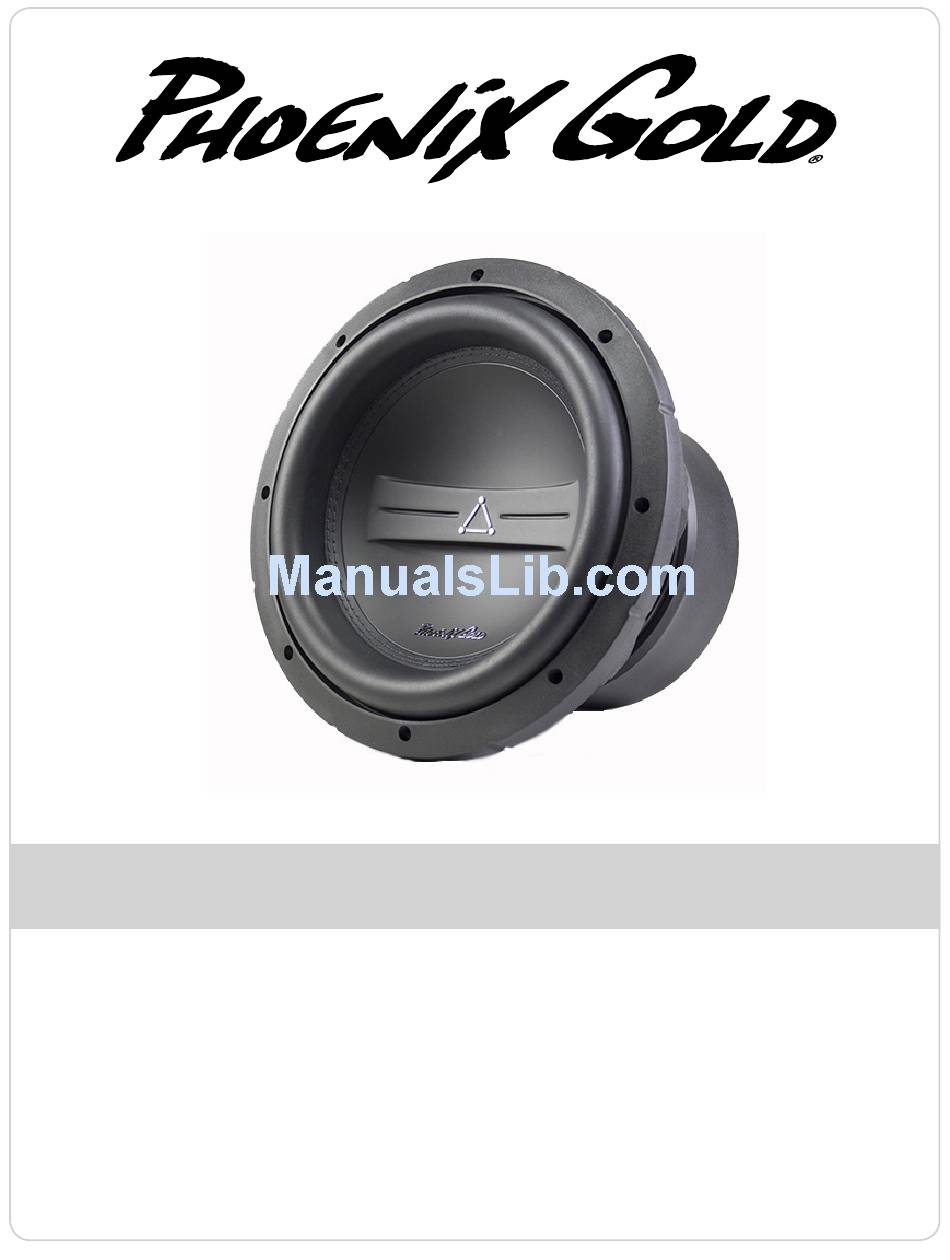

Page 1 Subwoofer Manual Models: Ti310d2, Ti310d4, Ti312d2, Ti312d4 Features • 40mm of Peak to Peak Excursion • Black Anodized Aluminum Former • 2.5” Ultra High Temp Copper Wound Voice Coil • One Piece Injection Polypropylene Dustcap • Radial Backplate Venting System •...
Page 2: Building An Enclosure
Building an EncLOSURE Phoenix Gold subwoofers are overbuilt in virtually every way conceivable. It is important that the subwoofer’s enclosure is built to these same exacting standards. The enclosure must be constructed of at least .75 inch MDF for 10 and 12 inch subwoofers or .625 MDF for 8 inch subwoofers.
Page 3 Subwoofer Owner’s Manual Vented Enclosure Recommenda tions VENTED - SPL Ti310d2 Ti312d2 Ti310d4 Ti312d4 Volume(cu.ft.) 1.25 1.75 Vent Opening(in.) 2 x 10 2 x 12 Vent Length(in.) 24.5 23.5 Tuning Freq 40Hz 38Hz VENTED - Normal Ti310d2 Ti312d2 Ti310d4 Ti312d4 Volume(cu.ft.)
Page 4 LIMITED WARRANTY Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) year from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion), repair or replace the defective product with new or remanufactured product at no charge.

Ti310d4Ti312d2Ti312d4
