Archos 605 User Manual
Helmet camcorder for gen 5 series
Hide thumbs
Also See for 605:
- User manual (131 pages) ,
- Supplementary manual (5 pages) ,
- Specifications (2 pages)
Related Manuals for Archos 605
Summary of Contents for Archos 605

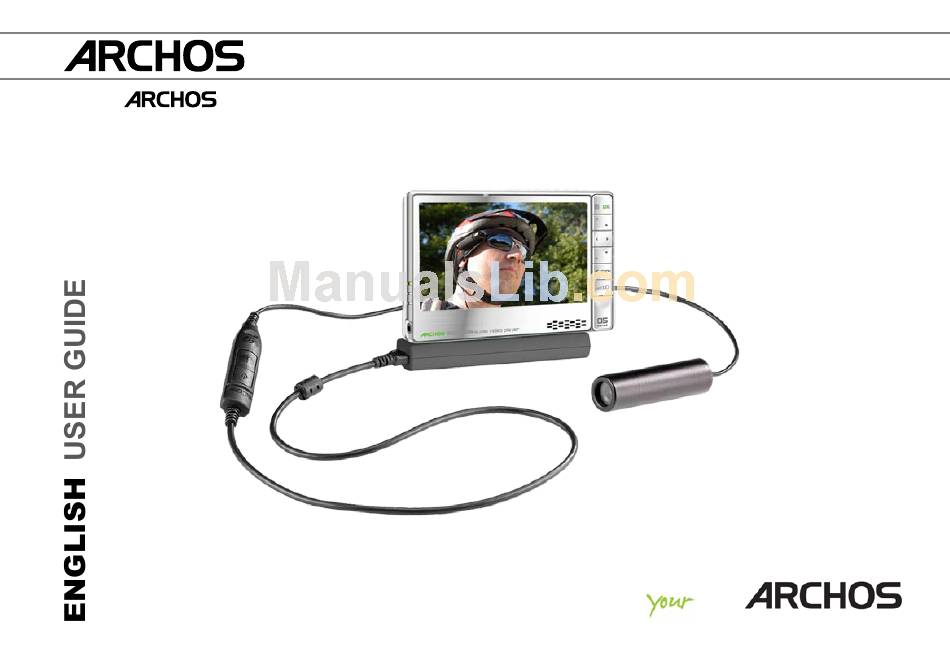

- Page 1 HELMET CAMCORDER gen 5 series Entertainment ARCHOS 605: sold separately - VERSION 1.0 - P/N: 105814...
-
Page 2: Table Of Contents
Technical Specifications ..10 neeD HelP? Here are some ways to find the information you may need: On our Website See the Frequently Asked Questions section on www.archos.com/faq. Also visit www.archos.com/manuals for the most recent version of this manual. Contact our Technical Support Team Visit www.archos.com/support for e-mail support. U.S. & Canada: Call 877-300-8879 (toll free) -
Page 3: Box Contents
Legal & Safety Notices Helmet Cam Headband Protective Pouch DVR Travel Adapter ConneCTions You can make these connections before switching on the device or while it is running. Carefully connect/disconnect the adapter to/from your ARCHOS device. Do not force: you could break the connectors! -
Page 4: Helmet Camcorder Description
HelmeT CamCorDer DesCriPTion a Recording status (red light) b Connection status (green light) c Microphone d Status/Information button e Start/Stop recording button ARCHOS device (not included) Connector plug DVR Travel Adapter Camera Controller... -
Page 5: Making Recordings
To start recording: Press the Start/Stop button on your camera controller. The red and green lights will momentarily go on, and on the screen of your ARCHOS device, you will see a message indicating that a video signal is detected. The image transmitted from the camera will then be displayed and the recording will start. - Page 6 Making a Recording Using the Video recorder Application of your ARCHOS Device PlEASE REFER TO THE SECTION ON MAkING A VIDEO RECORDING IN THE USER MANUAl OF YOUR ARCHOS DEVICE. • Open the Video recorder application. • Your ARCHOS device now powers the camera. On the screen, you see the image the camera is cur- rently seeing. This preview screen thus permits you to adjust the position or direction of the camera before you start your recording. Settings A number of settings such as resolution and bitrate can be adjusted.
- Page 7 Do not be concerned if the controller’s lights are not lit while your Helmet CamCorder is in use. This is normal. • The loudspeaker of your ARCHOS device will be disabled during the recording as this could result in audio feedback. The microphone integrated into the camera controller will record the sound. Therefore make sure that it is not covered in order to obtain the best possible sound for your recording.
-
Page 8: Precautions
PreCauTions Please note the following points in order to avoid damage to your ARCHOS Helmet Cam: • Do not attempt to take the camera apart. There are no customer-serviceable parts inside, and you could receive an electric shock. • Handle the camera with care. A violent shock, for example through a fall, could damage it. • Use the camera in moderate conditions. Avoid cold or hot temperatures, humidity over 85%, and dust or sand. • The same precautions apply to the controller. ... -
Page 9: Register Your Product
Your ProDuCT! www.archos.com/register Once you unpack your ARCHOS product, we ask that you take a few minutes to register it. This will ensure that you have access to our help line and that we will be able to answer your inquiries, either by telephone or e-mail in the quickest and timeliest manner. This will also allow us to keep you informed about software updates or special late-breaking information about your device. Please use your Internet connection and connect to the above shown web page to register your ... -
Page 10: Technical Specifications
Depth of Field ... 1.5 to 10 meters White balance ..Automatic light Sensitivity ..1.0 lux / F 1.2 Power Supply ... Powered by ARCHOS device Recording resolution with ARCHOS device ... 512 x 384 (Optimal) or 640 x 480 (VGA) Weight ..approx. 100 g – 3.5 oz with DVR Travel Adapter Dimensions ... 20.5 mm (Ø) x 72 mm (L) CCD resolution ... Model NTSC: 512 x 492 - Model PAl: 582 x 500 Operating temperature ... approx. 5°C to 35°C / approx. 41°F to 95°F System requirements ...
