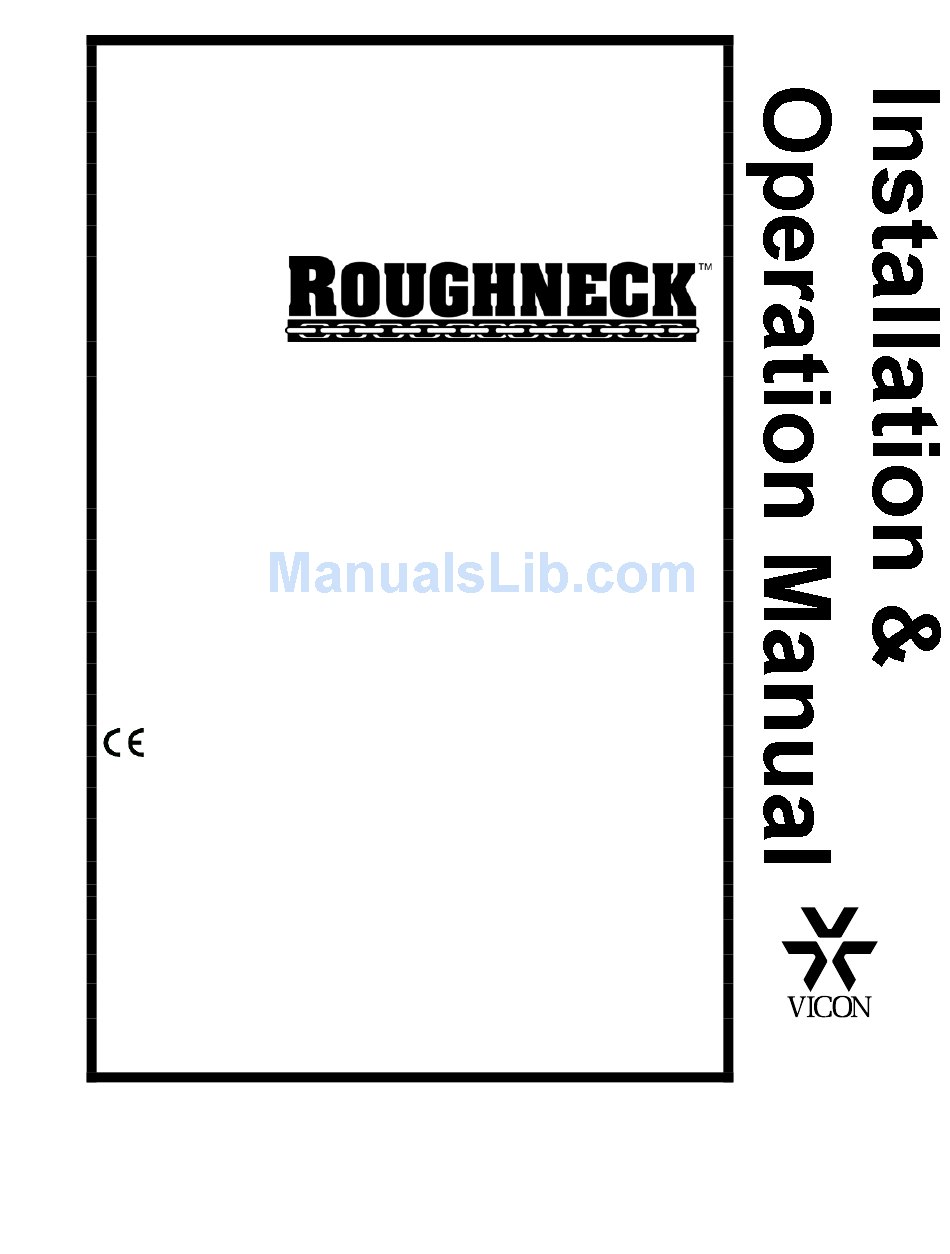

Page 1
V926 MINIATURE FIXED-POSITION IMPACT-RESISTANT CAMERA DOMES Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
Page 3
FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.
Page 4
The product shows a significant change in performance. 6. Attachments - Use only UL Listed Vicon recommended attachments to prevent unit damage and personal injury. 20. Replacement Parts - Use only Vicon specified replacement 7.
Class 3 outdoor/wet rated power supply. Read this manual through completely before attempting installation. Vicon’s Roughneck V926 Series of Camera Domes offers a compact domed housing incorporating a fixed camera and lens combination protected by a polycarbonate shell. They are configured for in-ceiling or in-soffit installation for indoor/outdoor applications.
Installation Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to deliver the equipment in the same condition as it left the factory. Inspection for Visible Damage Immediately inspect the cartons upon delivery. Make a note of any visible damage on all copies of the carrier’s freight bill.
Accessory Kit There is one (1) kit included with all configurations of Roughneck V926. It provides the necessary tool to attach the tamperproof lower dome: Description Quantity Tamperproof driver bit, ¼ hex T-15 Lens focusing tool Tool for set screw roll adjustment Mounting the Unit The Roughneck V926 is intended for in-ceiling or in-soffit installation.
Page 10
2. Remove the two (2) 6-32 screws that hold the camera module assembly in place to remove it. Do not lose screws. 3. Examine the electrical box and choose the most convenient knockout hole(s) for cable routing. Install a suitable strain relief or conduit fitting and route the cables through the connector and into the box. 4.
Page 11
Figure 3 Camera Connections 6. Connect the video cable male BNC to the female pendant cable BNC video connector from the PC board. Note: After mating the male/female BNC connectors, it is recommended that these connections be wrapped with electrical tape to prevent shorts. ALTERNATE CONNECTIONS: For the model using the twisted-pair video connection, connect the twisted pair module provided to the BNC connector;...
Page 12
Note: Use only a UL Listed Class 2 indoor/dry or Class 3 outdoor/wet power supply. Note: Vicon systems and components, like most electronic equipment, require a clean, stable power source. Voltage irregularities such as surges, drops, and interruptions can affect the operation of your equipment and, in severe cases, damage certain components.
Page 13
Figure 5 Camera Position and Lens Adjustments Installation • 7 XX150-06-00 Rev 1010 Roughneck V926 Fixed-Position Camera Dome...
Camera/Lens Adjustments After all cabling is complete, the camera and lens can be adjusted. The camera/lens is set through an OSD menu system using a joystick control. Joystick Camera RS-232 Serial Connection DOWN Connection RIGHT LEFT Video Connector CENTER Figure 6 Camera Control Joystick Camera Settings There is a joystick control along the rim of the camera that is used to enter the OSD for camera settings.
Page 15
1. E X P OS URE 6. P RIV A CY LENS MASK 1 E. SHUTTER MASK 2 MASK 3 MAX_DR MASK 4 MASK 5 SENSE_UP MASK 6 2. COLOR 7. S Y NC WB MODE SYNC MODE R-Y GAIN V_PHASE B-Y GAIN 3.
Page 16
Exposure The Exposure menu allows for the selection of Lens, Electronic Shutter, BLC, Maximum Dynamic Range, AGC and Sense Up. Lens From the Lens screen, select MANUAL for a fixed lens or DC for a varifocal lens. Both choices offer a Level adjustment (0-99) to adjust the brightness of the lens.
Page 17
Day & Night The Day & Night menu allows the selection of the day/night mode as well as color and aperture suppression. D&N Mode Day & Night Mode can be set to Auto, Color or Black-and-White. Auto is a true day/night function where the camera automatically switches between color and b/w depending on the light level.
Page 18
Side Light Compensation can adjust the brightness of the image in the corners of the screen. It can be turned ON or OFF (default). ON allows settings of 0-50. Highlight Mask Exposure is ON or OFF (default) selectable. When ON, the camera cuts peak white levels, masking highlight areas of a scene.
Page 19
Sync Synchronization type, INTERNAL or AUTO (Line Lock), for the camera is selected from this menu. Sync Mode Select the synchronization, INTERNAL (default) or AUTO, which is line locked to prevent picture roll when switching between cameras in multiple camera installations. V-Phase If synchronization is line lock, the V-PHASE is selectable from 0 to 299.
Exit The Exit menu offers a choice of ways to exit the OSD menu system. From the Exit menu, select to Exit the OSD menu, Save & Exit to save current settings before exiting the OSD menu or revert to factory default with Factory Set. Lens/Autoiris Adjustment ∞...
Final Installation When the camera and lens adjustments are complete, the mask/lower dome/trim ring assembly can be installed. Refer to Figure 7. Lift the mask/lower dome/trim ring assembly up to the installed camera interface plate and align the molded ribs inside the mask with the camera module assembly. This keeps the mask in place and allows it to rotate with the camera/lens assembly.
Operation When power is applied to the camera, the Roughneck V926 views the selected scene. Maintenance The Roughneck V926 Impact-Resistant Fixed-Position Camera Dome requires no scheduled maintenance except for the occasional cleaning of the lower dome. Care and Cleaning of Lower Dome The inside surface of the smoked (gray-tinted) dome is easily scratched.
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
Caution: Careful selection of the proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended are installed. In all cases, coaxial cable impedance should be 75 ohms.
Twisted-Pair Cable Caution: Careful selection of proper cable is essential to obtain the best performance. Vicon assumes no responsibility for poor performance when cables other than the recommended types, or equivalent, are used. Materials Use a pure copper stranded conductor with or without a tin-plating to obtain a low DC resistance. Do not use cable with either steel or aluminum stranded conductor because they do not transfer signals effectively for long distances.
Technical Information ELECTRICAL Input Voltage: 24 VAC ±20%, isolated input. Use only a UL Listed Class 2 indoor/dry or Class 3 outdoor/wet power supply. Current Rating: 0.58 A nominal, including heater. Power Consumption*: 14.0 W nominal, including heater. Maximum Operating Distance: Table 2 Power Wire Size vs.
Page 27
MECHANICAL Application: Indoor/outdoor. Mounting: In-ceiling, 4x4 electrical box/bracket. Dimensions: Height: 4.1 in. (104 mm), above ceiling. Height: 3.4 in. (86 mm), below ceiling. Total Diameter: 6.44 in. (164 mm). Dome Diameter: 4.73 in. (120 mm). Total width of electrical box: 4.75 in. (121 mm). Weight: Approximately 2.25 lb (1.02 kg).
Page 28
Table 3 Camera/Lens Specifications V 926-C312/T V 926-N312/ V 926-C26/ M ode l V 926-C312/T-P V 926-N312-P V 926-C26-P Cam e r a 1/3-inch Sony HA D II CCD 1/3-inch Sony HA D II CCD 1/3-inch Sony HA D II CCD Image Device 2:1 interf ace, NTSC/PA L 2:1 interf ace, NTSC/PA L...
Vicon Security Management Systems (SMS) All Models: All hardware is warranted for two years from date of original retail purchase. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase.
Page 30
Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-2288 800-645-9116 Fax: 631-951-2288 Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Vicon Germany Kornstieg 3 D-24537 Neumuenster...
