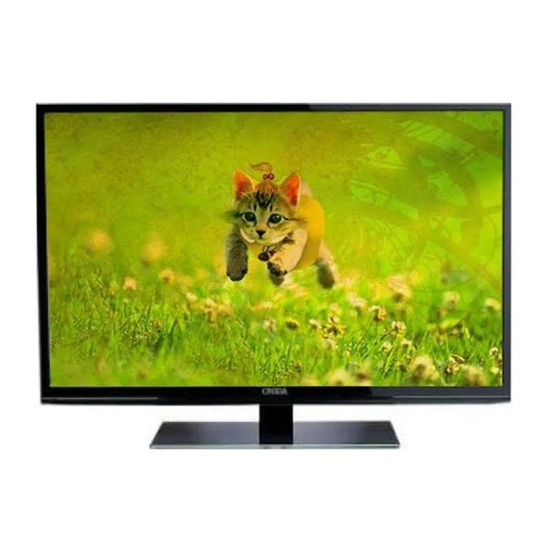

Onida LEO39FD Instruction Manual

PC 30/04/2013
I N S T R U C T I O N M A N U A L
1. Quick Set-Up
After unpacking the carton, please make sure the following accessories are present.
Accessories*
• Instruction Manual
• USB Cable (Optional)
• Two 1.5V AAA Batteries
• Remote Control
• Wall Mount Bracket (Optional)
• Screws, Wall Mount Spacers (As applicable)
• Silica - Gel Bag (Optional)
• Component Audio IN Cable (Optional)
• AV Out Cable (Optional)
• Component IN Cable (Optional)
• Stand Base (Optional)
In case you find any item missing, contact your dealer.
* Subject to change as per Model.
2. TV Installation.
Installation Options:
• You can install the TV on a wall or place it on a table-like surface.
• To eliminate any risk of injury from the TV falling, it should be mounted / placed securely.
Wall Installation
Do not install the TV on a weak wall surface, like plaster etc.
1
3. Remote Control 3. Remote Control
Remote Control
The remote can control all the functions of TV. Some functions can
also be adjusted with the Keys on the control panel of the TV SET.
Please install the batteries before you use the remote.
1. STANDBY ( ): This key is used to turn the LCD/LED TV ON from
standby mode or put the TV to standby mode.
2. NUMBER KEY (0-9) : These key are used to select channel number
by directly pressing number keys.
3. CH. MGR: The user can press CH. MGR key to view the CH. Manager
menu.
4. MY VIEW : The user can press MY VIEW key to view the list of favorite
channels.
5. MUTE : The user can press MUTE key to mute the sound of LCD/LED TV,
when the TV is already in MUTE, the user can un-mute the TV by
pressing this key.
6. BROWSE BOX : The user can press BROWSE BOX key to browse the tuned
channels in RF source.
7. CH[Up]/CH[Down] : The user can select the channel in upward /
downward direction. This key can also be used as / navigation in menu.
8. V+/V-: The user can press these keys to adjust (Increase/decrease)
the volume level. This key can also be used as / navigation menu.
9. OK( ) : The user can press OK key to confirm the selection while
doing menu setting.
10. Back / : Press Back / key to exit from menu and submenu display.
When the User Menu is not displayed, Pressing of Back /
swap between current viewed channel to previously view channel.
11. iPLAYON : Press iPLAYON key to enter into USB (iPLAYON) mode.
Press iPLAYON again to come out from USB mode.
12. MENU / i : Display the main menu on screen when Menu key is pressed
once and exits from main menu when Menu key is pressed again.
13. SOURCE : This key is used to display the source menu where
the user can select between the given input sources.
14. S.MODE : This key enables user to select different sound modes
(Normal, Music, Flat & Movie).
15. SURR : This key enables the user to select from the following surround
options (ON / OFF)
16. P .SIZE : This key enables user to change the picture size to 16:9,
Zoom1, Zoom2, Auto and 4:3.
17. P .MODE : This key enables the user to select different picture modes
(Normal, Vivid, Cinema, News and Sports ).
18. BASS+ : Not available / optional, Press the Bass+key to make the
Woofer On/Off.
2
11050999
3. Remote Control
Multimedia Keys
Stop playback[ ]
1. Press STOP key to stop the running Video/Audio content playing
from the USB.
Previous [ ]and Next [
During playing, press
chapter, then each press of the key will skip a chapter till the start
of the disc.
Each press of key during playing will skip the current chapter
and play the next one.
Fast Forward [ ]and Fast Rewind [
FF KEYS-Fast Forward contents with speeds of 2x, 4x, 8x, 16x
FR KEYS-Fast Rewind contents with speeds of 2x, 4x, 8x, 16x
Pause Playback [ II ]
1. Press II ket to pause play back (still mode). The sound will be
muted during still mode.
2. Press PAUSE to resume normal play back.
1.4 Basic Operations
To view the TV and use its features you have to turn the set ON as per
following procedure:
1. Connect the AC power cord of LCD/LED TV to AC outlet.
2. Press the STANDBY Key on remode control or STANDBY key on
Control Panel of LCD/LED TV to switch the set ON.
Volume Adjustment
1. Press the V+/V- keys on remote control or
V+/V- keys on Control Panel of LCD/LED
TV to adjust volume.
2. If you want to switch the sound OFF, press
the MUTE Key on remote control.
3. To un-mute the LCD/LED TV, press MUTE
Key on remote control or V+/V- keys to turn
the Volume ON.
Programme Selection
1. Press CH ( ) / ( ) key on remote control
or / Key on control panel of
LCD/LED TV to browse programmes in
upward or downward direction. Channel
number is displayed on the right upper corner
of the LCD/LED TV. Channel starts from 01.
3
4. Key Controls
1. Menu:
Displays the on-screen user menu. Press Menu key on Control Panel of the set to display
the user menu on LCD / LED TV screen.
2. CH+/CH- (Channel Up / Channel Down):
It is used to select a program or menu item. Use CH+ Key to change program to the next
channel or CH- Key to change program to the previous Channel. When in TV MENU, CH+
selects 'FEATURES' and CH- selects 'SETUP'. In the on screen menu use CH+/CH- Keys
to navigate UP/DOWN similar to keys on remote control to select menu item.
When the LED/LCD TV is in Stand-by mode, then CH+/CH- key is used to switch it ON.
3. V+/ V- (Volume Up / Volume Down):
It is used to adjust the volume/adjust the Menu Settings, Use V+ Key to increase the
volume and press V- Key to decrease the volume. When in TV MENU, V+ selects the
'SOUND' and V- selects the 'PICTURE' adjustment. In the on-screen menu use V+/V- keys
as you use the keys on remote control to adjust menu setting.
4. Stand-by:
Turns the LCD/LED TV ON / OFF.
5. Source (Optional):
Display the source selection menu where the user can select the desired input source.
key once will
Note:
For Control Keys refer Cabinet Pictures page.
4
5. Setting Up TV MENU Program
Navigating Through Menu
The TV MENU display allows user to access the FEATURES/SOUND/SETUP/PICTURE adjustments
are available in LCD/LED TV.
To navigate through the TV MENU press the Menu key on remote control or Menu Key on Control
Panel of LCD/LED TV to display TV MENU.
]
key to skip back to the previous
]
Features
Press the CH ( ) key on remote control or
CH+ on Front Control Panel of LCD/LED TV to
select FEATURES Menu.
Press the V- ( ) key on remote control or V-
key on Front Control Panel of LCD/LED TV to
X MUTE select PICTURE Menu.
01 01
5
Setup
• Press Menu/i key on remote control to display TV Menu.
• Press the CH key on remote or CH- key on control panel to display setup menu.
• Press CH / CH keys on remote or CH+/CH- on control panel to select from following options.
1. Language 2. Source 3. Auto Tuning 4. Manual Adjust 5.Channel Manager
Language
The user can select the Language of his preference through this option.
• Press Menu/i key on remote control or Menu key on Control Panel of LCD/LED TV to display
main TV Menu.
• Press CH key on remote control or CH- key on Control Panel of LCD/LED TV to select Setup.
• Press CH / CH key on remote control or CH+ / CH- key on Control Panel of LCD/LED TV to
select Language.
• Press V+( ) / V- ( ) key on your remote control or on Control Panel of LCD/LED TV to select the
desire language from the available list.
• Press the Menu/i key once or Back key on remote control or Menu Key on Control Panel of
LCD/LED TV to return to the previous menu. Repeatedly press Menu/i key or Back key on remote
control or Menu Key on Control Panel of LCD/LED TV to exit from display.
6
Auto Tuning
• This process allows the user to set all the channels of the Local Cable Network.
• Press Menu/i key on remote control or Menu key on Control Panel of LCD/LED TV to
display main TV Menu
• Press CH key on remote control or CH- key on Control Panel of LCD/LED TV to select setup.
• Press CH / CH
the select Auto Tuning.
• Press V+ key on your remote control or V+ key on control panel to select Auto Tuning and
then press OK key on remote or CH+ key on control panel to confirm your selection.
• When OK key is pressed on Auto Tune confirm screen, Auto tuning screen appears which
indicates the RF frequency tuning status.
• Press OK or Menu/i key on remote control or Menu key on Control Panel of LCD/LED TV to
stop the auto tuning.
Sound
Press the V+( ) key on remote control or V+
key on Front Control Panel of LCD/LED TV to
select SOUND Menu.
Setup
Press the CH ( ) key on remote control or CH-
key on Front Control Panel of LCD/LED TV to
select SETUP Menu.
7
6. Setup
Features
You can access the Features available in your LCD/LED TV using Feature Menu on screen.
• Press Menu/i key on remote control or Menu key on Control Panel of LCD/LED TV to display
main TV Menu.
• Press CH on remote control or CH+ on Control Panel of LCD/LED TV to select Features.
Below are the features which you can access in the Feature Menu.
1. OSD Transparency
2. Wake Up Alarm
3. Sleep Timer
4. Blue Screen
5. Backlight (Optional)
6. Current Time
After selecting the required option you can adjust it by V+/ V - keys either from remote control or
control panel of the TV.
• Press Menu/i key on remote control or Menu button on Control Panel of LCD/LED TV to display
main TV Menu.
• Press V- key on your remote control of your LCD/LED TV to select Picture Menu.
• Press CH ( ) / CH ( ) button on your remote control to the select from following options
1. Picture Mode
2. Brightness
3. Contrast
4. Color
5. Hue
6. Sharpness
7. Advanced
After selecting the required option you can adjust it by
V+/ V - keys either from remote control or control panel
of the TV.
8
SETUP
key on remote control or CH+/ CH- Key on Control Panel of LCD/LED TV to
7. Features
8. Picture
