Summary of Contents for Clare Controls ClareVision
-

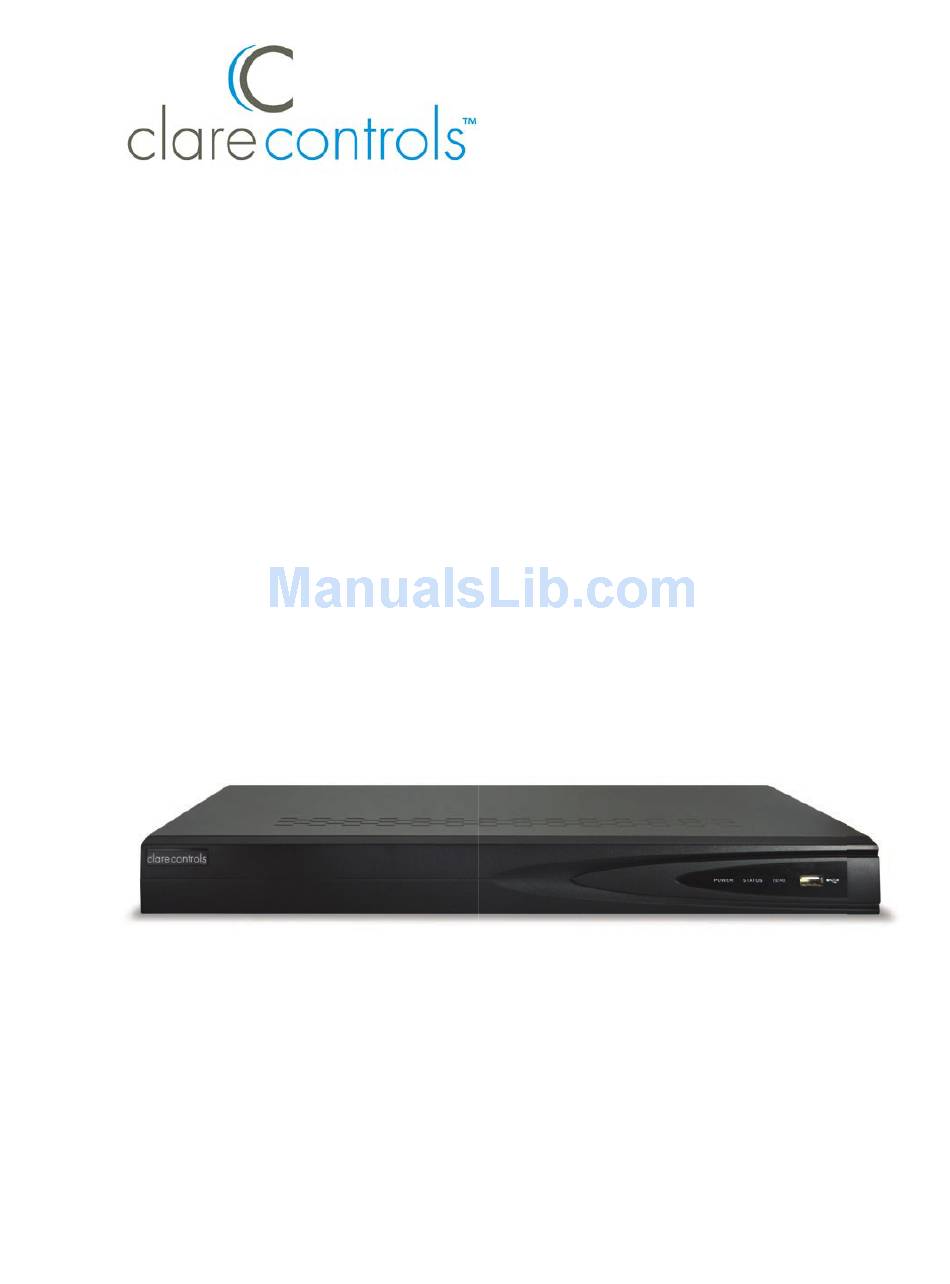

Page 1: Installation Guide
ClareVision Network Video Recorder Installation Guide 4-Channel NVR with PoE Doc ID 2015-01-344 • Rev 04... - Page 2 US and international copyright law. Trademarks The ClareVision name is a trademark of Clare Controls, Inc. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
-
Page 3: Table Of Contents
Playback...16 Instant playback by channel...16 Playback by channel...16 Backup...17 Understanding camera capacity in an NVR...19 Streaming video types...19 Adjusting settings...20 Specifications...21 Regulatory information...22 Contact information...23 ClareVision Network Video Recorder Installation Guide... - Page 4 ClareVision Network Video Recorder Installation Guide...
-
Page 5: Nvr Pre-Installation
• Ensure the NVR is grounded. • Environmental temperature should be within the range of 14ºF to 131ºF (-10 ºC to 55 ºC). • Environmental humidity should be within the range of 10% to 90%. ClareVision Network Video Recorder Installation Guide... -
Page 6: Hard Disk Installation (Optional)
1. Remove the cover from the NVR by unfastening the screws on the rear and side panels. 2. Connect one end of the data cable to the motherboard of the NVR and the other end to the HDD. ClareVision Network Video Recorder Installation Guide... - Page 7 3. Connect the power cable to the HDD. 4. Place the HDD on the bottom of the device, and then fasten the screws on the bottom to affix the HDD. ClareVision Network Video Recorder Installation Guide...
-
Page 8: Front Panel
ALARM: When an alarm occurs, the light will turn red. HDD: The LED flashes red when the HDD is reading/writing. Tx/Rx Tx/Rx LED flashes green when the network connection is functioning normally. USB connector. ClareVision Network Video Recorder Installation Guide... -
Page 9: Rear Panel
R+ and R- pins of PTZ receiver respectively. Ground Ground (needs to be connected when NVR starts up). Power Supply 12 VDC power supply. Power Switch Switch for turning on/off the device. Removes heat from the device. ClareVision Network Video Recorder Installation Guide... -
Page 10: Hdd Storage Calculation Chart
1638 4K 7200 M Note: The values supplied for the storage space used are only for reference. The storage values in the chart are estimated by formulas and may be different from the actual value. ClareVision Network Video Recorder Installation Guide... -
Page 11: Startup
2. The Setup Wizard can walk you through settings of the NVR. If you do not want to use the Setup Wizard, click Cancel. You can use the Setup Wizard the next time by selecting the Start wizard when NVR starts? checkbox. ClareVision Network Video Recorder Installation Guide... - Page 12 4. Enter the admin password. By default, the password is “secure7” 5. To change the admin password, select the New Admin Password checkbox. Enter and confirm the new password in the given fields. 6. Click Next to enter the date and time settings window. ClareVision Network Video Recorder Installation Guide...
- Page 13 9. To initialize the HDD, click Init., initialization removes all the data saved in the HDD. 10. Click Next. You will enter the Adding IP Camera interface. 11. Click Search to find the online IP Camera. 12. Select the IP camera, and then click Add. ClareVision Network Video Recorder Installation Guide...
- Page 14 13. Click the Next button. Configure the recording for the searched IP Cameras. 14. Click Copy to copy the settings to other channels. 15. Click OK to complete the Setup Wizard. ClareVision Network Video Recorder Installation Guide...
-
Page 15: Live View
You can search and add the online IP cameras by using the Startup Wizard, or by following these steps. To add IP cameras: 1. Enter the Camera Management interface (Menu > Camera > Camera). ClareVision Network Video Recorder Installation Guide... -
Page 16: Configuring Basic Parameters Of Ip Cameras
Configure the basic parameters of the IP camera. To configure or edit IP cameras: 1. Click the icon to edit the parameters. You can edit the IP address, protocol, and other parameters seen in the box below. ClareVision Network Video Recorder Installation Guide... - Page 17 3. Click Apply to save the settings, and then click OK to exit the interface. Table 3: Basic icons Icon Description Edit basic parameters of the camera Delete the IP camera Get the live view of the camera ClareVision Network Video Recorder Installation Guide...
-
Page 18: Ptz Control
3. Enter the parameters for the PTZ camera. Note: All the parameters should be the same as the PTZ camera parameters. 4. Click Copy to copy the settings from other PTZ cameras. 5. Click Apply to save and exit the interface. ClareVision Network Video Recorder Installation Guide... -
Page 19: Ptz Control
The speed of the PTZ movement 3D-Zoom Patrol Previous item Stop the patrol or pattern movement Zoom+, Focus+, Iris+ Light on/off Image Centralization Pattern Next item Minimize windows Zoom-, Focus-, Iris- Wiper on/off Preset Menu Start pattern/patrol Exit ClareVision Network Video Recorder Installation Guide... -
Page 20: Playback
Note: Pressing numeric buttons will switch playback to the related channels during the playback process. Playback management The toolbar at the bottom of the Playback interface can be used to control the playback process. ClareVision Network Video Recorder Installation Guide... -
Page 21: Backup
3. In the Search result interface, select the record files you want to back up and click Export. 4. Enter the Export interface, choose a backup device, and then click Export to start exporting. ClareVision Network Video Recorder Installation Guide... - Page 22 You can choose to export the record files and the related log files to the player. 5. Check the backup results. Choose the record file in the Export interface, and then press to check it. ClareVision Network Video Recorder Installation Guide...
-
Page 23: Understanding Camera Capacity In An Nvr
Example 32 channels of 720P cameras at 15 fps with good image quality will have 32 x (1536 + 512) = 65536 Kbps (about 66Mbps), so the 32-channel NVR can support them. ClareVision Network Video Recorder Installation Guide... -
Page 24: Adjusting Settings
Be aware of your NVR’s capacity and make adjustments, if necessary. Adjust the bit rate by lowering the resolution, frame rate, or video quality setting. To adjust the setting: 1. Enter the Live View settings interface. 2. Adjust the Resolution, Frame Rate, and Video Quality settings. ClareVision Network Video Recorder Installation Guide... -
Page 25: Specifications
Chassis 19 inch rack-mounted 1 U chassis 17.5 × 11.4 × 1.8 in (445 × 290 × 45 mm) Dimensions (W × D × H) ≤ 4.4 lb. (2 Kg) (without hard disk) Weight ClareVision Network Video Recorder Installation Guide... -
Page 26: Regulatory Information
(Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see www.recyclethis.info. ClareVision Network Video Recorder Installation Guide... -
Page 27: Contact Information
Contact information Clare Controls, Inc. 7519 Pennsylvania Ave, Suite 104 Sarasota, FL 34243 Support: 941.404.1072 Fax: 941.870.9646 http://support.clarecontrols.com www.clarecontrols.com ClareVision Network Video Recorder Installation Guide...
