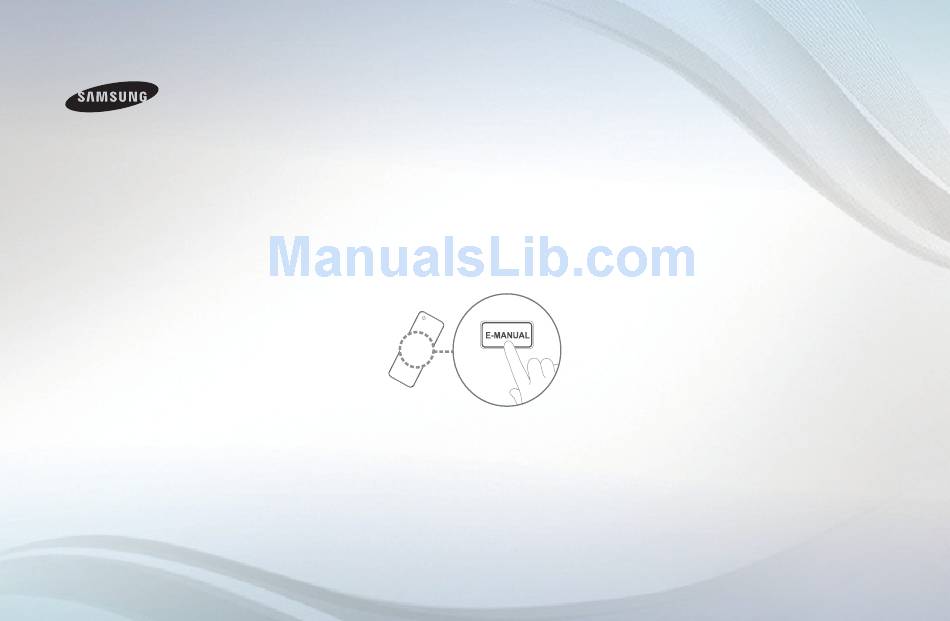

Page 1 E-MANUAL Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register Model _____________ Serial No. _____________...
Page 2: Table Of Contents
Photos • Adjusting Picture Settings • Smart Hub - Additional Functions • Changing the Picture Size • Using Samsung Apps • Changing the Picture Options • AllShare™ • Using the TV with Your PC • Anynet+(HDMI-CEC) • Changing the Preset Sound Modes • Adjusting Sound Settings...
Page 3: Using The Channel Menu
❑ Using the Channel Menu To access the Channel menu, press the Search SMART HUB button on your remote. After Recommended Smart Hub appears, use the arrow buttons on your remote to select Channel, and then press button. Favorites Channel Web Browser Videos Photos...
Page 4 Using the Timer Viewing You can set the TV to display a desired channel automatically on a day and at a time of your choice. → You must set the current time first using the Time Clock function in the System menu to use this function.
Page 5 ● Antenna: Select or Cable. ● Channel: Select the desired channel. You can only select memorized channels. ● Repeat: Select Once, Manual, Sat~Sun, Mon~Fri or Everyday. If you select Manual, you can set the day you want. mark indicates a day you selected. Date: You can set a desired date.
Page 6 ● Time: You can set the start time you want. Start You can only select memorized channels. On the Information screen, you can change or cancel a scheduled viewing. ● Cancel Schedules: Cancel a scheduled viewing. ● Edit: Change a a scheduled viewing. ●...
Page 7: Channel List
Channel List ■ Channel List contains the channels your Channel List Added Channels TV displays (Added Channels) when you press TV #6 CH LIST button on your remote. On the No Information List, you can view TV #10 Channel Added Channels, TV #11 10-1...
Page 8 ● Channels: Shows all added channels. Added ● Favorites 1-5: Shows all favorite channels, in up to five groups. Each group has a separate screen. If you want to view the list of favorite channels, press the button, CH LIST and then press the Mode) button to display Favorites 1-5.
Page 9 ● Mode): Toggles between the Favorites list (if you have added favorites using Favorites) and the Edit Added Channels. ● (Watch / Information): Press to watch the channel you selected. / Displays detailed of the selected program. ● (Page): Scrolls the Channel List to the next or previous page.
Page 10 How to use Timer Viewing Channel List (digital channels only) You can use Timer Viewing in the Channel List to schedule a digital channel program for viewing. The TV will turn on and display the digital channel program when the program begins. To schedule a digital program, follow these steps: 1.
Page 11 3. Press the buttons to select the desired program, and then press the button. INFO 4. Press the buttons to select Viewing, and then press the Timer ENTERE button. 5. Press RETURN twice to exit. If you want to cancel Timer Viewing, follow Steps 1 through 3, and then select...
Page 12 Channel ■ → → SMART HUB Channel ENTERE Using the Channel function, you can add Channel All Channels channels, delete Added channels, set Favorite 10-1 TV #13 TV #6 channels, use the program guide for digital 10-2 TV #14 broadcasts and change between the TV #9 TV #10 13-1...
Page 13 ● Antenna: Toggle between or Cable. To access the Antenna function, use the arrow buttons to move the cursor to the icon on the top right Antenna corner of the screen. ● Edit Mode: Add channels to the Favorites list and delete channels from Channel list.
Page 14 ● Mode: Setting channels you watch frequently as favorites. Edit 1. Select the Edit Mode icon on the upper right of your screen, and then press the ENTERE button. 2. Press the arrow buttons to select a channel as a favorite, and then press ENTERE.
Page 15 4. Highlight a group on the Favorites list, and then press ENTERE. Edit Favorites screen has five groups (Favorites 1, Favorites 2, etc.). You can add a favorite channel to any one of the groups. Select a group using the up and down arrows on your remote. 5.
Page 16 ● Using to Delete a Channel from the Channel List Edit Mode 1. Select the Edit Mode icon on the upper right of your screen, and then press the ENTERE button. 2. Select Delete at the bottom of your screen, and then press ENTERE. A pop-up appears asking if you want to delete the item.
Page 17 4. Select OK, press ENTERE, and then press again. ENTERE The channel is deleted from the list. Channel 5. Press again to exit ENTERE Edit Mode. The Deselect function that appears with the Delete function lets you deselect all selected channels. ▶...
Page 18 Using the button with TOOLS Channel To use the TOOLS button functions, highlight a channel in the Added Ch. list All Channels list, and then press the TOOLS button. ● Add / Delete: Add a channel to or delete a channel from the Added Ch.
Page 19 a channel using the button in Channel, follow these steps: TOOLS 1. Use the arrow buttons to select Channels, and then press ENTERE. All Channels will be at the very top or bottom of the screen. 2. On the All Channels screen, select a greyed out channel.
Page 20 a channel using the button in Channel, follow these steps: Delete TOOLS 1. Use the arrow buttons to select Added Ch., and then press ENTERE. Added Ch. will be at the very top or bottom of the screen. 2. On the Added Ch.
Page 21 NOTE ● Your TV lists all available channels, both added and deleted, on the menu. All Channels ● A gray-colored channel indicates the channel has been deleted. ● only appears if you have selected a deleted channel on the Channel list.
Page 22 ● Favorites: Setting channels you watch frequently as favorites. Edit To set channels as favorites, follow these steps: 1. Highlight a channel in the Added Ch. list or All Channels list, and then press the TOOLS button. 2. Select Edit Favorites in the TOOLS menu, and then press the...
Page 23 ● Favorites: Removing a channel from list of favorites using the Edit TOOLS buton. To remove a channel from the list of favorites, follow these steps: 1. Highlight a favorite channel in the list or list, Added Ch. All Channels and then press the TOOLS button.
Page 24 ● (Appears only if you have selected an analog channel.): Channel Name Edit Assign a name of up to five characters to a channel. For example, Hist, Food, Golf, etc. This makes it easier to find and select the channel. ●...
Page 25: Using The Favorite Channels
❑ Using the Favorite Channels Favorites ■ → → SMART HUB Favorites ENTERE View all of your favorite channels. Your favorite channels are organized in up to five groups (Favorites 1-5). If you want to change from one favorite group to another, follow these steps: 1.
Page 26 Functions on the Favorites Screen To access the functions listed below, use the arrow buttons to move the cursor to the icon of your choice on the top right corner of the screen, and then press ENTERE. ● View Mode: Toggles between the Text view and Thumbnail view of your favorite channels.
Page 27 To use Antenna, or Sorting, select the appropriate icon as described View Mode, above, and then press ENTERE. Use the left or right arrow button to make your selection, and then press ENTERE. Using Edit Mode to Delete a Favorite 1.
Page 28 4. Select OK, press ENTERE, and then press again. The channel is ENTERE deleted from Favorites. 5. Press again to exit ENTERE Edit Mode. The Deselect function that appears with the Delete function lets you deselect all selected channels. If you have assigned a channel to more than one favorite group (say Favorite 1 and Favorite 2), you must repeat this process in both groups to remove a channel entirely from your Favorites.
Page 29: Memorizing Channels
❑ Memorizing Channels → → MENUm Channel ENTERE Antenna (Air / Cable) ■ Your TV memorizes channels and adds the memorized channels to the Channel. Before your TV can memorize channels, you must specify the signal source, either or Cable. If you select cable, when you start Auto Program, you must also specify the cable system type,...
Page 30 To select or Cable, follow these steps: → → 1. Push MENUm Channel ENTERE on your remote. 2. Select Antenna, and then press ENTERE. 3. Select the source of your TV signal, or Cable, and then press the RETURN button. ▶...
Page 31 Auto Program ■ Scans for channels automatically and stores them in the TV’s memory. To start Auto Program, follow these steps: → → 1. Push MENUm Channel ENTERE on your remote. 2. Select Auto Program, and then press ENTERE. 3. Select Cable or both by highlighting and then pressing ENTERE.
Page 32 5. If you selected Cable, the Cable System screen appears. Select Digital, and then press ENTERE. If you selected only, starts. Antenna Auto Program 6. Select or IRC, and then press ENTERE. STD, HRC, 7. Repeat for Analog. 8. Select Next, and then press ENTERE. starts.
Page 33: Other Features
❑ Other Features → → MENUm Channel ENTERE Clear Scrambled Channel ■ This function filters out scrambled channels after Auto Program is completed. This process may take up to minutes. How to Stop the Clear Scrambled Channels function ▶ ▶ 1.
Page 34 Fine Tune ■ (analog channels only) If the reception is clear, you do not have to fine tune the channel, as this is done automatically during the search and store operation. If the signal is weak or distorted, fine tune the channel manually. Scroll to the left or right until the image is clear.
Page 35: Changing The Preset Picture Mode
Picture Menu ❑ Changing the Preset Picture Mode → → → MENUm Picture Picture Mode ENTERE Picture Mode ■ Picture modes apply preset adjustments to the picture. Select a mode using the up and down arrow keys, and then press the ENTERE button.
Page 36: Adjusting Picture Settings
❑ Adjusting Picture Settings → → MENUm Picture ENTERE Backlight / Cell Light / Contrast / Brightness / Sharpness / ■ for LED TV for PDP TV Color / Tint (G/R) Your television has several options for adjusting picture quality. Select an option using the up and down arrow keys, and then press ENTERE.
Page 37 When you make changes to Backlight / Cell Light, Contrast, Brightness, (G/R), the OSD will be adjusted accordingly. Sharpness, Color Tint When connecting a PC, you can only make changes to Backlight / Cell Light, Contrast, Brightness, and Sharpness. You can adjust and store Settings for each external device connected to the TV. Lowering picture brightness reduces power consumption.
Page 38: Changing The Picture Size
❑ Changing the Picture Size → → → MENUm Picture Screen Adjustment ENTERE Screen Adjustment ■ Screen Adjustment provides various picture size and aspect ratio options. Select an option using the arrow keys, and then press ENTERE. Use the arrow keys to select an option in the sub-menu, and then press ENTERE. ●...
Page 39 Zoom1: Use for moderate magnification. Cuts off the top and sides. Zoom2: Use for a stronger magnification. Wide Fit: Enlarges the aspect ratio of the picture so it fits the entire screen. Available with HD 1080i / 720p signals in 16:9 mode. 4:3: Sets the picture to basic (4:3) mode.
Page 40 Fit: When your TV inputs HDMI (720p / 1080i / 1080p) or Component Screen (1080i / 1080p) signals, displays the full image without any cut-off. Smart View 1: Reduces the 16:9 picture by 50%. for LED TV 2: Reduces the 16:9 picture by 25%. Smart View for LED TV Smart View 1...
Page 41 To use the function after selecting Fit, follow Position Zoom1, Zoom2 Wide these steps: 1. Press the button to select Position. 2. Press the button. ENTERE 3. Press the button to move the picture up or down. 4. Press the button.
Page 42 To use the function after selecting in HDMI (1080i/1080p) Position Screen Fit or Component (1080i/1080p), follow these steps: 1. Press the button to select Position. 2. Press the button. ENTERE 3. Press the u, d, button to move the picture. 4.
Page 43 ● HD (High Definition): 16:9 - 1080i/1080p (1920x1080), 720p (1280x720) ● You can adjust and store settings for each external device you have connected to an input on the TV. ● Picture Sizes available by Input Source: Input Source Picture Size ATV, AV, Component (480i, 480p) 16:9, Zoom1, Zoom2, 4:3 HDMI (720p, 1080i, 1080p)
Page 44: Changing The Picture Options
❑ Changing the Picture Options Advanced Settings ■ → → → MENUm Picture Advanced Settings ENTERE Advanced Settings are available in the Standard Advanced Settings Movie modes. When connecting a PC, you can Black Tone only make changes to Gamma White Balance.
Page 45 ● Darkest): Select the black level to adjust the Black Tone (Off / Dark / Darker / screen depth. ● High): Adjusts the screen contrast. Dynamic Contrast (Off / Low / Medium / ● : Increases the brightness of dark Shadow Detail (-2~+2) for LED 7000 Series images.
Page 46 Pattern2: This test screen demonstrates the effect of the display settings on colors. After selecting Pattern1 or Pattern2, you can adjust any of the advanced settings for desired effect. While the Expert Pattern is running, the TV does not output sound. Only enabled in DTV, Component, and HDMI modes.
Page 47 ● Custom): Adjusts the range and variety of colors Color Space (Auto / Native / (the color space) available to create images. To adjust and Reset, set Color, Red, Green, Blue Color Space Custom. ● White Balance: Adjusts the color temperature for a more natural picture. R-Offset / G-Offset / B-Offset: Adjusts each color’s (red, green, blue) darkness.
Page 48 ● On): Controls the white balance in 10 point intervals 10p White Balance (Off / by adjusting the red, green, and blue brightness. Available when the picture mode is set to and when the external Movie input is set to all input. Some external devices may not support this function.
Page 49 ● Tone: Emphasizes pink “Flesh Tone.” Flesh ● Edge Enhancement (Off / On): Emphasizes object boundaries. ● Motion Lighting (Off / On): Reduces power consumption by reducing screen brightness when the picture on the screen is in motion. is not supported. When you change the Backlight / Cell Light...
Page 50 ● On): Setting on increases picture detail and enlarges the xvYCC (Off / xvYCC color space when your are watching movies input from an external device (e.g. BD/DVD player) connected to the TV’s HDMI or Component IN jacks. Available only when you set the picture mode to Movie and the external input to HDMI or Component.
Page 51: Picture Options
Picture Options ■ → → → MENUm Picture Picture Options ENTERE Select an option using the up and down arrow keys, and the press ENTERE. Use the arrow keys to change the setting, and then press ENTERE. When connecting a PC, you can only make Picture Options changes to Color...
Page 52 ● Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualization): If the broadcast signal received by your TV is weak, you can activate the Digital Noise Filter feature to reduce any static and ghosting that may appear on the screen.
Page 53 ● Normal): Lets you adjust the screen depth by HDMI Black Level (Low / selecting a black level. Available only in HDMI mode. ● ): Sets the TV Film Mode (Off / Auto1 / Auto2 / Cinema Smooth for PDP TV so that it senses and then processes film signals from all sources automatically and adjusts the picture for optimum quality.
Page 54 ● Auto Motion Plus (Off / Clear / Standard / Smooth / Custom / : Removes blur and Translate from scenes with larger amounts Demo) For LED TV of rapid movement to provide a clearer picture. The info screen on your TV displays the resolution and frequency of the incoming video signal (60 Hz).
Page 55 Reduction: Adjusts the blur reduction level for signals input from all video Blur sources. Judder Reduction: Adjusts the Translate reduction level for signals input from a video source through which you are playing a movie. Reset: Reset the custom settings. ●...
Page 56 Reset Picture (Yes / No) ■ Resets your current picture mode to its default settings. ▶ ▶ English...
Page 57: Using The Tv With Your Pc
❑ Using the TV with Your PC Set the input source to PC. Auto Adjustment ■ → → → MENUm Picture Auto Adjustment ENTERE Automatically adjusts the picture’s frequency, position, and fine tune settings in the PC mode. Available in mode only.
Page 58 PC Screen Adjustment ■ → → → → MENUm Picture Screen Adjustment PC Screen Adjustment ENTERE Available in PC mode only. ● Coarse / Fine: Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, use the function to adjust the frequency as best Coarse as possible (Coarse) and Fine-tune again.
Page 59 Depending on your version of Windows and your video card, the procedure on your PC will probably differ slightly from the procedure presented here. However, the same basic information will apply in most cases. (If not, contact your computer manufacturer or Samsung Dealer.) ▶ ▶...
Page 60 1. Click “Control Panel” on the Windows start menu. 2. Click “Appearance and Themes” in the “Control Panel” window. A display dialog- box appear. 3. Click “Display”. Another display dialog box appears. 4. Click the the “Settings” tab on the display dialog-box. ●...
Page 61: Changing The Preset Sound Modes
Sound Menu ❑ Changing the Preset Sound Modes → → → MENUm Sound Sound Mode ENTERE Sound Mode ■ Use the up and down arrow keys to select an option, and then press ENTERE. ● Standard: Selects the normal sound mode. ●...
Page 62: Adjusting Sound Settings
❑ Adjusting Sound Settings → → MENUm Sound ENTERE Sound Effect ■ Speaker Select is set to External Speaker, Sound Effect is disabled. Available only when Sound Mode is set to Standard. ● SRS TruSurround HD (Off / On) t: This function provides a virtual 5.1 channel surround sound experience through a pair of speakers using HRTF ▶...
Page 63 ● Equalizer: The Equalizer displays a series of sliders. Use the up and down arrow keys to select a slider. Use the left and right arrow keys to change the slider’s value. To Reset Equalizer, select Reset and press ENTERE, then select and press ENTERE.
Page 64 3D Audio (Off / Low / Medium / High) ■ 3D audio technology provides the immersive sound corresponding to the pop-up effect of 3D video by audio depth control in perspective. Available only when watching 3D image. ▶ ▶ English...
Page 65 Broadcast Audio Options ■ ● Preferred Language (digital channels only) Use the up and down arrow keys to select a language, and then press ENTERE. Digital-TV broadcasts can simultaneously transmit many audio tracks (for example, simultaneous translations of the program into foreign languages). ▶...
Page 66 ● Multi-Track Sound (MTS) (analog channels only) Select an option using the up and down arrow keys, and the press ENTERE. Mono: Choose for channels that are broadcasting in mono or if you are having difficulty receiving a stereo signal. Stereo: Choose for channels that are broadcasting in stereo.
Page 67 SPDIF Output ■ SPDIF (Sony Philips Digital Interface) provides digital audio output to speakers and various digital devices such as A/V Receivers and Home Theaters which reduces interference and distortion. ● Digital): You can select the Digital Audio output Audio Format (PCM / Dolby (SPDIF) format.
Page 68 Speaker Settings ■ ● Speaker Select (External Speaker / TV Speaker) If you are listening to the sound track of a broadcast or movie through an external receiver, you may hear a sound echo caused by the difference in decoding speed between the TV’s speakers and the speakers attached to your audio receiver.
Page 69 NOTE ● When you set Speaker Select External Speaker, the TV’s speakers are turned off. You will hear sound through the external speakers only. When you set Speaker Select TV Speaker both the TV’s speakers and the external speakers are on. You will hear sound through both. ●...
Page 70 ● Auto Volume (Off / Normal / Night) Normal equalizes the volume level on each channel, so that when you change channels, the volume level is the same. Night equalizes and decrease the volume level on each channel, so each channel is quieter.
Page 71 Reset Sound (Yes / No) ■ Reset all sound settings to the factory defaults. Select Reset Sound, press ENTERE, select in the pop-up, and then press ENTERE again. ▶ ▶ English...
Page 72: Wired Network Setting
❑ Wired Network Setting ■ Connecting to a Wired Network There are three ways to attach your TV to your LAN using cable: ● You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a LAN cable.
Page 73 ● You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an IP Sharer which is connected to an external modem. Use LAN cable for the connection. See the diagram below. The Modem Port on the Wall External Modem...
Page 74 ● Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the LAN port on the back of your TV directly to a network wall outlet using a LAN cable. See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house.
Page 75 ● If you have a Dynamic Network, you should use an ADSL modem or router that supports the Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your TV needs to access the Internet so you do not have to enter them manually.
Page 76 Network Settings ■ → → → MENUm Network Network Settings ENTERE Set the network connection to use various Internet services such as Smart Hub, AllShare™ and perform software upgrades. Network Status ■ → → → MENUm Network Network Status ENTERE You can check the current network and Internet status.
Page 77 → MENUm Network AllShare Settings ENTERE Selects whether to use media functions on the network. For details on set up options, refer to the “AllShare™” instructions. SWL (Samsung Wireless Link) ■ → → → MENUm Network SWL (Samsung Wireless Link) ENTERE You can connect your TV to a wireless mobile device easily.
Page 78 ■ Automatic Network Setup Use the Automatic Network Settings when connecting your TV to a network that supports DHCP. To set up your TV’s cable network connection automatically, follow these steps: How to set up automatically 1. Go to the Network Settings screen.
Page 79 If the connection process fails, check the Network Setting LAN port connection. Wired network and Internet connection completed. MAC Address 00:12:fb:2b:56:4d If the automatic process cannot find the IP Address 192.168.11.4 Previous Subnet Mask 255.255.255.0 Gateway 192.168.11.1 network connection values or if you want to IP Settings DNS Server 192.168.11.1...
Page 80 ■ Manual Network Setup Use the Manual Network Setup when connecting your TV to a network that requires a Static IP address. Getting the Network Connection Values To view the Network connection values on most Windows computers, follow these steps: 1.
Page 81: Network Settings
How to set up manually To set up your TV’s cable network connection manually, follow these steps: 1. Go to the Network Settings screen. IP Settings (MENUm → → Network Network Settings IP Mode Manual → ENTERE) IP Address 0 . 0 . 0 . 0 2.
Page 82 4. Select the field at the top, press ENTERE, and then set to Manual. IP Mode 5. Press the button on your remote to go to the IP Address entry field, and then press ENTERE. 6. Enter the first portion of the (for example, 105) into the first entry IP Address field using the number keys on your remote.
Page 83 9. When done entering the Address, press ENTERE. 10. Press the down arrow key to go to the Subnet Mask fields, and then press ENTERE. 11. Repeat the same entry process for Gateway, and Subnet Mask, Server. 12. When done, select at the bottom of the page, and then press ENTERE.
Page 84: Wireless Network Setting
❑ Wireless Network Setting ■ Connecting to a Wireless Network You can connect your TV to your LAN through a standard wireless router or modem. Wireless IP sharer The LAN Port on the Wall (router having DHCP server) ▶ ▶ LAN Cable English...
Page 85 This TV supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE 802.11n. When you play video over a network connection, the video may not play smoothly. NOTE ● To use a wireless network, your TV must be connected to a wireless IP sharer (either a router or a modem).
Page 86 If you select the Pure High-throughput (Greenfield) 802.11n mode and the Encryption type is set to WEP, TKIP or TKIP AES (WPS2Mixed) on your AP or wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications.
Page 87 Connection Methods: You can set up the wireless network connection in six ways: – Auto Setup (Using the Auto Network Search function) – Manual Setup – WPS(PBC) – One Foot Connection – Plug & Access ▶ ▶ – SWL (Samsung Wireless Link) English...
Page 88 ■ Automatic Network Setup Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a specified length you were asked to enter when you set up security for your wireless network.
Page 89 How to set up automatically 1. Go to the Network Settings screen. Network Settings (MENUm → → Network Network Select a network connection type. Wired → ENTERE. Settings Wireless (General) Previous WPS(PBC) Set up wireless network by 2. Select Wireless (General), press Next selecting your Wireless Router.
Page 90 5. If the Enter security key screen appears, go Network Settings to step 6. If you select a wireless router that Enter security key. 0 entered does not have security, go to step 8. Previous 6. If the router has security, enter the Security Next Cancel...
Page 91 8. The network connection screen appears and the verification process starts. When the connection has been verified, the “Internet is connected successfully.” message appears. If the network does not accept the Security key (Security key or PIN), select Retry or select IP Settings to enter the settings manually.
Page 92 ■ Manual Network Setup Use the Manual Network Setup when connecting your TV to a network that requires a Static IP address or if the automatic connection process has failed. Getting the Network Connection Values To view the Network connection values on most Windows computers, follow these steps: 1.
Page 93 How to set up manually To set up your TV’s cable network connection manually, follow these steps: 1. Go to the Network Settings screen. IP Settings → → (MENUm Network Network Settings IP Mode Manual → ENTERE) IP Address 0 . 0 . 0 . 0 Subnet Mask 0 .
Page 94 4. In the list of networks, press the button to select a network, and then press the button twice. ENTERE If the wireless router is set to Hidden (Invisible), you have to select Network and enter the correct Network Name (SSID) and Security key establish the connection.
Page 95 6. Enter the Security key (Security key or PIN). When you enter the Security key (Security key or PIN), use the buttons on your remote to select number/characters. Press ENTERE enter the characters. You can also enter numbers by pressing the number buttons on your remote.
Page 96 8. The network connection screen appears and the verification process starts. Press to cancel. Select on the network connection ENTERE IP Settings screen. The IP Settings screen appears. 9. Select the field on the top, press ENTERE, and then set IP Mode to Manual.
Page 97 13. Repeat the entry process for each field in the Address. If you make a mistake when entering a number, re-enter the number to correct it. You can also press the button to change the number one unit at a time. 14.
Page 98 WPS(PBC) Network Setup ■ How to set up using WPS(PBC) If your router has a WPS(PBC) button, follow these steps: 1. Go to screen. Network Setting Network Settings (MENUm → → Network Network Select a network connection type. Wired → ENTERE). Settings Wireless (General) Previous...
Page 99 AP through the TV. When connected to a mobile device, you can use files on the device or connect to the Internet using the AllShare or Multimedia function. This function is available when SWL (Samsung Wireless Link) is set to Off. How to set up using Ad hoc ▶...
Page 100 3. Select hoc. The message “Ad hoc service supports a direct connection with Wi-Fi compatible devices like a cell phone or PC. Other network services may be limited. Do you want to change the network connection?” is displayed. 4. Select OK, and press ENTERE. The TV searches for the mobile device. 5.
Page 101 SWL (Samsung Wireless Link) ■ This function lets you connect a Samsung device that supports WPS(PBC) to your TV wirelessly. You can connect devices to the TV even if the TV is not connected to a sharer (a router or modem).
Page 102 TV. This function is only available when you set SWL (Samsung Wireless Link) How to connect using Samsung Wireless Link To connect a device to the TV using SWL, follow these steps: 1. Go to the Network Settings screen.
Page 103 3. Select by using the button and press the button. Connect SWL ENTERE 4. If the “Press the WPS(PBC) button on your Wireless Router within 120 seconds.” message appears, press the WPS(PBC) button on the device you want to connect. A countdown timer also appears on the screen. For more information, refer to the wireless network setup manual of the device.
Page 104 One Foot Connection Network Setup ■ One Foot Connection function lets you connect your Samsung TV automatically to a Samsung wireless routers. If your wireless router does not support Connection, you must connect using one of the other One Foot methods.
Page 105 How to set up using One Foot Connection 1. Turn on the Samsugn wireless router and the TV. 2. Go to screen. Network Settings Network Settings → → (MENUm Network Network Settings Select a network connection type. Wired → ENTERE). Wireless (General) Previous WPS(PBC)
Page 106 4. Place the wireless router in parallel with your TV set (if you do not need to use the adapter), and no farther away than 25cm (about 9 3/4 inches). does not connect your TV to your Router, a pop- One Foot Connection up screen appears on the screen notifying you of the failure.
Page 107 Plug & Access function lets you easily connect your Samsung TV to your Samsung wireless router by using a USB memory stick to transfer the setup information from the router to the TV. If your non-Samsung wireless router does not support Plug &...
Page 108 How to set up using the Plug & Access function 1. Turn on the Samsung wireless router and your TV. 2. Insert a USB memory stick into the USB port in your Samsung wireless router. Check the router’s LED’s to make sure it is on (Blinking → on).
Page 109 5. The network connection screen appears, and the network setup is done. 6. Place the wireless router in a desired location. If the wireless router’s settings change or you install a new wireless router, you must perform the procedure again, beginning from Step Plug &...
Page 110 This Priority QOS function is unique to Samsung wireless routers. You can connect a Samsung wireless router to many devices, such as laptops, mobile phones, BD players etc. But, when you connect a Samsung TV to a Samsung wireless router, the Samsung wireless router gives the Samsung TV a priority connection.
Page 111 The internet connection may fail because of a firewall problem. If this is the case, contact your Internet service provider. If you cannot connect to the Internet even after you have followed the procedures of your Internet service provider, please contact Samsung Electronics at 1-800-SAMSUNG. English...
Page 112: Setting The Time
❑ Setting the Time → → → MENUm System Time ENTERE Time ■ The current time will appear every time you press the INFO button. ● Clock: Set the clock to use the various various timer features of the TV. If you disconnect the power cord, you have to set the clock again.
Page 113 Manual: Set the current time manually. Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually. – Clock Set: Set the Date and Time. Select Clock Set. Select Date or Time, and then press ENTERE.
Page 114 – Zone: Select your time zone. Time This function is only available when the Clock Mode is set to Auto. – DST (Off / On): Switches the DST (Daylight Saving Time) function on or off. This function is only available when the Clock Mode is set to Auto.
Page 115 Setting the On / Off Timer → → → MENUm System Time ENTERE On Timer so that your TV turns on On Timer 1 automatically at a time and on a day of your Setup choosing. ● Timer: You can set up three separate On Time 12:00 am Timer configurations.
Page 116 Setup: Select or Manual. Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun If you select Manual, you can choose the days you want On Timer to turn on your TV. mark indicates days you’ve selected. Time: Set the hour, minute, am/pm. Use the number buttons or the up and down arrow keys to enter numbers.
Page 117 Source: Select TV or USB. Select TV and the TV will display broadcast or cable TV programs when it turns on automatically. Select USB and the TV will play content from a USB device when the TV turns on automatically. (You can select USB only when a USB device is connected to the TV) Antenna (when the...
Page 118 NOTE ● If there is no music file on the USB device or you don’t select a folder containing a music file, the Timer function does not operate correctly. ● If there is only one photo file in the USB, the Slide Show will not play. ●...
Page 119 ● Timer: You can set up three separate Off Off Timer 1 Timer configurations. (Off Timer 1, Off Timer Setup 2, Off Timer You must set the clock before you can Time 12:00 am Timer. Setup: Select Off, Once, Everyday, Close or Manual.
Page 120: Blocking Programs
❑ Blocking Programs → → → MENUm System Security ENTERE Security ■ Every time you access the Security functions, the PIN screen will appear and you must enter that PIN. The PIN screen closes and the Security menu appears. ● Program Rating Lock (Off / On): When turned on, the Program Rating Lock...
Page 121 Rating: You can block TV programs based on their ratings. This function allows you to control what your children can watch. TV Rating displays a grid with locks. The following categories are on the left side: – TV-Y: Young children / TV-Y7: Children 7 and over / TV-G: General audience / TV-PG: Parental guidance / TV-14: Viewers 14 and over / MA: Mature audience ▶...
Page 122 The following categories are on top: – ALL: Lock all TV ratings. / FV: Fantasy violence / V: Violence / S: Sexual situation / L: Adult Language / D: Sexually Suggestive Dialog To block certain content, you select a lock, and press ENTERE (That is, you “click it”.).
Page 123 To unblock a category, click the lock. To unblock all the categories in a row, click the lock under ALL. To watch a blocked program, you must enter the Security code when requested. Movie Rating (MPAA): You can block movies based on their MPAA rating. The Motion Picture Association of America (MPAA) has implemented a rating system that provides parents or guardians with advanced information on which films are appropriate for children.
Page 124 displays a column with locks and the following ratings Movie Rating categories: – G: General audience (no restrictions). / PG: Parental guidance suggested. / PG-13: Parents strongly cautioned. / R: Restricted. Children under 17 should be accompanied by an adult. / NC-17: No children under age 17. / X: Adults only.
Page 125 Rating: You can block TV programs based on their Canadian English Anglophone Canadian rating. Canadian English Rating displays a column with locks and the following ratings categories: – C: Programming intended for children under age 8. / C8+: Programming generally considered acceptable for children 8 years and over to watch on their own.
Page 126 To block certain content, you select a lock, and press (That ENTERE is, you “click it”.). For example, click the 18+ lock and you block all TV programs rated 18+. The rating categories are also grouped so that clicking one category blocks all the categories a parent would block along with it.
Page 127 Rating: You can block TV programs based on their French Canadian French Canadian rating. Canadian French Rating displays a column with locks and the following ratings categories: – G: General / ans+: Programming generally considered acceptable for children 8 years and over to watch on their own. / ans+: Programming may not be suitable for children under the age of 13.
Page 128 To block certain content, you select a lock, and press (That ENTERE is, you “click it”.). For example, click the 18 ans+ lock and you block all TV programs rated ans+. The rating categories are also grouped so that clicking one category blocks all the categories a parent would block along with it.
Page 129 NOTE ● If information is not downloaded from the broadcasting station, Downloadable U.S. Rating menu is deactivated. ● Parental restriction information is automatically downloaded while you watch DTV channels. It may take several seconds. ● Downloadable U.S. Rating menu is available for use after information is downloaded from the broadcasting station.
Page 130 ● Even if you set the on-screen display to another language, the Downloadable U.S. Rating menu will appear in English only. ● Blocking one rating level will automatically block other categories that deal with more sensitive material. ● The rating titles (For example: Humor Level..etc) and TV ratings (For example: DH, MH, H..etc) may differ depending on the broadcasting station.
Page 131 ● PIN: The screen will appear. Choose any 4 digits for your Change Change PIN PIN and enter it in PIN. Re-enter the same 4 digits in Enter New Confirm New PIN. When the Confirm screen disappears, press the Close button.
Page 132: Economical Solutions
❑ Economical Solutions Eco Solution ■ → → → MENUm System Eco Solution ENTERE ● Energy Saving (Off / Low / Medium / High / Picture Off): Lets you adjusts the brightness of the TV in order to reduce power consumption. If you select Picture Off, the screen is turned off, but the sound remains on.
Page 133 : When is On, Min. Backlight / Min Cell Light Eco sensor for LED TV for PDP TV you can manually adjust the minimum screen brightness. Eco Sensor is On, the display brightness may change (become slightly darker or brighter) depending on the surrounding light intensity. You can control the screen’s minimum brightness with the function.
Page 134: Picture In Picture (Pip)
❑ Picture In Picture (PIP) → → → MENUm System ENTERE ■ You can watch a program whose signal has passed through the TV’s tuner and video from one external video source simultaneously. For example, if you have a cable box connected to the Cable In jack, you can use PIP to watch programs from the cable box and a movie from a Blu-ray player attached to the HDMI In jack.
Page 135 NOTE ● If you have set Double (à, Œ) mode in (Picture-in-Picture), you cannot adjust the Picture Size. ● For PIP sound, refer to the Sound Select instructions. ● If you turn the TV off while watching in the PIP mode, the PIP function is reset to off.
Page 136 ● PIP Settings The picture from the external video source will be in the main screen and the picture from the TV’s tuner will be in the PIP sub-picture screen. Main picture Sub picture Component, HDMI, PC ▶ ▶ English...
Page 137 ● On): Activate or deactivate the PIP function. PIP (Off / ● Air/Cable (Air / Cable): Select either Cable as the input source for the sub-screen. ● Channel: Select the channel for the sub-screen. ● (õ / Œ): Select a size for the subpicture. Size ã...
Page 138: Other Features
❑ Other Features → → MENUm System ENTERE Menu Language ■ Set the menu language. 1. Select Menu Language, and then press the ENTERE button. 2. Choose a language, and then press the ENTERE button. Choose from English, Español, and Français. ▶...
Page 139 Caption ■ (On-Screen Text Messages) ● Caption (Off / On): You can switch the caption function on or off. If captions are not available, they will not be displayed on the screen. Caption feature does not work with devices connected to the TV through the Component, HDMI or PC input jacks.
Page 140 Text1~Text4: (digital channels Default / Service1~Service6 / CC1~CC4 / only) The Digital Captions function works with digital channels. Service1~6 may not be available in digital caption mode depending on the broadcast. ● Digital Caption Options: (digital channels only) Adjusts the each option. When done, select Close.
Page 141 Color: You can change the background color of the caption. Background Options include Default, White, Black, Red, Green, Blue, Yellow, Magenta and Cyan. The default is Black. Foreground Opacity: This adjusts the opacity of text. Options include Default, Transparent, Translucent, Solid and Flashing. Opacity: This adjusts the opacity of the caption background.
Page 142 NOTE ● Digital Caption Options are available only when you can select Default Service1 ~ Service6 Caption mode. ● The availability of captions depends on the program being broadcast. ● setting follows the standards set by the broadcaster. Default ● You cannot set the Foreground Background...
Page 143 Auto Protection Time (Off / 2 hours / 4 hours / 8 hours / 10 hours) ■ for LED TV If the screen displays a still image for a certain period of time you define, the TV activates the screen saver to prevent the formation of burnt in ghost images on the screen.
Page 144 Screen Burn Protection ■ for PDP TV To reduce the possibility of screen burn, this unit is equipped with Pixel Shift screen burn prevention technology. Pixel Shift moves the picture slightly on the screen. The Pixel Shift Time setting allows you to program the time between movements of the picture in minutes.
Page 145 ● On): Using this function, you can set the TV to move pixels Pixel Shift (Off / minutely on the PDP screen in a horizontal or vertical direction to minimize after images on the screen. Available Pixel Shift Settings and Optimum Settings Optimum Settings for Available Settings TV/AV/Component/HDMI/PC...
Page 146 ● hour): If the screen Auto Protection Time (Off / 10 min / 20 min / 40 min / 1 displays a still image for a certain period of time you define, the TV activates the screen saver to prevent the formation of burnt in ghost images on the screen. ●...
Page 147 General ■ ● Game Mode (Off / On): When you have connected a game console such as a PlayStation™ or Xbox™ to the TV, you can enjoy a more realistic gaming experience if you set Game Mode on. Precautions and limitations for Game Mode: –...
Page 148 ● On): Provides the optimal picture quality for Samsung DVD, BD Wise (Off / Blu-ray and Home Theater products which support Wise. When Wise is turned On, the picture mode is automatically changed to the optimal resolution. Available when you connect Samsung products that support BD Wise through an HDMI cable to the TV.
Page 149 ● On): Displays the Samsung logo when the TV is turned on. Boot Logo (Off / ● Light Effect (Off / In Standby / Watching TV / Always) : You For LED 8000 series can turn the LED on the TV’s front panel on or off. Turn it off to save power or if the LED is too bright for you.
Page 150 Anynet+(HDMI-CEC) ■ For details on set up options, refer to the “What is Anynet+?” instructions. ▶ ▶ English...
Page 151 DivX® Video On Demand ■ Shows the registration code authorized for the TV. If you connect to the DivX web site and register using that code, you can download the VOD registration file. If you activate the VOD registration using Smart Hub, the registration is completed. For more information about DivX®...
Page 152 Network Remote Control (On / Off) ■ Turn on/off or give permission to Samsung mobile phone devices to connect with and control the TV. You must have a Samsung Mobile phone/device which supports Wireless Remote Control. For more details, refer to each device’s manual.
Page 153: Support Menu
Support Menu ❑ Support Menu → → MENUm Support ENTERE e-Manual ■ The e-Manual is built into your TV. Open the e-Manual to learn how to use your TV’s many features. For the detailed information about the e-Manual Screen, refer to “How to view the e-Manual”...
Page 154 Yes: Select if the test picture does not appear or there is noise or distortion in the test picture. There may be a problem with the TV. Contact Samsung’s Call Center for assistance. No: Select if the test picture displays properly.
Page 155 ▶ ▶ speaker during the sound test. There may be a problem with the TV. Contact Samsung’s Call Center for assistance. No: Select if you can hear sound from the speakers. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual.
Page 156 ● Information: (digital channels only) The reception quality of over-the-air Signal HD channels is either perfect or the channels are unavailable. Signal Information displays HD channel signal strength so you can adjust your antenna to increase signal strength and receive HD channels. ●...
Page 157 Software Upgrade ■ The Software Upgrade menu lets you upgrade your TV’s software to the latest version. ● Current Version: This is the software version already installed in the TV. ▶ ▶ English...
Page 158 Upgrading to the Latest Version You can upgrade in four ways: ● By USB ● By Online ● Alternative Software ● Standby Mode Upgrade The four methods are explained in the following pages. ▶ ▶ Be careful not to turn off the power until the upgrade is complete. The TV will turn off and on automatically after completing the software upgrade.
Page 159 By USB To upgrade by USB, follow these steps: 1. Visit www.samsung.com. 2. Download the latest USB software upgrade exe archive to your computer. ● The displayed image may differ depending on the model. 3. Extracts the exe archive to your computer.
Page 160 By Online By Online function lets you download the upgrade software directly from the Internet into your TV and then upgrade the software in one operation. To use By Online, you must have configured your TV to connect to your network and the TV must be connected to the Internet.
Page 161 4. If you select Now, the TV upgrades the software, turns off, and then Upgrade turns on automatically. 5. If you do not make a selection in one minute or select Later, the TV Upgrade stores the new upgrade software. You can upgrade the software later using the Alternative Software function.
Page 162 Alternative Software Alternative Software option lets you upgrade using a file the TV downloaded earlier, but you decided not to install immediately, or a file downloaded by the TV in Standby Mode (See Standby Mode Upgrade on the next page). To upgrade By Alternative Software, follow these steps:...
Page 163 Standby Mode Upgrade You can set the Standby Mode Upgrade function so that the TV downloads new upgrade software when it is in Standby mode. In Standby mode, the TV is off, but its Internet connection is active. This allows the TV to download upgrade software automatically, when you are not using it.
Page 164 To set Upgrade, follow these steps: Standby Mode 1. Press the arrow buttons to select Standby Mode Upgrade in Software upgrade menu, and then press the button. ENTERE 2. Select or Off. ● Off: If you select Off, the TV will notify you with a pop up message when newupgrade software is available.
Page 165 Contact Samsung ■ View this information when your TV does not work properly or when you want to upgrade the software. You can find information regarding our call centers and how to download products and software. ▶ ▶ English...
Page 166: 164
This exciting new feature enables you to view 3D content. To fully enjoy this feature, you must purchase a pair of Samsung 3D Active Glasses to view 3D video. Samsung 3D Active Glasses are sold separately. For more detailed purchasing information, contact the retailer where you purchased this TV.
Page 167 IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D PICTURES. Read and understand the following safety information before using the TV’s 3D function. WARNING ● Some viewers may experience discomfort while viewing 3D TV such as dizziness, nausea and headaches. If you experience any such symptom, stop viewing 3D TV, remove the 3D Active Glasses and rest.
Page 168 ● A responsible adult should frequently check on children who are using the 3D function. If there are any reports of tired eyes, headaches, dizziness, or nausea, have the child stop viewing 3D TV and rest. ● Do not use the 3D Active Glasses for other purposes (such as general eyeglasses, sunglasses, protective goggles, etc.) ●...
Page 169 ● Mode: Select the 3D input format. If you want to experience the 3D effect fully, put the 3D Active Glasses on first, and then select the 3D Mode from the list below that provides the best 3D viewing experience. 3D Mode may differ depending on the input signal.
Page 170 3D Mode Operation Checker Board Displays the images for the left and right eye alternately in pixels. for LED 7000 Series and above Frame Sequential Displays the images for the left and right eye alternately in frames. for LED 7000 Series and above Some file formats may not support the “2D →...
Page 171 ● : Adjust 3D effects like perspective and 3D Effect for LED 7000 Series and above depth to your preference. 3D Effect (Auto / Manual) – Auto: Automatically adjust the perspective and depth settings in accordance with the 3D input source. –...
Page 172 → ● On): Displays the image for the left eye only. 2D (Off / set to “2D → 3D” or Off. This function is deactivated when 3D Mode ● 3D Auto View (Off / Message Notice / On): for LED 7000 / PDP 8000 Series and above If you set to On, TV will switches the TV to 3D automatically.
Page 173 When you access some application (such as etc.), TV Smart Hub, Yahoo, will do not switch to 3D. In this case, you should to use the 3D, after exiting the application. ● 3D Optimize : Automatically adjusts the picture overall to provide an for LED TV optimal 3D effect.
Page 174 How to watch the 3D images Some 3D modes may not be available depending on the format of the image source. To watch in 3D, you must wear 3D Active Glasses and turn the glasses on by pressing the power button. 1.
Page 175 3. Use the button to select Mode, and then press the button. ENTERE 4. Using the buttons on your remote control, select the 3D Mode of the image 3D Mode you want to view. Cancel ● The displayed image may differ depending on the model.
Page 176 Supported formats and operating specifications for Standard HDMI 3D The 3D formats listed below are recommended by the HDMI association and must be supported by 3D TVs. Source signal format Standard HDMI 1.4 3D 1920x1080p@24Hz x 2 1920x2205p@24Hz 1280x720p@60Hz x 2 1280x1470p@60Hz ▶...
Page 177 Read These Notes Before Using the 3D Function... NOTE ● 3D Mode is set to automatically when you access Smart Hub e-Manual functions. ● 3D Mode is set to its memorized configuration value automatically when you change the input source. ▶...
Page 178 ● is not supported in mode. ● 3D Active Glasses from Samsung’s previous product (IR type) or other manufacturers are not be supported. ● When the TV is initially powered on, it may take some time until the 3D display is optimized.
Page 179 ● Be sure to stay within the viewing angle and optimum TV viewing distance when watching 3D pictures. Otherwise, you may not be able to see 3D effects properly. ● The ideal 3D viewing distance is three times or more the height of the screen.
Page 180: Smart Hub
❑ Smart Hub Using Smart Hub, you can stream movies, Search videos, and music from the Internet, access Recommended various for pay or free-of-charge applications and view them on your TV. Application content Favorites Channel Web Browser Videos Photos Music includes news, sports, weather forecasts, stock ▶...
Page 181 TV. Enter a keyword to Exit: Exits the SMART HUB. search for media, various Search Samsung Apps : You can applications, or online information that you can download various for pay or use on the TV.
Page 182 NOTE ● Samsung Electronics takes no legal responsibility for any interruption of the Smart Hub service caused by the service provider for any reason. ● The Smart Hub service downloads and processes data via the Internet so that you can enjoy the Internet contents on your TV screen. If the Internet connection is unstable, the service may be delayed or interrupted.
Page 183 ● For more information about a Smart Hub service, visit the web site of the applicable service provider. ● The services provided are subject to change by the Smart Hub service provider without notice. ● The Smart Hub service contents may differ depending on the player’s firmware version.
Page 184 Starting Smart Hub for the First Time To start Smart Hub for the first time, follow these steps : 1. Press the button. SMART HUB 2. The screen appears. In a few cases, the screen appears Smart Hub Country immediately after. 3.
Page 185 5. The screen appears. Press the buttons to select Agree, then Privacy Policy press the button. ENTERE 6. The screen appears and installs a number of services and Service Update applications. When done, it closes. The applications and services downloaded are displayed on the Smart Hub screen.
Page 186 Using the Keypad Pressing the – button on the remote while you are using the Screen Keypad enables you to change the text fields to lower case, capitalized case, upper case, numbers and icons. You can use this Screen Keypad in a several Smart Hub applications.
Page 187 4. Press the button on the remote 4 times to change the input mode from – numbers to upper case. 5. Press the button on the remote 3 times to input C. 6. Press the button on the remote 3 times to change the input mode from upper –...
Page 188 4. Press the button on the remote 3 times to change the input mode from – numbers to capitalized case. 5. Press numbers in sequence: 2, 4, 2, 6, 4. A window will appear displaying a list of words that can be entered using the selected numbers. Select “Chang” from the list.
Page 189 Creating an Account To establish your own, exclusive, configuration of Smart Hub, create your own Smart Hub account. Note ● You must use an e-mail address as an ID. ● You can register up to 10 User Accounts. ● You do not need an account to use Smart Hub.
Page 190 To create an account, follow these steps: 1. Press the button on your remote control. The Login screen appears. 2. Press the buttons to select Create Account, and then press the button. ENTERE 3. On the next screen, select Account, and then press the Smart Hub ENTERE button.
Page 191 5. When done, press the button. The Login screen re-appears. ENTERE 6. Select Password, and then press the ENTERE button. The Password screen and a keyboard appear. 7. Use the keypad to enter a password. The password can be any combination of letters, numbers, and symbols.
Page 192 8. When done, press the button. ENTERE 9. Select Confirm Password and then press the ENTERE button. 10. Repeat Steps 7 and 8. 11. When the Login screen re-appears, select Create Account, and then press the button. The Confirmation screen appears. ENTERE 12.
Page 193 14. The Register Service Account screen appears. If you have existing accounts with any of the listed providers, you can associate the provider account and the provider account password with your Smart Hub account. Registration makes it easier to access the providers web site. For registration instructions, go to Step 2 in Account Management under...
Page 194 Account Log In To log in to your Smart Hub account, follow these steps: 1. With the Smart Hub main screen displayed on your TV, press the button on your remote. The Login screen appears. 2. Select the next to the field, and then press the Smart TV ID ENTERE...
Page 195 4. Select Password, and then press the button. The Password screen ENTERE and a keypad appears. 5. Using the keypad and your remote, enter your password. When done, press ENTERE button. If you want Smart Hub to enter your password automatically, select Remember my Smart TV ID and password.
Page 196: Setting Up Smart Hub
❑ Setting up Smart Hub Settings ■ The Settings Menu Screen gives you access to account management, account reset, and account properties functions. To access the Settings Menu, and then select a menu item, follow these steps: 1. Press the button on your remote.
Page 197 The functions on the Menu screen are described below. Settings ● Account Management Account Management Menu contains Settings functions that let you register your service Account Management provider accounts, change your Smart Hub Service Manager Reset password, and delete or deactivate your Properties Smart Hub account.
Page 198 Account: If you have existing accounts with any of the Register Service providers listed by the Register Service Account function, you can associate the provider account and the provider account password with your Smart Hub account. If you associate the account, you will be able to log onto the account through Smart Hub easily, without entering your account name or password.
Page 199 Service Provider you want to associate with your Smart Hub account, and then press the ENTERE button. If you have a Samsung account and you want to use the Samsung Apps function in Smart Hub, you must register your Samsung Apps account here.
Page 200 4. If you have entered the ID and password correctly, the Registered message appears, asking you if you want to add another Successfully. service provider. If you do, press the ENTERE button. If not, press the RETURN button and return to the Settings Menu. 5.
Page 201 3. On the next screen, enter a new password on the first line. Enter it again on the second line to confirm. 4. The message screen appears. Press the Changing Password Completed. ENTERE button or wait for the screen to close - about 5 seconds. Remove from TV Account List: The Remove from TV Account List...
Page 202 ● Service Manager Ticker Autorun: You can set Ticker Autorun to come on when powering on the function allows you to view content from the current input source Ticker and ticker data at the same time. Depending on your country, the Ticker application may have a different service or not be supported.
Page 203 ● Reset: The function initializes all downloaded applications, erases all Reset user accounts and settings from the TV, and resets all Smart Hub settings to the factory default settings. It then restarts Smart Hub as if it were starting for the first time.
Page 204 2. Enter the your security password. The default password set is “0-0-0-0.” If you forget the password you created, press the following sequence of remote control buttons to reset the password to “0-0-0-0”: (off) → → → → → POWER MUTE POWER (on).
Page 205 ● Properties The Properties menu item lists three functions that display information about Smart Hub : Detail: Lists information about Smart Hub including version number, the number of services installed, memory usage, and the unique product ID. Terms of Service Agreement: Display the Terms of Service Agreement.
Page 206 Edit Mode ■ The functions in the Edit Mode menu let you manipulate the applications in the My Applications section of the Smart Hub screen. Using these functions, you can lock and unlock access to some applications, create folders and move applications to them, rename folders, delete applications, and change the position of applications on the screen.
Page 207 The functions in the Menu bar are described below. Edit Mode NOTE ● Some menu items may not appear on the screen. To see these items, press to move to the screen edge, and then press one more time to reveal the items.
Page 208 ● Move Move function lets you change the screen position of an application. To use the Move function, follow these steps: 1. Press the button on your remote. 2. Select an application, and then press the ENTERE button. A appears above the application.
Page 209 ● Move to Folder Move to Folder function lets you move an application to a folder. To use Move to Folder function, follow these steps: 1. Press the button on your remote. 2. Select an application, and then press the ENTERE button.
Page 210 To access an application in a Folder 1. Close the Edit Mode menu. 2. In My Applications, press the to select a folder, and then press the ENTERE button. The folder opens. 3. Select an application, and then press the ENTERE button.
Page 211 To Edit Items in a Folder Select a folder, and then press the ENTERE button. The folder opens. Press button on your remote. The Edit buttons appear at the bottom of the screen. These buttons work the same as the Edit Mode menu buttons on the main screen.
Page 212 ● New Folder New Folder function lets you create and name new folders. Once you have created a folder, you can move applications into it. To use the New Folder function, follow these steps: 1. Press the button on your remote. 2.
Page 213 ● Rename Folder Rename Folder function lets you rename folders. To use the Rename Folder function, follow these steps: 1. Press the button on your remote. 2. Press the to select a folder, and then press the ENTERE button. 3. Press the to select Rename Folder, and then press the...
Page 214 ● Lock Lock function lets you lock some application in My Applications so they can not be opened without entering the password. To use the Lock function, follow these steps: 1. Press the button on your remote. 2. Press the to select an application, and then press the button.
Page 215 ● Unlock 1. Press the button on your remote. 2. Press the to select a locked application, and then press the button. ENTERE 3. Press the to select Unlock, and then press the ENTERE button. The Security screen appears. 4. Enter your password. If you have not changed a password, enter “0-0-0-0”. 5.
Page 216 ● Delete Delete function lets you delete application from My Applications. To use Delete function, follow these steps: 1. Press the button on your remote. 2. Press the to select an application, and then press the ENTERE button. 3. Press the to select Delete, and then press the ENTERE button.
Page 217 Sort by ■ The functions in the Sort Menu let you sort the applications in My Applications by Name, Date, Frequency (of use), and Category. If you manually change the position of an application, the Sort menu is set to User Defined automatically. To sort the applications in My Applications, follow these steps: 1.
Page 218: Using Smart Hub
❑ Using Smart Hub Enjoy photos, music and/or movie files saved Search on a USB Mass Storage Class (MSC) device Recommended and/or your PC. 1. Press the SMART HUB button. Favorites Channel Web Browser Videos Photos Music 2. Press the button to select Videos, Schedule Ma...
Page 219: Connecting A Usb Device
❑ Connecting a USB Device 1. Turn on your TV. TV Rear Panel 2. Connect a USB device containing photo, music and/or movie files to the port on the back or side panel of the TV. USB Drive 3. When a USB device is connected to the TV, Connected Device screen appears.
Page 220 Read this information before using Smart Hub with a USB device. ● The USB function might not work properly with unlicenced multimedia files. ● MTP (Media Transfer Protocol) is not supported. ● The file system supports FAT16, FAT32 and NTFS. ●...
Page 221 ● Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss. ● Connect a USB HDD to the dedicated USB 1 (HDD) port.
Page 222 ● The TV cannot play MP3 files with DRM that have been downloaded from a for pay site. Digital Rights Management (DRM) is a technology that supports the creation, distribution, and management of digital content in an integrated and comprehensive way, including protecting the rights and interests of content providers, preventing illegal copying of contents, and managing billings and settlements.
Page 223 ● If the TV has no input during the time set in Time, the Auto Protection Screensaver will run. ● The power-saving mode of some external hard disk drives may be released automatically when you connect them to the TV. ●...
Page 224 ❑ Connecting to a PC through a network You can play pictures, music, and videos saved in your PC through a network connection in the AllShare™ mode. For more information on how to configure your TV and connect it to your network, see ‘Network Connection’.
Page 225 The following Smart Hub functions are not supported when you are playing media from a PC connected through a network: ● functions. Background Music Background Music Setting ● Sorting files by preference in the Music, and folders. Photos, Videos ● (REW) or (FF) button while a movie is playing.
Page 226 Depending on the Internet server, when you use through a network Smart Hub connection: ● The sorting method may vary. ● function may not be supported. Scene Search ● function which resumes playing of a video, may not be supported. Resume –...
Page 227: Screen Display
❑ Screen Display Move to the file you want to play using the up/down/right/left buttons, and then press the ENTERE (Play) button. The file is played. � Home: Return to content Music Device name: Displays the home name of the connected Change Contents/Device: device.
Page 228: Videos
Videos ■ Playing a Video 1. Press the button to select the Play 1:02:15 / 2:04:10 desired video in the file list. Movie 1.avi 2. Press the ENTERE button or �(Play) button. ● The file name appears on the top with its ▶...
Page 229 ● You can use the (REW), (FF), Pause, Stop, and Play buttons on the π µ bottom of your remote during playback. ● Press the RETURN button to exit the movie ● Supported Video Subitle Formats (for language subtiles, etc.) Name File extension Format...
Page 230: Supported Video Formats
● Supported Video Formats Frame rate Bit rate File Extension Container Video Codec Resolution Audio Codec (fps) (Mbps) DivX 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 MP3 / AC3 H.264 BP / MP / HP 1920x1080 6 ~ 30 *.avi / LPCM /...
Page 231 Frame rate Bit rate File Extension Container Video Codec Resolution Audio Codec (fps) (Mbps) H.264 BP / MP / HP 1920x1080 6 ~ 30 ADPCM / *.3gp 3GPP AAC / HE- MPEG4 SP / ASP 1920x1080 6 ~ 30 MPEG1 352x288 24 / 25 / 30 AC3 / MPEG...
Page 232 Other Restrictions NOTE ● Video content will not play, or not play correctly, if there is an error in the content or the container. ● Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec listed in the table above. ●...
Page 233 ● The menu may take longer to appear if the video’s bit rate exceeds 10Mbps. ● Some USB/digital camera devices may not be compatible with the player. Video Decoder Audio Decoder • • Supports up to H.264, Level 4.1 Supports up to WMA 7, 8, 9, STD •...
Page 234 Using the Play Continuously Function (Resume Play) If you exit a movie when it is playing, you can play the movie later from the point where you stopped it. Resume function does not support multiple users. (It will only memorize the point where the most recent user stopped playing.) 1.
Page 235 Using the Scene Search function Scene Search divides a video into five chapters during playback. You can then re- start playback from the chapter you select. If the index information is damaged or unsupported, you will not be able to use the Scene Search function.
Page 236: Music
Music ■ Playing Music 1. Press the button to select the Playlist Musi desired music file in the file list. No S No S Singe I Love You Musi Musi i c_2 Ming No Sing g er Musi sic_3 Love No S S inge inge...
Page 237 Creating My Playlist 1. On the Music screen in the Smart Hub menu, press the button to select Edit Mode, and then press the ENTERE button. A check box appears to the left of the files. 2. Press the button to select the tracks you want to add, and then press the ENTERE button.
Page 238 4. Press the button to select Add to My Playlist. Note that selecting Clear My Playlist will return My Playlist to the default playlist and remove all the tracks you added. 5. Press the button. The message “Selected items were added to My ENTERE Playlist.”...
Page 239 Playing Selected Music Files 1. On the Music screen in the Smart Hub menu, press the button to select Edit Mode on the far right side of the screen, and then press the ENTERE button. 2. Press the button to select the desired music file in the file list, and then ENTERE button.
Page 240: Photos
Photos ■ Viewing a Photo (or Slide Show) 1. Press the button to select the Normal Friends.jpg 1024 X 768 2011/01/03 desired file in the file list. 2. Press the ENTERE button. ● To view files manually, one at a time, press the left or right arrow buttons.
Page 241 When you press the (Play) button in the file list, the slide show will start � immediately. During a Show, press the button to access additional functions Slide TOOLS such as Slide Show Speed, Background Music, Zoom, and Rotate. You can add background music to a slide show if you have music files on your USB device or PC by setting Background Music in the...
Page 242: Smart Hub - Additional Functions
Smart Hub - Additional Functions ❑ Sorting the file lists To sort files in the file lists, select the (Sorting) icon in the top right of the screen by using the button. Then, press the ENTERE button. The checks below indicate which media the sort criteria apply to. Sort Criteria Operation Videos...
Page 243 Sort Criteria Operation Videos Music Photos Artist Sorts the music file by artist in alphabetical order. > Album Sorts the music file by album in alphabetical order. > Genre Sorts music files by the Genre. > Monthly Sorts and shows photo files by month. >...
Page 244 Videos/Music/Photos Play Option menu When playing video or photo files, you can press the TOOLS button to display an Options menu. Below are a series of tables listing the options available and the media each option applies to. Option Name Operations Videos Music...
Page 245 Option Name Operations Videos Music Photos You can use the Scene Search function during Scene Search playback to view or start a movie from the scene > of your choice. You can move directly to another Title. Title Search > You can search the movie using buttons Time Search...
Page 246 Option Name Operations Videos Music Photos Picture Mode You can change the Picture Mode. > > Sound Mode You can change the Sound Mode. > > > You can enjoy video in one of supported languages. The function is enabled only when you Audio Language >...
Page 247 Option Name Operations Videos Music Photos Slide Show Effect You can set various slide show effects. > Background Music You can start or stop background music. > On / Off You can set and select background music when Background Music >...
Page 248: Using Samsung Apps
❑ Using Samsung Apps Samsung Apps ■ Samsung Apps is a store from which you can download applications to use on Samsung TV/AV equipment. You can enjoy a variety of contents such as videos, music, photos, games, useful information etc. using the downloaded applications.
Page 249 Using the colored buttons with Samsung Apps. ● Red (Login): To log in to the Internet What’s New? Welcome to Samsung Apps! More apps are in store for you to enjoy. What’s New? service. Accu Weather Video TV store Test User001...
Page 250 Using Samsung Apps by category The following categories are available: ● New?: Displays newly registered applications. What’s ● Video: Displays apps that provide video media such as movies, TV shows and short length videos. ● Game: Displays various game apps such as sudoku and chess.
Page 251 Account: Displays the application list and your App cash balance. Starting in the middle of 2010 (US and Korea only), you can purchase cybercash that you can use to buy applications through tv.samsungapps.com. ● Help: If you have questions about Samsung Apps, check this section first. ▶ ▶ English...
Page 252 Social TV ■ (May not be available, depending on your country.) Share your TV viewing experience with your friends via social networking services (SNS). Using the Social TV function provided by the Smart Hub, you can use an SNS function such as Twitter, Facebook or Google Talk while watching TV in the same way you use it on a PC.
Page 253 1. To open TV, press the buttons to select Social Social and then press the button. ENTERE 2. Enjoy your social network service through Social TV Using the colored and function buttons with Social TV ● (Log in / Logout): To log into or logout of the Smart Hub account. ●...
Page 254 Search ■ (May not be available, depending on your country.) Easily search for and access content from diverse sources (e.g. applications, Your Video, AllShare™) 1. To open Search, press the buttons to select Search, and then ▶ ▶ press the ENTERE button.
Page 255 Video: Personalize your movie-watching with a customized video on demand Your (VOD) recommendation service. Searched: You can search for a video by selecting a key word in the key Most word list. The key word list displays words you frequently use for searches. Application: You can search top video applications and services for a video.
Page 256 Your Video ■ (May not be available, depending on your country.) 1. To open Your Video, press the buttons to select Your Video, and then press the ENTERE button. 2. Enjoy your movie watching with a customized video on demand (VOD) ▶...
Page 257 Web Browser ■ (May not be available, depending on your country.) Using the Web Browser function provided by the Smart Hub, you can surf the Internet on your TV. 1. To open Browser, press the buttons to select ▶ ▶ Browser, and then press the ENTERE button.
Page 258 When the Web Browser opens, the cursor is in Tab Mode. In Tab Mode, the cursor highlights text or objects, or surrounds them with a blue rectangle. To move the cursor in Tab Mode, use the buttons. Press ENTERE to select. To scroll the screen down, use the buttons.
Page 259 has a series of icons across the top of the screen. With these Web Browser icons, you can easily use the Browser. The icons are described below, starting with the icon on the far left of the screen. ● Back: Moves to the previous web page. If there is no saved previous web page, this icon will not work.
Page 260 ● Zoom: You can select a zoom level of 50%, 75%, 100%, 125%, 150%, 200%, 400% Fit to Screen. ● Favorite: Displays the screen. You can set the current page as Favorites List a Favorite or select a favorite page to visit from the Favorites page list. ●...
Page 261 ● URL: Shows the URL of the current page. If you press the button, ENTERE the URL pop-up appears. Press again and you can key in a new a ENTERE URL directly. You can also select a page to visit on the displayed Page list. In addition, you can sort the Page list by Date, Name, or Frequency.
Page 262 ● Search: Lets you search the web. When you access the entry field and Search press ENTERE, the Browser displays a pop-up with a text entry keyboard and a text entry field on the right. The keyboard functions much like a cell phone texting keypad.
Page 263 Using the colored and function buttons with the Web Browser ● Red (Back): Moves to previous page. If there is no saved previous web page, this button will not work. ● Green (Zoom): You can select a screen size of 50%, 75%, 100%, 125%, 150%, 200%, 400% Fit to...
Page 264 ● TOOLS (Options): Displays the icons from the top of the page in a toolbar in the middle of the screen. Press to close. RETURN ● Down): You can scroll the page up or down. (Scroll Up / πµ ● RETURN: Return to the previous screen or close the Browser.
Page 265 ● Tools: Provides an easy-to-read page by enlarging the main text. Reading ● Clean site: When Clean site is on, you can only access the web pages registered in site. Use Clean Site to restrict your children’s access to Clean appropriate web pages.
Page 266 ● site: Lets you add the currently displayed web site to the Clean Add surrent Site list. sites: Lets you key in URLs to add to the List and Manage clean Clean site delete sites from the Clean site List. If you turn Clean site on and have not added any sites to the...
Page 267 ● Option: You can configure options. Web Browser Set as homepage: You can set the home page. – Most Visited: Set the most frequently visited URL as the home page. – Current Page: Sets the current page as the home page. –...
Page 268 – Off): Turns the on or off. Ad Blocker (On / Ad Blocker – Block current page: Adds the current page to the blocked list. – Manage blocked sites: Displays the Manage blocked sites screen. You can add a website for which advertisements should be blocked by directly keying in the URL, or you can delete a website from the list.
Page 269 Encoding: You can set the Encoding setting for webpages to Automatic or Manual. – Auto select (On / Off): Select the Encoding settings for webpages automatically. – Setting: Select the Encoding settings for webpages manually. Select an encoding format from the encoding format list. Pointer: You can set the speed of the cursor when the cursor is set to Pointer Mode.
Page 270 Buy and use the TV camera (SAMSUNG only). ● The displayed image may differ depending on the model. Other company’s TV Cameras are not ▶ ▶ compatible with Skype on your TV. For more information, download the Skype user’s manual from “www.samsung. com.” English...
Page 271 [Legal Statement] Due to the various capabilities of products featuring the Samsung Smart Hub - Content Service, as well as limitations in the available content, certain features, applications, and services may not be available on all devices or in all territories.
Page 272 Yahoo ■ Smart Hub provides an integrated Internet and television experience powered by the Yahoo!® Widget Engine. You can monitor stocks, stocks, share photos with friends and family, and track news and weather all through the Yahoo!® Widget Engine. When running Smart Hub for the first time, you will be prompted to configure the basic settings.
Page 273 Screen Display ● Dock Mode Welcome Banner: Shows your profile. Hello John! 5:15 AM Mon January 19th ● Blue (Viewport): Toggles between Viewport Viewport Edit Snippet Overlay modes. ● Yellow (Edit Snippet): To edit snippets with a help window. N In Viewport mode, the TV or video plays in a scaled-down area with graphics outside.
Page 274 ● Sidebar Mode FINANCE Widget logo and Current menu. My Stocks Contents List: The current selection is highlighted in To remove a stocks symbol, please select it from the blue. Displays the current page and number of total list below. pages.
Page 275 Editing Snippets in the Dock 1. Edit a snippet by selecting it in the dock and pressing the Yellow button. 2. The snippet moves to the Second position and its tile slides up to show the following help text: ● Move Snippet: To rearrange snippets.
Page 276 PROFILE Widget ■ Set up user profiles through PROFILE Widget. You can set up multiple profiles, each with its own list of widgets. Use the Switch Profile option to switch to a different user profile. There must be at least two registered profiles. For instructions on adding a profile, refer to Administrative Controls.
Page 277 ● Use the option to customize and protect your profile. Profile Settings – User profiles can be customized with a unique name PROFILE and avatar (a picture used to represent your profile). Signed in as – Your profile’s name and avatar are displayed in the John profile snippet in the dock.
Page 278 ● option limits access to the profile’s widgets. Profile Settings – If you forget your Profile PIN, answer your profile’s Security Question. – New widgets cannot be added to profiles with the Limit Profile indicator enabled. must be set to use this feature. For instructions on setting Owner PIN Owner PIN, refer to...
Page 279 – resets all widget settings and information. Restore Factory Settings When you cannot run Restore Factory Settings normally or you can not install/run the specific widgets normally, press the remote control buttons in the following sequence, which resets the Yahoo Service: POWER (on) →...
Page 280 ● Sign into Yahoo!® from Widget using your PROFILE Yahoo! – If you have a Yahoo! ID, you can access personalized content using Yahoo! TV widgets. – You will be automatically signed-in to all installed Yahoo! TV widgets with your profile’s Yahoo! ID. –...
Page 281: Widget Gallery
❑ Widget Gallery Use Yahoo!® Widget Gallery to add more widgets to your TV. View available TV widgets in the following categories: ● Featured: Displays recommended widgets. ● Latest: Displays the most recent widgets. ● Widgets: Displays all widgets. ● Categories: Displays all widgets by category.
Page 282 ● Settings: Press the Green button. Widget Gallery – About Yahoo! Widget Gallery...: You can view brief information for the Widget Gallery, Copyright Policy, Terms of Service, and Privacy Policy. – Software: Displays the current version of the system software TV Widget and installed widgets.
Page 283: Troubleshooting For Smart Hub
❑ Troubleshooting for Smart Hub Problem Possible Solution Some application contents only The Application content language may be different from the appear in English. How can I change application user interface language. the language? The ability to change the language depends on the service provider.
Page 284 ■ Troubleshooting for Web Browser 1. To open Browser, press the buttons to select Browser, and then press the ENTERE button. The Web Browser may be displayed differently with PC. 2. The is not compatible with a Java application. Web Browser 3.
Page 285 7. Scrolling a web page that allows only part (and not the whole) of the page to be scrolled may cause corrupted characters. 8. ActiveX is not supported. 9. Some options cannot be accessed in Tab mode. (To access such options, switch to Pointer mode.) 10.
Page 286 14. When writing emails or posting messages, some functions (Such as changing the size or colours.) may not be supported. 15. The number of bookmarks and logs that can be saved is limited. 16. The maximum number of windows that can open at the same time may vary depending on the browsing condition or TV model.
Page 287 21. When you import or export the bookmark, the folder tree is not included. 22. If you import the bookmark file to a Computer from a TV, the bookmark file will be saved in “Samsung SmartTV Bookmark” folder. 23. If the time is not set in the menu (System →...
Page 288 IS WITH YOU. THE DEVICE AND ALL THIRD PARTY CONTENT AND SERVICES ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED. SAMSUNG EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH RESPECT TO THE DEVICE AND ANY CONTENT ▶...
Page 289 ▶ ▶ device. Samsung may impose limits on the use of or access to certain services or content, in any case and without notice or liability. Samsung is neither responsible nor liable for customer service related to the content and services. Any question or request for service relating to the content or services should be made directly to the respective content and service providers.
Page 290: Allshare
(such as your PC) by controlling them on the TV via the network. For more information, visit “www.samsung.com” or contact the Samsung call center. Mobile devices may need additional software installation. For details, refer to each device’s user’s guide.
Page 291 If your Samsung TV connects to a non-Samsung DLNA server, a compatibility issue may occur during video playback. By connecting your Samsung TV to a network via AllShare™, you can use Samsung’s original functions as follows: – Playback of various video formats (DivX, MP4, 3GPP, AVI, ASF, MKV, etc.) –...
Page 292: Setting Up Allshare
❑ Setting Up AllShare™ → → → MENUm Network AllShare Settings ENTERE AllShare Settings ■ ● Media (On / Off): Enables or disables the media AllShare Settings function. When the media function is on, you can Media control Media contents play using mobile phones or other devices that support DLNA DMC.
Page 293 Media ■ Shows a list of mobile phones or connected devices which have been set up to use the Media function with this TV. The Media function is available in all devices which support DLNA DMC. ● Allowed / Denied: Allows/Blocks the devices. ●...
Page 294 Using the Media Function An alarm window appears informing you that media contents (videos, photos, music) sent from a mobile phone will be displayed on your TV. The contents are played automatically 3 seconds after the alarm window appears. If you press the RETURN EXIT button when the alarm window appears, the media contents are not played.
Page 295 ● To turn off media contents transmissions from a mobile phone, set Media in the AllShare Settings. ● Contents may not play on your TV depending on their resolution and format. ● buttons may not work depending on the type of ENTERE media content.
Page 296: Anynet+(Hdmi-Cec)
■ What is Anynet+? Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.
Page 297 ● For instructions explaining how to connect Anynet+ external devices, refer to the device’s user manual You must connect an Anynet+ device using an HDMI cable. Some HDMI cables may not support Anynet+ functions. ● Anynet+ works when the AV device supporting Anynet+ is in the standby or on status.
Page 298 ● However, you can connect only one Anynet+ Home Theater. To connect an Anynet+ Home Theate, connect the Home Theater to the TV using an HDMI cable then: – To hear sound from the Home Theater’s Front, Left and Right speakers and the subwoofer only, connect a Digital Optical cable between the DIGITAL AUDIO OUT (OPTICAL)
Page 299 Anynet+ Menu The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu Description • Changes Anynet+ mode to TV broadcast mode. View TV • Shows the Anynet+ device list. Device List •...
Page 300: Setting Up Anynet
❑ Setting Up Anynet+ → → → MENUm System Anynet+ (HDMI-CEC) ENTERE Anynet+ (HDMI-CEC) (Off / On) ■ To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On. When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated.
Page 301 Auto Turn Off (No / Yes) ■ Set an Anynet+ Device to turn off automatically when the TV is turned off. Auto Turn Off is set to Yes, running external devices will turn off at the same time as the TV powers off. May not be enabled depending on the device.
Page 302 ❑ Switching between Anynet+ Devices 1. Press the TOOLS button, select Anynet+ (HDMI-CEC), and then press ENTERE. 2. Select Device List, and then press the ENTERE button. If you cannot find a device you want, select Refresh to refresh the list. 3.
Page 303 menu appears only when you set Device List Anynet+ (HDMI-CEC) in the menu. System ● Switching to the selected device may take up to 2 minutes. You cannot cancel the switching operation while switching is in progress. ● If you have selected an Anynet+ device by pressing the SOURCE button and then selecting its input source, you cannot use the Anynet+ function.
Page 304: Listening Through A Receiver
❑ Listening through a Receiver You can listen to sound through a receiver (i.e Home Theater) instead of the Speaker. 1. Select Receiver and set to On. 2. Press the EXIT button to exit. If your receiver supports audio only, it may not appear in the device list. The receiver will work when you have properly connected the optical in jack ▶...
Page 305 Using the ARC function You can listen to sound through a receiver connected using an HDMI cable without connecting a separate optical cable. 1. Select and set to On. Receiver 2. Press the button to exit. EXIT To use the ARC function, a receiver which supports the HDMI-CEC and ARC features must be connected to the HDMI IN 2 (ARC) port.
Page 306: Troubleshooting For Anynet
❑ Troubleshooting for Anynet+ Problem Possible Solution • Check if the device is an Anynet+ device. The Anynet+ system Anynet+ does not work. supports Anynet+ devices only. • You can connect only one receiver (home theater). • Check if the Anynet+ device power cord is properly connected. •...
Page 307 • Check if the Anynet+ device is properly connected to the TV and I want to start Anynet+. check if the Anynet+ (HDMI-CEC) is set to in the Anynet+ Setup menu. • Press the TOOLS button to display the Anynet+ menu and select a menu you want.
Page 308 • Check whether or not the device supports Anynet+ functions. The connected device is not displayed. • Check whether or not the HDMI cable is properly connected. • Check whether Anynet+ (HDMI-CEC) is set to in the Anynet+ setup menu. •...
Page 309: Troubleshooting
❑ Troubleshooting If your TV seems to have a problem, first review this list of issues and solutions. If none of these troubleshooting tips apply, please visit “www. samsung.com,” and then click on Support, or contact the Samsung call center.
Page 310 Issues Solutions and Explanations • The compression of video contents may cause picture distortion especially The picture is distorted: macro block error, small in fast moving pictures such as sports and action movies. block, dots, pixelization • A weak or bad quality signal can cause picture distortion. This is not a TV issue.
Page 311 Issues Solutions and Explanations • If the picture size is set to Screen Fit, change it to 16:9. There is a dotted line on the edge of the screen. • Change the cable/satellite box resolution. • If you are using an AV composite input, connect the video cable (yellow) to The picture is black and white.
Page 312 Issues Solutions and Explanations • Make sure the glasses are turned on. The 3D Active Glasses are not working correctly • The 3D Active Glasses may not work properly if there is any other 3D product or electronic devices turned on near the glasses or TV. •...
Page 313 Issues Solutions and Explanations Sound Problem First, perform the Sound Test to determine if your TV audio is operating properly. • Go to MENU Support Self Diagnosis Sound Test) If the audio is OK, the sound problem may caused by the source or signal. •...
Page 314 Issues Solutions and Explanations • Check cable connections. Make sure a video cable is not connected to an The speakers are making an inappropriate noise. audio input. • For antenna or cable connections, check the signal information. A low signal level may cause sound distortion.
Page 315 Issues Solutions and Explanations RF (Cable/Antenna) Connection • Make sure the coaxial cable is connected securely. The TV is not receiving all channels. • to add available channels to the channel list. Go to Auto Program MENU Channel Auto Program then select Auto and make sure to select the correct Cable TV signal type.
Page 316 Issues Solutions and Explanations PC Connection • Set your PC’s output resolution so it matches a resolution supported by the A “Mode Not Supported” message appears. • This is normal. “PC” is always shown in the source list, regardless of whether “PC”...
Page 317 Issues Solutions and Explanations Others • Remove the left and right audio connections from the set-top-box. If the Purple/green rolling horizontal bars and buzzing buzzing stops, this indicates that the set-top-box has a grounding issue. noise from the TV speakers Replace the Component video cables with an HDMI connection.
Page 318 Issues Solutions and Explanations • HD channels will have black bars on either side of the screen when The picture won’t display in full screen. displaying up scaled SD (4:3) contents. • Black bars will appear on the top and bottom of the screen when you watch movies that have aspect ratios different from your TV.
Page 319 Issues Solutions and Explanations • This smell is normal and will dissipate over time. There is a plastic smell from the TV. • This function is only available for digital channels the TV receives from an The TV Signal Information is unavailable in the Self Antenna / RF/Coax connection.
Page 320 Issues Solutions and Explanations • Check the cable connections and reconnect them. You have intermittent loss of audio or video. • Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are flexible enough for long term use. If mounting the TV to a wall, we recommend using cables with 90 degree connectors.
Page 321: Anti-Theft Kensington Lock
Refer to the manual provided with the Kensington Lock for additional information on proper use. The Kensington Lock is not supplied by Samsung. Please find a “K” icon on the rear of the TV. The Kensington slot is beside the “K”...
Page 322 To lock the product, follow these steps: 1. Wrap the Kensington Lock cable around a large, stationary object such as desk or chair. 2. Slide the end of the cable with the lock attached through the looped end of the Kensington Lock cable.
Page 323: License
❑ License TheaterSound HD, SRS and the symbol are trademarks of SRS Labs, Inc. TheaterSound HD technology is incorporated under license from SRS Labs, Inc. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S.
Page 324 DivX Certified® to play DivX® video up to HD 1080p, including premium content. DivX®, DivX Certified® and associated logos are trademarks of DivX, Inc. and are used under license. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video.

Samsung UN32H5201 E-Manual

Quick Links

Troubleshooting

Related Manuals for Samsung UN32H5201

Summary of Contents for Samsung UN32H5201

Table of Contents
