Summary of Contents for PhysioRoom.com V1008S

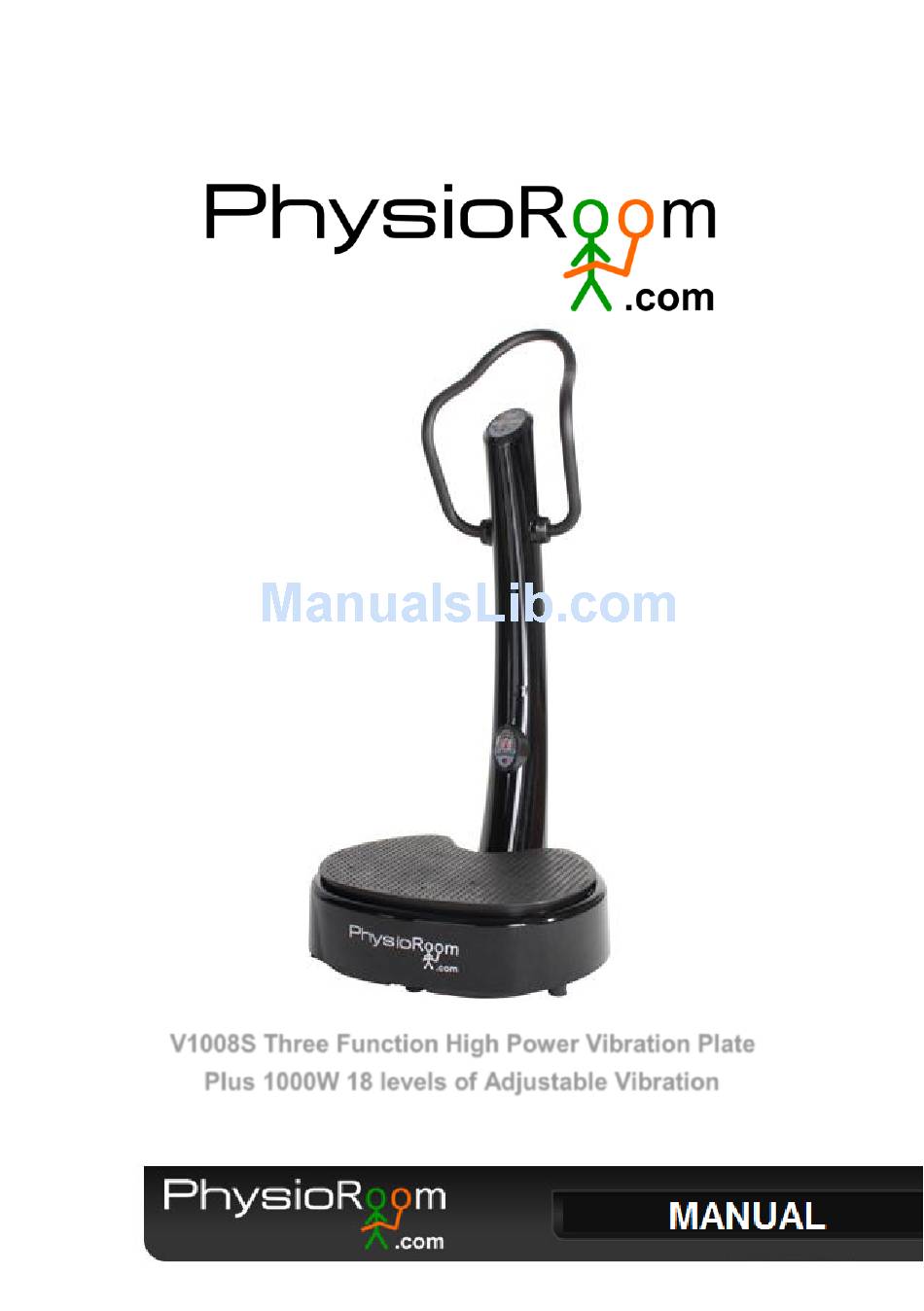

- Page 1 V1008S Three Function High Power Vibration Plate Plus 1000W 18 levels of Adjustable Vibration...
-
Page 2: Table Of Contents
Contents Instructions for Use Intended Use Health & Safety Warnings Before Use Instructions for Assembly Accessories Steps to Assemble Assembly Instructions Control Centre Error Messages Parameters Maintenance Troubleshooting... -
Page 3: Instructions For Use
Instructions for Use – V1008S Three Function High Power Vibration Plate Plus 1000W 18 levels of Adjustable Vibration Vibrations plates use the power of motion to stimulate a person’s muscles. As well as working the body to develop strength, resistance and muscle definition this machine can also be used to boost blood circulation. -
Page 4: Health & Safety Warnings
Health & Safety Warnings Use this product no more than three times a day. Each session should not exceed 15 minutes. Stop using the High Power Vibration Plate Plus immediately if any problems occur with it. Use of this machine less than an hour after eating is not recommended. -
Page 5: Before Use
Before Use Ensure the High Power Vibration Plate Plus is placed on a flat surface. Make sure your voltage and electric current are within the parameters of this machine. The High Power Vibration Plate Plus contains no transformer. The socket should sustain 5A current voltage, have a ground wire and not be shared with other electrical appliances. -
Page 6: Instructions For Assembly
Instructions for Assembly – V1008S Three Function High Power Vibration Plate Plus 1000W 18 levels of Adjustable Vibration... -
Page 7: Accessories
Accessories Steps to Assemble... -
Page 8: Assembly Instructions
Assembly Instructions 1. Attach the signal cable to the pedestal. 2. Put the stand pipe into the pedestal. 3. Use the 6 M8x25 screws and the gaskets to fix the stand pipe to the pedestal at the bottom of the machine. 4. -
Page 9: Control Centre
Control Centre 1. Time/Wobble Speed 7. Time/Wobble Speed Display Display Shift Button 2. Speed Display 8. Speed Increase Button for Wobble 3. Speed Increase Button for Vibration 9. Speed Decrease Button for Wobble 4. Time Button 10. Mode Button 5. Speed Decrease Button for Vibration 11. - Page 10 1. Time/Wobble Speed Display Shift Button While the vibration machine is in use, this button allows you to switch between the time and speed display mode or the vibration settings and vibration speed display - shown on the screen below this button. 2.
- Page 11 5. Speed Decrease Button for Vibration Use to decrease the speed of the vibration machine in manual mode and also the duration of operation time in time-adjustment mode. 6. Mode Display This screen shows the current mode the machine is operating in.
- Page 12 P4: 2, 6, 10…46, 50, 46…6, 4 Cycling single control Fluctuation for 1 alternation 0.5 second. P5: 2, 6, 10…46, 50, 46…6, 4 Cycling single control Vibration for 1 alternation 0.5 second. 7. Time/Wobble Speed Display At shutdown the time display is 0.00. During operation the time remaining will be displayed in seconds or the wobble speed will be displayed by selecting the shift button.
- Page 13 9. Speed Decrease Button for Wobble Press to decrease the wobble speed of the plate in manual mode and also the duration of operation time in time- adjustment mode. 10. Mode Button Shift between HL, HS, LO, P1, P2, P3, P4, P5 operations. 11.
- Page 14 1. Mode Button Shift between HL, HS, LO, P1, P2, P3, P4, P5 operations. 2. Increase Button Press to increase the speed of the machine in manual mode and also the duration of operation time in time-adjustment mode. 3. ON/OFF Button Use this button to start and stop the machine or stop the current operation.
-
Page 15: Error Messages
Error Messages 1. E3: under-voltage protection 2. E4: overvoltage protection 3. E5: overload of swing motor 4. E6: overload of vibration motor 5. E7: connection error or excessive interference Parameters Speed range: 1-50 Max load: 120kgs Input voltage: 220V Input current: 5A Vibration Max. -
Page 16: Maintenance
Maintenance Regular maintenance of the High Power Vibration Plate Plus will not only prolong the life of the machine but help to safeguard users. For the best results: 1. Tighten all screws on the machine every two months. 2. Always keep liquid and flammables away from the machine. - Page 17 If you have any questions or queries with this product or for PhysioRoom.com please contact us on +(44) 1282 471590. PhysioRoom.com Ltd. Registered in England No. 04785898 Registered Office: Unit 1 & 2 Dawson Court, Billington Road Burnley, Lancashire BB11 5UB, England Tel: +44...
