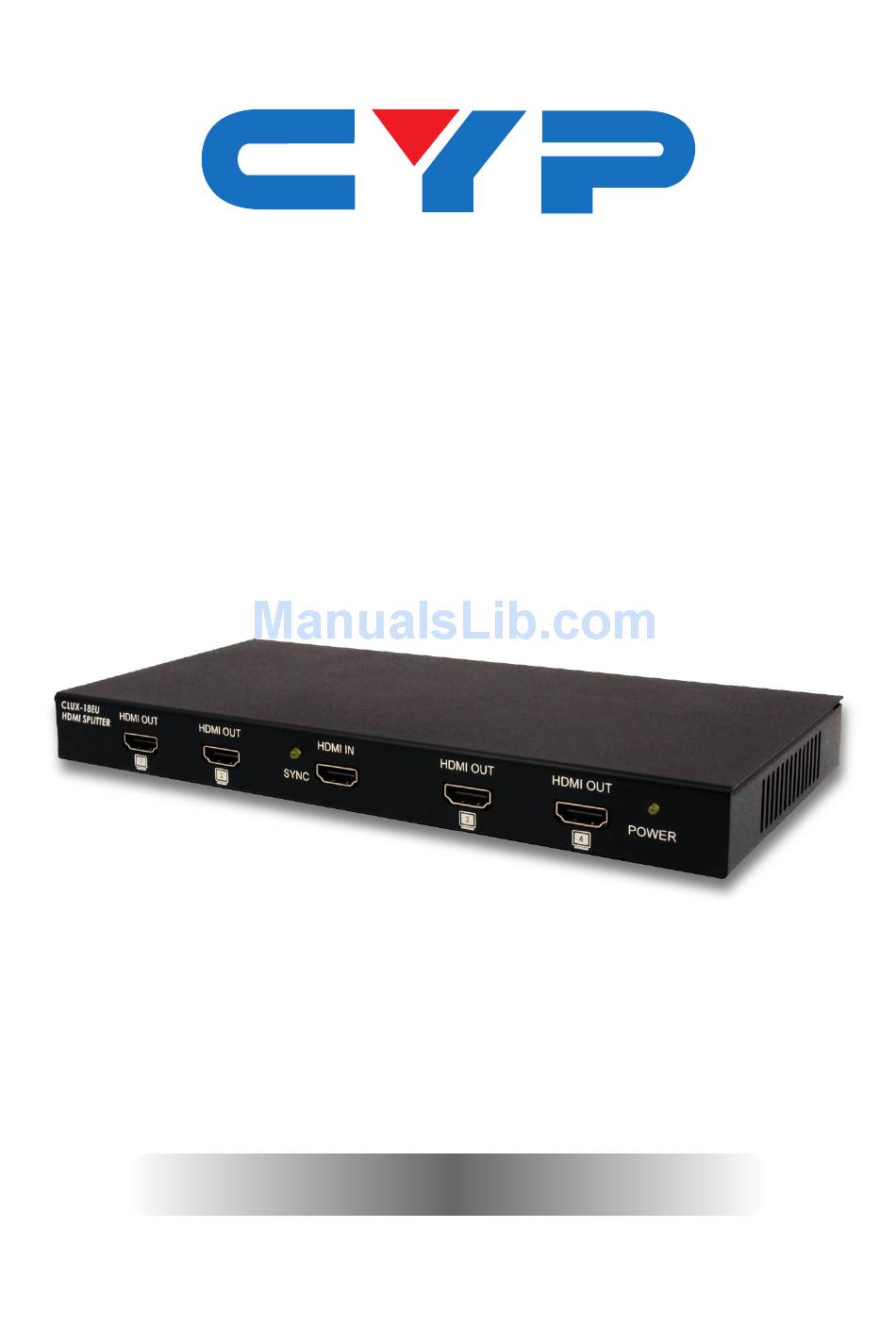

- Page 1 CLUX-18EU 1 by 8 HDMI Splitter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............ 2 6. Operation Controls and Functions ..3 6.1 Front Panel ..........3 6.2 Rear Panel ...........4 7. Connection Diagram ......5 8. -
Page 6: Introduction
1. INTRODUCTION With eight HDMI outputs and capable of distributing 3D content the HDMI 1 by 8 splitter is a forward looking device that helps you handle futuristic technology today. Transfer 3D content, Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, this device does not only handle splitting and distributing but it also amplifies and equalizes the signals to... -
Page 7: Features
5. FEATURES • HDMI v1.3, HDCP 1.1 and DVI 1.0 compliant receiver. • Deep Color video up to 12-bits, 1080p@24/60 Hz. • Allows one HDMI source to simultaneously output to up to eight HDMI displays. • HDCP keysets allows each output to work independently when connected to an HDMI display. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI OUT 1/2/3/4 HDMI equipped displays connected to these slots will display the same content that is input from the HDMI IN slot. NOTE A. This system was tested with 24AWG cables, the performance of this system may be different if using cables of a different specification. -
Page 9: Rear Panel
6.2 Rear Panel SERVICE ONLY For software update only. HDMI OUT 5/6/7/8 HDMI equipped displays connected to these slots will display the same content that is input from the HDMI IN slot. SYS Reset ON/OFF This switch allows user to perform a system reset. The default setting is OFF, leave as is when in normal use. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Cable (15 M/8-bit) . (10 M/12-bit) HDMI Cable (15 M/8-bit) . (10 M/12-bit) Monitor Monitor DVD or Blu-ray Player Monitor Monitor Monitor Monitor Monitor Monitor... -
Page 11: Specifications
8. SPECIFICATIONS TMDS Clock Frequency 225 MHz Input Port 1 × HDMI Output port 8 × HDMI ESD Protection Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Input/Output Resolution VGA~UXGA, 480i~1080p@60 HDMI Cable In 1080p/8-bits 15 m, 1080p/12-bits 10 m HDMI Cable Out 1080p/8-bits 15 m, 1080p/12-bits 10 m Power Supply... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
