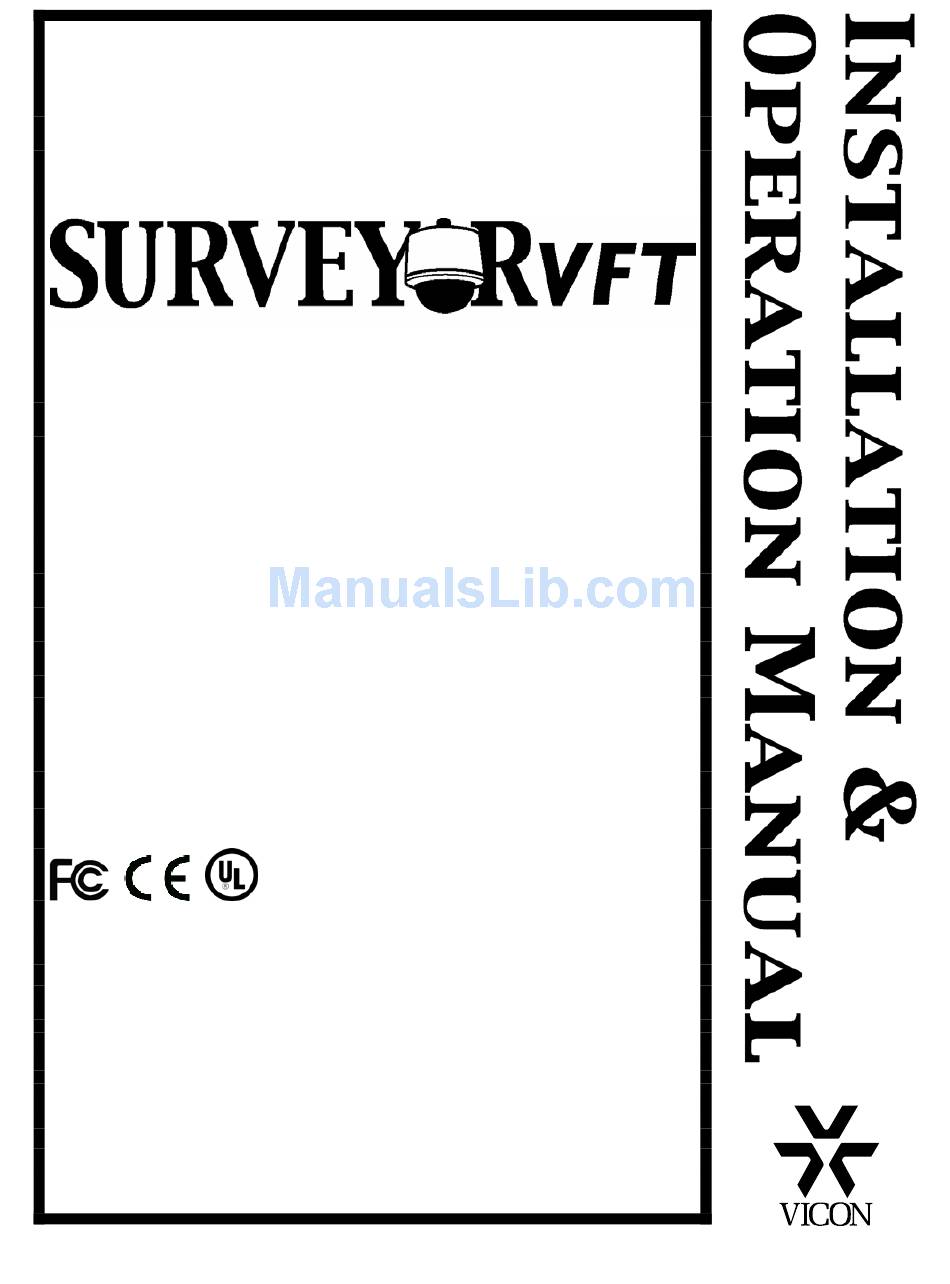

Vicon SurveyorVFT SVFT-C22 Installation And Operation Manual

Camera dome
Hide thumbs Also See for SurveyorVFT SVFT-C22:
Table of Contents

Advertisement

Quick Links

Download this manual
Warning: To reduce a risk of fire or electric shock, do not expose
the indoor unit to rain or moisture.
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your
requirements or that the operation will be entirely error free or perform precisely as described in the
documentation. This system has not been designed to be used in life-critical situations and must not be
used for this purpose.
Copyright © 2008 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
SurveyorVFT, NOVA and Vicoax are trademarks and ViconNet and Kollector are registered trademarks of Vicon Industries Inc.
ExView is a trademark of Sony Corporation.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300
Vicon part number 8009-8134-07-00
XX134-07-00
Camera Dome
WEB: www.vicon-cctv.com
Section 3 Rev 908

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SurveyorVFT SVFT-C22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon SurveyorVFT SVFT-C22

Summary of Contents for Vicon SurveyorVFT SVFT-C22

  • Page 1 Product specifications subject to change without notice. Vicon and its logo are registered trademarks of Vicon Industries Inc. SurveyorVFT, NOVA and Vicoax are trademarks and ViconNet and Kollector are registered trademarks of Vicon Industries Inc. ExView is a trademark of Sony Corporation.
  • Page 3 The product shows a significant change in performance. 6. Attachments - Use only UL Listed Vicon recommended attachments to prevent unit damage and personal injury. 20. Replacement Parts - Use only Vicon specified replacement 7.

  • Page 5: Fcc Notice

    FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.

  • Page 7: Table Of Contents

    Contents IMPORTANT SAFEGUARDS ........ERROR! BOOKMARK NOT DEFINED. FCC NOTICE .........................I CONTENTS .........................III INTRODUCTION........................1 How to Use this Manual ..........................4 Accessory Kits..............................5 Unpacking and Inspection..........................5 SurveyorVFT Components ..........................8 Enclosure ..............................8 Camera Drive ............................8 Shroud...............................8 Lower Dome ..............................8 Housing ..............................8 Sunshield..............................8 INSTALLATION ........................11 Quick Installation –...
  • Page 8 Care and Cleaning of Smoked and Clear Acrylic Domes ................ 61 Fuse Replacement ............................61 SHIPPING INSTRUCTIONS....................62 REFERENCE ........................63 TECHNICAL INFORMATION..................... 66 VICON STANDARD EQUIPMENT WARRANTY ..ERROR! BOOKMARK NOT DEFINED. iv • 2BContents XX134-07-00 Rev 908 SurveyorVFT Camera Dome System...

  • Page 9: Introduction

    LAN interface board allows direct plug-in to a system network hub, switch or router. Video from the camera is available to all network recorders and workstations for live view and recording. The Vicon SurveyorVFT camera dome can be used in conjunction with competitive PTZ drivers through DIP switch selection.
  • Page 10 Table 1 Models and Descriptions Model Number Product Environment/ Camera Mount Optical Zoom/ Lower Code Cable Type Type/Format Type Total Zoom Dome Type SVFT-C22 8701-00 Indoor/Coax Color/NTSC Ceiling ExView 22x/264x Smoked SVFT-C22C 8701-01 Indoor/Coax Color/PAL Ceiling ExView 22x/264x Smoked SVFT-P22 8704-00 Indoor/Coax Color/NTSC...
  • Page 11 Power Table Power* Current Rating Model Number Coax, UTP, Fiber ViconNet Coax, UTP, Fiber ViconNet SVFT-C22/ SVFT-C22C SVFT-P22/ SVFT-P22C SVFT-W22/ SVFT-W22C SVFT-C23/ SVFT-C23C SVFT-P23/ SVFT-P23C SVFT-W23/ SVFT-W23C SVFT-W35/ SVFT-W35C SVFT-C22CA/ SVFT-C22CA-C SVFT-P22CA/ SVFT-P22CA-C SVFT-W22CA/ SVFT-W22CA-C *Power @ 24 VAC. 3BIntroduction • 3 XX134-07-00 Rev 908 SurveyorVFT Camera Dome System...

  • Page 12: How To Use This Manual

    How to Use this Manual This manual was designed to provide the best overall instructions for the installation and operation of the SurveyorVFT Camera Dome. The graphics and terminology used in this manual have been carefully selected to enable a clear and distinct understanding of the SurveyorVFT and its components. This manual has been formatted to present distinct methods of installation for qualified service personnel only.

  • Page 13: Accessory Kits

    Installation section for details on applying the lubricant. Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to provide suitable delivery. Inspect the cartons upon delivery and, if damage is present, make detailed notes on the carrier’s bill. Then, obtain the carrier agent’s signature and file a damage claim as soon as possible.
  • Page 14 Unpacking the SurveyorVFT In-Ceiling Unpacking the SurveyorVFT Indoor Pendant 6 • 3BIntroduction XX134-07-00 Rev 908 SurveyorVFT Camera Dome System...
  • Page 15 Unpacking the SurveyorVFT Outdoor Pendant 3BIntroduction • 7 XX134-07-00 Rev 908 SurveyorVFT Camera Dome System...

  • Page 16: Surveyorvft Components

    SurveyorVFT Components All SurveyorVFT units are comprised of an Enclosure/Housing, a Camera Drive, a Shroud and a Lower Dome. Figures 1, 2 and 3 show In-Ceiling, Indoor Pendant and Outdoor Pendant models, respectively. Enclosure The enclosure is a metal shell that houses the camera drive for the in- ceiling model.
  • Page 17 Figure 2 SurveyorVFT Indoor Pendant Figure 3 SurveyorVFT Outdoor Pendant 3BIntroduction • 9 XX134-07-00 Rev 908 SurveyorVFT Camera Dome System...
  • Page 18 10 • 3BIntroduction XX134-07-00 Rev 908 SurveyorVFT Camera Dome System...

  • Page 19: Installation

    Installation Choose the installation type based on the specific unit purchased (In-Ceiling, Indoor or Outdoor Pendant). Quick Installation – In-Ceiling Model 4BInstallation • 11 XX134-07-00 Rev 908 SurveyorVFT Camera Dome System...

  • Page 20: Quick Installation - Indoor Pendant

    Quick Installation – Indoor Pendant 12 • 4BInstallation XX134-07-00 Rev 908 SurveyorVFT Camera Dome System...

  • Page 21: Quick Installation - Outdoor Pendant

    Quick Installation – Outdoor Pendant 4BInstallation • 13 XX134-07-00 Rev 908 SurveyorVFT Camera Dome System...

  • Page 22: Detailed Installation

    Detailed Installation These steps provide the most thorough and accurate instructions. In-Ceiling Mount Model This version of SurveyorVFT mounts in the ceiling and rests on the ceiling material occupying the space between the lower ceiling and upper building frame. All mounting hardware is provided. Use of the Provided Scribe A small metal scribe is provided to assist in marking an accurate hole size in a ceiling tile for in-ceiling installations.
  • Page 23 The accessory kit contains the removable screw terminal blocks to be used for all connections in this installation. The ceiling material must provide a surface of suitable strength for the SurveyorVFT weight of 5.1 lb (2.3 kg) on the area of the two flippers. Refer to the Optional Independent Support sub- section for installations requiring additional support.
  • Page 24 Note: There should be minimal wire slack at all connection points. a) Strip approximately 1 inch (25 mm) of cable outer jacket to be terminated in terminal blocks. Then strip approximately 0.25 inches (6 mm) of insulation off of each individual wire. b) Refer to Wiring section and Tables 2A, 2B and 2C to make all connections to terminal blocks TB1 (power), TB2 (alarms), TB3 (relays/control signals) and TB4 (UTP video).
  • Page 25 9. Connect the enclosure’s safety cord clip to the tab in the camera drive to allow the drive to hang from the enclosure. Refer to Figure 7 for location of tab. Insert the clip of the safety cord on the lower dome into the hole in the enclosure.
  • Page 26 Optional Independent Support If it is necessary to provide independent support for the SurveyorVFT, other than the ceiling material, order the optional In-Ceiling Model Mount Kit SVFT-IC-KT. It consists of a pre-assembled set of mounting rails and folding ring, as shown in Figure 9. 1.

  • Page 27: Indoor Pendant Model

    Indoor Pendant Model The indoor pendant model mounts on a Vicon mount (refer to the table in the Introduction section) or a 1.5- inch vertical pipe with an appropriate coupling. The pipe is a standard 1.5-inch NPT type and must be oriented vertically so the SurveyorVFT can effectively hang from the pipe.
  • Page 28 Figure 12 Unlatching the Customer Interface Board b) Refer to Wiring section and Tables 2A, 2B and 2C to make all connections to terminal block TB1 (power), TB2 (alarms), TB3 (relays/control signals) and TB4 UTP video). On TB3, the COMMAND IN + (COMM IN +) and COMMAND IN - (COMM IN -) connections must be used for Simplex operation.
  • Page 29 12. Lift the SurveyorVFT camera drive up to the housing and attach the housing’s safety cord clip to the camera drive’s tab. See Figure 13. Allow the drive to hang from the housing. Insert the clip of the safety cord from the lower dome into the hole on the inside of the housing.

  • Page 30: Outdoor Pendant Model

    Outdoor Pendant Model The Outdoor Pendant model mounts on a Vicon mount (refer to the table in the Introduction section) or a 1.5- inch vertical pipe with appropriate coupling in the same manner as the indoor version. The outdoor version includes a sunshield, heater and weather protection.
  • Page 31 a) Strip approximately 1 inch (25 mm) of the cable outer jacket to be terminated in terminal blocks TB1 and TB3. Then strip approximately 0.25 inches (6 mm) of insulation off of each individual wire. b) Refer to Wiring section and Table 2 to make all connections to terminal block TB1 (power), TB2 (alarms), TB3 (relays/control signals) and TB4 UTP video).
  • Page 32 14. Push the camera drive straight into housing until it snaps into the housing. Do not use excessive force. In the event that it does not snap easily, remove the SurveyorVFT and verify proper cabling. 15. Holding the lower dome, line up the 2 molded tabs on the lower dome with the 2 parallel surfaces of...
  • Page 33 Figure 18 Outdoor Lower Dome Installation 4BInstallation • 25 XX134-07-00 Rev 908 SurveyorVFT Camera Dome System...
  • Page 34 NOTES 26 • 4BInstallation XX134-07-00 Rev 908 SurveyorVFT Camera Dome System...

  • Page 35: Wiring

    Table 4 of the Technical Information section. Refer to the table in the Introduction for power supplies available from Vicon (single and multi-channel). In the standard version, video cables carry the composite video signal and Vicoax signals out of the SurveyorVFT over coaxial cable.
  • Page 36 Figure 19 Customer Interface Board Connections 28 • 5BWiring XX134-07-00 Rev 908 SurveyorVFT Camera Dome System...

  • Page 37: Typical Relay And Alarm Connections

    Typical Relay and Alarm Connections Alarm input and relay output type signals are also carried on individually-shielded twisted-pair cable sets. The signals are defined in the following descriptions. Alarms 1-4 are electronic CMOS level type inputs that are driven by a dry contact type switch. These signals are connected to terminal block TB2.

  • Page 38: Installing The Cables

    Installing the Cables WARNING: Disable the AC power to prevent installer injury and damage to the unit. Cables are installed using 2 different methods, depending on the installation type. For the in-ceiling installation, cables are routed from above the ceiling through a conduit fitting on the enclosure to the customer interface board.

  • Page 39: For An Indoor Or Outdoor Pendant Model Installation

    For an Indoor or Outdoor Pendant Model Installation Refer to Figure 19 customer interface boards for indoor or outdoor pendant model mount cable installation details. 1. Route each cable from the inside top of the housing. 2. Remove terminal blocks from the accessory kit. The 2-pin is for power, the two (2) 8-pin are for alarms and control/relay;...
  • Page 40 CONNECTOR TYPE CONNECTOR/PIN LABEL SIGNAL NAME CONNECTOR/PIN NUMBER BNC (female) VIDEO (J1) Video output VIDEO AMP Header (Fiber Optic board)* Video/RS-422 data TERMINAL BLOCK POWER (TB1) TB1-1 TB1-2 Neutral TERMINAL BLOCK ALARM (TB2) TB2-1 Alarm input 1 ALARM 1 TB2-2 Ground TB2-3 Alarm input 2...
  • Page 41 CONNECTOR TYPE CONNECTOR/PIN LABEL SIGNAL NAME CONNECTOR/PIN NUMBER TERMINAL BLOCK VIDEO NVT (TB4) TB4-1 Unshielded twisted pair + UTP + TB4-2 Unshielded twisted pair - UTP - TB4-3 TERMINAL BLOCK POWER (TB1) TB1-1 TB1-2 Neutral TERMINAL BLOCK ALARM (TB2) TB2-1 Alarm input 1 ALARM 1 TB2-2...
  • Page 42 CONNECTOR TYPE CONNECTOR/PIN LABEL SIGNAL NAME CONNECTOR/PIN NUMBER TERMINAL BLOCK POWER (TB1) TB1-1 TB1-2 Neutral TERMINAL BLOCK ALARM (TB2) TB2-1 Alarm input 1 ALARM 1 TB2-2 Ground TB2-3 Alarm input 2 ALARM 2 TB2-4 Ground TB2-5 Alarm input 3 ALARM 3 TB2-6 Ground TB2-7...

  • Page 43: Installation Configurations

    The star configuration requires the use of a Distribution Line Control, such as Vicon’s V1400X-IDL that can support up to 10 domes. Refer to the figure below for an illustration of sample configurations. Both types of configurations can be used within a system.

  • Page 44: Installing The Flash Upgrade And Pc Direct Control

    Additionally, software for the PC must be ordered; the disk provides both the flash upgrade utility, needed to upgrade the firmware in the dome to latest version, and the PC Direct Control Software, which allows a host PC to control several domes through a GUI. Call Technical Support at 1-800-34-VICON (1-800-348-4266). Standalone Configuration Vicon recommends the standalone configuration, connecting the output of the RS-232/RS-422 converter directly to the SurveyorVFT data line.

  • Page 45: Star Configuration

    Standalone Configuration System Star Configuration When multiple domes are connected in a star configuration, using a V1400X-IDL, the RS-232/RS-422 Interface Converter is used, part number 1240-5308-01, along with a customer fabricated cable. Refer to Table 2A for connections. In this configuration, connect the converter end of the customer-fabricated cable assembly to the SERIAL port of the computer and the other end to the CPU/J11 port on the V1400X-IDL (you may have to disconnect the keypad).
  • Page 46 Star Configuration System After the physical connections are made, insert the software disk and select the appropriate program, Flash Upgrade Utility or PC Direct Control Software. 38 • 5BWiring XX134-07-00 Rev 908 SurveyorVFT Camera Dome System...

  • Page 47: Configuration

    Configuration The SurveyorVFT must be configured for its address and mode and termination setting when using RS- 422/RS-485 protocol. The address and mode are set using the two 8-position DIP Switch banks SW1 and SW2. It is necessary to determine which communication mode, Camera/Lens Module type and SurveyorVFT address is required prior to configuration.
  • Page 48 NOTE: DIP switches labeled ON or CLOSED and OFF or OPEN have the same meaning. Figure 23 DIP Switch Label Competitive Protocol Settings, SW2 Switches 5-8 Pelco: Switch 5 is ON, switches 6-8 are OFF Sensormatic: Switch 6 is ON, switches 5, 7, 8 are OFF Ultrak: Switches 5 and 6 are ON, switches 7-8 are OFF Philips: Switch 7 is ON, switches 5, 6, 8 are OFF Cohu: Switches 5 and 7 are ON, switches 6 and 8 are OFF...
  • Page 49 DIP Switch 1 (SW1) Address (Pilot/NOVA/VPS Mode) SWITCHES SWITCHES SWITCHES Table 3 DIP Switch 1 (SW1) Settings for Pilot/NOVA/VPS Mode 6BConfiguration • 41 XX134-07-00 Rev 908 SurveyorVFT Camera Dome System...

  • Page 50: Setting The End-Of-Line Jumpers Jp1, Jp2 & Jp3 For Rs-485 Protocol Operation

    Setting the End-of-Line Jumpers JP1, JP2 & JP3 for RS-485 Protocol Operation This section defines setting the end-of-line jumpers JP1, JP2 and JP3. The jumper sockets are located on the underside of the customer interface board, as shown in Figure 24. Figure 24 End-of-Line Jumper Location NOTE: DIP Switch 2 (SW2) switch 4 must be set to the ON (RS-485) position for proper daisy chain...

  • Page 51: Configuring The Network Settings

    When adding a SurveyorVFT IP Camera to the ViconNet network, the following items must be considered: • The number of cameras on a switch with respect to switch capabilities and system bandwidth mapping. • Bandwidth limitations on ports connected to workstations (using 100 or 1000 Mbps). •...
  • Page 52 Setup TAB Note: Since the Setup configuration affects the entire installation process, it MUST be configured first. In the Setup TAB, 3 fields are defined. The Upgrade files field indicates the installation upgrade directory. The Log files field allows the user the ability to put a copy of log files in a predefined directory. Password management selects a directory to save all password files.
  • Page 53 4. Press the Select button on the lower section of the screen. Note: You MUST click the Select button to add the unit to the list; verify that it is added to the list. 5. The selected unit appears on the Selected unit section on the top of the screen and settings can be changed.
  • Page 54 Install TAB The Install TAB allows the user to install/upgrade newer versions. Choose the correct version and click Install to send to the selected unit. Install Info Tab The Info TAB displays the selected IP product general information/ Info Advanced TAB The Advanced TAB functionalities allow the user to handle unexpected events on a specific remote unit when they occur.
  • Page 55 Advanced Custom TAB The Custom TAB is only used for the KRX-3 Decoder. Do NOT do any settings in this screen. Custom After the SurveyorVFT has been configured for ViconNet, upon another boot up (or preset 97), the opening screen will display (see below). This screen displays the camera dome program version, current date/time and some of the word ViconNet.

  • Page 56: Viconnet Configuration

    ViconNet Configuration After the camera dome has been setup with the proper IP address, configuration features from a remote workstation, server or recorder are available as follows. • A network settings screen is used to modify the camera dome’s IP parameters. This allows great flexibility in network setup.

  • Page 57: Uninstalling The Surveyorvft

    Uninstalling the SurveyorVFT The ur S veyorVFT camera drive can be easily uninstalled by simply pushing in the tabs to release the camera drive from the housing or the enclosure. A safety cord is always available to safely hang the camera drive or camera dome assembly while installing or uninstalling.

  • Page 58: Operation

    If the SurveyorVFT fails to power-up correctly, go to the Troubleshooting sub-section of this section. When initial power-up has been completed and verified, SurveyorVFT can be setup and operated in a normal fashion using a Vicon remote operator keypad, VPS/NOVA/Pilot unit or through a PC running the Surveyor Direct Control pro gram;...

  • Page 59: Verifying Proper Operation

    SurveyorVFT. Power-on the control device and verify that it boots up. Set up the control device for operation with the SurveyorVFT in accordance with its Installation and Operation Manual. For a Vicon model V1300X-RVC or V1300X-DVC keypad connected directly to the SurveyorVFT or through a CPU, use the following procedure to access SurveyorVFT programming: 1.

  • Page 60: Troubleshooting

    2. Press the PP ENTER key; the PRESET LED displays a blinking 0. 3. Press the 9 and 5 numeric keys in that order. . Press the PP ENTER key again. The PRESET LED display remains with the number 95. The monitor will display the power-up test screen (Figure 26) for the duration of its initial testing.

  • Page 61: Competitive Protocols

    Protocol – Rev 3.0. Release Date: March 2004.) Note: All companies make changes and improvements in their products. Because this product can interface with equipment not manufactured by Vicon, there is a possibility that the interface protocols ce Vicon tested this product with the interfacing equipment. Vicon...
  • Page 62 Focus Far Debug Screen Focus Far The controller MPT9500 doesn't support Pelco tours. Vicon's tours are accessible using preset 80-87 or the menu system. To store a tour, E nter preset number, Preset Set , F2. To run tour us...
  • Page 63 Repeat Pattern to repeat. Camera Off Not Supported Night Mode- Manual Not Supported Vicon Menu Alarms are not used. Alarms are alw ays enabled. The dome w ill report to the AD keypad w hich alarm is activated (1-4) Camera On...
  • Page 64 Kalatel Function Keypress Function Keypress Press Set until "Enter Programming Code" appears. Enter Access Code 951followed by SEQ. Select 4 - Cyberdome. Enter three digit camera number. Enter 1 when prompted "Does The Monitor Display Site XXX". Enter Menu Program the unit using the joystick. Set Transmit Polarity Not Supported Not Supported;...
  • Page 65 Ultrak When changing SurveyorVFT software addresses, the keypad may not respond to all 256 addresses. The workaround is to go to Ultrak KEGS Setup menu, option (3.1.2) and set every camera (256) to KD6. Function Keypress Function Keypress Enter SVFT-M address on keypad and hit Enter key.
  • Page 66 Panasonic Function Keypress Function Keypress Press and hold CAMERA SETUP button for 2 sec. Use SET button to select and save options. Use ESC button to abort or leave options. Move joystick up and down to select and highlight SurveyorVFT preset 94 menu options. Use button AUX 1 for Aux 1 and AUX 2 for Aux 2.
  • Page 67 Philips Function Keypress Function Keypress Use On-46-Enter shortcut to enter Dome menu. Use Focus Far button to select and save options. Use Iris Close button to abort or leave options. Move joystick up and down to select and highlight Dome menu options (joystick does not support "press and hold"...
  • Page 68 Cohu Function Keypress Function Keypress To launch Dome menu use Preset 64 + Store. Use Focus Far button to select and save options. Use Iris Close button to abort or exit options. Move mouse cursor up and down on Not Supported Pan/Tilt pane to select and highlight Dome menu options.

  • Page 69: Maintenance

    Maintenance The SurveyorVFT requires no scheduled maintenance; however, the Lower Domes require occasional cleaning. The Chrome and Gold Domes are referred to as Metallized type domes. The Clear and Smoked Domes are referred to as Acrylic type domes. All domes require careful handling and occasional cleaning. Care and Cleaning of Metallized Domes 1.

  • Page 70: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.

  • Page 71: Reference

    Coaxial Cable Recommendations Caution: Careful selection of proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended, or equivalent, are installed. In all cases, coaxial cable impedance should be 75 ohms.
  • Page 72 (800) 235-3361 Table Recommended Individually-Shielded, Twisted-Pair Cable Types UTP Connection For NVT models, where video is transmitted over twisted-pair cable, a UTP receiver is required. Vicon offers t hree receivers to provide video transmission over a range of distances. NVT Receiver...
  • Page 73 Network Cable Caution: Careful selection of proper cable is essential to obtain the best performance. Vicon assumes no responsibility for poor performance when cables other than the recommended types, or equivalent, are used. Materials Use p ure copper stranded con ductors to obtain a low DC resistance.

  • Page 74: Technical Information

    Coax, Fib er, U TP: 1.3 btu/min Report state (report on/off). (0.3 4 kg-c al/mi Active st ate (high/low). Vicon Net (TCP /IP): 1.9 btu/min e (m anual, momentary or (0.49 kg -cal/mi auto matic) with programmable dwell Coax , Fiber, UTP: 2.8 btu/min...
  • Page 75 Note: A ll companies make changes and improvements in their products. Because this pr oduct can interface with equipment not manufactured by Vicon, there is a possibi lity that the interface protocols may have changed since Vicon tested this product with the interfacing equipment. Vicon recommends purchasing a single unit for bench testing prior to purchasing and installing this product in quantity.
  • Page 76 Standard 1-1/2 inch male NPT pipe In-Ceiling: IP51. thread or metric equivalent. Rain/Wind: Outdoor: heavy rain up to 4 in./hr at winds up to 90 mph, when mounted on standard Vicon wall mount. Distance ft (m) Wire Size Indoor Outdoor (AWG)
  • Page 77 Table 5: Camera/Lens Specification Model Numbers SVFT-C22, SVFT-P22, SVFT-C22C, SVFT- SVFT-C2 3, SVFT-P23, SVFT-C23C, SVFT- SVFT-W22 P22C, SVFT-W22C FT-W23 P23C, SVFT-W23C Product Codes Camera Specifica tions 8701-00, 8704-00, 8701-01, 8704-01, 8702-00, 8 05-00, 8702-01, 8705-01, 8707-00 8707-01 8708-0 8708-01 Formats NTSC NTSC Color...
  • Page 78 Model Numbers SVFT-C22CA, SVFT-P22CA, SVFT-W22CA/ SVFT-W35/SVFT-W35-C SVFT-C22CA-C, SVFT-P22CA-C, SVFT-W22CA-C Product Codes Camera Specifications 8741-00, 8742-00, 8743-00/ 2-00/9102-0 8741-01, 8742-01, 8743-01 Formats NTSC/PAL TSC/PAL Type Color Color Optical Zoom Digital Zoom 264X 420X Total Zoom PTICAL wide/DIGITAL tele: 3.9 Tele -Wide: 4.6 sec oom Speed Imag e Device...

  • Page 79: Vicon Standard Equipment Warranty

    Vicon Standard E pment Warranty Vicon Industries Inc. (the “Company”) warrants your equipment to be free from defec ts in material and workmanship under Normal U se from the da e of original ret ail purchase for a period o...
  • Page 80 Vicon Industries Inc. rpora te Headquarter 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 x: 631 -951-CCTV (2288 Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Germany...
