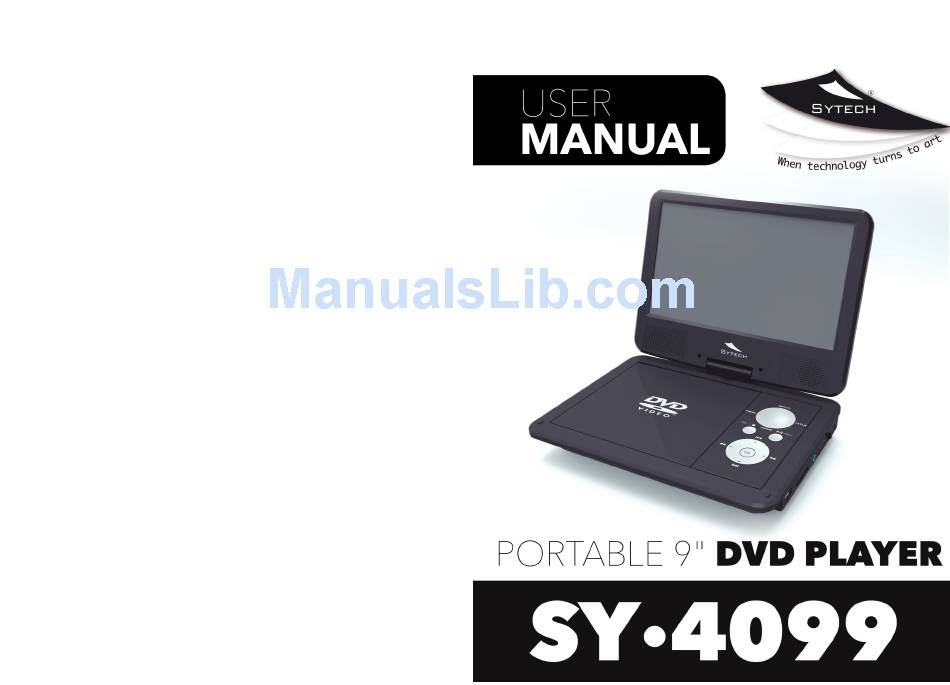

Sytech SY-4099 User Manual

Portable 9'' dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SY-4099 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sytech SY-4099

Summary of Contents for Sytech SY-4099

  • Page 2: Table Of Contents

    Safety Precaution Table Of Contents Thank you for choosing our portable DVD player.The unit applies the latest state of art electronics and is designed for use at home,in hotels and in offices etc for relaxation. Safety Precaution The compact size makes carrying easier as well as installation.Please read the manual carefully prior to use and keep it well for future reference.

  • Page 3: Package

    Package Main Unit Controls DVD Player Remote Control with battery AC/DC Power Adapter Cigarette Lighter Adapter User Manual Earphone Main Features High brightness color 9” LCD screen Compatible with disc of DVD,VCD,MP3,MPEG4,CD,JPEG,etc Built-in stereo speaker Built-in rechargeable Lithium polymer battery Support PAL or NTSC system Support Multi-language OSD,speed forward/backward,repeat function 1.

  • Page 4: System Connection

    System Connection Connecting with external Speaker The unit can be connected with external speaker.Please see the following illustration. Powering and installation Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the unit, then plug the other end into the AC power receptacle.

  • Page 5: The Remote Control

    The Remote Control The Use of Remote Control Please put the battery into the remote control as per below illustration. CR2025 CR2025 When using remote control,make sure the infrared window is pointed to infrared receiving window of the machine.The distance between machine and remote control must be within 3 metres.Please refer to the following illustration.

  • Page 6: Basic Operation

    Basic Operation Fast forward and fast backward MPEG4 SVCD MPEG4 SVCD When playing disc of DVD,MPEG4,SVCD,VCD,CD, the machine can search forward or Playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3. backward. 1. Press“ ”,the unit will search forward. Press it repeatedly ,the machine will play In the Source Mode,you can press “...
  • Page 7 Repeat playing of favorite scene Playing JPEG file in data disc MPEG4 SVCD 1. Place a JPEG disc into the tray, the unit will start reading and play. 2. Press“ ”to select a JPEG file and press“ENTER”button to confirm. When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeatedly play a Note:you can press “MENU”...
  • Page 8 Browser mode SD/MMC/USB main menu 00 00 03 43 001/008 \Ctyy\ ..TRACK01 TRACK02 TRACK03 TRACK04 TRACK05 After entering the SD/MMC or USB,the system will show Main Menu which includes 4 Function ICONS.You can select them by “ ” and press “ENTER”...
  • Page 9 When playing JPEG : Movie mode 1.To rotate the picture counter-clockwise,press “ ”; Press“ ” to rotate the picture clockwise 2. Press OSD button when viewing pictures,you can select different refresh mode as follows: 1. from top to bottom 001/006 2.

  • Page 10: System Setup

    Speed: In this item, you can set the rip speed: Normal or Fast. General Setup Page Bitrate: In this item, you can set the bitrate. It has 6 choices,128Kbps,192Kbps,256Kbps, 320Kbps,96Kbps and 112Kbps. Create ID3:In this item, you can create ID3 when playing CD text. Device: This item indicates whether USB or SD CARD is connected with DVD player.
  • Page 11 Video Setup Page Preference Setup Subtitle Select your preferred language to show the Video Setup subtitles on the screen. Audio English The default is OFF Subtitle French TV Type The subtitle languages depend on the Disc Menu German Quality information available on each disc,You can Parental Italian Panel Quality...

  • Page 12: Specification

    Troubleshooting Specification Compatible disc: DVD/VCD/CD/MP3/MPEG4 Signal system: PAL/NTSC Panel size: 9 inch PROBLEM SOLUTION Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75Ohm, unbalanced Make sure the machine is connected properly. No sound or Audio output: 1.4Vrms/10kOhm Make sure all cables are securely inserted into distorted sound Audio S/N: Better than 80dB the appropriate jacks.
  • Page 13 Tel: 902 430 967 Fax: 91 8864285 NIF: B83254763 Manufacturing country: China Description: Portable DVD player Sytech® SY-4099 complies with the following directives: CE Standard: Directive 2004/108/EC LVD Standard: 2006/95/EC RoHS Standard: 2011/65/EU. Restriction of hazardous substances Signed: Ajeet Nebhwani Utamchandani...
