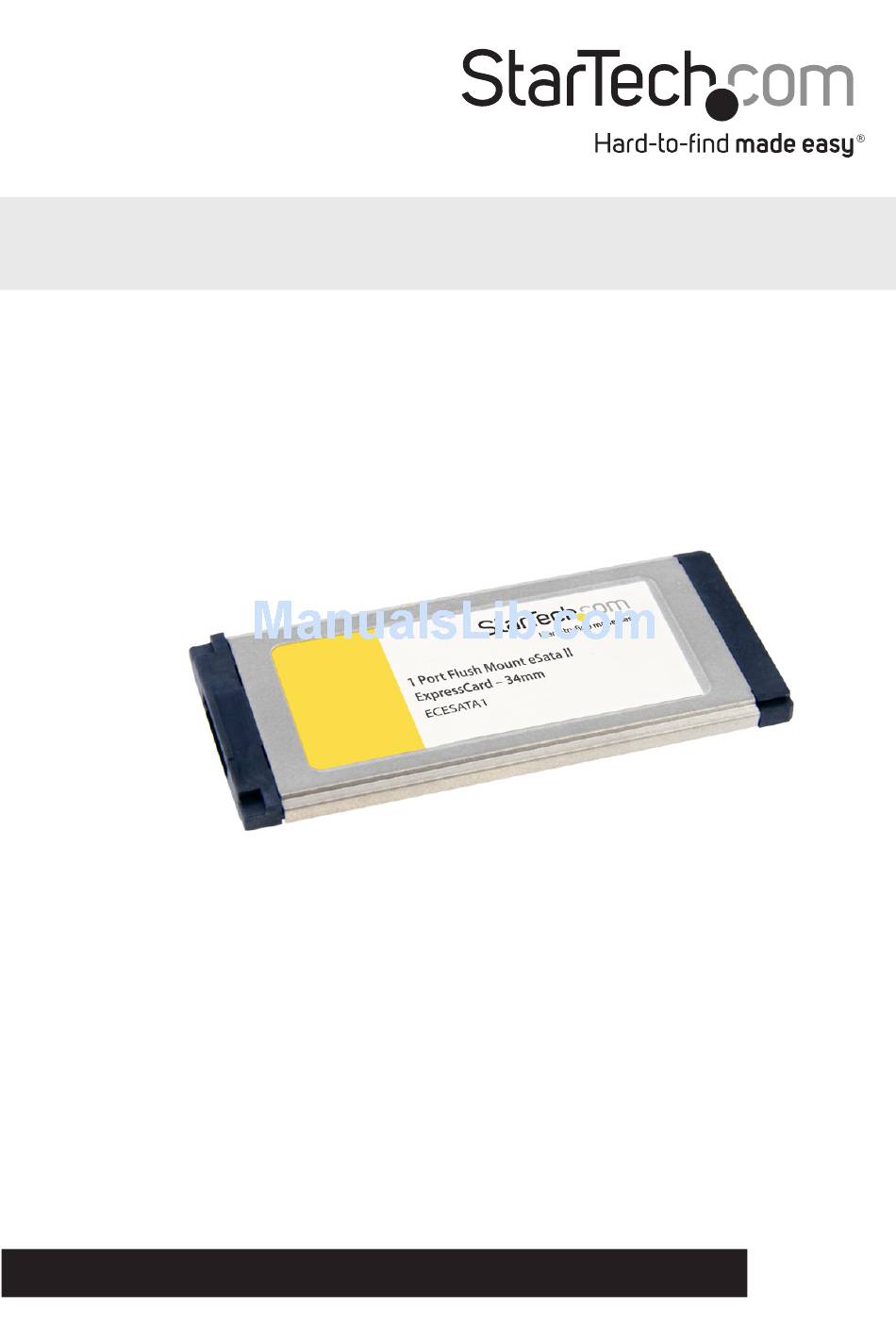

1 Port Flush Mount eSata ll ExpressCard – 34mm
ECESATA1
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/25/2012
Advertisement
Table of Contents
Related Manuals for StarTech.com ECESATA1
Summary of Contents for StarTech.com ECESATA1
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/25/2012...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ................................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation................................1 Hardware Installation ..........................1 Driver Installation ............................2 Verifying Installation ..........................3 Specifications ..............................4 Technical Support ............................5 Warranty Information ............................5 Instruction Manual... -
Page 4: Introduction
Introduction The StarTech.com 1-Port eSATA ExpressCard adapter lets laptop and small form factor computer users experience the high performance capabilities of eSATA external storage with data transfer rates of up to 3Gbps, as well as Port Multiplier capability with command-based switching for connecting multiple external hard drives to a host PC or Mac notebook through a single eSATA connection. -
Page 5: Driver Installation
Driver Installation Windows 2000/XP/Server 2003/Vista 1. After the hardware installation, Windows will detect the card, and a dialog box named Add New Hardware Wizard will show on the screen. 2. After the Found New Hardware wizard appears on the screen, insert the Driver CD into your CD-ROM drive. -
Page 6: Verifying Installation
Verifying Installation Windows 2000/XP/Server 2003/Vista From the main desktop, right-click on “My Computer” (“Computer” in Vista), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. *screenshots/photos for reference only Double-click on the “SCSI and RAID Controllers” option (“Storage Controllers” in Vista). There should be a device listed that contains “Silicon Image SiI3132”... -
Page 7: Specifications
Specifications Host Interface ExpressCard 1.0a SATA Revision 2.0 (3Gb/s) and 1.0 SATA Specification (1.5Gb/s) compatible Chipset Silicon Image SiI3132 Form Factor ExpressCard/34 (34mm) External Connectors 1 x 7-pin eSATA Port Multiplier Support LBA Support 48-bit Windows 2000/ XP/ Server 2003/ Compatible Operating Systems Vista/ 7 (32/64-bit), Mac OS 10.4.x/ 10.5.x... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, conse- quential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
