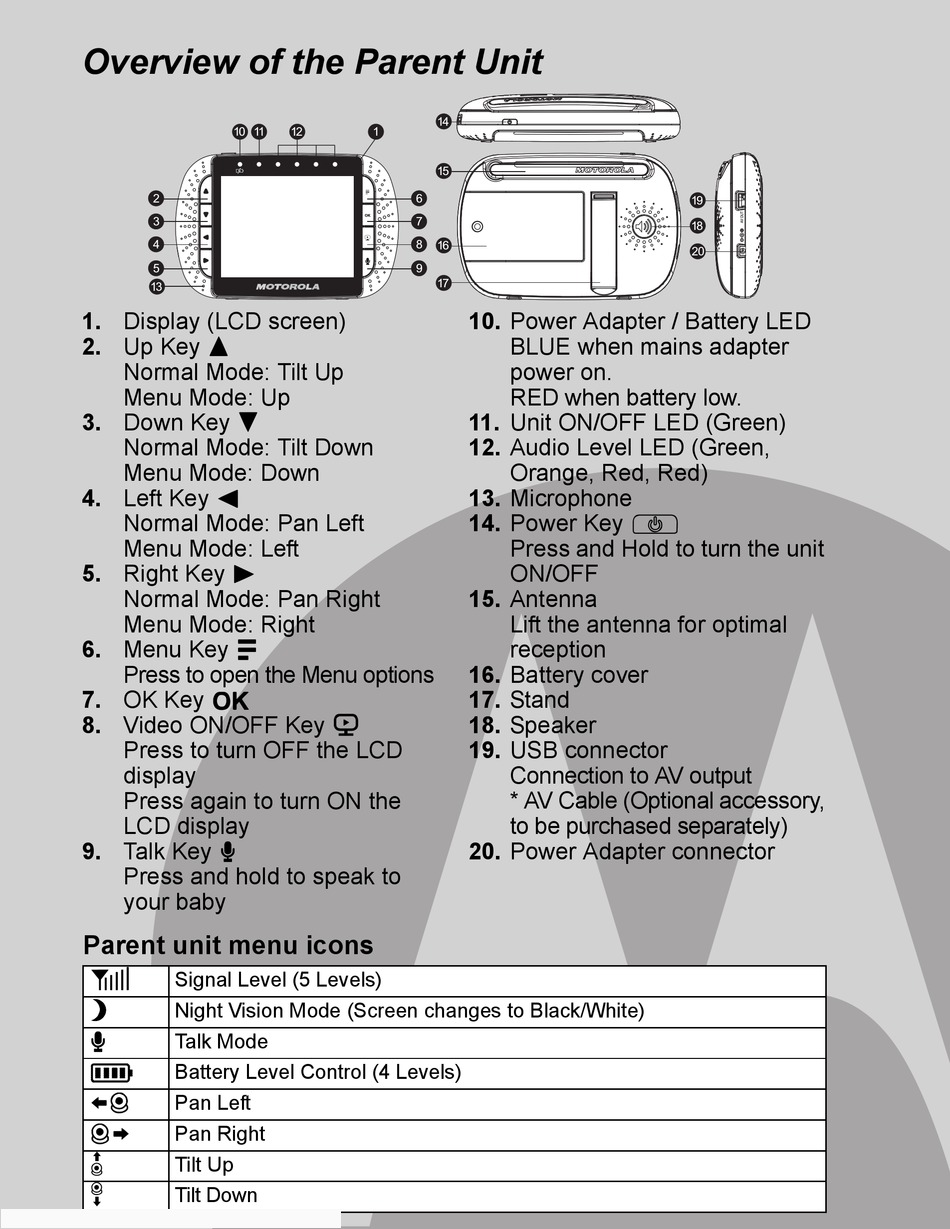

Overview of the Parent Unit
10
2
3
4
5
13
1. Display (LCD screen)
+
2. Up Key
Normal Mode: Tilt Up
Menu Mode: Up
-
3. Down Key
Normal Mode: Tilt Down
Menu Mode: Down
<
4. Left Key
Normal Mode: Pan Left
Menu Mode: Left
>
5. Right Key
Normal Mode: Pan Right
Menu Mode: Right
M
6. Menu Key
Press to open the Menu options
7. OK Key O
8. Video ON/OFF Key
Press to turn OFF the LCD
display
Press again to turn ON the
LCD display
T
9. Talk Key
Press and hold to speak to
your baby
Parent unit menu icons
1
Signal Level (5 Levels)
N
Night Vision Mode (Screen changes to Black/White)
T
Talk Mode
Battery Level Control (4 Levels)
H
Pan Left
J
Pan Right
K
Tilt Up
L
Tilt Down
11 12 1
6
7
8
9
V
14
15
16
17
10. Power Adapter / Battery LED
BLUE when mains adapter
power on.
RED when battery low.
11. Unit ON/OFF LED (Green)
12. Audio Level LED (Green,
Orange, Red, Red)
13. Microphone
14. Power Key
Press and Hold to turn the unit
ON/OFF
15. Antenna
Lift the antenna for optimal
reception
16. Battery cover
17. Stand
18. Speaker
19. USB connector
Connection to AV output
* AV Cable (Optional accessory,
to be purchased separately)
20. Power Adapter connector
19
18
20
P
