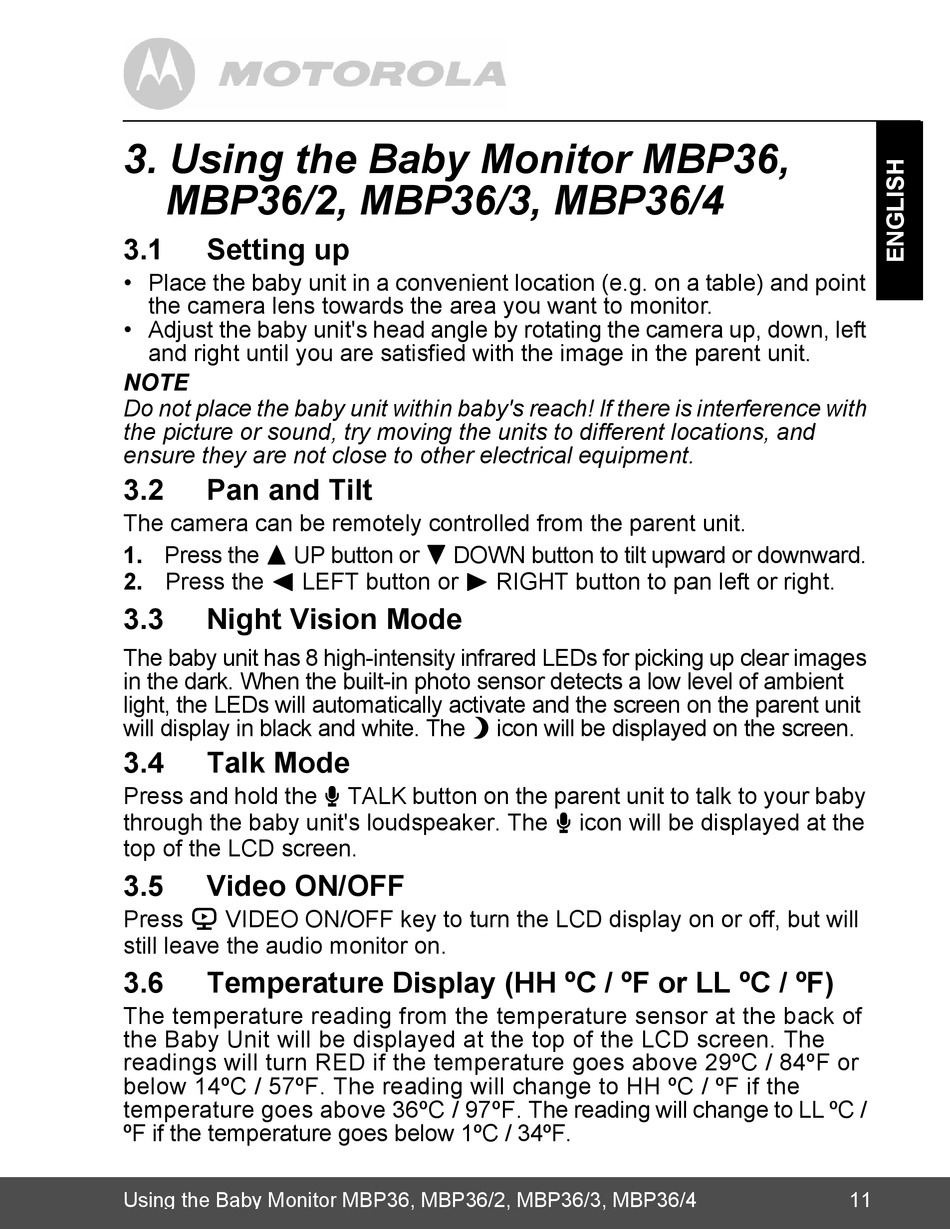

3. Using the Baby Monitor MBP36,
MBP36/2, MBP36/3, MBP36/4
3.1

Setting up

• Place the baby unit in a convenient location (e.g. on a table) and point
the camera lens towards the area you want to monitor.
• Adjust the baby unit's head angle by rotating the camera up, down, left
and right until you are satisfied with the image in the parent unit.
NOTE
Do not place the baby unit within baby's reach! If there is interference with
the picture or sound, try moving the units to different locations, and
ensure they are not close to other electrical equipment.
3.2

Pan and Tilt

The camera can be remotely controlled from the parent unit.
+
1. Press the
<
2. Press the
3.3

Night Vision Mode

The baby unit has 8 high-intensity infrared LEDs for picking up clear images
in the dark. When the built-in photo sensor detects a low level of ambient
light, the LEDs will automatically activate and the screen on the parent unit
will display in black and white. The
3.4

Talk Mode

Press and hold the
through the baby unit's loudspeaker. The
top of the LCD screen.
3.5

Video ON/OFF

V
Press VIDEO ON/OFF key to turn the LCD display on or off, but will
still leave the audio monitor on.
3.6 Temperature Display (HH ºC / ºF or LL ºC / ºF)
The temperature reading from the temperature sensor at the back of
the Baby Unit will be displayed at the top of the LCD screen. The
readings will turn RED if the temperature goes above 29ºC / 84ºF or
below 14ºC / 57ºF. The reading will change to HH ºC / ºF if the
temperature goes above 36ºC / 97ºF. The reading will change to LL ºC /
ºF if the temperature goes below 1ºC / 34ºF.

Using the Baby Monitor MBP36, MBP36/2, MBP36/3, MBP36/4

-
UP button or DOWN button to tilt upward or downward.
LEFT button or
T
TALK button on the parent unit to talk to your baby
>
RIGHT button to pan left or right.
N
icon will be displayed on the screen.
T
icon will be displayed at the
11
