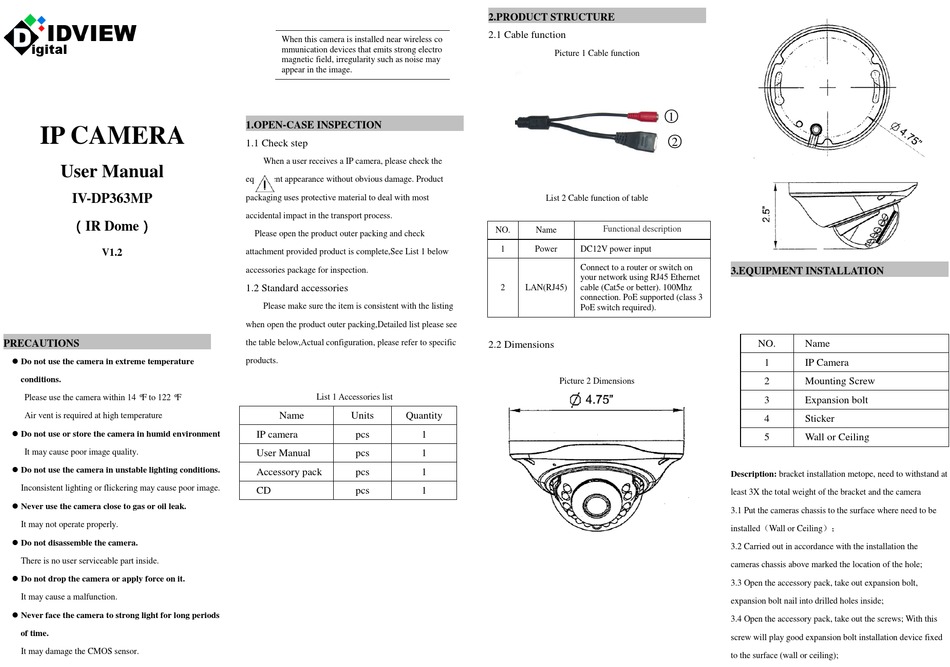

ID View IV-DP363MP User Manual

IP CAMERA
User Manual
IV-DP363MP
（IR Dome）
V1.2
PRECAUTIONS
 Do not use the camera in extreme temperature
conditions.
Please use the camera within 14 °F to 122 °F
Air vent is required at high temperature
 Do not use or store the camera in humid environment
It may cause poor image quality.
 Do not use the camera in unstable lighting conditions.
Inconsistent lighting or flickering may cause poor image.
 Never use the camera close to gas or oil leak.
It may not operate properly.
 Do not disassemble the camera.
There is no user serviceable part inside.
 Do not drop the camera or apply force on it.
It may cause a malfunction.
 Never face the camera to strong light for long periods
of time.
It may damage the CMOS sensor.
When this camera is installed near wireless co
mmunication devices that emits strong electro
magnetic field, irregularity such as noise may
appear in the image.
1.OPEN-CASE INSPECTION
1.1 Check step
When a user receives a IP camera, please check the
equipment appearance without obvious damage. Product
packaging uses protective material to deal with most
accidental impact in the transport process.
Please open the product outer packing and check
attachment provided product is complete,See List 1 below
accessories package for inspection.
1.2 Standard accessories
Please make sure the item is consistent with the listing
when open the product outer packing,Detailed list please see
the table below,Actual configuration, please refer to specific
products.
List 1 Accessories list
Name Units Quantity
IP camera pcs 1
User Manual pcs 1
Accessory pack pcs 1
CD pcs 1
2.PRODUCT STRUCTURE
2.1 Cable function
Picture 1 Cable function
○
1
○
List 2 Cable function of table
Functional description
NO. Name
1 Power DC12V power input
Connect to a router or switch on
your network using RJ45 Ethernet
2 LAN(RJ45) cable (Cat5e or better). 100Mhz
connection. PoE supported (class 3
PoE switch required).
2.2 Dimensions
Picture 2 Dimensions
2
3.EQUIPMENT INSTALLATION
NO. Name
1 IP Camera
2 Mounting Screw
3 Expansion bolt
4 Sticker
5 Wall or Ceiling
Description: bracket installation metope, need to withstand at
least 3X the total weight of the bracket and the camera
3.1 Put the cameras chassis to the surface where need to be
installed（Wall or Ceiling）；
3.2 Carried out in accordance with the installation the
cameras chassis above marked the location of the hole;
3.3 Open the accessory pack, take out expansion bolt,
expansion bolt nail into drilled holes inside;
3.4 Open the accessory pack, take out the screws; With this
screw will play good expansion bolt installation device fixed
to the surface (wall or ceiling);
