baiMobile 3000MP User Manual

Bluetooth smart card reader
Hide thumbs Also See for 3000MP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

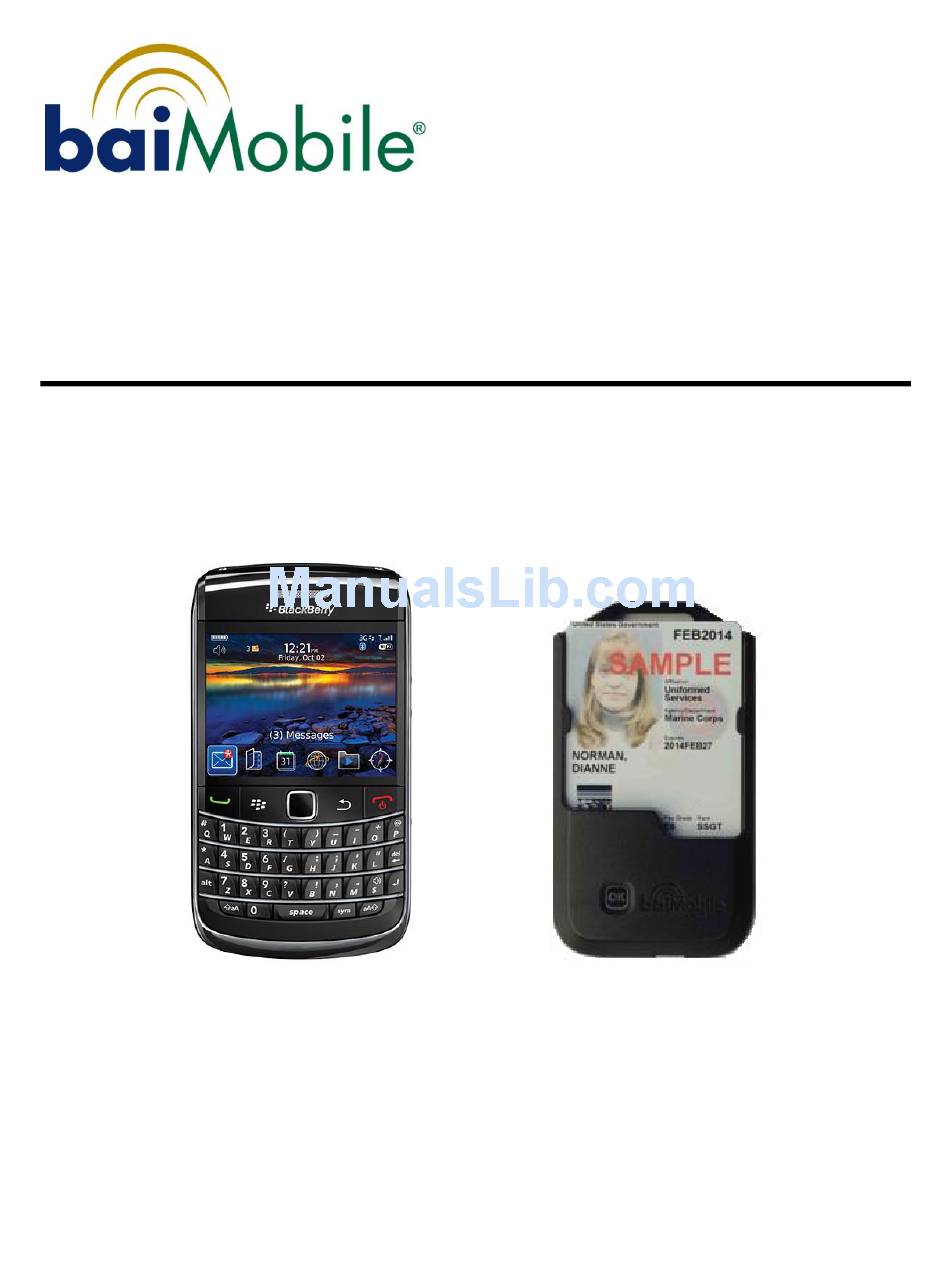

Model 3000MP Bluetooth Smart Card Reader
User Guide
for BlackBerry OS 7 devices
Version 3.6 30000MP
Date: February 20, 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000MP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for baiMobile 3000MP

Summary of Contents for baiMobile 3000MP

  • Page 1 Model 3000MP Bluetooth Smart Card Reader User Guide for BlackBerry OS 7 devices Version 3.6 30000MP Date: February 20, 2015...
  • Page 2 Support For support relating to baiMobile™ Bluetooth Smart Card Readers: Biometric Associates, Inc Main Office (410) 252-7210 support@baimobile.com Field support: Michael Smith (407) 823-8130 (cell) msmith@baimobile.com...

  • Page 3: Table Of Contents

    Contents Before you get started ....................5 Proper Care of your baiMobile™ 3000MP Bluetooth Smart Card Reader ......5 Welcome ........................5 Hardware and Software Requirements ................5 Hardware Requirements ................... 5 Software Requirements .................... 5 Supported Smart Cards .................... 6 baiMobile™...

  • Page 5: Before You Get Started

    2. baiMobile™ BlackBerry OS 7 reader driver (baiSmartCardReaderDriver.cod) – This file must be installed on your device. This baiMobile 3000MP solution permits you to perform many of the same functions on a mobile device that are available on a desktop PC including: ...

  • Page 6: Supported Smart Cards

    Supported Smart Cards The baiMobile middleware libraries contain the PKCS#11 command set that is specific to each smart card type. Support for CAC, PIV and the SafeNet 330 smart cards are included in the BlackBerry OS 7. For support for other smart card types, please contact your administrator or email support@baimobile.com...

  • Page 7: Accessories

    600 charge-discharge cycles, or about two years of normal use. Should the battery need replacing, remove the battery cover and replace the old battery with a new (baiMobile approved) battery. Note: This reader uses a battery custom built for the...

  • Page 8: Power Consumption

    Note that the miniUSB port is for charging only and will not support the transfer of data. Power consumption The baiMobile 3000MP smart card reader includes a low-power mode. The operation of the low power modes is complex and based on idle timeouts. ...

  • Page 9: Powering On The Reader

    Powering on the Reader The baiMobile 3000MP Reader does not have an On/Off switch or button. Your reader is powered on by inserting your smart card into your reader. If your smart card is already inserted in your reader, slide it out and then reinsert the card. You will notice the reader’s Home Screen displayed on the LED panel on the back of the reader.

  • Page 10: Accepting A Bluetooth Connection

    Power On Screen 3 – Reader will accept a Bluetooth connection request from an application on your BlackBerry OS 7 device without requiring the user to press the OK button for 5 minutes. Power On Screen 4 –Reader is now powered on and is “listening” for a Bluetooth connection request from an application on your BlackBerry OS 7 device.

  • Page 11: Powering Off The Reader

    Powering off the Reader Your reader will automatically power off if any of the following occur:  Your smart card is removed from your reader  The reader’s battery runs out  The reader times out (a configurable setting) When the reader is powered off, nothing will be displayed in the LED panel. Charging the Reader Your charging cable separates into a plug end and a mini-USB cable.

  • Page 12: Upgrading The Reader Firmware

    Upgrading the Reader Firmware The baiMobile 3000MP Bluetooth Smart Card reader contains upgradeable firmware. The feature extends the functionality of your Reader in the following areas:  Security Policies: Changes in security policies may require a firmware update.  OS Releases: New versions of the BlackBerry OS 7 device/ operating system may require a firmware update.

  • Page 13: Data Transfer Screen

    Data Transfer Screen The Data Transfer Screen is displayed on the reader’s LED panel when there is data being transferred between the BlackBerry OS 7 device and the reader over a secure Bluetooth connection. Battery Status Icons The reader’s Battery Status Icon will display the remaining charge remaining in the reader’s battery, as shown below: When the battery reaches 5% charge, the Low Battery warning will be displayed.

  • Page 14: Inserting A Cac Or Piv Card

    Battery Your reader contains a removable, rechargeable battery. This battery is a custom battery, built specifically for the baiMobile 3000MP Reader. In the event that your reader’s battery no longer holds a charge, please contact support@baimobile.com for a replacement battery.

  • Page 15: Installing The Baimobile Reader Driver

    Installing the baiMobile Reader Driver Install via BES The baiMobile 3000MP Reader driver must be installed on your BlackBerry phone. This can only be installed via a BES. You may verify that the driver is installed by, on your BlackBerry phone, go to Work > App Manager > Device Monitor > Memory. You should see the baiMobile listed: Install via Javaloader.exe...
  • Page 16 Smart Card > Registered Reader Drivers You should see the following: 10. If you see baiMobile 3000MP, highlight it, and press the BlackBerry key and select Import Smart Card Certs 11. The baiMobile 3000MP Bluetooth smart card reader has been successfully installed...

  • Page 17: Pairing

    Pairing Pairing Basics Before you can use your baiMobile 3000MP Reader, it must be securely paired with your BlackBerry OS 7 device. The Bluetooth pairing process involves exchanging a randomly generated number used by both your BlackBerry OS 7 device and your reader for secure Bluetooth communications.
  • Page 18 Your BlackBerry OS 7 device Your Reader 1. First, verify the Bluetooth is enabled on your BlackBerry phone go to Settings > Networks and Connections > Bluetooth Connections > Bluetooth. You should see Bluetooth = On. Your BlackBerry OS 7phone will automatically begin searching for a Bluetooth device within range.
  • Page 19 Your BlackBerry OS 7 device Your Reader 3. The reader’s LED panel displays Booting for about 1.7 seconds, then displays AuthTime for about 1.7 seconds. 4. Next, reader’s LED panel displays the reader Home Screen. 5. On your reader, press and hold the OK Button as shown (below).
  • Page 20 Your BlackBerry OS 7 device Your Reader 6. The reader’s LED panel will now display New Pair? for about six (6) seconds. 7. Now press and release the OK Button while the NewPair? prompt is displayed on the LED panel. 8.
  • Page 21 Your BlackBerry OS 7 device Your Reader 9. Your BlackBerry will now attempt to discover the reader. Both your reader and BlackBerry should be in close proximity to each other. Pairing should be done in a secure environment and not in a public area. 10.
  • Page 22 Your BlackBerry OS 7 device Your Reader 12. Compare the first number of the pairing code displayed on the phone. Compare that number (in this example “7”) with the number displayed on the reader’s LED panel. If they match, press the OK button. 13.

  • Page 23: Pairing Troubleshooting

    Your BlackBerry OS 7 device Your Reader 15. Now, press Yes, on the BlackBerry Pairing Troubleshooting First, make sure that both your BlackBerry OS 7 device and reader are fully charged. Both the BlackBerry OS 7 device and the reader have defined periods of discoverability. These “windows”...

  • Page 24: Troubleshooting - Other

    LED screen will display as shown below. To reset the reader, remove the battery and then reinsert the battery. If the condition is not remedied, please contact BALP Support support@baimobile.com Importing Certificates from Your Smart Card Before you can use your smart card for functions such as digital signatures, you must import the certificates from your smart card on to your device.
  • Page 25 Import Certificates. Your BlackBerry will now attempt to establish a Bluetooth connection to the reader. 3. Your BlackBerry may display the following message: If so, press the back button as shown: Your BlackBerry will now establish a Bluetooth connection with your 3000MP reader.
  • Page 26 Your BlackBerry OS 7 device Your Reader 4. The LED will display Auth? and the OK button’s LED will flash On and Off until you accept the connection You must now accept the Bluetooth connection by pressing the OK button on the front of the reader.
  • Page 27 Your BlackBerry OS 7 device Your Reader 7. This process completes the certificate importation and also verifies that the correct version of the reader driver has been installed and that the reader is functioning properly.

  • Page 28: Index

    Index Bluetooth® Reader pairing, 17 accessories, 7 battery, 14 charging battery, 11, 12 software requirements, 5 Pairing specifications, 6 Reader, 17...
  • Page 29 The information contained herein is subject to change without notice. Revisions may be issued to advise of such changes and/or additions. Trademarks BAL and baiMobile are registered trademarks of Biometric Associates, L.P. Biometric Associates, LP Washington Area Office...
