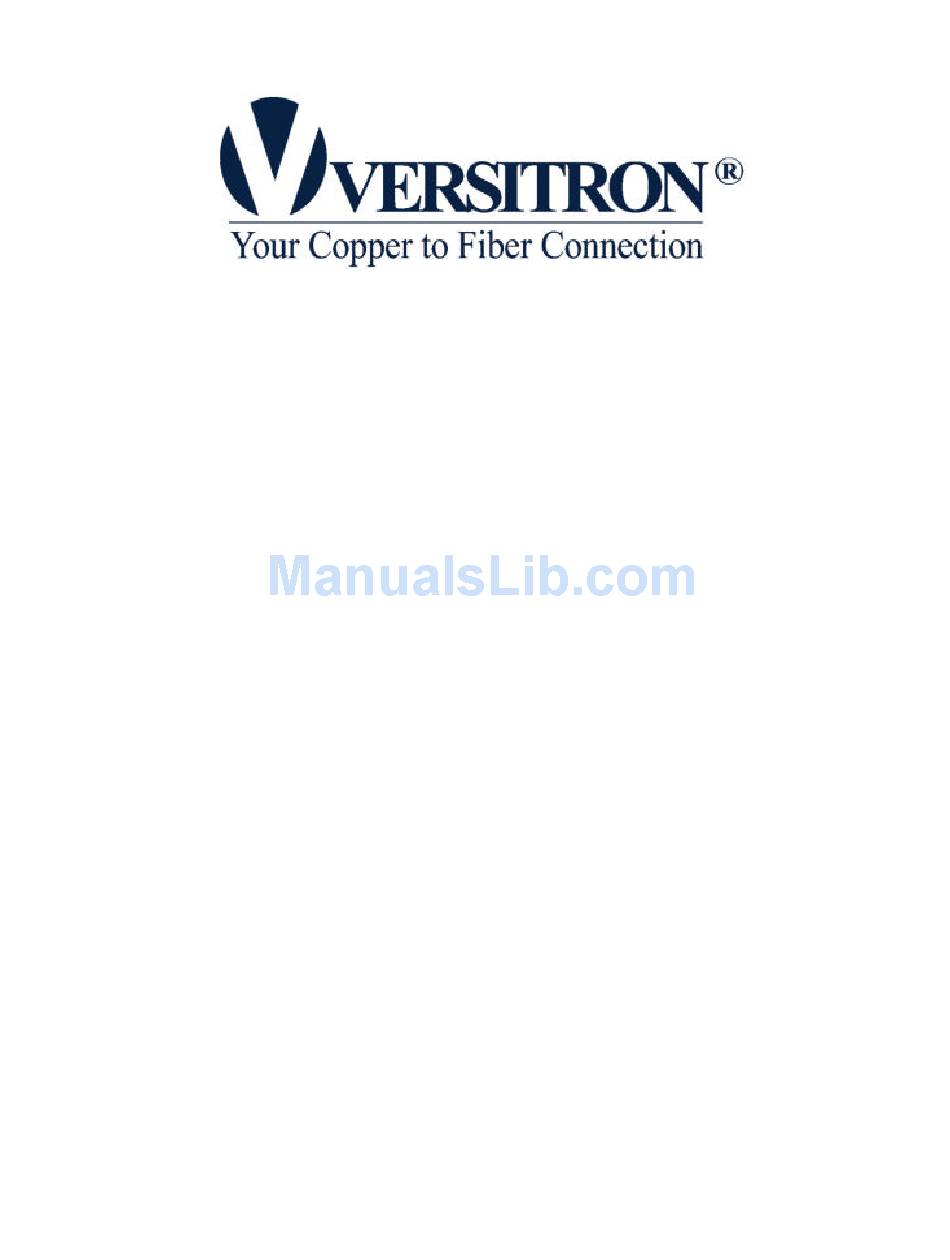

Page 1: Installation Guide
SG72460M Web Smart 10/100/1000 24-Port Ethernet Switch with SFP support Installation Guide © February 2006 VERSITRON, Inc. 83 Albe Drive / Suite C Newark, DE 19702 www.versitron.com www.versitron.com SG72460M... - Page 2 Authorization (RMA) number. Reference this number on the outside of the shipping container and return the unit (shipping charges prepaid) to us for diagnostic review and repair/replacement as determined solely by VERSITRON. We pay the shipping charges to return the repaired unit or a replacement unit to you.
- Page 3 EN 55022: Limits and Methods of Measurement of Radio Interference characteristics of Information Technology Equipment. EN 50082/1: Generic Immunity Standard -Part 1: Domestic Commercial and Light Industry. EN 60555-2: Disturbances in supply systems caused by household appliances and similar electrical equipment - Part 2: Harmonics. www.versitron.com SG72460M...
-
Page 4: Table Of Contents
3.2.8.4 IP DiffServ Classification ..................31 3.2.9 Bandwidth Management ..................32 3.2.10 Trap Event Configuration..................33 3.2.11 Max. Packet Length..................... 34 3.3 Monitoring ......................... 35 3.3.1 Statistics Overview ....................35 3.3.2 Detailed Statistics ....................36 3.4 Maintenance......................38 www.versitron.com SG72460M... - Page 5 3.4.1 Status ........................38 3.4.2 Warm Restart......................40 3.4.3 Factory Default....................... 41 3.4.4 Software Update ....................42 3.4.5 Logout ........................43 www.versitron.com SG72460M...
-
Page 6: Introduction
• Supports on-line plug/unplug SFP modules • Supports Quality of Service (QoS) for real time applications based on the information taken from Layer 2 to Layer 4, such as VoIP • Built-in web-based management with convenient GUI for the user www.versitron.com SG72460M... -
Page 7: View Of Web Smart 24-Port Gigabit Switch
ON - ember when 100Mbps speed is active Off - when 10Mbps speed is active Port 23, 24 SFP Green ON - when connection with remote device is good Blink - when any traffic is present Off - when cable connection is not good www.versitron.com SG72460M... -
Page 8: Hardware Specifications
Power Requirement: Voltage 100 - 240 VAC, Frequency 50/60 Hz, Consumption 30W Ambient Temperature: Operating 0 to 50 C, Humidity 5% to 90% Dimensions: 44(H) x 442(W) x 209(D) mm Approval: Comply with FCC Part 15 Class A & CE Mark Approval www.versitron.com SG72460M... -
Page 9: Management Software Specifications
Option: 1518, 1532, 9216 (Jumbo frame support) Statistics Monitoring: Per port basis control, Simplified port statistics, Detailed port statistics Status Monitoring: All configuration current settings, All port link status Maintenance: Warm Restart (i.e. Reboot, Warm Boot) Restore Factory default, Software update Logout www.versitron.com SG72460M... -
Page 10: Installation
1. Use the SFP transceivers qualified only by switch manufacturer. 2. The switch supports Hot-plug installation of the SFP transceiver even when the switch is on. 3. Make sure the transceiver is seated in the SFP port securely. 4. Install the fiber cable after the transceiver installation. www.versitron.com SG72460M... -
Page 11: Port And Cable
• Password: admin For security reason, it is recommended to change the default settings for the switch before deploying it to your network: To change IP address Use Web System Configuration Menu To change password Use Web System Configuration Menu www.versitron.com SG72460M... -
Page 12: Initial Switch Access And Configuration
2. Click on the My Computer icon on the desk-top or Start Menu. 3. Click the My Network Places link under the Other Places heading. 4. Click on the View Network Connections link under the Network Tasks heading. 5. Double click on the Local Area Connections icon. www.versitron.com SG72460M... - Page 13 6. Click on the Properties button in the Local Area Connections Status window. 7. Double click on the Internet Protocol (TCP/IP) listing on the General tab in the Local Area Connections Properties window. www.versitron.com SG72460M...
- Page 14 NOTE: Once you have accessed the Web-based Management feature and have changed to the IP address of the switch to one that will be recognized by your network, you must restore the PC to the original Internet Protocol (TCP/IP) settings that were recorded in Step 8. www.versitron.com SG72460M...
-
Page 15: Operation Of Web-Based Management
In the switch, it supports a simple user management function allowing only one administrator to configure the system at the same time. To optimize the display effect, it is recommended to use: Microsoft IE 6.0 above, Netscape V7.1 above or FireFox V1.00 above • Display resolution 1024x768. • www.versitron.com SG72460M... -
Page 16: Web Management Home Overview
The functions of each folder are described in its corresponding section respectively. The function names in normal type are the sub-functions. When clicking it, the function is performed. Right side This area is used for detailed configuration and status. The following list is the main function tree for web user interface. www.versitron.com SG72460M... -
Page 17: Configuration
3.2 Configuration Each of them will be described in detail in the following sections. www.versitron.com SG72460M... -
Page 18: System Configuration
Any alphanumeric character is acceptable. Default: admin Auto Logout Timer Set the auto-logout timer. The valid value is 0 ~ 60 in the unit of minute and a decimal point is not allowed. The value 0 means auto-logout timer is disabled. Default: 0 www.versitron.com SG72460M... -
Page 19: Ports Configuration
If flow control is set Enable, both parties can send PAUSE frame to the transmitting device(s) if the receiving port is too busy to handle. When it is set Disable, there will be no flow control in the port. It drops the packet if too much to handle. Default: Enable www.versitron.com SG72460M... -
Page 20: Vlan Mode Configuration
This switch can support up to maximal 24 port-based VLAN groups or 24 Tag VLAN groups. Management Interface: State It works when the tag-based mode is chosen. When this function is enabled, only the tagged packets with this VID can manage the switch. Valid range 1~4094. www.versitron.com SG72460M... -
Page 21: Vlan Group Configuration
[Enable] means it is a member of the VLAN. Just tick the check box (t) beside the port x to enable it. <Add Group> Create a new port-based VLAN or tag-based VLAN, which depends on the VLAN mode you choose in VLAN mode function. Add a Port-based VLAN group www.versitron.com SG72460M... - Page 22 Add a Tag-based VLAN group <Delete Group> Just tick the check box (t) beside the ID, then press the <Delete Group> button to delete the group. Delete a Port-based VLAN group Delete a Tag -based VLAN group www.versitron.com SG72460M...
-
Page 23: Pvid Configuration
If you checked this function for a Tag out port, the packet form this port may be tag Untag State out. But, the packet would be untag out if the VID of its tag is the same as the value of Untag VID while Untag VID state is Enable. Untag VID Valid range is 0~4094. www.versitron.com SG72460M... -
Page 24: Aggregation Configuration
Check the following to avoid errors in configuration - When configuring the link aggregation function, you should check that whether the aggregated ports are in full-duplex mode as well as their speed is the same or not. The aggregated ports are in the same VLAN group. www.versitron.com SG72460M... -
Page 25: Mirror Configuration
Set up the ports for being monitored. Just tick the check box (t) under the port x and valid port is Port 1~24. Note: When configuring the mirror function, you should avoid setting a port to be a sniffer port and aggregated port at the same time. It will cause something wrong. www.versitron.com SG72460M... -
Page 26: Quality Of Service Configuration
In a received IP packet, DiffServ field is used to classify the priority class to which the packet belongs. Click one of the QoS classification methods for the switch and click <Apply> to confirm the selection. Then, click [Configure] for further detailed configuration for the selected classification method. www.versitron.com SG72460M... -
Page 27: Vlan Tag Configuration
Note: 1. Bit 0 Bit 1 Bit 2 represent the 3-bit value in priority tag field. 2. Each port can be configured its own tag values and priority class mapping. 3. Untagged packets are classified with Default Class. www.versitron.com SG72460M... -
Page 28: Ip Tos Classification
Each ToS value is configured with a priority class. High - High Priority Low - Low priority Note: Bit 0, Bit 1, Bit 2 represent Bit 5 ~ Bit 7 in TOS Field of IP Header in an IP packet. www.versitron.com SG72460M... -
Page 29: Ip Tcp/Udp Port Classification
• Prioritize Databases (Oracle, IBM DB2, SQL, Microsoft) • Click one of the options. <Advance>>> Click Advanced mode to view and modify detailed port number configuration. <Simple <<> Click to disable display of the detailed port number configuration. www.versitron.com SG72460M... - Page 30 Custom: TCP/UDP port number (Up to 10 custom port numbers can be configured.) The following figure illustrates the predefined configuration when selecting option of [Down prioritize web browsing, e-mail, FTP and news] and the port numbers are 80,280,443,25,110,20,21,69,119,2009. www.versitron.com SG72460M...
-
Page 31: Ip Diffserv Classification
DiffServ: Display 64 (0~63) DSCP items. Class: Class assigned to the DSCP High - High Priority Low - Low priority Note: The classification function are applied to all ports and can not be configured for each port respectively.. www.versitron.com SG72460M... -
Page 32: Bandwidth Management
Data Rate field. Traffic may be lost if egress buffers run full. The format of the packet limits to Unicast, broadcast and multicast. Data Rate (Mbps): Valid range is 0~1000. www.versitron.com SG72460M... -
Page 33: Trap Event Configuration
Port link down event Rx error threshold Rx error over threshold event Tx error threshold Tx error over threshold event Error threshold The number of error packets in 5 seconds This page also displays occurrence counters of some events. www.versitron.com SG72460M... -
Page 34: Max. Packet Length
This function is used to limit the maximum packet length accepted by each port. Jumbo Frame(bytes) Set up the maximum length of the packet that each port can accept. Options : 1518, 1532, 9216 bytes The default is 1532 bytes. www.versitron.com SG72460M... -
Page 35: Monitoring
Total transmitted bytes. Tx Frames The counting number of the packet transmitted. Rx Bytes Total received bytes. Rx Frames The counting number of the packet received. Tx Errors Number of bad packets transmitted. Rx Errors Number of bad packets received. www.versitron.com SG72460M... -
Page 36: Detailed Statistics
Number of Tx packets classified as low priority. Tx Low Priority Packets Tx Broadcast Show the counting number of the transmitted broadcast packet. Tx Multicast Show the counting number of the transmitted multicast packet. Rx 64 Bytes Number of 64-byte frames in all packets received. www.versitron.com SG72460M... - Page 37 Frames dropped due to the lack of receiving buffer. Tx Collisions Number of collisions transmitting frames experienced. Tx Drops Number of frames dropped due to excessive collision, late collision, or frame aging. Tx FIFO Drops Number of frames dropped due to the lack of transmitting buffer. www.versitron.com SG72460M...
-
Page 38: Maintenance
Perform a logout from the switch 3.4.1 Status The status including System Status, TP Port Status, Fiber Port Status, Aggregation, VLAN, Mirror, Trap Event and Maximum Packet Length are contained in this function folder for port monitor and management. www.versitron.com SG72460M... - Page 39 Display VLAN identifier. Each tag-based VLAN group has a unique VID. It appears only in tag-based mode. Member: Display the port members belonging to each VLAN Group. Management Interface State VLAN Tagging status of the switch management interface VID used by the switch management interface www.versitron.com SG72460M...
-
Page 40: Warm Restart
Warm Start function allows to reboot the switch with the current settings and configuration. After upgrading software, then you must reboot to have the new configuration taken effect. Press <Yes> button to confirm warm restart function, and it will take around thirty (30) seconds to complete the system boot. www.versitron.com SG72460M... -
Page 41: Factory Default
Function Current IP Address settings Other settings Factory Default web command No change Factory default values Push RESET button less 3 seconds No change No change Push RESET button for 3 seconds Factory default values Factory default values www.versitron.com SG72460M... -
Page 42: Software Update
5 seconds and turn it on to resume the management operation. Wait around 5 seconds and then click the <Go> button to enter software update page. Click the <Browse> button to search for the file on your management host. Click the <Update> to start the updating. www.versitron.com SG72460M... -
Page 43: Logout
If no action and no key is stroke as well in any function screen more than the minutes you set up in Auto Logout Timer, the switch will have you logout automatically. Or press the <Logout> button in Logout function to exit the system manually. www.versitron.com SG72460M...
