JBL SYNTHESIS SDP-40 User Manual

JBL SYNTHESIS SDP-40 User Manual

Digital surround processor/controller
Hide thumbs Also See for SYNTHESIS SDP-40:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

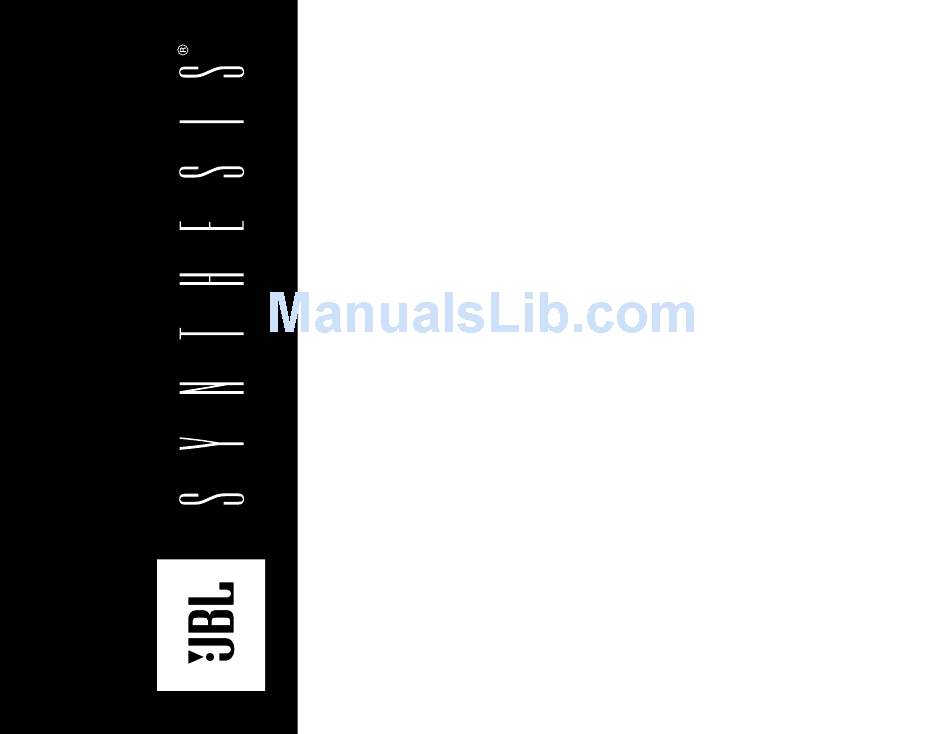

SYNTHESIS
SDP-40
DIGITAL SURROUND
PROCESSOR/CONTROLLER
USER GUIDE

Advertisement

Chapters

Table of Contents
loading

Related Manuals for JBL SYNTHESIS SDP-40

Summary of Contents for JBL SYNTHESIS SDP-40

  • Page 1 SYNTHESIS SDP-40 DIGITAL SURROUND PROCESSOR/CONTROLLER USER GUIDE...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8.
  • Page 3 “DTS”, “DTS-ES Extended Surround” and “Neo:6” are trademarks of Digital Theater Systems, Inc. © 1996, 2000 Digital Theater Systems, Inc. All rights reserved. Northridge, CA 91329 250 Crossways Park Drive “LOGIC7” and the LOGIC7 symbol are registered trademarks of Lexicon, Inc., a Harman International Company. Woodbury, NY 11797 800-336-4JBL ©...

  • Page 4: Table Of Contents

    Important Safety Instructions ....vi Instruções de Segurança Importantes ....vi Wichtige Sicherheitsanweisungen .
  • Page 5 Introduction SDP-40 Section 4: The AUDIO CONTROLS Menu AUDIO CONTROLS ....... .4-2 Section 5: The MODE ADJUST Menu MODE ADJUST .

  • Page 6: Us Important Safety Instructions

    ENGLISH IMPORTANT SAFETY INSTRUCTIONS Save these instructions for later use. • Follow all instructions and warnings marked on the unit. • Always use with the correct line voltage. Refer to the manufacturer’s operating instructions for the power requirements. Be advised that different operating voltages require the use of a different line cord and/or attachment plug.

  • Page 7: De Wichtige Sicherheitsanweisungen

    SDP-40 DEUTSCH WICHTIGE SICHERHEITSANWEISUNGEN Heben Sie sich diese Sicherheitsanweisungen auch für später auf. • Befolgen Sie alle auf der Vorrichtung stehenden Anweisungen und Warnungen. • Immer richtigen Spannung Gebrauchsanweisungen des Herstellers informieren Sie über die elektrischen Anforderungen. Vergessen nicht Betriebsspannungen ggf. auch verschiedene Leitungskabel und/oder Verbindungsstecker zu verwenden sind.

  • Page 8: Fr Instructions De Sûreté Importantes

    FRANÇAIS INSTRUCTIONS DE SÛRETÉ IMPORTANTES Gardez ces instructions pour réference future. • Observez toutes les instructions et tous les avertissements marqués sur l’appareil. • Branchez uniquements sur un réseau de tension indiquée. manuel d’instruction du fabriquant pour les spécifications de courant. N’oubliez pas que différentes tensions peuvent nécessiter l’utilisation de cables et/ou de fiches de connexion différents.

  • Page 9: Dk Vigtig Information Om Sikkerhed

    SDP-40 DANSK VIGTIG INFORMATION OM SIKKERHED Gem denne vejledning til senere brug. • Følg alle anvisninger og advarsler på apparatet. • Apparatet skal altid tilsluttes den korrekte spænding. Der henvises til brugsanvisningen, der indeholder specifikationer for strømforsyning. Der gøres opmærksom på, at ved varierende driftsspændinger kan det blive nødvendigt at bruge andre lednings- og/eller stiktyper.

  • Page 10: No Viktig Informasjon Om Sikkerhet

    NORSK VIKTIG INFORMASJON OM SIKKERHET Ta vare på denne veiledningen for senere bruk. • Følg alle anvisningene og advarslene som er angitt på apparatet. • Apparatet skal alltid anvendes med korrekt spenning. Produktbeskrivelsen inneholder spesifikasjoner for strømkrav. Vær oppmerksom på at det ved ulike driftsspenninger kan være nødvendig å...

  • Page 11: Us Unpacking And Inspection

    SDP-40 Unpacking and Inspection After unpacking the unit, save all packing materials in case you ever need to ship the unit. Thoroughly inspect the modules and packing materials for signs of damage. Report any damage to the carrier at once; report equipment malfunction to your dealer.

  • Page 12: Overview

    Getting Started Overview ...1-2 Highlights ...1-3 Using the Documentation ...1-4 Location Considerations ...1-4 Navigating the Menus ...1-4 Two-line Status ...1-5 Restoring Factory-Default Settings ...1-5...
  • Page 13 Three subwoofer outputs and sophisticated routing provide intelligent bass management. With its unique combination of power, flexibility, and expandability, the SDP-40 is equipped for the needs of today and the demands of tomorrow.

  • Page 14: Highlights

    SDP-40 HIGHLIGHTS • 12 channels • 12 configurable inputs • 3 zones • 13 digital audio inputs, including 1 AES/EBU input • 3 subwoofer outputs • 2 auxiliary outputs for future expansion • Dual 24-bit/192kHz digital-to-analog converters for all MAIN AUDIO OUTPUTS •...

  • Page 15: Using The Documentation

    USING THE DOCUMENTATION The SDP-40 has many impressive features. It is designed to be customized to individual systems and listening spaces. For these reasons, the information contained in this user guide is extensive. Refer to this documentation for assistance with installation, calibration, and operation of the unit.

  • Page 16: Two-Line Status

    SDP-40 The MENU arrows navigate through all menus when the MAIN command bank is active (see page 2-8 for more information about command banks). Press the up and down MENU arrows to scroll through menu items. A scroll bar will appear on the right side of the screen when these items exceed the on-screen margins.

  • Page 17: Basic Operation

    Basic Operation Front Panel ...2-2 Rear Panel ...2-4 Remote Control ...2-6 Understanding the Zones...2-15 Understanding Listening Mode Selection ...2-16...

  • Page 18: Front Panel

    FRONT PANEL IR RECEIVER Red LED Blue LED (Standby) toggles the unit between on and standby. When the unit is on, pressing this button places the unit into standby and lights the red LED on this button. Power is still supplied to the unit when it is in standby.
  • Page 19 SDP-40 The Front Panel Display indicates the current input name (top-left); the current listening mode name (bottom-left); the current input type (top-center); and the current volume level (right). This 2 by 20 character display can be used to view the menus, one menu item at a time.

  • Page 20: Rear Panel

    REAR PANEL INPUTS FRONT CENTER Never make or break connections to the unit unless the CAUTION power switch and all associated equipment are powered off. COMPONENT VIDEO INPUT 1 INPUT 2 INPUT 3 INPUT 4 OUTPUT FRONT CENTER SUBWOOFER SIDE REAR (LS) (SUB)
  • Page 21 SDP-40 The Power Switch disconnects power to the AC input connector. The AC Input Connector provides power to the unit via the supplied power cord (3 wire, 10 amp, IEC 320). The VIDEO INPUTS provide video input in the Main and Record Zones.
  • Page 22 REAR PANEL (continued) The MICROPHONE INPUTS are provided for future expansion. Four 3.5mm T/R/S or balanced inputs are available. The TRIGGER OUTPUTS provide DC output. These outputs are available on a 5-pin DIN connector. The PWR trigger is on when the unit is on, and off when the unit is in standby or off. Triggers 1 and 2 can be configured in the TRIGGER SETUP menu (see page 3-35).

  • Page 23: Remote Control

    MUSIC REMOTE CONTROL The SDP-40 remote control (pictured at the left) provides full operation of the unit, executing functions such as on-screen menu navigation that are not available from the front panel. For best results, make sure the front panel IR Receiver window is not obstructed (see pages 2-2 and 2-6 for illustrations).
  • Page 24 MAIN ZONE SHIFT DVD-1 DVD-2 GAME TAPE TUNER MODE BLUE STAT MUTE MENU 7 / 5 2 CH MUSIC BANK: MAIN Toggles the unit between on and standby. When the unit is on, pressing this button places the unit into standby and lights the red LED on the front panel Standby standby button.
  • Page 25 SDP-40 MAIN ZONE SHIFT DVD-1 DVD-2 GAME TAPE TUNER MODE BLUE STAT MUTE MENU 7 / 5 2 CH MUSIC *See Section 4 for more information about these AUDIO CONTROLS menu parameters. BANK: MAIN ZONE Selects the input for the zone.
  • Page 26 MAIN ZONE SHIFT DVD-1 DVD-2 GAME TAPE TUNER MODE BLUE STAT MUTE MENU 7 / 5 2 CH MUSIC *See Section 4 for more information about these AUDIO CONTROLS menu parameters. 2-10 BANK: MAIN Toggles the FRONT PANEL DISPLAY menu STATUS parameter between ALWAYS OFF and its...
  • Page 27 SDP-40 MAIN ZONE SHIFT DVD-1 DVD-2 GAME TAPE TUNER MODE BLUE STAT MUTE MENU 7 / 5 2 CH MUSIC BANK: MAIN Scroll through available listening modes MODE +/- in the Main MODE Zone. Pressing the Mode + button selects the previous listening mode;...
  • Page 28 MAIN ZONE SHIFT DVD-1 DVD-2 GAME TAPE TUNER MODE BLUE STAT MUTE MENU 7 / 5 2 CH *See Section 5 for more information about STATUS menus. **See Section 4 for more information about these AUDIO CONTROLS menu parameters. MUSIC 2-12 BANK: MAIN...
  • Page 29 SDP-40 MAIN ZONE SHIFT DVD-1 DVD-2 GAME TAPE TUNER MODE BLUE STAT MUTE MENU 7 / 5 2 CH MUSIC *See Section 4 for more information about these AUDIO CONTROLS menu parameters. **See Section 5 for more information about listening modes.
  • Page 30 MAIN ZONE SHIFT DVD-1 DVD-2 GAME TAPE TUNER MODE BLUE STAT MUTE MENU 7 / 5 2 CH MUSIC *See page 5-24 for more information about the SURROUND EX parameter. See page 2-18 for more information about mode selection using Mode Family Selection Buttons. 2-14 BANK: MAIN...

  • Page 31: Understanding The Zones

    SDP-40 UNDERSTANDING THE ZONES The SDP-40 features three zones: the Main Zone, Zone 2, and the Record Zone. Main Zone control audio and video signals in the primary listening space, Zone 2 is designed to control audio signals in the secondary listening space, and the Record Zone is designed to control audio and video signals for recording devices.

  • Page 32: Understanding Listening Mode Selection

    UNDERSTANDING LISTENING MODE SELECTION There are three different methods of selecting listening modes in the Main Zone: • The INPUT SETUP Menu • The Mode up and down buttons on the front panel or the MODE +/- buttons on the remote control •...
  • Page 33 SDP-40 MODE FAMILY SELECTION BUTTONS This type of mode selection occurs each time one of the Mode Family Selection buttons is pressed on the remote control. The matrix below shows how this type of mode selection determines the listening mode:...
  • Page 34 The SETUP Menu SETUP ...3-2 INPUT SETUP ...3-3 SPEAKER SETUP...3-18 REAR PANEL CONFIG ...3-30 DISPLAY SETUP ...3-31 VOLUME CONTROL SETUP ...3-34 TRIGGER SETUP ...3-35 LOCK OPTIONS ...3-36...

  • Page 35: Setup

    SETUP Selecting SETUP on the MAIN MENU SETUP accesses the SETUP menu, which contains INPUTS options that access SPEAKERS submenus. Use the up and down MENU REAR PANEL CONFIG arrows to scroll through the complete list of DISPLAYS options. Press the right MENU arrow to VOLUME CONTROLS TRIGGERS select the highlighted option.

  • Page 36: Input Setup

    SDP-40 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS DVD1 is used as an example in this illustration, and will continue to be used as an example throughout this section. Whenever “DVD1” appears as a step in a menu path, any other input may be substituted.
  • Page 37 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS DVD1 is used as an example in this illustration, and will continue to be used as an example throughout this section. Whenever “DVD1” appears as a step in a menu path, any other input may be substituted.
  • Page 38 SDP-40 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS DVD1 is used as an example in this illustration, and will continue to be used as an example throughout this section. Whenever “DVD1” appears as a step in a menu path, any other input may be substituted.
  • Page 39 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS DVD1 is used as an example in this illustration, and will continue to be used as an example throughout this section. Whenever “DVD1” appears as a step in a menu path, any other input may be substituted.
  • Page 40 SDP-40 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS DVD1 is used as an example in this illustration, and will continue to be used as an example throughout this section. Whenever “DVD1” appears as a step in a menu path, any other input may be substituted.
  • Page 41 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS DVD1 is used as an example in this illustration, and will continue to be used as an example throughout this section. Whenever “DVD1” appears as a step in a menu path, any other input may be substituted.
  • Page 42 SDP-40 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS DVD1 is used as an example in this illustration, and will continue to be used as an example throughout this section. Whenever “DVD1” appears as a step in a menu path, any other input may be substituted.
  • Page 43 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS DVD1 is used as an example in this illustration, and will continue to be used as an example throughout this section. Whenever “DVD1” appears as a step in a menu path, any other input may be substituted.

  • Page 44: Mode Adjust

    SDP-40 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS DVD1 is used as an example in this illustration, and will continue to be used as an example throughout this section. Whenever “DVD1” appears as a step in a menu path, any other input may be substituted.
  • Page 45 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS DVD1 is used as an example in this illustration, and will continue to be used as an example throughout this section. Whenever “DVD1” appears as a step in a menu path, any other input may be substituted.
  • Page 46 SDP-40 INPUT SELECT (AUTO, ANALOG, DIGITAL) The INPUT SETUP menu allows the selection of two audio connector types - one analog, one digital. INPUT SELECT specifies how these connectors interact. The following settings are available: • The DIGITAL setting forces the unit to utilize the DIGITAL IN connector for the Main Zone.
  • Page 47 MAIN ADVANCED (continued) SETUP INPUTS DVD1 MAIN ADVANCED ANALOG BYPASS (continued) When ANALOG BYPASS is set to OFF, the unit routes the analog input signal through analog-to-digital conversion, internal processing, and digital-to-analog conversion. This makes it possible to utilize internal processing, including listening modes, crossovers, and equalization.
  • Page 48 SDP-40 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS DVD1 is used as an example in this illustration, and will continue to be used as an example throughout this section. Whenever “DVD1” appears as a step in a menu path, any other input may be substituted.
  • Page 49 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS DVD1 is used as an example in this illustration, and will continue to be used as an example throughout this section. Whenever “DVD1” appears as a step in a menu path, any other input may be substituted.
  • Page 50 SDP-40 • The AUTO setting allows the unit to switch between the selected DIGITAL IN and ANALOG IN connectors. The DIGITAL IN connector is utilized when a valid digital audio input type is present. When invalid digital audio input types are received, the unit automatically switches to the ANALOG IN connector.
  • Page 51 SPEAKER SETUP CUSTOM SETUP SETUP SPEAKERS CUSTOM SETUP The CUSTOM SETUP menu can be used to configure the MAIN AUDIO OUTPUTS for a custom speaker system. For a Synthesis 7- channel setup that requires THX-certified loud speakers, use the SYNTHESIS 7CH SETUP menu (see page 3-24). Default Parameter Value...
  • Page 52 SDP-40 FREQUENCY RESPONSE CURVES Lowpass Filter The lowpass filter attenuates high frequencies at 24dB per octave. The curves show the frequency response of each crossover setting. From left to right, the curves represent crossover settings from 30Hz to 120Hz. Highpass Filter The highpass filter attenuates low frequencies at 24dB per octave.
  • Page 53 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS CUSTOM SETUP (continued) SETUP SPEAKERS CUSTOM SETUP FRONT L/R (FULL, 30Hz to 120Hz, THX 80Hz) The FRONT L/R parameter sets the crossover setting for the MAIN AUDIO OUTPUTS labelled FRONT L/R.
  • Page 54 SDP-40 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS SIDE L/R (FULL, 30Hz to120Hz, THX 80Hz, NONE) The SIDE L/R parameter sets the crossover setting for the MAIN AUDIO OUTPUTS labelled SIDE L/R. When set to FULL, the unit sends a full-range audio signal to the SIDE L/R outputs.
  • Page 55 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS CUSTOM SETUP (continued) SETUP SPEAKERS CUSTOM SETUP SUB L/R The SUB L/R parameter determines the configuration of the MAIN AUDIO OUTPUTS labelled SUBWOOFER L/R. When set to MONO, the front left and right, center, side left and right, and rear left and right channels are combined and sent to the SUBWOOFER L/R outputs.
  • Page 56 SDP-40 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS LFE (Low Frequency Effects) activates and deactivates the MAIN AUDIO OUTPUT labelled LFE. Selecting this parameter accesses the pulldown menu pictured above. Use the up and down MENU arrows to switch between the ON and OFF settings.
  • Page 57 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS SYNTHESIS 7CH SETUP SETUP SPEAKERS SYNTHESIS 7CH SETUP Default Parameter Value FRONT L/R 80Hz CENTER 80Hz SIDE L/R 80Hz REAR L/R 80Hz SUB L/R MONO...
  • Page 58 SDP-40 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS The parameters on the SYNTHESIS 7CH SETUP menu are not adjustable, with the exception of REAR L/R. The default value of REAR L/R is 80Hz, which activates the rear speakers for use in a SYNTHESIS 7CH setup.

  • Page 59: Output Levels

    MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS Note: Front panel and remote control buttons - except the MENU button and MENU arrows - will not function while the SPEAKER LEVEL ADJUST menu is selected.
  • Page 60 Calibration System (DACS®). However, an alternate source such as an audio calibration disc can also be used. As the noise test is conducted, the SDP-40 loads the DOLBY Pro Logic II, Dolby Digital, or dts(-ES) utilizing the signal from the DACS® calibration system or audio calibration disc.
  • Page 61 0.0dB 0.0dB 0.0dB 0.0dB 0.0dB Note: SDP-40 Balanced output levels must be recalibrated when output connections are changed from unbalanced to balanced or vice versa. The balanced outputs are approximately 6dB louder than the unbalanced outputs. SUB LIMITERS Dolby Digital and dts(-ES) input types can produce low-frequency peaks at much higher levels than 2-channel input types.
  • Page 62 SDP-40 Default Parameter Value CAL NOISE L/R LIMITER L/R LIMIT ADJ 100dB LFE LIMITER LFE LIMIT ADJ 100dB Note: In cases where the left and right subwoofers have built-in limiter protection, the L/R LIMITER parameter should be set to OFF. In cases where the LFE subwoofer has built-in limiter protection, the LFE LIMITER parameter should be set to OFF.
  • Page 63 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS REAR PANEL CONFIG The REAR PANEL CONFIG menu can be used to configure AUDIO INPUT pairs 1 to 8 on the rear panel. These inputs can be set up to function as eight stereo analog input pairs, or as five stereo analog input pairs and one 5.1-channel analog input.
  • Page 64 SDP-40 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS DISPLAY SETUP ON-SCREEN DISPLAY SETUP DISPLAYS ON-SCREEN DISPLAY Default Parameter Value STATUS 2 SECONDS POSITION FORMAT NTSC BACKGROUND REMOTE STATE...
  • Page 65 ON-SCREEN DISPLAY (continued) FORMAT The FORMAT parameter has three settings: SECAM. These settings make the video switcher and on-screen display compatible with NTSC, PAL, or SECAM formats. The appropriate setting varies from country to country. Consult the display device user guide to determine the correct setting. BACKGROUND BACKGROUND activates and deactivates the menu background.

  • Page 66: Edit Custom Name

    SDP-40 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS become unsynchronized in a system. Setting a corresponding audio delay with A/V SYNC DELAY restores synchronization. A/V SYNC DELAY can be set in 1ms increments within its 1 to 60ms parameter range.
  • Page 67 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS VOLUME CONTROL SETUP Default Parameter Value MAIN PWR ON -30dB MUTE LEVEL FULL ZONE PWR ON -30dB REC PWR ON -30dB MAIN PWR ON MAIN PWR ON establishes the volume level that will be active in the Main Zone whenever the unit is powered on.
  • Page 68 SDP-40 MAIN MENU MODE ADJUST AUDIO CONTROLS SETUP TRIGGER SETUP There are three 12V DC TRIGGER OUTPUTS on the rear panel that can be used to control other devices with compatible trigger inputs. The trigger labelled PWR is not configurable, and is always on when the unit is on and always off when the unit is in standby or off.
  • Page 69 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGERS LOCK OPTIONS LOCK OPTIONS The LOCK OPTIONS menu can be used to lock and unlock settings in the three primary menus: MODE ADJUST, AUDIO CONTROLS, and SETUP.
  • Page 70 The AUDIO CONTROLS Menu AUDIO CONTROLS ...4-2...

  • Page 71: Audio Controls

    AUDIO CONTROLS Selecting AUDIO CONTROLS on the MAIN AUDIO CONTROLS MENU accesses the AUDIO CONTROLS BASS +0.0dB menu, which contains adjustable parameters. TREBLE +0.0dB Use the up and down MENU arrows to scroll TILT EQ +0.0dB through the complete list. Press the right LOUDNESS MENU arrow to select the highlighted BALANCE...
  • Page 72 SDP-40 TREBLE AUDIO CONTROLS TREBLE TREBLE controls the amount of boost or cut applied to the FRONT L/R and CENTER outputs. When TREBLE is selected, a horizontal graph will appear on the screen below the parameter. This graph illustrates the position at which the current setting falls within the -6.0 to +6.0dB parameter range.
  • Page 73 LOUDNESS AUDIO CONTROLS LOUDNESS LOUDNESS controls the amount of low-frequency boost that is automatically applied to the FRONT L/R, CENTER, SUBWOOFER L/R, and LFE outputs. When set to ON, loudness compensation is automatically applied based on the current volume level. As volume is decreased, the amount of boost is automatically increased.
  • Page 74 SDP-40 RECORD BALANCE AUDIO CONTROLS RECORD BALANCE RECORD BALANCE controls the left-to-right balance of the RECORD AUDIO OUTPUTS. When RECORD BALANCE is selected, a horizontal graph (pictured on page 4-2) will appear on the screen below the parameter. This graph illustrates the position at which the current setting falls within the entire parameter range.
  • Page 75 The MODE ADJUST Menu MODE ADJUST...5-2 Listening Mode Descriptions ...5-2 OUTPUT LEVELS...5-17 CUSTOM ...5-17 STATUS Menus...5-18 Mode Parameter Descriptions ...5-20...

  • Page 76: Mode Adjust

    5.1 BYPASS 2CH BYPASS LISTENING MODE DESCRIPTIONS LOGIC7 FILM MODE ADJUST FILM • A proprietary Lexicon listening mode. • Designed for playback of 2-channel stereo or matrix encoded stereo film sources. • Derives seven channels from 2-channel input types. •...
  • Page 77 SDP-40 LOGIC7 TV MODE ADJUST • A proprietary Lexicon listening mode. • Designed for playback of 2-channel stereo or matrix encoded stereo TV sources. • Based on LOGIC7 FILM, but specifically tailored for TV sources. • Recommended for 2-channel TV sources, even when only one pair of surround speakers is selected.
  • Page 78 DOLBY PRO LOGIC II THX MODE ADJUST PL II • Designed for playback of Dolby Surround encoded sources. • Utilizes Dolby Pro Logic II to decode five channels from Dolby Surround encoded input types. • Applies re-equalization and timbre matching. Re-equalization simulates the high-frequency rolloff that occurs in a movie theater as sound travels from the front speakers to the listeners.
  • Page 79 SDP-40 DOLBY PRO LOGIC II MUSIC MODE ADJUST PL II MUSIC • Designed for playback of stereo music sources. • Identical to DOLBY PRO LOGIC II, except specifically tailored for stereo music sources. Default Parameter Values PANORAMA CTR WIDTH DIMENSION...
  • Page 80 2-CHANNEL 2-CHANNEL MODE ADJUST • Designed for playback of stereo sources. • Sends stereo sources to the FRONT L/R outputs only. • Available for audio purists and for comparison purposes. Default Parameter Values SUB L/R LVL +0dB CUSTOM See page 5-17 for more information An alphabetical listing of parameter descriptions begins on page 5-20.
  • Page 81 MONO LOGIC MODE ADJUST • Designed for playback of mono sources. • Utilizes proprietary Lexicon reverb technology to realistically expand mono input types to utilize all channels, dramatically increasing the perceived length and sense of envelopment of the listening space. Values...
  • Page 82 See page 5-17 for more information An alphabetical listing of parameter descriptions begins on page 5-20. 5.1 LOGIC7 FILM MODE ADJUST • A proprietary Lexicon listening mode. • Designed for playback of 5.1-channel Dolby Digital film sources. • Utilizes several techniques to derive seven channels from 5.1-channel input types.
  • Page 83 SDP-40 5.1 LOGIC7 TV MODE ADJUST 5.1L7 • A proprietary Lexicon listening mode. • Designed for playback of 5.1-channel Dolby Digital TV sources. • Based on 5.1 LOGIC7 FILM, but specifically tailored for TV sources. • Recommended for 5.1-channel Dolby Digital TV sources, even when only one pair of surround speakers is selected.
  • Page 84 5.1 THX SURROUND EX or 5.1 THX MODE ADJUST SUR EX The SURROUND EX parameter activates and deactivates the 5.1 THX SURROUND EX listening mode, provided both side and rear speakers are selected (see page 3-18). The default value of this parameter is ON, which activates the 5.1 THX SURROUND EX listening mode.
  • Page 85 SDP-40 DOLBY DIGITAL MODE ADJUST DIGITAL • Designed for playback of 5.1 Dolby Digital encoded sources. • Decodes 5.1 discrete channels from 5.1 Dolby Digital encoded input types. The five main channels are full- frequency. The .1 channel, often referred to as the LFE or subwoofer channel, has a limited frequency range of 120Hz.
  • Page 86 MODE ADJUST • Designed for playback of Dolby Digital mono sources. • Utilizes proprietary Lexicon reverb technology to realistically expand Dolby Digital mono sources to utilize all channels, dramatically increasing the perceived length and sense of envelopment of the listening space.
  • Page 87 See page 5-17 for more information An alphabetical listing of parameter descriptions begins on page 5-20. dts(-ES) LOGIC7 film MODE ADJUST • A proprietary Lexicon listening mode. • Designed for playback of 5.1 and 6.1-channel dts(-ES) film sources. • Utilizes an advanced matrix to derive seven channels from 5.1 or 6.1-channel input types.
  • Page 88 LOGIC7 Music dts(ES) MUSIC MODE ADJUST • A proprietary Lexicon listening mode. • Designed for playback of 5.1 and 6.1-channel dts(-ES) music sources. • Based on dts(-ES) LOGIC7 FILM, but specifically tailored for music sources. • Recommended for 5.1 and 6.1-channel dts(-ES) music sources, even when only one pair of surround speakers is selected.
  • Page 89 SDP-40 dts and dts-ES MODE ADJUST • The unit will automatically switch between the dts and dts-ES listening modes, activating ES decoding when a dts-ES input type is identified. • Designed for playback of 5.1-channel dts encoded sources. • Decodes 5.1 discrete channels from dts encoded input types.
  • Page 90 5.1 BYPASS MODE ADJUST 5.1 BYPASS • Designed for playback of 5.1-channel analog input sources, such as DVD-A or SACD players. • When selected, the (L) input is sent to the FRONT L output. The (R) input is sent to the FRONT R output. The (C) input is sent to the CENTER output.

  • Page 91: Output Levels

    SDP-40 OUTPUT LEVELS MODE ADJUST (LISTENING MODE) The OUTPUT LEVELS menu contains parameters for adjusting CENTER, SIDE L/R, REAR L/R, SUBWOOFER L/R, and LFE output levels on a per-mode basis. The OUTPUT LEVELS menu is not available for listening modes that do not accommodate multi-channel outputs, such as MONO.

  • Page 92: Status Menus

    STATUS MENUS then SHIFT S T A T Unlike other menus, the listening mode STATUS menu can only be accessed with the above remote control command sequence. Press the SHIFT button, then the STAT button to check the STATUS of the active listening mode at any time.
  • Page 93 SDP-40 DOLBY DIGITAL STATUS MENU The DOLBY DIGITAL STATUS menu will appear when a Dolby Digital listening mode is selected. It features L, C, R, SL, SR, and LFE level meters (see page 5-18 for more information). Parameter Values CHANNELS 3/2.1, 3/2, 3/1, 2/2, 2/1, 2/0, 1/0...

  • Page 94: Mode Parameter Descriptions

    dts STATUS MENU The dts STATUS menu will appear when a dts(-ES) listening mode is selected. It features L, C, R, SL, SR, SB, and LFE level meters (see page 5-18 for more information). The SB level meter will not appear unless a 6.1-channel input type is selected.
  • Page 95 SDP-40 BASS ENHANCE BASS ENHANCE creates stereo bass, which results in low-frequency reproduction that is less localizable and more realistic in the listening space. When set to ON, the unit processes the low frequencies sent to the FRONT L/R, SIDE L/R, and REAR L/R outputs to create stereo low frequencies.
  • Page 96 CTR WIDTH CTR WIDTH (Center Width) adjusts the center image. When set to MIN, the center image is heard from only the center speaker. When set to MAX, the center image is heard from only the front left and right speakers as a “phantom” center image. When set on the 1 to 6 scale, the center image is heard in various combinations of all three front speakers.
  • Page 97 SDP-40 LFE MIX (-20.0 or -10.0 to +0.0dB) LFE MIX adjusts the level of the LFE channel (the .1 channel in a 5.1 or 6.1-channel source) that is sent to the SUBWOOFER L/R outputs. Low frequencies from as many as five other channels may be combined with the LFE channel to create the SUBWOOFER L/R output signal, significantly raising subwoofer output levels.
  • Page 98 SOUND STAGE SOUND STAGE dynamically adjusts the relative balance of the outputs when no surround signals are present. When set to FRONT, the SIDE L/R and REAR L/R outputs are attenuated, shifting the per- ceived balance of the sound field to the front of the listening space. When set to NEUTRAL, the SIDE L/R and REAR L/R outputs are attenuated slightly, shifting the perceived balance of the sound field to the center of the listening space.
  • Page 99 Troubleshooting and Maintenance Troubleshooting ...6-2 Restoring Factory-Default Settings ...6-4 Routine Maintenance ...6-4...

  • Page 100: Troubleshooting

    TROUBLESHOOTING Note: • The SDP-40 does not support MPEG input types. • Some DVD players will produce audio artifacts when switching audio formats. THE UNIT DOES NOT POWER ON. 1. Attempt to power the unit on with both the one on the front panel, and the one on the remote control.
  • Page 101 2. Disconnect source components to isolate the problem. Once the problematic component is identified, make sure it is properly grounded and connected to the same electrical circuit as the SDP-40. RF INTERFERENCE IS PRESENT IN THE AUDIO OR VIDEO. 1. Move antennas away from the unit.

  • Page 102: Restoring Factory-Default Settings

    RESTORING FACTORY-DEFAULT SETTINGS The procedure below outlines the process to restore factory-default settings. Before performing these steps, record custom settings on the installation worksheet (see page A-12). All parameters will be reset to their factory-default value. This procedure should be performed before setup begins.
  • Page 103 Appendix Specifications ...A-2 Declaration of Conformity ...A-4 Menu Tree ...A-5 Installation Worksheet ...A-12...

  • Page 104: Specifications

    SPECIFICATIONS Audio Inputs and Outputs Audio Inputs 8 stereo pairs (RCA) or 5 stereo pairs and one 5.1-channel analog input Digital Audio Inputs 6 coaxial (RCA), 6 optical (5 TosLink, and 1 optical mini jack), 1 AES/EBU; coaxial and optical inputs conform to IEC-958, S/PDIF standards Sample Rates:...
  • Page 105 SDP-40 Video Inputs and Outputs Video Inputs 5 composite (RCA), 8 S-video, and 4 component video (3 RCA, 1 BNC) Video Outputs 4 composite (RCA, 2 monitor and 2 record), 4 S-video (2 monitor and 2 record), and 1 component (BNC) Performance (Composite &...

  • Page 106: Declaration Of Conformity

    Lexicon, Inc. 3 Oak Park Bedford, MA 01730-1441 USA The equipment identified here conforms to the Directive(s) and Standard(s) specified above. SDP-40 Digital Surround Processor/Controller JBL Synthesis SDP-40 June 1, 2001 Lexicon, Inc. Vice President of Engineering 3 Oak Park...

  • Page 107: Menu Tree

    SDP-40 MENU TREE MODE ADJUST FILM MUSIC PL II PRO LOGIC II PL II MUSIC PRO LOGIC 2-CHANNEL PARTY MONO MONO LOGIC MONO SURROUND FILM MUSIC SUR EX DIGITAL 5.1 2-CHANNEL 5.1 MONO 5.1 MONO LOGIC 5.1 MONO SURR FILM...
  • Page 108 The menu pictured at the left prompts the selection of the desired input for configuration. Selecting an input accesses Continued from page A-5. the corresponding INPUT SETUP menu pictured below. The parameters on the left side of this menu are identical INPUT SETUP regardless of which input is selected.
  • Page 109 SDP-40 DVD1 INPUT NAME DVD1 ANALOG IN EDIT INPUT NAME ANALOG-1 RESTORE DEFAULT NAME ANALOG-2 ANALOG-3 ANALOG-4 DVD1 DIGITAL IN ANALOG-5 ANALOG-6 * COAX-1 ANALOG-7 * COAX-2 ANALOG-8 * COAX-3 NONE COAX-4 COAX-5 COAX-6 DVD1 ANLG IN LVL OPTICAL-1 OPTICAL-2...
  • Page 110 CUSTOM SETUP SYNTHESIS 7CH SETUP FRONT L/R 80Hz PRESSING THE RIGHT V CENTER 80Hz BUTTON WILL SIDE L/R 80Hz AUTOMATICALLY CHANGE REAR L/R 80Hz THE OUTPUTS TO A SUB L/R MONO SYNTHESIS 7CH SPEAKER SUB XOVER 80Hz CONFIGURATION SYNTHESIS 7CH SETUP FRONT L/R CENTER SIDE L/R...
  • Page 111 SDP-40 LEVELS CALIBRATION INTERNAL NOISE TEST DACS CALIBRATION SUB LIMITERS Continued from page A-8. INTERNAL NOISE SPEAKER LEVEL ADJUST FRONT LEFT !CAUTION! HIGH AUDIO LEVELS CENTER FRONT RIGHT SIDE RIGHT REAR RIGHT SPEAKER LEVEL ADJUST REAR LEFT SIDE LEFT FRONT LEFT +0.0dB...
  • Page 112 FILM AUTO AZIMUTH VOCAL ENHANCE MODE ADJUST RE-EQUALIZER SOUND STAGE FILM 5 SPKR ENHANCE BASS ENHANCE MUSIC SURR ROLLOFF 15.3kHz PL II REAR DLY OFFSET PRO LOGIC II OUTPUT LEVELS PL II MUSIC CUSTOM PRO LOGIC 2-CHANNEL PARTY MONO MONO LOGIC AUTO AZIMUTH MONO SURROUND VOCAL ENHANCE...
  • Page 113 SDP-40 ADDITIONAL LISTENING MODE MENUS OUTPUT LEVELS RE-EQUALIZER LFE MIX +0.0dB CENTER OUTPUT LEVELS SIDE L/R CUSTOM REAR L/R SUB L/R See page 5-17 for more LFE MIX +0.0dB information OUTPUT LEVELS OUTPUT LEVELS menu. CUSTOM CUSTOM 2-CHAN CUSTOM VS PRESET...

  • Page 114: Installation Worksheet

    Appendix INSTALLATION WORKSHEET INPUT SETUP DVD1 DVD2 GAME TAPE TUNER NAME DIGITAL IN ANALOG IN ANLG IN LVL VIDEO IN COMPONENT IN 2-CH DOLBY D dts-ES Main Advanced INPUT SELECT ANALOG BYPASS SVIDEO 16:9 SVIDEO 4:3 OSD COMPONENT OSD Zone 2 Advanced INPUT SELECT Record Advanced INPUT SELECT...
  • Page 115 SDP-40 SPEAKER SETUP CUSTOM SETUP SYNTHESIS SETUP FRONT L/R 80Hz CENTER 80Hz SIDE L/R 80Hz REAR L/R SUB L/R MONO SUB XOVER 80Hz OUTPUT LEVEL DISTANCE FRONT LEFT CENTER FRONT RIGHT SIDE RIGHT REAR RIGHT REAR LEFT SIDE LEFT SUB LEFT...
  • Page 116 (Standby Button) ....2-2, 2-8 2-CH ......2-16, 3-10 2-CHANNEL .
  • Page 117 EDIT CUSTOM NAME ....3-33 EDIT INPUT NAME .....3-4 EFFECT LVL .
  • Page 118 SAT Button ......2-3, 2-9 SDP-40, About the ....1-2 to 1-3 SETUP .
  • Page 119 SYNTHESIS LIMITED WARRANTY The following JBL Synthesis products are warranted for 2 years from the date of original purchase: Amplifiers, Equalizers, and Surround Sound Processors. Who is protected by this warranty? Your JBL warranty protects the original owner and all subsequent owners, so long as the original bill of sale is presented when warranty service is requested.
  • Page 120 JBL Synthesis 8500 Balboa Boulevard Northridge, CA 91329 250 Crossways Park Drive Woodbury, NY 11797 800-336-4JBL Part No. 070-14991 | Rev 0 | 10/01...
