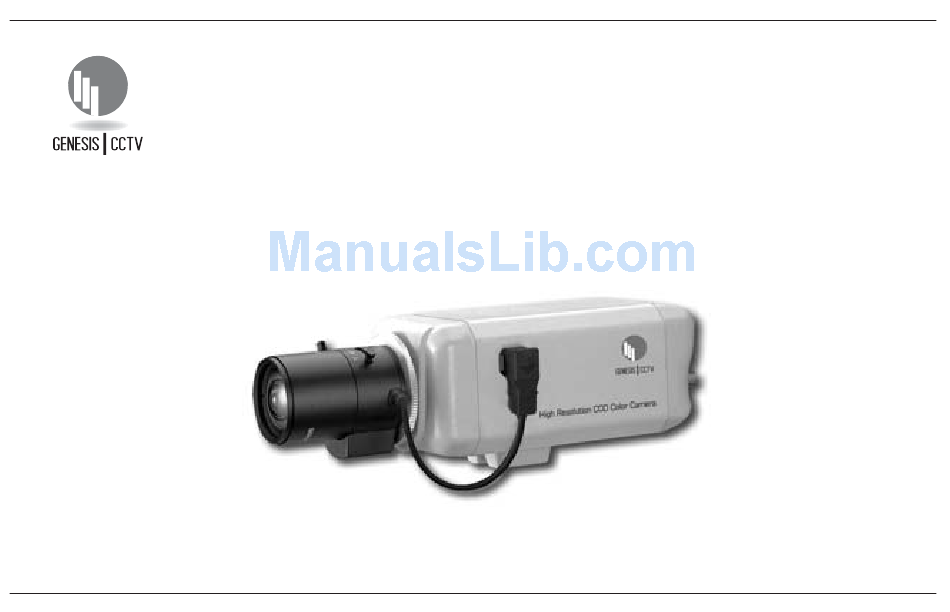

Page 1: Box Camera
Box Camera : Day/Night w/PIXIM’s WDR Vision with Integrity www.genesiscctv.com... -
Page 2: Table Of Contents
Thank you for purchasing Wide Dynamic Camera. Before using the camera, please read this operation manual carefully to obtain the best result and keep this manual for future reference. Table of Contents FEATURES ······························································· 3 CAMERA INSTALLATION ·····································12 Installation & Tripod Mounting Base NAME &... -
Page 3: Features
FEATURES • Superior Images even in tough back light conditions • 1/3" Digital Pixel System & Innovative 32 Bit DSP • Wide Dynamic Range : 95dB(14Bit), 120dB Max. • More than 540TVL of Horizontal Resolution • High speed, automatic 5 level exposure control for each pixel •... -
Page 4: Name & Function
NAME & FUNCTION (Front Panel) - Page 5 1. Lens mount Mount for lens installation. See page 9. 2. Lens connector When using an auto iris lens, connect the lens cable to this connector. See page 8. 3. Back-Focus screw Screw it after adjusting the back-focus to fix the setting. See page 11. 4.
-
Page 6: Rear View & Function
REAR VIEW & FUNCTION... - Page 7 1. Video output connector BNC connector that outputs a composite video signal. 2. Enter 3. OSD control Push arrow keys to move the cursor to left, right, up and down. 4. Power input terminal Connect to 12VDC or 24VAC power source. When operating with 12VDC or 24VAC power supply, use only an isolated power source.
-
Page 8: Lens Connector
Lens Connector When using an auto IRIS lens, connect the lens cable to the lens connector. • Video IRIS type lens : Set lens switch to VIDEO, and put the lens cable into the lens connector. If the plug on the cable is a different type, replace it with the provided 4-pin iris plug. -
Page 9: Lens Installation
LENS INSTALLATION • Please connect a lens cable when using the DC type lens or VIDEO type lens. • When using the VIDEO type lens, please adjust a brightness of image by volume attached with the lens. -
Page 10: Mounting A Lens
1. Mounting a lens Remove the lens mount cap from the camera Attach the lens to the mount. Secure it so that it does not become loose - C Mount lens : Turn the adaptor ring to counterclockwise. - CS Mount lens : Turn the adaptor ring to clockwise. If the lens has an auto-IRIS mechanism, connect the lens connector. -
Page 11: Back-Focus Adjustment
3. Back-Focus Adjustment - When a lens is mounted, back-focus adjustment can be required. Adjust with the lens focus ring when the correct focus cannot be obtained. 4. With a Fixed-Focus Lens - Fully open the aperture and set the focus ring to “∞”(infinity). -
Page 12: Camera Installation
CAMERA INSTALLATION 1. Installation Camera can be installed on a tripod or a fixing part from the upper or the bottom plate by using the camera fixing holes (1/4, 20UNC) on the tripod mounting base. The tripod mounting base is attached on the bottom plate when shipped from factory. -
Page 13: Osd Manual
OSD Manual * How to Operate Camera OSD: Use the five buttons on the rear of this product to configure the features. • Click the ENTER button. The features will start to be configured. The main menu is displayed on the monitor. -
Page 14: Main Menu
MAIN MENU SYSTEM INFORMATION CAMERA SETUP WDR SETUP DISPLAY SETUP EXIT 1. SYSTEM INFORMATION • CAMERA TYPE: Displays the current TV system. • H/W VERSION: Displays the hardware version. • S/W VERSION: Displays the software version. • FACTORY DEFAULTS RESET: Changes the values to the factory settings and saves the settings. - Page 15 2. CAMERA SETUP • VIDEO SETUP: Selects TV SYSTEM (NTSC/PAL), SYNC (INTERNAL/L.L) and SYNC AUTOSENSE(ON/OFF). • LENS SELECTION: Selects a lens type (DC/VIDEO/MANUAL). • VIDEO ADJUSTMENT: Sets WHITE BALANCE, AGC, BLC, FLICKERLESS, GAMMA, RESOLUTION, SHARPNESS, and SATURATION. • D&N SETUP: Selects COLOR or BW •...
- Page 16 2.1.1 TV SYSTEM CAMERA SETUP » VIDEO SETUP » TV SYSTEM » NTSC, PAL • SETUP LEVEL: Selects between 0 IRE and 7.5 IRE (Minimum black level of camera) • VIDEO LEVEL: Sets the level of the video display signal. •...
- Page 17 2.1.3 SYNC AUTOSENSE CAMERA SETUP » VIDEO SETUP » SYNC AUTOSENSE • OFF: Selects between INT and L.L. • ON: Synchronization is automatically set depending on the input power. With a 12VDC power supply, INT will be set. With an 24VAC power supply, L.L will be set. 2.2 LENS SELECTION CAMERA SETUP »...
- Page 18 • AI THRESH: Controls the gain value of the system where AUTO IRIS starts operating. - As the gain value gets lower, IRIS operates in an environment where the light is stronger. As the gain value gets higher, the IRIS operates in an environment where the light is weaker. - Disable this menu if MANUAL LENS is selected.
- Page 19 2.3.1 WHITE BALANCE CAMERA SETUP » VIDEO ADJUSTMENT » WHITE BALANCE • ATW: AUTO TRACKING WHITE BALANCE. Automatically sets the value of white balance (Range: color temperature of 2,800 to11,000 K). - ATW SPEED: The higher the value, the slower the tracking rate. - WB BIAS: Sets the color temperature, which is the reference point of ATW operation.
- Page 20 • MANUAL: There are two types of ADJ(Adjustment) modes that allow you to perform settings in detail manually: - KELVIN: Changes the color temperature to get the screen setting you want. - R/B: Increases or decreases the values of RED and BLUE to get the screen setting you want.
- Page 21 2.3.3 BLC(Back Light Compensation) By setting the BLC to ON, you will be able to set up to four zones. CAMERA SETUP » VIDEO ADJUSTMENT » BLC » ON *How to Set BLC Move to the relevant ADJUST ZONE depending on the number of ENABLE ZONES and click the ENTER button.
- Page 22 2.3.4 FLICKERLESS CAMERA SETUP » VIDEO ADJUSTMENT » FLICKERLESS • OFF: Disables the feature that allows the automatic disabling of flickering. • ON: Enables the feature that allows the automatic disabling of flickering. 2.3.5 GAMMA • AUTO: Corrects the value of automatic gamma (NTSC:0.45/PAL:0.36). •...
- Page 23 2.3.7 SHARPNESS : Sets the values of SHARPNESS and APERTURE. CAMERA SETUP » VIDEO ADJUSTMENT » SHARPNESS 2.3.8 SATURATION : Increases or decreases the saturation of the video color to set a color. CAMERA SETUP » VIDEO ADJUSTMENT » SATURATION...
- Page 24 2.4 D&N SETUP • COLOR: Always displays the video in a color. • BW+Burst: Always displays the video in black and white at burst signals. • BW: Always displays the video in black and white. • AUTO: Typically displays the video in color. Changes the color to black and white at a low light level. CAMERA SETUP »...
- Page 25 - D&N THRESHOLD: Sets the gain value when the video is switched to black and white (IN) and to color (OUT). * The difference between the value of IN and of OUT must be always 6 dB. To change the value of IN, check the value of Less than 18 dB AGC GAIN in the current camera and change the value to a NORMAL...
- Page 26 3. WDR SETUP WDR SETUP » WDR MODE » MANUAL This menu allows you to see both the subject and background simultaneously even if an extreme counter light is applied to the subject. By selecting MANUAL, you can set the values of BIAS and LIMIT. •...
- Page 27 4. DISPLAY SETUP • TITLE DISPLAY: Displays the camera title on the screen. • DIGITAL PTZ: 4X Digital Zoom. • MIRROR: Inverts the screen side-to-side. • FREEZE: Stops the screen. • LOW LIGHT: Sets the operation of the digital slow shutter at a low light level.
- Page 28 4.2 DIGITAL PTZ DIGITAL PTZ allows you to zoom by 4 by enabling digital zoom. Move all directions while operating zoom to search the screen. Enable DIGITAL PTZ and click the ENTER button to move to the DIGITAL PTZ page. In this page, you can set the values of ZOOM, PAN, and TILT.
- Page 29 4.5 LOW LIGHT DISPLAY SETUP » LOW LIGHT» DSS By enabling the DIGITAL SLOW SHUTTER (DSS) as well as AGC GAIN at low light levels, the video will be brighter. By selecting LOW LIGHT and DSS in sequence and clicking the ENTER button, you will move to the DSS LIMIT page to set the value of DSS LIMIT.
- Page 30 • ACTIVITY THR (THRESHOLD): Sets sensitivity to sense motion by the subject. If the subject moves, this product will operate. • ZOOM: Performs zoom operation where the zoom cursor is located if the subject moves. If the zoom cursor exists at 1, zoom will not operate even if the subject moves. •...
-
Page 31: Specification
SPECIFICATION BC-540WDR Day/Night Day/Night, DSS (Digital Slow Shutter) Image Sensor 1/3" DPS Technologies (D2500R) Signal Processor DSP (Digital Signal Processor) TV System NTSC/PAL Selectable Total Pixels (H)742 x (V)554 Effective Pixels (H)720 x (V)540 Horizontal Resolution 540TVL Vertical Resolution 460TVL... - Page 32 OSD CONTROL CAMERA SET UP Video Set Up : TV System, SYNC, SYNC Auto Sense Lens Selection : Lens Type, DC Gain, Video Gain, AI Thresh Video Adjustment : White Balance, AGC, BLC, FLK, Gamma, Resolution, Sharpness, Saturation Day&Night Setup : Color, BW + Burst, BW, Auto WDR SET UP Auto, Low, High, Manual DISPLAY SETUP...
-
Page 33: Supplied Accessories
SUPPLIED ACCESSORIES - 4-Pin iris plug - L-Wrench - Operation manual - Triped Mounting Base - Triped fixing screw x 4 • CS-mount adapter are attached when supplied. - Page 34 MEMO...
- Page 35 MEMO...
- Page 36 Vision with Integrity www.genesiscctv.com Design and specifications are subject to change without notice. Printed in Korea(2009.12)
