Cotell Fuego1000 FG1088-AW (2S) SP User Manual

Hide thumbs Also See for Fuego1000 FG1088-AW (2S) SP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
FG1088-AW(2S)SP
Hospitality Telephones
User Guide
Fuego1000™ SmartStation™
Cordless Telephone
FG1088-AW (2S) SP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fuego1000 FG1088-AW (2S) SP and is the answer not in the manual?

Questions and answers

Related Manuals for Cotell Fuego1000 FG1088-AW (2S) SP

Summary of Contents for Cotell Fuego1000 FG1088-AW (2S) SP

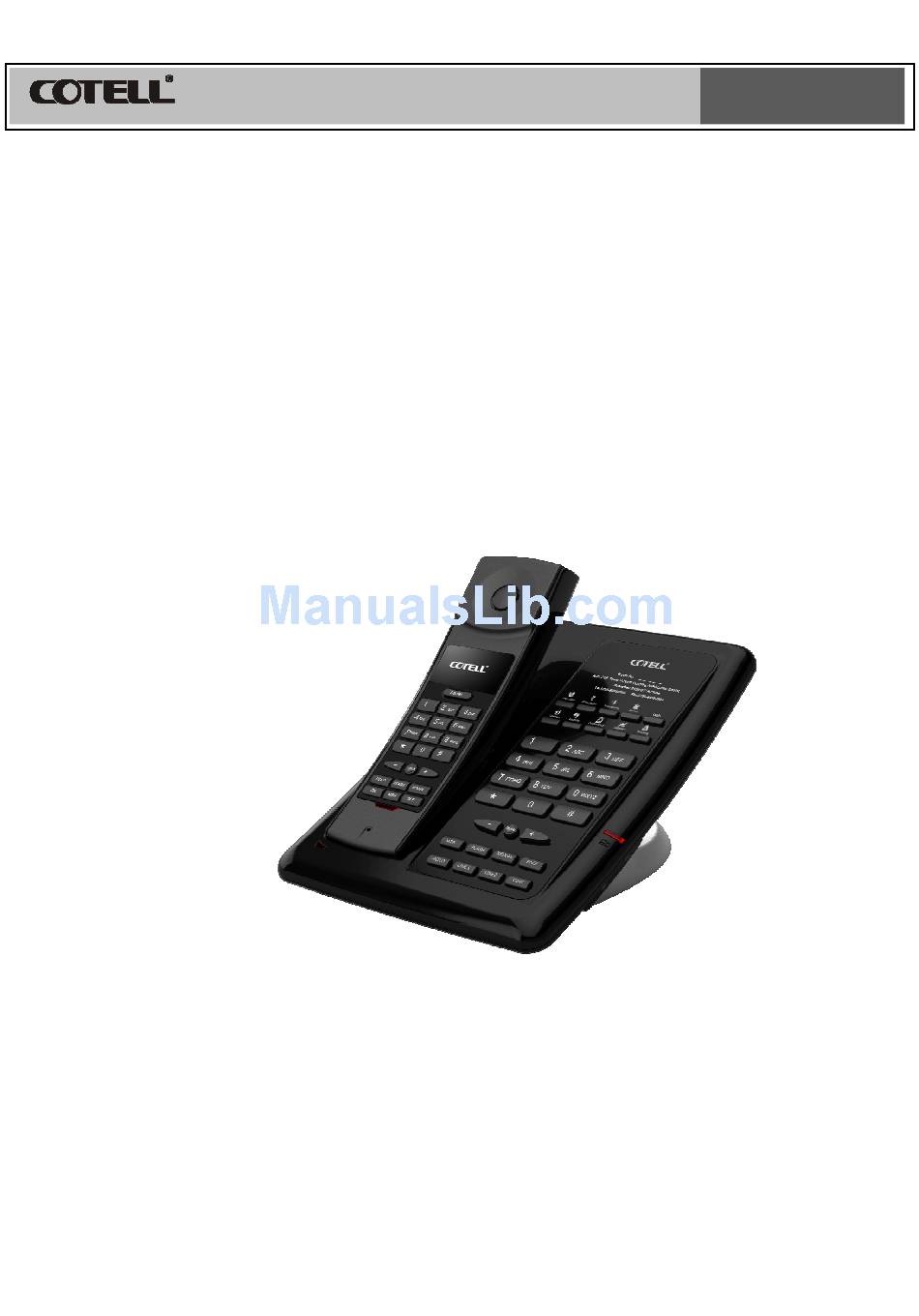

  • Page 1 FG1088-AW(2S)SP Hospitality Telephones User Guide Fuego1000™ SmartStation™ Cordless Telephone FG1088-AW (2S) SP...
  • Page 2 FG1088-AW(2S)SP FG1088-AW(2S)SP Face Drawing Features True 2-line phone operation Full length customizable faceplate Analog Message waiting indicator lamp 1.8Ghz, 1.9 Ghz band (selectable) 1-10 programmable memory button Base and handset dialing capability High immunity to electro-magnetic Secured digital transmission radiation Auto handset registration Gloss or Matt finished high quality Redial capability for both base and...

  • Page 3: Installation

    FG1088-AW(2S)SP Installation Unpack the box and check for the following items: a. Main telephone body b. Base support unit c. Cordless Handset d. Power Adaptor c/w power cord e. RJ11 Line cord RJ45 combo cord Connect one end of the line cord to the junction box and the other end to the wall telephone outlet.

  • Page 4: Answering A Call

    FG1088-AW(2S)SP C. Answering a Call An audible ringing sound and the flashing LED indicates and incoming call Using the handset 1. Lift the cordless handset and press Line 1 or Line 2 button to answer the call. 2. To end the call, place the cordless handset back on the cradle. Using the base unit speakerphone 1.

  • Page 5: Speakerphone Volume

    FG1088-AW(2S)SP F. Call Transfer Between Handset and Base Station 1. If the line is engaged by the base unit (in speakerphone mode), the In-use LED on all registered handsets will be blinking indicating that the line is currently engaged. In this case, any one of the registered handsets may take the line by pressing the corresponding LINE button.

  • Page 6: Message Retrieval

    FG1088-AW(2S)SP L. Programmable Memory Button There are 10 programmable memory buttons (on base unit) and 1 button (on handset) which can be used to store frequently use numbers or codes for activating PABX features. * Please refer to the appendix for the memory programming guide. M.
  • Page 7 FG1088-AW(2S)SP Line Powered Emergency Dialing This product allows emergency dialing under power failure situation In case of emergency, when there’s no power supplied to the base unit due to power failure, it’s possible to use the base unit to dial numbers by simply pressing the line button to get a line (the phone is operating in telephone line-powered mode).
  • Page 8 FG1088-AW(2S)SP Appendix Device Programming/ Setting Guide A. Program the Direct Memory / or the Message Retrieval “MSG” button 1. BASE “M1~M10” and “MSG” keys a. The base station is in standby mode b. Press the “HOLD” button c. Enter “##11” (you will hear the key tone while entering the code) d.
  • Page 9 FG1088-AW(2S)SP Step 2: Activate the handset to registration mode While the base unit is in registration mode, execute the following procedure: The handset is in standby mode Press the “HOLD” button Enter the code “ # # ** ” and then press the “HOLD” button again A confirm tone and LED blinking indicate that the handset has entered the registration mode and it’s searching for the base unit.

  • Page 10: Important Safety Instructions

    FG1088-AW(2S)SP IMPORTANT SAFETY INSTRUCTIONS WHEN USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS. INCLUDING THE FOLLOWING: READ AND UNDERSTAND ALL INSTRUCTIONS IN THIS MANUAL. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE PRODUCT. UNPLUG THE PRODUCT FROM THE WALL OUTLET BEFORE CLEANING.

  • Page 11: Warranty Exclusions

    9. Damages in transit. 10. Any damage resulting from unauthorized modification or repair of the telephone. COTELL PRODUCT SUPPORT If you need technical assistance with this product, please contact COTELL INTERNATIONAL LIMITED via one of the following methods: Telephone : 86-755-25831520...
