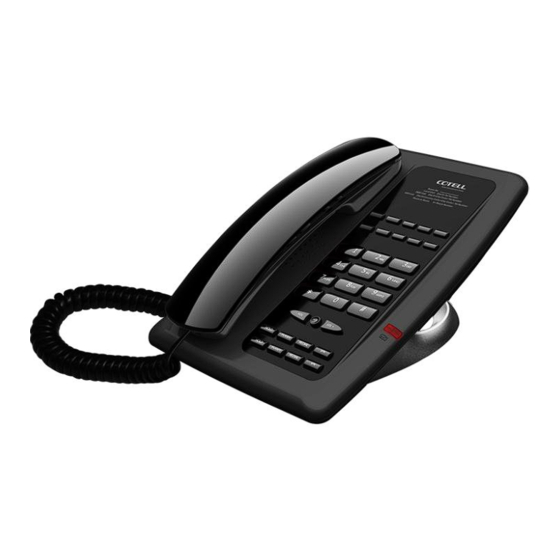

FG1088-IP(2S)SP Hospitality Telephones User Guide Fuego1000™ SmartStation™ Desktop IP Telephone FG1088-IP (2S) SP 2-line IP Guestroom Telephone... - Page 2 FG1088-IP(2S)SP FG1088-IP(2S)SP Face Drawing Features Support two SIP account Audio codec supported: G.711a, G.711u, Support SIP V2 (RFC3261) protocol G.723, G.729 Support RFC2833 (RTP Payload for DTMF Support CNG and VAD (on G.723 and Digits, in band/out band DTMF) G.729)
-
Page 3: Installation
FG1088-IP(2S)SP Installation 1. Unpack the box and check for the following items: a. Main telephone body c/w base unit b. Handset c. Handset cord d. RJ45 Line cord e. Power Adaptor (option) 2. Connect the handset to the telephone using the coiled handset cord provided. -
Page 4: Speakerphone Volume
FG1088-IP(2S)SP Using speakerphone 1. Press the speakerphone, selects Line 1or 2 button to answer the call. 2. To end the call, press the speakerphone button again. The LED will turn off. C. Redial Using the handset 1. Lift up the handset, press the REDIAL button to initial a redial call 2. -
Page 5: Message Retrieval
FG1088-IP(2S)SP H. Mute 1. During conversation, press the MUTE button will disable the opposite party from hearing your conversation 2. To deactivate Mute, press the MUTE button again. I. CONF Two lines in the different Accounts 1. Ensure account 1 and account 2 had register SIP account. -
Page 6: Web Configuration
FG1088-IP(2S)SP Web Configuration The IP phone can be remote configure via web. The interface support Internet Explorer and Mozilla Firefox. A. Use web interface Type http://<Phone IP Address>/ on the browser to login. Login name: admin Password: 1111 B. User Configure You can configure Username, Password, Domain Name, Registrar, Registrar Port, Outbound Proxy, Outbound Proxy Port, and Voice Mail. - Page 7 FG1088-IP(2S)SP After finish setting, Press “bottom” to jump to bottom of the webpage, click “Save Configuration” to save the setting. C. Call Feature（Speed Dial） You can configure Speed Dial via web. You can save internal call number or external call...
- Page 8 FG1088-IP(2S)SP D. Phone Media Settings There are 4 Phone media settings, which include Voice Codec、VAD、CNG and DTMF Generation. Voice Codec included G.711A、G.711u、G.723.1 and G.729A.VAD and CNG enable or disable. DTMF Generation included In-band、RFC2833 or both.
- Page 9 FG1088-IP(2S)SP E. Phone Date/Time setting You can choose “NTP” or “Local” or “Daylight Saving” for setting the phone date/time. If NTP is being used, NTP sever address is needed.
-
Page 10: Inter-Digit Timeout
FG1088-IP(2S)SP F. Inter-Digit Timeout You can choose Disable、1 second、2 seconds、3 seconds、4 seconds、5 seconds or 8 seconds for Inter-Digit Timeout. -
Page 11: Phone Network
FG1088-IP(2S)SP G. Phone Network There are 8 network settings: DHCP, IP Address, Subnet Mask, Broadcast Address, Default Gateway, DNS Server, TFTP Server IP Address and MAC Address. - Page 12 FG1088-IP(2S)SP H. NAT settings（STUN） There are 4 NAT (STUN) settings: Enable STUN, STUN Server Host, STUN Server Port Number, and Refresh Interval (0-300 Seconds).
- Page 13 FG1088-IP(2S)SP I. PPPoE Login Setting PPPoE settings included Login Name and Password.
-
Page 14: Phone Log
FG1088-IP(2S)SP J. Phone Log Phone Log for debug the phone. It display latest 500 log messages. -
Page 15: About Phone
FG1088-IP(2S)SP J. About Phone You can check Hardware and Software version. -
Page 16: Change Password
FG1088-IP(2S)SP K. Change Password You can change password via browser. Select “Change Password” from left column, enter the password twice and save the change. -
Page 17: Configuration Backup
FG1088-IP(2S)SP L. Configuration Backup Configuration Backup function allow user backup phone configuration. Press “Configuration Archive” on the left column. -
Page 18: Firmware Upgrade
FG1088-IP(2S)SP M. Firmware Upgrade You can upgrade Firmware via internet. Press Firmware Upgrade on the left column. - Page 19 FG1088-IP(2S)SP Web upgrade firmware The IP phone can be upgrade firmware via web. The interface support Internet Explorer and Mozilla Firefox.
-
Page 20: Desktop Setup
FG1088-IP(2S)SP A. Setup the TFTP server Type your IP address (Desktop Computer) into the “TFTP Server IP Address” column B. Desktop Setup Make a folder called “PH531N_AVH” and put all the firmware inside the folder. Open the tftp server of the computer and the directory should be same as the PH531N_AVH folder. - Page 21 FG1088-IP(2S)SP C. Desktop Setup Press Firmware Upgrade on the left column and press Firmware Upgrade bottom in the firmware upgrade page.
-
Page 22: Important Safety Instructions
FG1088-IP(2S)SP The firmware upgrades process need few minute to complete. Please wait for few minute and login the phone again. IMPORTANT SAFETY INSTRUCTIONS WHEN USING YOUR TELEPHONE EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSONS. INCLUDING THE... -
Page 23: Warranty Exclusions
FG1088-IP(2S)SP READ AND UNDERSTAND ALL INSTRUCTIONS IN THIS MANUAL. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE PRODUCT. UNPLUG THE PRODUCT FROM THE WALL OUTLET BEFORE CLEANING. DO NOT USE LIQUID CLEANER OR AEROSOL CLEANERS. USE A DAMP CLOTH FOR CLEANING. - Page 24 9. Damages in transit. 10. Any damage resulting from unauthorized modification or repair of the telephone. COTELL PRODUCT SUPPORT If you need technical assistance with this product, please contact COTELL INTERNATIONAL LIMITED via one of the following methods: Telephone : 86-755-25831520...
