Summary of Contents for Life 7600/ 8100/ 8200
-
Page 3: Table Of Contents
Table of Contents Safety Guide Installation of Parts Guide Installation Instructions Installation Guide Indicator Functions Operation Method Parts of the Ionizer Operation Warnings Production of Ionized Water 7600 to 8100 Conversion Operation Warnings Installation Guide for 8100 Operation Method Indicator Functions Installation of the Pre-Filter Internal Filter Replacement Filters... -
Page 4: Safety Guide
Safety Guide - Read Completely Before installation or operation of the LIFE Ionizer , read this instruction manual completely. Note- Some parts may have been altered to improve product quality, function or ease of use. Symbols Refer to the following key symbols and indicators throughout the manual. - Page 5 Improper use may cause bodily injury When drinking Ionized Alkaline Water - Do not take prescription or other medications for approximately one hour before and after drinking water. As with most electrical appliances, electrical parts in this ionizer are electrically live even when switch is off. This machine should not be repaired or otherwise disassembled by any unauthorized person as it may cause electrical fire or shock, and will void the...
- Page 6 If the ionizer machine falls into water- 1. Unplug power cord from electrical outlet 2. Wipe the machine down and place in shaded area 3. Contact your LIFE Ionizer dealer Use only (110v) in the U.S.A. and Mexico. Use (100v) in Japan.
- Page 7 Improper use may cause bodily injury Place machine in an upright position only. Do not install this unit in direct sunlight or near a heater, fireplace or other heat source. Do not use water with a temperature of over 104 degrees Fahrenheit or 40 degrees Celcius.
- Page 8 Improper use may cause structural damage to the unit or physical injury Aluminum and brass containers will be tarnished by Alkaline and acidic water. When handling the pH test (reagent drops) 1. Keep away from eye area. If eyes become irritated, flush thoroughly and consult a doctor.
-
Page 9: Installation Of Parts Guide
3. If after installation the water has an odor, you may need to install a pre-filter. Please consult your LIFE Ionizer dealer. 4. How to use reagent drops. (BTB Chemical). Put 2-3 drops in approximately 1 ounce of water to be tested. -
Page 10: Installation Instructions
* For installation video, go to http://www.lifeionizers.com/support/LIFE Ionizer 7600 & 8100 Use Cold Water Only With Your Ionizer STEP 1: Unscrew the existing aerator from your faucet. STEP 2: Use teflon plumbers tape on the threads. Screw the LIFE Ionizer diverter valve onto your faucet. Three different sized adaptors are included for non-standard sized faucets. -
Page 11: Installation Guide
Installation Guide Assembly method of valve for Deck-sink water taps Assembly method of valve for Deck sink water taps Connect by rotation after insertion of rubber packing Screw in the adaptor Cold Water inlet Remove the aerator from Remove the aerator from the water tap. the water tap. -
Page 12: Indicator Functions
4. Rotates while cleaning 5. Indicates ion water type (Alkaline, acidic, purified) 6. Indicates selected ionization water setting 7. Filter life - indicator 8. LIFE Ionizer Logo Voice Functions Voice: Please wait a few seconds as the machine is cleaning itself. -
Page 13: Operation Method
Operation Method When “Alkaline” water is chosen, Levels 1 to 4 can be selected by pressing the “Alkaline” button again. When “CLEAN WATER” is selected, pH is not indicated. The “ALKL” and “ACID” LEDs go off. When “ACID WATER” is selected, Level 1 or 2 can be selected by pressing the “ACID WATER”... -
Page 14: Parts Of The Ionizer
Parts of the Ionizer Parts for the Ionizer (Back) 1. First Filter Cover 2. Wall Mount Screw Holes 3. Speaker 4. Bar Code and Serial Number x x x - x x x x x - x x - x x 5. -
Page 15: Operation Warnings
Operation Warnings DO NOT run the following types of water though the LIFE Ionizer as it can cause damage to the unit. 1. Dirty or Salty Water 2. Water containing high amounts of rust or iron 3. Water above 40 degrees C or 104 degrees F Read these instructions thoroughly before attempting installation. -
Page 16: Production Of Ionized Water
Production of Ionized Water “ERR 1” will appear as shown in Fig. 1 if water pressure is low. Please check... 1. Press the main water flow button on top of the product. 2. Select the water type – Alkaline, Acidic, or Purified setting. -
Page 17: 7600 To 8100 Conversion
Conversion from 7600 to 8100 1. Snap in plastic adaptor into top of unit where flexible metal hose was in place. 2. Cut a piece of 1/4 inch tubing and connect it to plastic adaptor on top of unit, then insert other end of tubing into the alkaline tubing connection on faucet. 3. -
Page 18: Operation Warnings
1. Dirty or Salty Water. DO NOT run the following types of water though the Life Ionizer as it 2. Water containing high amounts of rust or iron. can cause damage to the unit: 3. -
Page 19: Installation Guide For 8100
Installation Guide for 8100 * For installation video, go to http://www.lifeionizers.com/support/LIFE Ionizer 7600 & 8100 How to Connect the Angle Stop Adapter Valve Connect the other end of the tubing from the Speedfit side of the valve to the water inlet (white elbow-quick connect) located on the bottom of the ionizer. -
Page 20: Operation Method
You should change the filter when only one bar is not lit up. Early stages of filter life. In need of filter change. * After changing the first filter, you can reset it by pushing the acid button for 5 seconds. -
Page 21: Indicator Functions
Indicator Functions 1. Filter Indicator 2. Indicates Ionized Water Type 3. Indicates Selected Ionization Water Setting 4. Ionization Water Selection Button 5. The Faucet Can Swivel Up to 120 Voice Functions *It is being washed now, Please wait a minute. Alkaline Water Button *Alkaline 4 - 4th grade of alkaline water is being extracted now. -
Page 22: Installation Of The Pre-Filter
Installation of the Pre-Filter 1. Cut the tubing leading to the ionizer at the desired location and length. 2. The cap on top of the filter housing is marked “OUT” and “IN”. TOP VIEW OF FILTER HOUSING 3. The tubing coming from the cold water connector needs to be inserted into the side of the housing marked “IN”. -
Page 23: Internal Filter Replacement
Internal Filter Replacement Press the top and bottom Open the filter cover Turn the filter top in of the filter cover. following the direction the arrow direction. of the arrow. (for 7600) After replacing filter #1, press 1st filter button for 8 seconds to reset filter counter. -
Page 24: Filters
Filters 1. Sediment Eliminates sediments (mud, rust, sand, etc) 10 microns or larger. 2. Pre-Carbon Absorbs and eliminates various compounds, remaining chlorine, taste and odor, THM, etc. 3. Activated Carbon Filters Ultra-fine coconut shell carbon and silver impregnated carbon. 4. Final Stage Sediment Filter Reduces filter remnants and remaining sediments. -
Page 25: Explanation Of Ionized Water
Explanation of Ionized Water anode cathode With electrolyzed water, the cathode (-) produces Alkaline Ionized Water with minerals (pH scope 7.5~10) - such as Ca, K, Mg, Na, etc. because of the hydroxyl ion (OH-) generating reaction. The anode (+) has lots of hydrogen (H+) (pH scope 3.5~6.5) because the oxygen gas (O ) generates a reaction and acid ion water has many ions such as Cl, S, P. -
Page 26: Alkaline And Acidic Water Usage Guide
Alkaline and Acidic Water Usage Guide 1. If the machine has not been used for several days, let the water run on the “Purified Water” setting for at least 3-5 minutes before any operation. 2. First time users who are not familiar with this water are recommended to start with Ionized Alkaline Water level 1 and adjust the quantity or level of wate which might fit you the best. -
Page 27: Uses Of Ionized Alkaline/Acidic Water
Uses for Ionized Alkaline Water Highly Ionized Alkaline Water: pH 11.0+ Highly Ionized Alkaline Water preserves hygiene in our daily life due to its strong cleaning effect. Food Preparation: Wash Vegetables and fruit. Cleaning: Clean cutting boards with. Good for cleaning oil and tough grime from vents, as well as for general cleaning in the kitchen. - Page 28 Plants: Watering plants and flowers. Ionized Alkaline Water extends the freshness and life of plants. Ionized Alkaline Water with a pH level of 9.0 can also restore the health of sick plants. Ionized Alkaline Water stimulates germination and improves seeding development.
- Page 29 Uses for Acidic Water pH Water: 4.0-6.0 Face wash: The astringent properties of acidic water are effective in toning and firming your skin. Pat the skin and leave to dry. This water is also excellent as a toner after shaving. Hair Care: Use this water to rinse your hair after shampooing.
-
Page 30: Performance Features
208 watts of power. More Power = Better Results. Your system will also run more efficiently providing more consistent power and will last much longer. UV Light System- We have recently introduced LIFE UV Light Technology as an optional feature on our Life Ionizers. UV light dissipates bacteria as the water passes around the secure light inside the unit. -
Page 31: Common Problems And Solutions
(RO system, sprinkler system, etc) • House water pressure is Call LIFE Ionizer Tech too low. Support for assistance. •Pre-filter and/or unit • If unit has been used for filters are blocked. -
Page 32: Common Problems And Solutions
• Call your dealer to place an need to be replaced. unpleasant order for new filters. odor or taste. • Call LIFE Ionizers for a water • Water source requires a quality report for your area. pre-filter or RO* filter. -
Page 33: Acidic Cleaning Instructions & Routine Maintenance
A routine acidic cleaning of the ionizer chamber can help maximize the life and performance of your ionizer by reducing the build up of these harmful minerals. -
Page 34: Frequently Asked Questions
Frequently Asked Questions Q: What should I expect from drinking Ionized Alkaline Water? A: This will initially depend on what level of strength you begin drinking Ionized Alkaline Water. Ionized Water provides your body with lots of oxygen, which is why it gives us energy. Ionized Water is much smoother tasting than conventional water. - Page 35 and strength level 2 (two). Children between the ages of 4 and 12 years of age should never drink Ionized Alkaline Water at strength level 3 (three) or strength level 4 (four). Q: Should I take medication or supplements with Ionize Ionized Alkaline Water? A: You should not drink Ionize Ionized Alkaline Water 45 minutes to 1 hour before or after taking medication or supplements.
- Page 36 better it is for you because the water is more Alkaline, more Detoxifying, and a stronger Antioxidant that provides your body with more Oxygen. Q: When will I begin noticing the health benefits? A: It varies from person to person. You might start noticing a positive response in as little as one day or within a few weeks.
- Page 37 Water should be consumed. NEVER DRINK THE ACIDIC WATER. Q: Should Pregnant Women Drink Alkaline Water? A: We at Life Ionizers are often asked the question as to whether alkaline, ionized water should be consumed by a pregnant or lactating woman. We believe the prudent approach is to exclude alkaline, ionized water throughout pregnancy and breast feeding.
- Page 38 Q: How does a water ionizer work? A: Our counter top Alkaline LIFE Ionizer 7600 can be directly connected to a diverter valve at the end of your faucet. Connecting directly to your faucet takes about 10-15 minutes and enables your water ionizer to use a two step process.
- Page 39 Q: How do I know when the filter needs replacing? A: An LED or counter indicator on the front panel gives an indication of remaining filter life. Generally the 1st filter will last for about 8 months, the 2nd filter for about 12 months (when 2.5 gallons of water is produced per...
- Page 40 Q: What should be done if the machine is not to be used for 7 days or more? A: Remove the filter from the main body, wrap in plastic wrapping, and store in a refrigerator. Remove the power plug. When ready to use again, install the filter and run in the Ionizer in the ‘PURFIED’...
- Page 41 Q: What is hard water? A: According to the U.S. Geological Survey, more than 85 percent of the United States geography has hard water. Hard water forms when naturally occurring minerals enter water sources. Over time these minerals are absorbed by groundwater.
- Page 42 Q: Why do I want to adjust the amperage on my Water Ionizer? A: As you know, all water sources are not created equal. Your water source plays an important role on how your water Ionizer creates Ionized Alkaline Water. Being able to adjust the amperage will allow you to find the optimum pH for the best production of Alkaline Ionized water based on your water source.
- Page 43 Q: How do I set up the pre-filter unit? A: The pre-filter is installed in the supply line on the ionizer. Quick connects are provided for your convenience. Simply push the tubing in the connector and it seals automatically. When installing the filter for the first time, it is suggested to let the filter fill with water for a few minutes before turning on the ionizer.
- Page 44 Q: What is your return policy? A: We invite you to try out our new range of LIFE Ionizer and enjoy the benefits for 60 days. We are so sure that you will be satisfied with your ionizer that we offer you a 60-day money back guarantee.
- Page 45 All machines that are used for high-volume applications such as weight loss/Fitness Centers etc. will void the above warranty. The warranty is voided if parts used are not provided by LIFE Ionizers Company products are sold subject only to the applicable company standard printed warranty in effect at the time of sale and such warranty shall be in lieu of all other warranties expressed or implied.
- Page 47 Carlsbad, CA 92009 866.321.3116 (Technical Support) 760.585.1692 *When calling technical support please be prepared to give your ionizer serial number located on the back of the unit. To view an Installation Video for your LIFE 7600 and/or 8100 visit: www.LifeIonizers.com/Support...
Need help?
Do you have a question about the 7600/ 8100/ 8200 and is the answer not in the manual?
Questions and answers

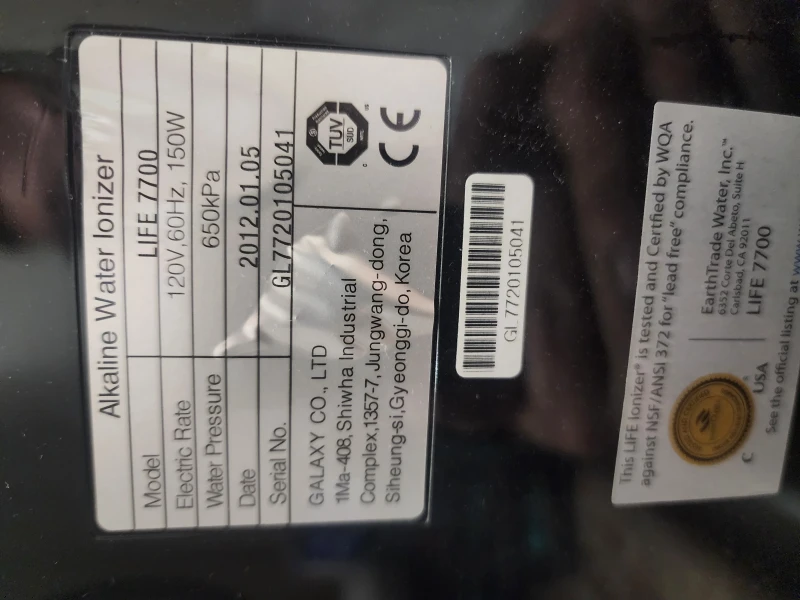

The power will not turn on my life ionizer 7700
The Life Ionizer may not power on due to the following possible reasons:
- The power cord, plug, or electrical outlet may be damaged.
- The power cord may not be plugged directly into an electrical outlet.
- Multiple appliances may be connected to the same power receptacle.
- The electrical outlet may be dusty or dirty.
- The power cord may be bent, twisted, pulled, or have heavy objects on it.
- The unit may not be using the correct voltage (110V in the U.S.A. and Mexico; 100V in Japan; 220V in most other countries).
Check these conditions and discontinue use if there is any damage to the cord, plug, or outlet.
This answer is automatically generated
