Necessories GRAND FIREPLACE Assembly Instructions Manual

60" w x 36" d x 102" h*
Hide thumbs Also See for GRAND FIREPLACE:

Advertisement

Quick Links

Download this manual

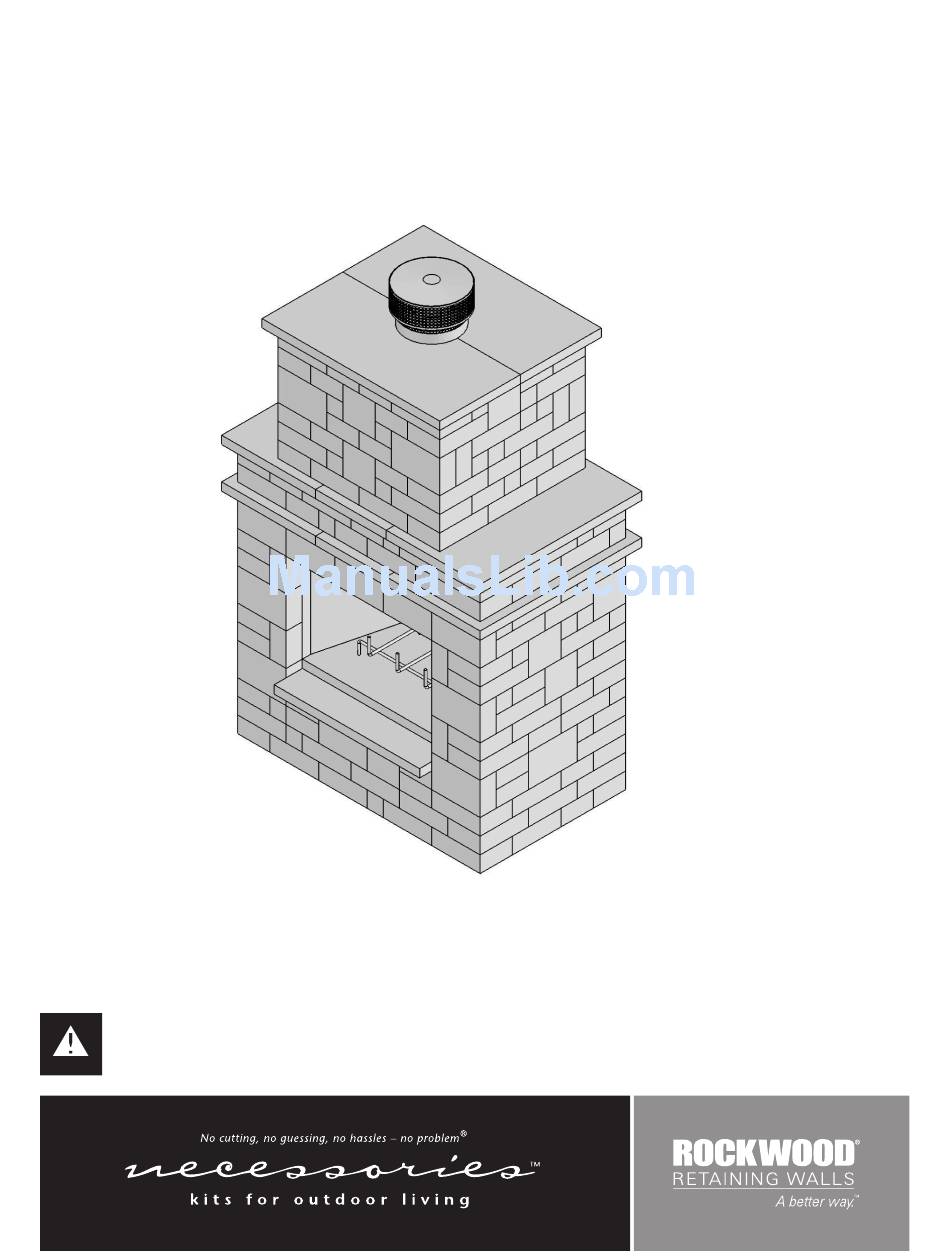

Assembly Instructions

GRAND FIREPLACE • 60" W x 36" D x 102" H*
WARNING: Failure to follow all steps of the installation instructions may result in property damage or bodily
injury. Rockwood Retaining Walls, Inc. is not liable for any property damage or bodily injury caused by
failure to follow the installation instructions or improper use of the product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the GRAND FIREPLACE and is the answer not in the manual?

Questions and answers

Related Manuals for Necessories GRAND FIREPLACE

Summary of Contents for Necessories GRAND FIREPLACE

  • Page 1: Assembly Instructions

    Assembly Instructions GRAND FIREPLACE • 60" W x 36" D x 102" H* WARNING: Failure to follow all steps of the installation instructions may result in property damage or bodily injury. Rockwood Retaining Walls, Inc. is not liable for any property damage or bodily injury caused by...
  • Page 2 U.S. Copyright Act. Reproduction of the plans, instructions or the [Grand Fireplace Kit] design, either in whole or in part, and whether in two- dimensional or three-dimensional form, and the creation of new works based upon such plans, instructions or [Grand Fireplace Kit] design, without the prior written permission of Rockwood Retaining Walls, Inc.
  • Page 3 Base Preparation: Base can be constructed of either Know What ’s Below: Whether you are planning to poured slab or compacted gravel. See requirements do it yourself or hire a professional, smart digging below. means calling 811 before each job. Homeowners often make risky assumptions about whether or not Zoning and Permits: Before you plan your project, they should get their utility lines marked, but every...
  • Page 4 Course 1 S = Small Block IMPORTANT: Lay glue bead away from outside perimeter to prevent glue from squeezing out between courses Course 2 IMPORTANT: Use adhesive on each course. Brush excessive dust from blocks to be glued. © 2012 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 5 Support for insert. Course 3 Install fireplace insert when this course is finished. © 2012 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 6 Course 4 IMPORTANT: Courses are shown without fireplace insert. See page 5 for insert installation. Course 5 36 x 7" Silver Creek accent piece can be glued now or at end of construction. Place as shown. Lift to glue in place. ©...
  • Page 7 Course 6 Course 7 © 2012 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.

  • Page 8: Rockwood Retaining Walls, Inc. All Rights Reserved. Please See Copyright Notice On

    Course 8 Course 9 © 2012 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.

  • Page 9: Course

    Course 10 Course 11 4 x 4 x 8" Cut Blocks (A). © 2012 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 10 Course 12 Add the spark suppressor to the chimney pipe and attach the pipe to the fireplace insert. Course 13 Place 3" side of angle iron against cut block, center left to right. Lift to glue in place. © 2012 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 11 Course 14 Glue blocks to steel support. Course 15 © 2012 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 12 Course 16 Place and center Silver Creek tops as shown. Lift to glue in place. Course 17 Position this course exactly above the course below. Lift each block to glue in place. © 2012 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 13 Course 18 Course 19 Place and center Silver Creek tops as shown. Lift to glue in place. © 2012 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 14 Course 20 Course 21 © 2012 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 15 Course 22 Course 23 © 2012 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 16 Course 24 Course 25 © 2012 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 17 Course 26 Course 27 Place and center Silver Creek tops as shown. Lift to glue in place. © 2012 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.

  • Page 18: Final Step

    Add spark suppresor cap. Final Step If not already done, place 36 x 7" Silver Creek accent as shown. Lift to glue in place. Allow 72 hrs. for adhesive to set before use.
  • Page 20 325 Alliance Place NE Available at: Rochester, MN 55906 toll free 888.288.4045 phone 507.529.2871 507.529.2879 www.rockwoodwalls.com © 2012 Rockwood Retaining Walls, Inc. All Rights Reserved. Made worldwide under license from Rockwood Retaining Walls, Inc. US and international patents issued and pending. This information has been prepared for the benefit of customers interested in Rockwood Retaining Wall products.
