Necessories Grand Fireplace Assembly Instructions Manual

Hide thumbs Also See for Grand Fireplace:

Advertisement

Quick Links

Download this manual See also: Assembly and Instruction Manual
Assembly Instructions
Grand Fireplace

Advertisement

loading
Need help?

Need help?

Do you have a question about the Grand Fireplace and is the answer not in the manual?

Questions and answers

Related Manuals for Necessories Grand Fireplace

Summary of Contents for Necessories Grand Fireplace

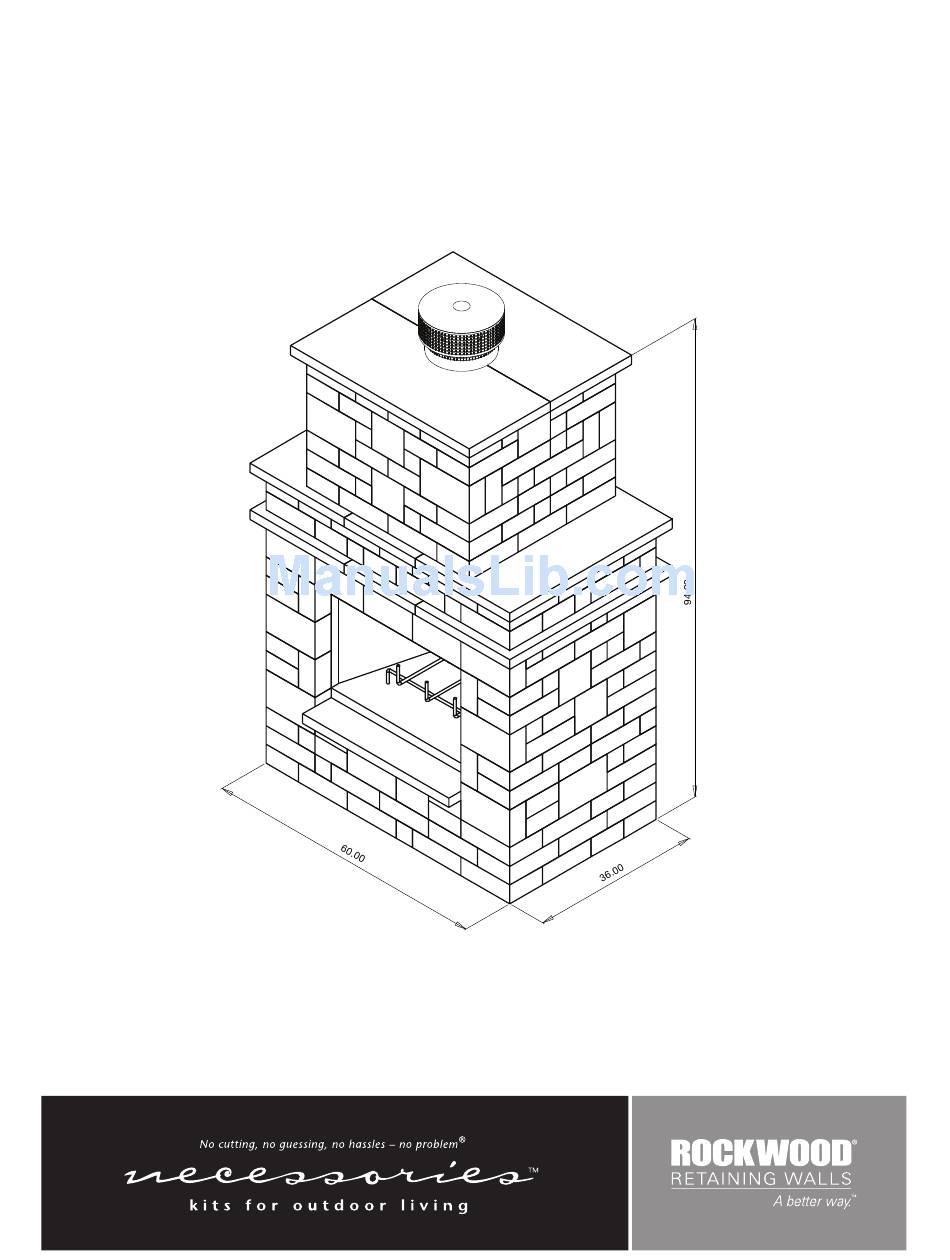

  • Page 1 Assembly Instructions Grand Fireplace...
  • Page 2 Act. Reproduction of the plans, instructions or the in the United States, Rockwood warrants your 1. Product failure, loss or damage due to: [Grand Fireplace] design, either in whole or in part, Necessories Kit is free from defects in materials for • Normal wear and tear;...
  • Page 3 WARNING: Failure to follow all steps of the installation instructions may result in property damage or bodily injury. Rockwood Retaining Walls, Inc. is not liable for any property damage or bodily injury caused by failure to follow the installation instructions or improper use of the product. Grand Fireplace Kit Contents: Item Description...
  • Page 4 Course 1 S = Small Block IMPORTANT: Lay glue bead away from outside perimeter to prevent glue from squeezing out between courses Course 2 IMPORTANT: Use adhesive on each course. Brush excessive dust from blocks to be glued. © 2007 - 2013 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 5 Support for insert. Course 3 Install fireplace insert when this course is finished. © 2007 - 2013 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 6 IMPORTANT: There are four spacers on the top of the fireplace insert that are used for wood frame installation. You must remove all spacers in order for the top pieces to fit. © 2007 - 2013 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 7 Course 4 IMPORTANT: Courses are shown without fireplace insert. See page 5 for insert installation. Course 5 7 x 36" Silver Creek accent piece can be glued now or at end of construction. Place as shown. Lift to glue in place. ©...
  • Page 8 Course 6 Course 7 © 2007 - 2013 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 9 Course 8 Course 9 © 2007 - 2013 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 10 Course 10 Course 11 4 x 4 x 8" Cut Blocks (A). © 2007 - 2013 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 11 Course 12 Add the spark suppressor to the chimney pipe and attach the pipe to the fireplace insert. Course 13 Place 3" side of angle iron against cut block, center left to right. Lift to glue in place. © 2007 - 2013 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 12 Course 14 Glue blocks to steel support. Course 15 © 2007 - 2013 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 13 Course 16 Place and center Silver Creek tops as shown. Lift to glue in place. Course 17 Position this course exactly above the course below. Lift each block to glue in place. © 2007 - 2013 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 14 Course 18 PLEASE NOTE: As with any concrete product, the age of the products can cause variations in color. Lighter colored Silver Creek tops are older and have cured more than newer, darker tops. Don’t be alarmed. As tops age, their color will lighten and blend together.
  • Page 15 Course 20 Course 21 © 2007 - 2013 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 16 Course 22 Course 23 © 2007 - 2013 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 17 Course 24 Course 25 © 2007 - 2013 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.
  • Page 18 Course 26 Course 27 Place and center Silver Creek tops as shown. Lift to glue in place. © 2007 - 2013 Rockwood Retaining Walls, Inc. All Rights Reserved. Please see copyright notice on page 2.

  • Page 19: Final Step

    Final Step Add spark suppressor cap. If not already done, place 7 x 36" Silver Creek accent as shown. Lift to glue in place. PLEASE NOTE: As with any concrete product, the age of the products can cause variations in color. Lighter colored Silver Creek tops are older and have cured more IMPORTANT: Allow 72 hrs.
