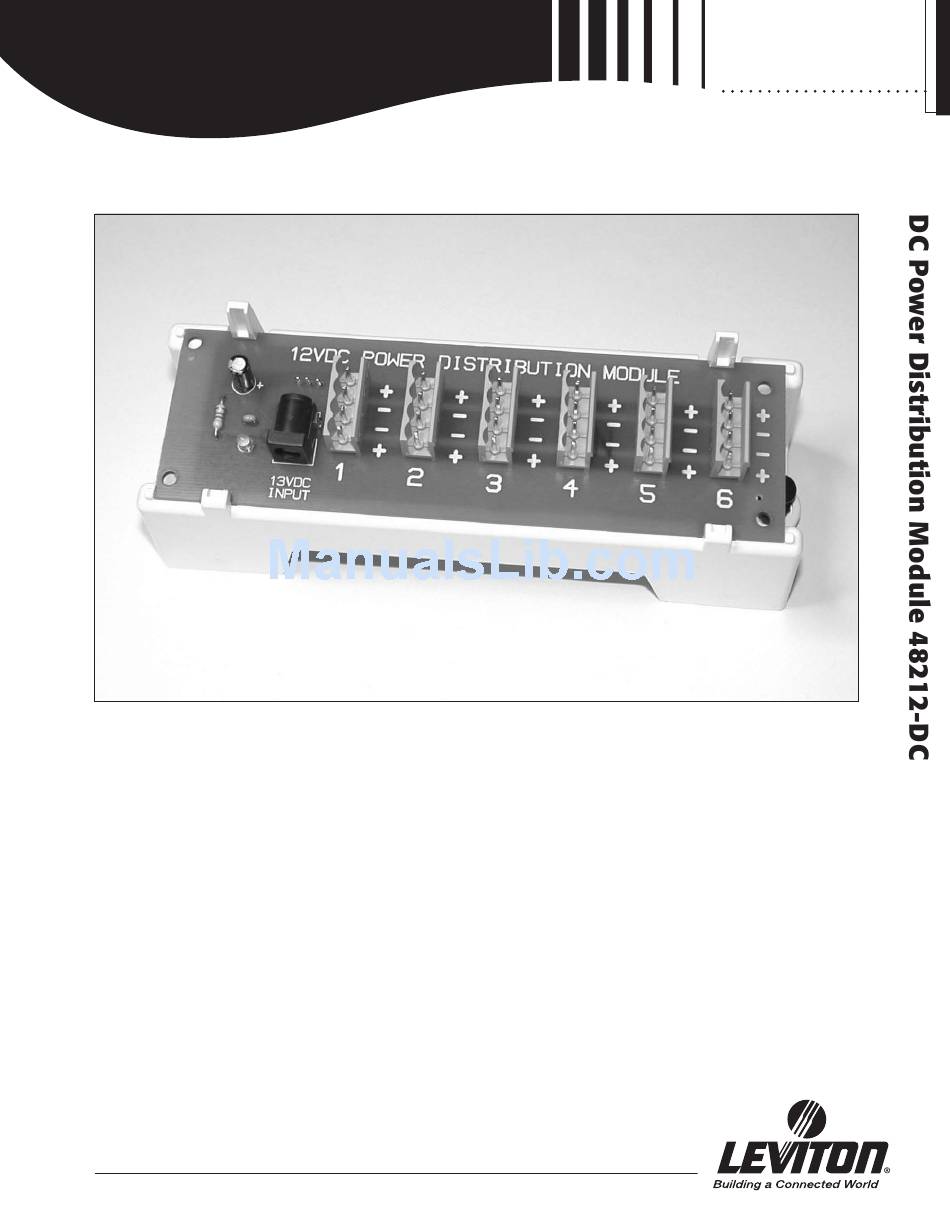

Dc power distribution module

Advertisement

Product
Specifications

APPLICATION

The DC Power Distribution Module provides high-quality
electrical power for the separate DC-powered components in
the Structured Media™ Enclosure. Powered by a single DC
power supply, the Power Distribution Module supplies fully-
regulated 12 VDC power for multiple devices.

PHYSICAL SPECIFICATIONS

Dimensions:
6.58"H x 2.5"W x 1.5"D
Input:
110 VAC
Output:
Provides 12 VDC power @ 1500 mA
Wire Gauge:
18-14 AWC
Bracket:
White, ABS

FEATURES

• Contains six removable, double screw terminal jacks
• Each jack utilizes slot-drive screws
• Shipped with six wires containing 18 gauge connectors
and 2.1mm power plugs
• Fully regulated (12 VDC regulated output)
Leviton Mfg. Co., Inc.
59-25 Little Neck Pkwy • Little Neck, NY 11362-2591 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538
Visit our Website at: www.leviton-lin.com
DC Power Distribution Module

WARRANTY INFORMATION

• Two-year limited product warranty.

TYPICAL SPECIFICATIONS

The DC Power Distribution Module contains six removable, double
screw terminal jacks. It maintains a 12 VDC regulated output. It
uses up to 14 gauge wire. The manufacturer provides a two-year
limited product warranty.
48212-DC
