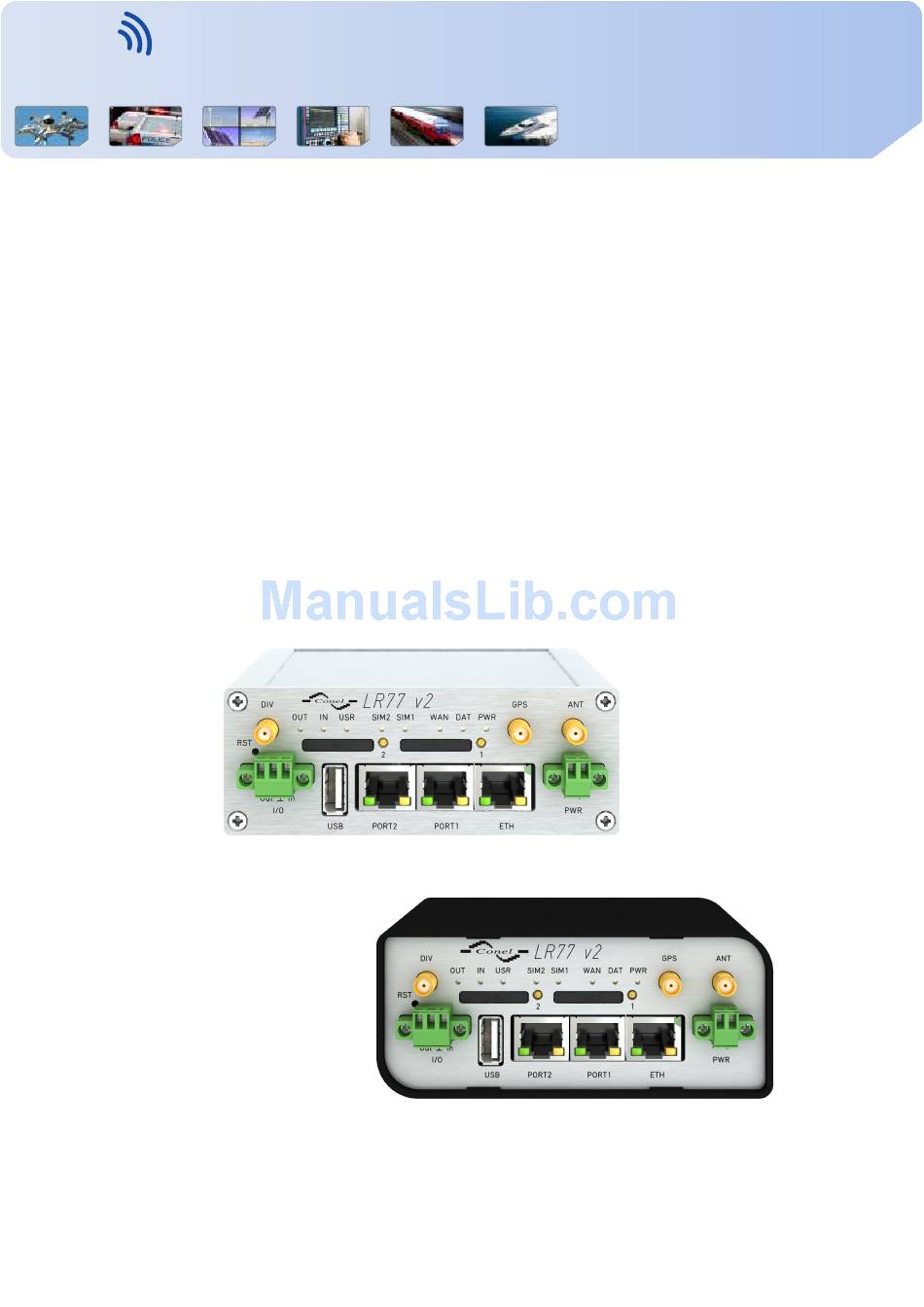

Industrial 4 G Router
VITRIKO
LR77 v2
LTE
Mobile Data Experts
100 M
bps|WiFi|DUAL SIM|RS232|RS485
Anytime Anything Anywhere
,
,
, but always connected.
www.vitriko.com
LR77 v2
LTE router
USER'S MANUAL
Contact
www.vitriko.com
info@vitriko.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LR77 v2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vitriko LR77 v2

  • Page 1 Industrial 4 G Router VITRIKO LR77 v2 Mobile Data Experts 100 M bps|WiFi|DUAL SIM|RS232|RS485 Anytime Anything Anywhere , but always connected. www.vitriko.com LR77 v2 LTE router USER’S MANUAL Contact www.vitriko.com info@vitriko.com...
  • Page 2 VITRIKO Mobile Data Experts USED SYMBOLS Used symbols Danger – important notice, which may have an influence on the user’s safety or the function of the device. Attention – notice on possible problems, which can arise in specific cases. Information, notice – information, which contains useful advice or special interest.
  • Page 3: Table Of Contents

    VITRIKO Mobile Data Experts CONTENTS Contents 1 Safety instruction 2 Product disposal instructions 3 Router description 4 Contents of package 5 Router design 5.1 Router versions ........
  • Page 4 VITRIKO Mobile Data Experts CONTENTS 7.1 Technical parameters of router ......7.2 Technical parameters of module ......
  • Page 5 VITRIKO Mobile Data Experts LIST OF FIGURES List of Figures Contents of package ....... . .
  • Page 6 VITRIKO Mobile Data Experts LIST OF TABLES List of Tables Router versions ........
  • Page 7: Safety Instruction

    VITRIKO Mobile Data Experts 1. SAFETY INSTRUCTION 1. Safety instruction Please, observe the following instructions: The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments.
  • Page 8: Product Disposal Instructions

    VITRIKO Mobile Data Experts 2. PRODUCT DISPOSAL INSTRUCTIONS 2. Product disposal instructions The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has been introduced to ensure that electrical/electronic products are recycled using the best available recovery techniques to minimize the impact on the environment. This product contains high quality materials and components which can be recycled.
  • Page 9: Router Description

    LAN networks, automatic teller machines (ATM) and other self-service terminals, etc. As a standard, this exceptionally fast LTE LR77 v2 wireless router is equipped with one Ethernet 10/100, one USB Host port, one binary Input/output (I/O) port and one SIM card To save and backup communication data a version with two SIM cards is available.
  • Page 10: Contents Of Package

    VITRIKO Mobile Data Experts 4. CONTENTS OF PACKAGE 4. Contents of package Basic delivered set of router includes: router, power supply, crossover UTP cable, two external antennas, clip for the DIN rail, installation CD containing instructions, paper start guide. Figure 1: Contents of package...
  • Page 11: Router Design

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN 5. Router design 5.1 Router versions LR77 v2 router is supplied in the following versions: SIM1 SIM2 PORT1 PORT2 LR77 v2B Plastic LR77 v2B SL Metal LR77 v2F Plastic LR77 v2F SL Metal...
  • Page 12: Delivery Identification

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN 5.2 Delivery identification Trade name Type name Other LR77 v2B LR-77-v2 Basic version LR77 v2B SL LR-77-v2 Basic version in the metal box LR77 v2F LR-77-v2 Full version LR77 v2F SL LR-77-v2 Full version in the metal box Table 2: Delivery identification...
  • Page 13: Ordering Codes

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN 5.3 Ordering codes 5.3.1 Basic version Expansion port Ordering code Version without expansion port LR77 v2B set Version with Ethernet expansion port LR77 v2B ETH set Version with RS232 expansion port LR77 v2B RS232 set...
  • Page 14: Basic Dimensions Of Plastic Box

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN 5.4 Basic dimensions of plastic box Figure 10: Basic dimensions of plastic box 5.5 Basic dimensions of metal box Figure 11: Basic dimensions of metal box Contact www.vitriko.com info@vitriko.com...
  • Page 15: Mechanical Dimensions And Mounting Recommendations

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN 5.6 Mechanical dimensions and mounting recommendations Mounting recommendations: possibility to be put on a work surface, DIN rail with clips CKD2 (ELPAC clip SL for metal version) are included. For the most of applications with a built-in router in a switch board it is possible to recognize...
  • Page 16: Cable Routing

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN For every cables we recommend to bind the bunch according to the following picture, we recommend for this use: – Length of the bunch (combination of power supply and data cables) can be max- imum 1,5 m.
  • Page 17: Removing From The Din Rail

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN 5.7 Removing from the DIN rail Default position of CPD2 holder (or CKD2 holder for SL version), which is used for mount- ing the router on a DIN rail, is shown in the following figure:...
  • Page 18: Description Of The Front Panel

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN 5.8 Description of the front panel On the front panel is located: Caption Connector Description 2-pin Connector for the power supply adapter. RJ45 Connector for connection into the local computer network. PORT1 RJ45 Connector for expansion port RS232, RS458/422, MBUS, ETHERNET, CNT or SWITCH.
  • Page 19: Status Indication

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN 5.8.1 Status indication About router status inform eight led indicators on the front panel and on every port are two LED indicators, which inform about port status. Caption Color State Description Green Blinking...
  • Page 20: Power Connector Pwr

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN 5.8.2 Power connector PWR Panel socket 2-pin. Pin number Signal mark Description VCC(+) Positive pole of DC supply voltage (+10 to +30 V DC) GND(-) Negative pole of DC supply voltage Table 7: Connection of power connector Figure 21: Power connector Power supply for router is required between +10 V to +30 V DC supply.
  • Page 21: Antenna Connector Ant, Div And Gps (Alternatively Wifi Or Wmbus)

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN 5.8.3 Antenna connector ANT, DIV and GPS (alternatively WIFI or WMBUS) Main and diversity antennas are connected to the router using the SMA connector on the front panel. In the Full version of the router is also available the third SMA antenna connector, through which the additional antenna can be connected (in case of the WIFI expansion port is used, this connector is reverse –...
  • Page 22: Sim Card Reader

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN 5.8.4 SIM card reader The SIM card reader for 3 V and 1,8 V SIM cards is located on the front panel of the router. To initiate the router into operation it is necessary to insert an activated SIM card with un- blocked PIN in the reader.
  • Page 23: Ethernet Connector

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN Figure 27: Ethernet connector ATTENTION! Port ETH is not POE (Power Over Ethernet) compatible! Ethernet cable plug into the RJ45 connector labeled as ETH (see figure below). Figure 28: Connection of ethernet cable...
  • Page 24: Port1

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN 5.8.6 PORT1 The PORT1 is equipped on customer’s request with one of the offered expansion ports: RS232 MBUS RS485 RS422 SWITCH (together with PORT2) ETHERNET Description and examples of expansion ports connection can be found in user’s guide for corresponding expansion port.
  • Page 25: Usb Port

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN PORT2 cable plug into the RJ45 connector labeled as PORT1 (see figure below). Figure 31: PORT2 cable connection 5.8.8 USB Port Panel socket USB-A. Signal mark Description Data flow direction +5 V Positive pole of 5 V DC supply voltage USB data - USB data signal –...
  • Page 26: I/O Port

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN Example of connecting devices with serial interface to the USB: Figure 33: Connection PLC to the router Example of connecting of USB flash disk to the USB: Figure 34: Connection flash memory to the router 5.8.9 I/O Port...
  • Page 27: Connection Of I/O Cable

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN The user interface I/O is for processing of binary input signal and to control (settings) of binary output signal. Binary output is not switched to ground in the default configuration. Maximum load binary output is 30 V / 100 mA. The constant current supplied by the binary input is 3 mA.
  • Page 28: Reset

    VITRIKO Mobile Data Experts 5. ROUTER DESIGN 5.8.10 Reset It is important to distinguish between reset and reboot the router. Action Router behavior Invoking events Reboot Turn off and then turn on router Disconnect and connect the power, Press the Reboot button in the web configuration...
  • Page 29: First Use

    VITRIKO Mobile Data Experts 6. FIRST USE 6. First use 6.1 Connecting the router before first use Before you give up the router, it is necessary to connect all components needed for the operation of your applications and the SIM card must be inserted (see figure below).
  • Page 30: Start

    VITRIKO Mobile Data Experts 6. FIRST USE 6.2 Start The router is set up connecting the power supply to the router. In the default setting the router starts to login automatically to the preset APN. Device on the Ethernet port DHCP server will assign addresses.
  • Page 31: Technical Parameters

    5,5 W (LTE transmission) Dimensions 42 x 76 x 113 mm (DIN lišta 35 mm) Weight LR77 v2 – 150 g LR77 v2 SL – 280 g Antenna connector SMA – 50 Ohm User interface Ethernet (10/100 Mbit/s) USB 2.0 PORT1 On customer’s request...
  • Page 32: Technical Parameters Of Processor

    VITRIKO Mobile Data Experts 7. TECHNICAL PARAMETERS Continued from previous page LTE modul UMTS parameters PS bit rate 384 kbps (DL) / 384 kbps (UL) CS bit rate 64 kbps (DL) / 64 kbps (UL) W-CDMA FDD standard GPRS/EDGE parameters...
  • Page 33: Recommended Literature

    VITRIKO Mobile Data Experts 8. RECOMMENDED LITERATURE 8. Recommended literature Start guide, Configuration manual, User’s manual – Expansion port RS232, User’s manual – Expansion port RS485/RS422, User’s manual – Expansion port MBUS, User’s manual – Expansion port CNT, User’s manual –...
  • Page 34: Possible Problems

    VITRIKO Mobile Data Experts 9. POSSIBLE PROBLEMS 9. Possible problems Some network cards are able to be set in situation, when it is not possible to connect the router. It is possible to solve this problem in the following steps:...
  • Page 35: Faq

    VITRIKO Mobile Data Experts 10. FAQ 10. FAQ I can’t get from internet on equipment, which is connected to router and I have NAT en- abled. The device’s gateway has to be configured as the router. Router resets itself, connection on Ethernet fails.
  • Page 36 VITRIKO Mobile Data Experts 10. FAQ The operator doesn’t give out address DNS servers and without DNS server’s it is impossible to connect to server dyndns.org. In log system will be this message: – DynDNS daemon started – Error resolving hostname: no such file or directory –...
  • Page 37: Customers Support

    VITRIKO Mobile Data Experts 11. CUSTOMERS SUPPORT 11. Customers support You can find current information about this product on our website: www.vitriko.com Upkeep-advices: The SIM-card must be handled carefully as with a credit card. Don’t bend, don’t scratch on this and do not expose to static electricity.
