Spartan 1270 Owner's Manual

Programmable motorized treadmill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

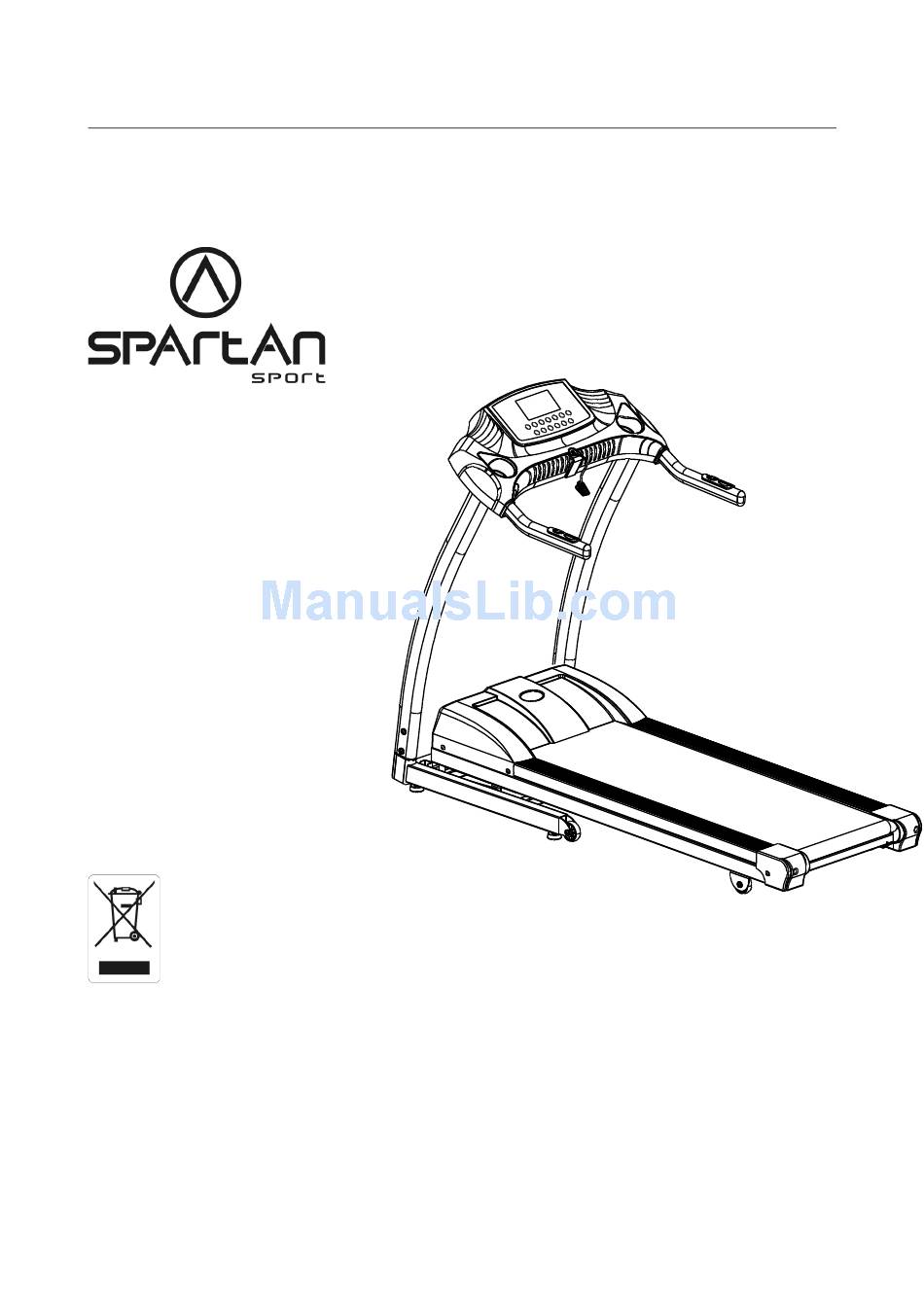

PROGRAMMABLE MOTORIZED TREADMILL ITEM NO: 1270
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo, subject to change without
notice.
TABLE OF CONTENTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1270 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spartan 1270

Summary of Contents for Spartan 1270

  • Page 1 PROGRAMMABLE MOTORIZED TREADMILL ITEM NO: 1270 OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice. TABLE OF CONTENTS...

  • Page 2: Table Of Contents

    MPORTANT SAFETY INSTRUCTIONS ------------------------------------------- PARTS LIST -------------------------------------------------------------------------------- HARDWARE PACKING LIST & TOOLS -------------------------------------------- SILICONE OIL INCLUDED ------------------------------------------------------------- OVERVIEW DRAWING ----------------------------------------------------------------- ASSEMBLY INSTRUCTIONS --------------------------------------------------------- STORAGE ---------------------------------------------------------------------------------- OPERATING THE COMPUTER ------------------------------------------------------ CARE, MAINTENANCE & TROUBLESHOOTING GUIDE --------------------- BELT ADJUSTMENT AND LUBRICATION ---------------------------------------- WARM UP AND COOL DOWN ROUTINE ----------------------------------------- IMPORTANT SAFETY INSTRUCTIONS Basic precautions should always be followed, including the following safety...
  • Page 3 NOTE: Failure to follow these instructions may lead to personal injury and cause damage to the treadmill. WARNING: To reduce the risk of burns, fire, electric shock or injury to any persons, please read the following:  Never leave the treadmill unattended when plugged in. Disconnect by turning off the master power switch, and unplugging from outlet when not in use and before putting on or taking off parts.

  • Page 4: Grounding Instructions

     Pull up the Safety Tether Key for emergency stop. Reinstall the Safety Tether Key onto the Computer Console. Press the ON/OFF button to begin exercise again.  Maximum Weight Capacity for this product is 110 kgs. Note: It is the obligation of the owner to review and explain these safety precautions to all users of this treadmill.
  • Page 5 Part # Description Qty Part # Description Handrail Tube Oval End Cap Base Frame 50x30 1 028 základní rám řidítková trubka oválného zakončení Main Frame Belt 1 029 hlavní rám pás Left Handlebar Support Tube Incline Motor 1 030 levá trubka nosního rámu motor Right Handlebar Support Tube Motor...
  • Page 6 Part Description Qty Part # Description Hex. Socket Round Head Bolt 3 067 Hex. Head Bolt M10x65 M8x45 Hex. Socket Round Head Bolt Cross Recessed Pan Head 2 068 M8x40 Tapping Screw ST4.2x38 Hex. Socket Head Cap Bolt Cross Recessed Pan Head 2 069 M8x80 Tapping Screw ST4.2x20...

  • Page 7: Hardware Packing List & Tools

    HARDWARE PACKING LIST & TOOLS (52) Curve Washer Ø8 4 PCS kulatá podložka (72) Hex. Socket Round Head Bolt M8x12 8 PCS (55) Nylon Nut M8 nylonová matice 4 PCS (44) Hex. Socket Round Head Bolt M8x50 4 PCS (51) Flat Washer Ø8 12 PCS (45) Hex.

  • Page 8: Overview Drawing

    OVERVIEW DRAWING...

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Tool: 5mm Allen Wrench with Phillips Screwdriver Multi Hex Tool Step 1 Insert the Sensor Wire I (85) through into the bottom hole of Right Handlebar Support Tube (4) and pull it out from the top hole of Right Handlebar Support Tube (4). Then install the Right Handlebar Support Tube (4) to the Base Frame (1) by inserting the Right Handlebar Support Tube (4) onto the Base Frame (1), using two M8x50 Hex.
  • Page 10 (45) Hex. Socket Round Head Bolt M8x16 (52) Curve Washer Ø8 2 PCS 2 PCS Šroub šestihranného kulatého ložiska Křivá podložka Tool: 5mm Allen Wrench with Phillips Screwdriver ․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․․ Step 2 Connect the Sensor Wire I (85) from the Right Handlebar Support Tube (4) to the Sensor Wire II (84) from the Computer Bracket (5).
  • Page 11 Hardware: časti: (72) Hex. Socket Round (51) Flat Washer (45) Hex. Socket Round (52) Curve Washer Head Bolt M8x12 Ø8 Head Bolt M8x16 Ø8 4 PCS 4 PCS 2 PCS 2 PCS Step 3 Connect the Hand Pulse Sensor and Speed Buttons Wires (39) from the right Handrail Tube (6) to the Control Button Wire (53) and Hand Pulse Sensor Extension Wire I (70) from the Computer Bracket (5).

  • Page 12: Storage

    Hardware: (72) Hex. Socket Round Head Bolt M8x12 4 PCS STORAGE FOLDING UP THE TREADMILL Firmly grasp the back end of the treadmill with both hands. Carefully lift the end of the treadmill up into the upright position until the Foot Lock Latch engages and securely locks the deck into position.

  • Page 13: Operating The Computer

    OPERATING THE COMPUTER Spring Kn QUICK START: Flip the Master Power Switch that is located at the front of the treadmill to the ON position. Before beginning a workout session ensure that the Safety Tether Key is properly installed onto the Computer Console and the Safety Clip is securely attached to an article of your clothing.
  • Page 14 COMPUTER BUTTON FUNCTIONS: ON/OFF: Press the ON/OFF button to start or stop training on different training mode. MODE: Press the MODE button to select pre-set programs P1 to P25. CLEAR/SET: Press the CLEAR/SET button to select function of TIME, DISTANCE, or CALORIES for target pre-setting in Program 0.
  • Page 15 computer console or handlebar to increase or decrease the running speed during exercise. Time starts counting down from pre-set target time to 0:00 per 1 second backward. Once the pre-set target time count down to 0:00, the computer will begin beeping to remind you and the running belt will stop automatically.

  • Page 16: Care, Maintenance & Troubleshooting Guide

    PULSE: The PULSE window will display your current heart rate figures in 4-5 seconds after you hold both two hands on handlebar grip sensors during exercise. To ensure the pulse readout is more precise, please always hold on to the handlebar grip sensors with two hands instead of just with one hand only when you try to test your heart rate figures.
  • Page 17 Potential PÉČE , ÚDRŽBA Problem Corrections Causes VAROVÁNÍ: Abyste předešli úrazu elektrickým proudem , vypněte běžecký pás před problém Potencielní řešení chyba čištěním nebo běžnou údržbou z elektriky . ČIŠTĚNÍ Treadmill will not Magnetický běžecký pás lze čistit měkkým čistým hadříkem .Nepoužívejte brusné start.

  • Page 18: Belt Adjustment And Lubrication

    BELT ADJUSTMENT AND LUBRICATION Belt Adjustment: The belt is adjusted at the factory; it may come loose during transportation and/or from use. After prolong use of the treadmill, the belt will stretch out. If the belt is shifting to the left, turn on the main power switch of treadmill and let the belt run at the speed of 2-3 KPH.

  • Page 19: Warm Up And Cool Down Routine

    QUADRICEPS STRETCH WARM UP AND COOL DOWN ROUTINE With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. A good exercise program consists of a warm-up, aerobic exercise, and a cool down.
