- Page 1 WESTFIRE · WF SERIES ONE & TWO WF SERIES ONE & TWO INSTALLATION MANUAL AND OPERATING INSTRUCTIONS ThE arT Of daNish ENgiNEEriNg...

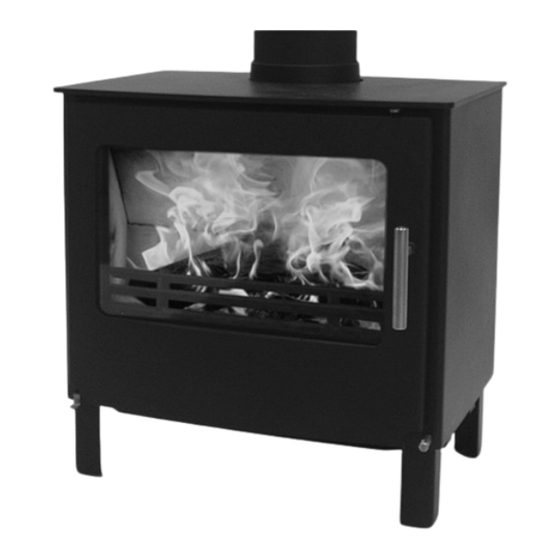

- Page 2 WESTFIRE · WF SERIES ONE & TWO Westfire WF SERIES ONE Westfire WF SERIES TWO WF SERIES ONE & TWO This manual refers to the stove type listed above, which has been tested in accordance with EN13240.
- Page 3 For further information on installing and using fireplaces and wood burning stoves, please see the relevant build- ing regulations that apply to the country in which WESTFIRE SERIES ONE & TWO has been approved, as well as the relevant brochure on the correct use of wood burning stoves available from your local stove supplier or your Chimney sweep.
- Page 4 Minimum draft: WESTFIRE SERIES ONE stove has been tested with a draft of 12 Pa. Maximum draft 25 Pa. Flue gas flow 3.8 g/sec.
- Page 5 The WESTFIRE SERIES ONE & TWO wood stoves have been tested and are suitable to be installed on a 12mm non combustible plate such as Westfire 12mm glass plates or 20mm slate plates. Installation of all hearths should comply in size and construction so that it is in accordance with the provisions of the current Building Regulations Approved Document J.
- Page 6 WESTFIRE · WF SERIES ONE & TWO fLUE aNd air iNTaKE POsiTiONs Wf sEriEs ONE & TWO Wf sEriEs ONE & TWO Pedestal Distance from rear to centre of top flue exit 120 mm 120 mm Distance from floor to centre of rear flue exit 454 mm 734.5 mm...
- Page 7 Connection to chimney The WESTFIRE SERIES ONE & TWO stoves are factory set up with a top flue outlet, this can be altered to a rear connection by unbolting top collar and rear cover plate and exchanging collar and plate. Care should be taken to ensure an airtight fit when refitting collar and plate.
- Page 8 WESTFIRE · WF SERIES ONE & TWO The WESTFIRE SERIES ONE & TWO stoves are all equipped with a control valve for secondary air designed to ensure a plentiful supply of oxygen during firing. When lit, the stove will get very hot and due care must therefore be exercised.
- Page 9 When opening the door of your Westfire stove always wear the glove that is provided to protect your hand from possible heat. The handle twists right away from the fire. When shutting the door push the door closed and twist left until the handle firmly closes.
- Page 10 WESTFIRE · WF SERIES ONE & TWO Trouble shooting 1. fire Will Not Burn - check the air inlet is not obstructed in any way, that chimneys and flueways are clear, that a suitable fuel is being used, that there is an adequate air supply into the room, that an extractor fan is not fitted in the same room as the fire.
- Page 11 The guarantee does not cover damage to replaceable parts, transport costs associated with repairs under warranty or the installation/dismantling of the stove in connection with repairs under warranty. Warning! Any unauthorised modification of the appliance is forbidden. Only replacement parts recommended by Westfire ApS should be used for repairs.
- Page 12 WESTFIRE · WF SERIES ONE & TWO rE-iNsTaLLiNg BriCK sETs...
- Page 13 WESTFIRE · WF SERIES ONE & TWO...
- Page 14 State or Minister in the devolved administrations. The Westfire Uniq 15, 16, 17,18, 19, 20, 21, 23, 23 side glass, 23 inset, 26, 27, 28, 32 and 32 freestanding, Series ONE and Series TWO has been recommended as suitable for use in smoke control areas when burning wood logs.
- Page 15 40 cm, 1.6 KG fUEL Westfire WF Uniq 15, 16, 17, 18, 19, 20, 23, 23 inset, 23 side glass 26,27,28, 32 inset and 32 freestanding, Series ONE and Series TWO are only suitable for burning wood. For best performance, and always for low smoke emission: •...
- Page 16 WESTFIRE · WF SERIES ONE & TWO WESTFIRE 2011 TømRERvEj 3 | DK-6800 vaRDE | phONE +45 7522 5352 | Fax +45 7522 1352 | WWW.WESTFIRE.DK | E-maIl: INFO@WESTFIRE.DK...
