Item
Model
40704
CGA8008
40841
CGA8016

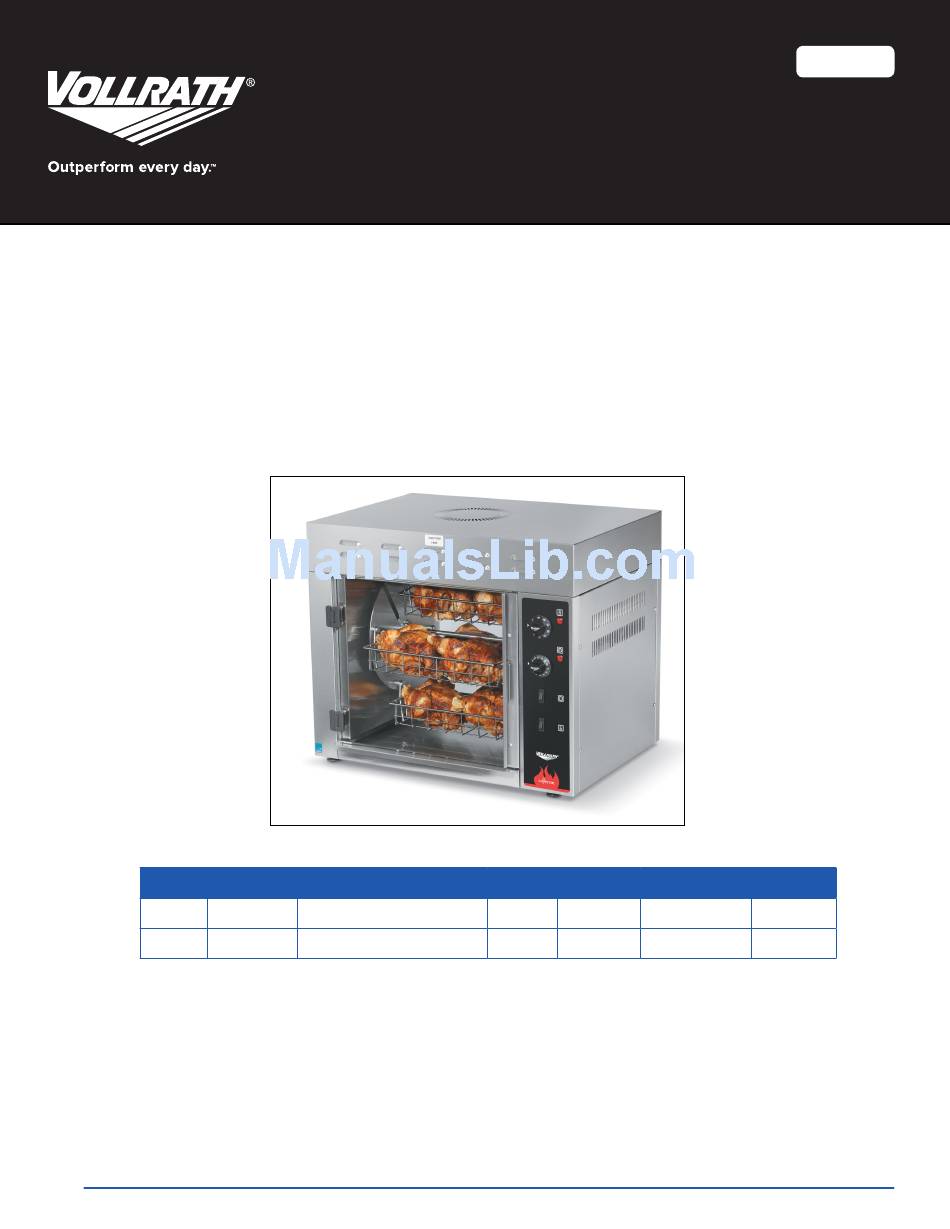

Thank you for purchasing this Vollrath equipment. Before operating the equipment, read and familiarize yourself with the following operating
and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Save the original box and packaging. Use this
packaging to ship the equipment if repairs are needed.
Description

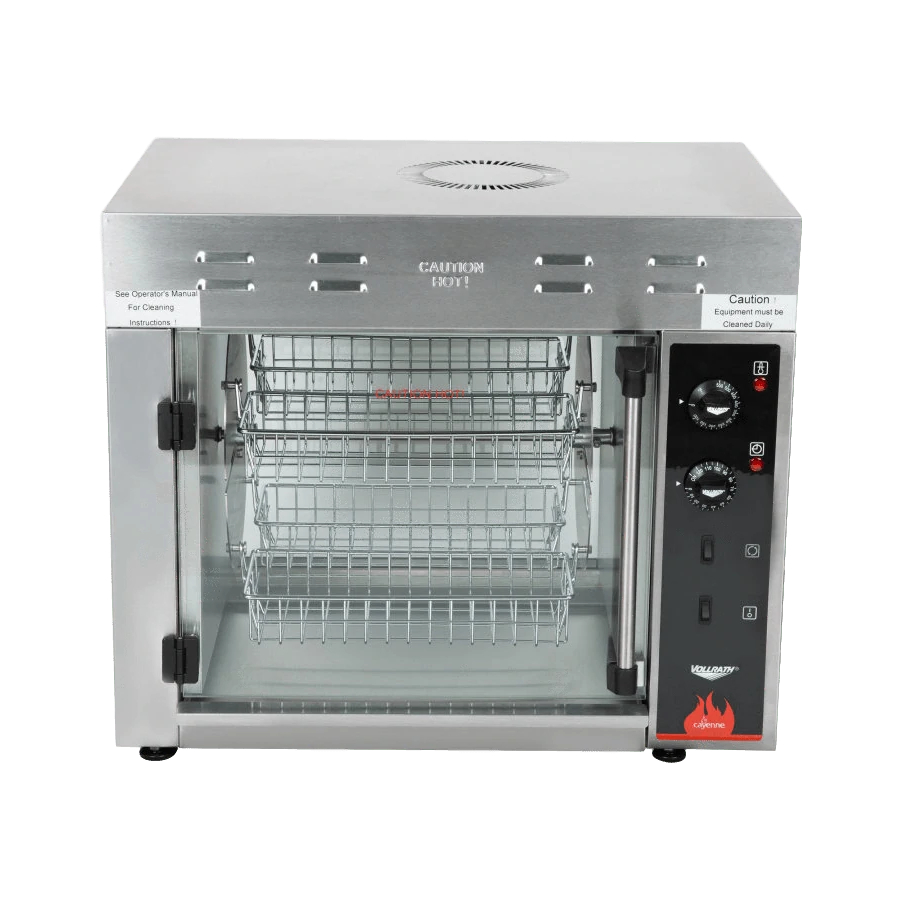

8 bird Rotisserie Oven
15 bird Rotisserie Oven
R
-
egisteR youR pRoduct on
Operator's Manual
CHICKEN ROTISSERIE OVEN
Watts Voltage
Amps
2700
230V
12 Amps
5000
230V
22 Amps
.V
.
line at www
ollRath
com
ENGLISH
Plug
6-15P
6-30P
Item No. 2350058-1 en Rev 06/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vollrath CGA8008
Summary of Contents for Vollrath CGA8008
- Page 1 22 Amps 6-30P Thank you for purchasing this Vollrath equipment. Before operating the equipment, read and familiarize yourself with the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. Save the original box and packaging. Use this packaging to ship the equipment if repairs are needed.
-
Page 2: Safety Precautions
aFety recautions unction and urPose This unit is intended to be used for cooking fresh foods in commercial To ensure safe operation, read the following statements and understand foodservice operations only. This unit is not intended to cook frozen chickens their meaning. - Page 3 The numbers on the dial correspond with the Item 40704 (Model CGA8008) is provided with four baskets which can hold oven temperature. The “0” position is off. two full chickens each. The total capacity is eight birds of approximately 3 lbs.
- Page 4 NOTE WARNING The grill baskets must be loaded evenly to ensure smooth balanced operation. Load slowly and carefully so the baskets are level. Uneven Burn Hazard. loading may cause the grill baskets to bump other baskets or the sides Do not touch hot food, liquid or heating surfaces and cause damage to the equipment See Figure 2.
- Page 5 ePair Replacement of oven light: 1. Allow unit to cool completely before servicing. 2. Disconnect the appliance from the electrical power supply. 3. Unscrew the oven light glass cover and replace the lamp with the correct specification oven light. The oven light must be rated for the high temperature within the oven and must match the nameplate voltage, i.e.
- Page 6 - c , 8-b , ~ i 40704 (m cga8008) hicken otisserie odel Models built after August 2011 220V Callout Description Grill Thermostat E1/E2/E3 Grill Element, 220V, 1000W L1/L2 Interior Light, 220v Pilot Light for timer Pilot Light for thermostat...
- Page 7 electrical draWing - c , 15-b , ~ i 40841 (m cga8016) hicken otisserie odel Models built after August 2011 220V Callout Description Grill Thermostat E1/E2 Grill Element, 1000W, 220V L1/L2 Interior Light, 220V Pilot Light, Timer Pilot Light, Thermostat Main Switch Rotisserie Switch Timer, 5-120 minutes...
- Page 8 Motor coupling Control knob (0-550°F), Fan motor cover XCOA1009 Vollrath blue XCOA1021 Fan & motor, 220V, left hand thread XCOA1008 Timer knob, Vollrath blue Top cover assembly XAA0002 Pilot light, 220V (red) Left cover side panel XWMA1004 Rocker switch Vollrath badge ’...
- Page 9 Front glass door XCGA0026 Rear glass XCGA0006 Drip tray XCGA0005 Carousel flange left Base XCGA0032 Main shaft XCOA1008 Timer knob, Vollrath blue XCGA0030 Chicken griller basket (0-550°F) XCOA1009 Control knob Vollrath blue XCGA0004 Carousel end plate XBMA7004 Adjustable foot XCGA0003...
-
Page 10: Warranty
For ollrath This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchasers for such uses. The Vollrath Company LLC warrants each of its products listed below against defects in materials and workmanship for the applicable period provided below. All other products manufactured or distributed by The Vollrath Company LLC are warranted against defects in materials and workmanship for a period of one year.
