Summary of Contents for Recordex iMMCam AFX-120

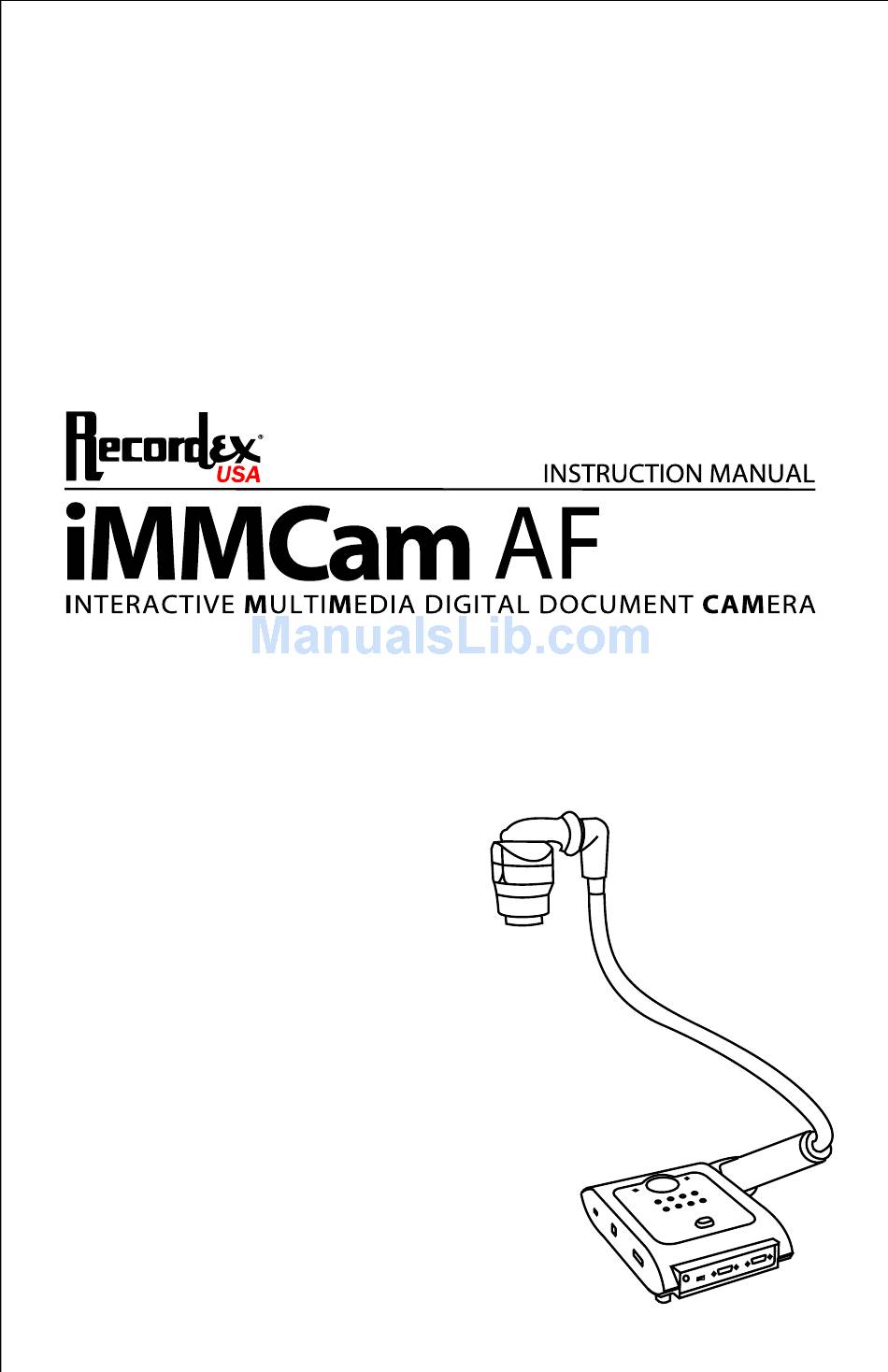

- Page 1 X-120 ENGLISH...
- Page 2 Thank you for choosing a Recordex iMMCam AFX camera for your presentation needs. Our iMM line of products are developed specifically to enhance the interactive multimedia experience of any pre- sentation. Copyright © 2011 by Recordex USA, Inc. All rights reserved. Reproduction or adaptation without prior written permission is prohibited, except as allowed under copyright laws.
-
Page 3: Table Of Contents
Table of Contents PACKAGE CONTENTS......................4 GETTING TO KNOW YOUR iMMCam AFX-120..............5 THE INPUT/OUTPUT PANELS....................6 CONTROL PANEL........................7 REMOTE CONTROL.........................8 SPECIAL FUNCTIONS......................8 TECHNICAL SPECIFICATIONS....................9 DEVICE DRIVER INSTALLATION...................10 XSIGHT HD VIEWER INSTALLATION..................11 MAKING THE CONNECTIONS....................12 TROUBLESHOOTING......................13 RECORD PRODUCT INFORMATION..................14 WARRANTY STATEMENT......................15 Recordex iMMCam AFX-120... -
Page 4: Package Contents
Take a moment to confirm that you received all the items listed below: VGA D-Sub Cable USB Cable QuickStart Guide (with XSight License) HDMI - DVI Cable Recordex iMMCam AFX-120 HDMI - HDMI Cable Remote Power Adapter & Cord Carrying Case Anti-Glare Sheet... -
Page 5: Getting To Know Your Immcam Afx-120
GETTING TO KNOW YOUR iMMCam AFX-120 Use the illustrations below to familiarize yourself with the Recordex iMMCam AFX-120. Camera Head Head Pivot Joints LED Lamps and Camera Lens Flexible Gooseneck Gooseneck Pivot Point Control Panel Side Ports Rear Ports AFX-120: Rear Side View... -
Page 6: The Input/Output Panels
LOCK Kensington Lock HDMI HDMI Port (OUTPUT to Display) - Connect to HDMI or DVI port. USB 2.0 Port (OUTPUT to Computer), 10 X Optical Zoom, SXGA Resolution. C-Video port (OUTPUT to display) Recordex iMMCam AFX-120 Instruction Manual Page 6... -
Page 7: Control Panel
Toggle on/off image freeze mode (press again for normal view) AUTO Automatically optimize image focus, brightness, and white balance Toggle on/off the LED lamps LIGHTS Description Lit when VGA Passthrough is active POWER Lit when camera is powered on Recordex iMMCam AFX-120 Instruction Manual Page 7... -
Page 8: Remote Control
Ÿ CAUTION: IMAGES SAVED USING THE CAMERA REMOTE OR CONTROL PANEL TO IN- TERNAL SESSION MEMORY ARE DELETED WHEN THE CAMERA IS POWERED OFF. Recordex iMMCam AFX-120 Instruction Manual Page 8... -
Page 9: Technical Specifications
LED Lamp (adjustable: on/off) IR Remote Carrying Case Microscope Adapter Optional Physical Dimensions Folded: 15.25 x 8 x 2.5 (in) Weight Open: 7.25 x 7.7x 24 (in) Weight: 4.5 lbs Shipping Weight: 10 lbs Recordex iMMCam AFX-120 Instruction Manual Page 9... -
Page 10: Device Driver Installation
DEVICE DRIVER INSTALLATION Your iMMCam AFX-120 document camera can be used as a visualizer without installing any device drivers or additional software. However, if you wish to capture video or image stills from your iMMCam then you will need to install USB capture software. -
Page 11: Xsight Hd Viewer Installation
XSight also includes many other presentation tools such as annotation, spotlight, etc. Go to www.recordexusa.com/myAFX.html for instructions on downloading and installing XSight HD Viewer. Also you will find several videos showing how to use the software. Recordex iMMCam AFX-120 Instruction Manual Page 11... -
Page 12: Making The Connections
PC Devices. If your display device will not accept the HDMI signal from the AFX then please use the VGA ca- ble for connectivity. Recordex iMMCam AFX-120 Instruction Manual Page 12... -
Page 13: Troubleshooting
Video projector is unable to project Ÿ Make sure VGA connection is tight. image from camera. Ÿ Try changing the output resolution by pressing and holding the AUTO button for 3 seconds. Recordex iMMCam AFX-120 Instruction Manual Page 13... -
Page 14: Record Product Information
We strongly recommend you fill out the information below: MODEL NUMBER: SERIAL NUMBER: SOFTWARE KEY: PURCHASED FROM: PURCHASE DATE: (staple copy of invoice to this manual) SUPPORT CONTACTS PHONE: 718-392-5380 Ext. 2 EMAIL: support@recordexusa.com Recordex iMMCam AFX-120 Instruction Manual Page 14... -
Page 15: Warranty Statement
Alaska, Hawaii and any address outside of the United States. If the Product is repaired out of warranty then you are responsible for shipping both ways. Recordex is not re- sponsible for any shipping damage that may occur in transit to the service depot.
