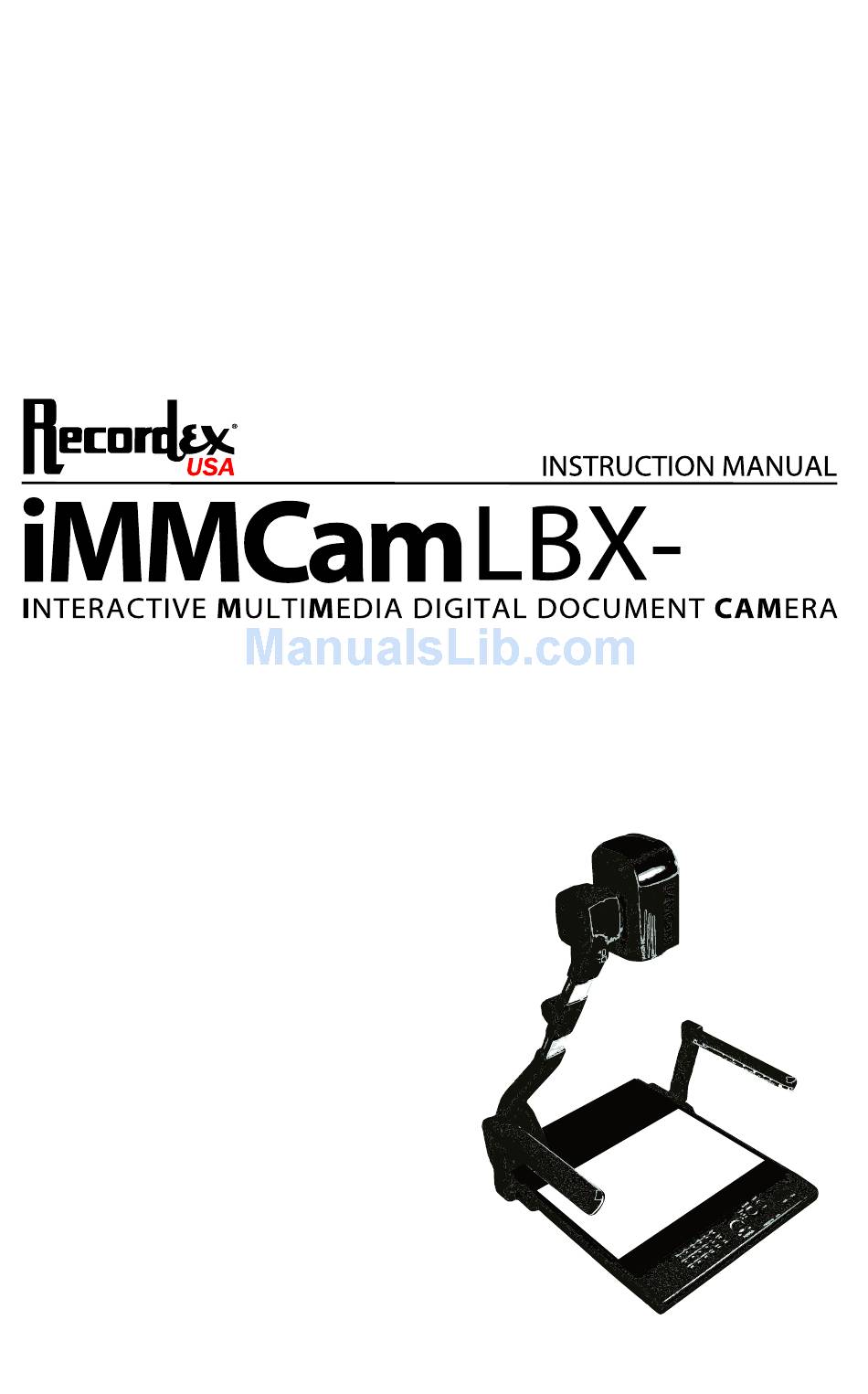

- Page 1 ENGLISH...
- Page 2 Thank you for choosing a Recordex iMMCam LB camera for your presentation needs. Our iMM line of products are developed specifically to enhance the interactive multimedia experience of any presen- tation. Copyright © 2013 by Recordex USA, Inc. All rights reserved. Reproduction or adaptation without prior written permission is prohibited, except as allowed under copyright laws.
-
Page 3: Table Of Contents
Table of Contents PACKAGE CONTENTS......................4 GETTING TO KNOW YOUR iMMCam LBX-500..............5 THE INPUT/OUTPUT PANELS....................6 CONTROL PANEL........................7 REMOTE CONTROL.........................8 SPECIAL FUNCTIONS......................8 TECHNICAL SPECIFICATIONS....................9 DEVICE DRIVER INSTALLATION...................10 SAVING IMAGES TO INTERNAL MEMORY................11 GETTING STARTED TIPS.......................12 CALIBRATE CAMERA AUTO FOCUS SYSTEM..............12 MAKING THE CONNECTIONS....................13 TROUBLESHOOTING......................14... -
Page 4: Package Contents
PACKAGE CONTENTS Take a moment to confirm that you received all the items listed below: QuickStart Guide Anti-Glare Sheet Recordex iMMCam LBX-500 Power Adapter & Cord Lens Cover Remote VGA D-Sub Cable RS232 Cable RCA Cable USB Cable HDMI - DVI Cable... -
Page 5: Getting To Know Your Immcam Lbx-500
GETTING TO KNOW YOUR iMMCam LBX-500 Use the illustrations below to familiarize yourself with the Recordex iMMCam LBX-500. Head Pivot Joints Camera Head Lens (Lens Cap) Mechanical Arm LED Side Lamps LED Light Box Document Stage Control Panel LBX-500: Front View... -
Page 6: The Input/Output Panels
Microphone Volume Dial (On/Off, Volume Level Adjust) 13 VGA-2 D-Sub RGB Port (VGA INPUT) 14 A 3.5 mm Stereo Audio Jack (INPUT) HDMI HDMI Output (connect HDMI display or use adapter for DVI-D) Recordex iMMCam LBX-500 Instruction Manual Page 6... -
Page 7: Control Panel
Press once to Switch back to presenter mode from VGA1, VGA2, or AV Input Source Press twice to Switch to C-Video output (this will switch off VGA/HDMI output) AUTO Auto focus image WIDE Zoom Out TELE Zoom In Recordex iMMCam LBX-500 Instruction Manual Page 7... -
Page 8: Remote Control
Ÿ NOTE: The images can only be deleted while in thumbnail view. Do not enlarge/view and then try to delete. Highlight the image in the thumbnail view and then hold down the ENTER/DEL button for three seconds Recordex iMMCam LBX-500 Instruction Manual Page 8... -
Page 9: Technical Specifications
1 x InfraRed Remote, 1 x Serial RS232 Connection Remote Control Folded: 17.5 x 13.7 x 6 (in) Physical Dimensions/Weight Open: 17.5 x 15.7 x 21.5 (in) Weight: 7.5 lbs Shipping Weight: 15 lbs Recordex iMMCam LBX-500 Instruction Manual Page 9... -
Page 10: Device Driver Installation
However, if you wish to capture video or image stills from your iMMCam then you will need to install USB capture software. Go to www.recordexusa.com/myLBX.html to download our camera software for your computer running Microsoft Windows or Mac OSX. Recordex iMMCam LBX-500 Instruction Manual Page 10... -
Page 11: Saving Images To Internal Memory
(for previous and next image) or by pressing the UP/DOWN buttons (to skip ahead or back 4 images). To go back to the thumbnail album view press ENTER (F8) To exit back to normal viewing mode press VIEW (F3) Recordex iMMCam LBX-500 Instruction Manual Page 11... -
Page 12: Getting Started Tips
10x then release the TELE button and allow the camera to auto focus. 7. At this point the camera should be properly calibrated. If not then repeat the pro- cess again. If problems persist then contact support@recordexusa.com. Recordex iMMCam LBX-500 Instruction Manual Page 12... -
Page 13: Making The Connections
PC Devices. The LBX camera is designed as a PC Device and the HDMI signal will only work on display devices equipped to handle PC Devices. If your display device will not accept the HDMI signal from the LBX then please use the VGA cable for connectivity. Recordex iMMCam LBX-500 Instruction Manual Page 13... -
Page 14: Troubleshooting
Ÿ Make sure the connection is made from the au- dio out port to a classroom amplification sys- tem. Ÿ Make sure you are using a low-impedence mi- crophone. Recordex iMMCam LBX-500 Instruction Manual Page 14... -
Page 15: Record Product Information
MODEL NUMBER: SERIAL NUMBER: SOFTWARE KEY: PURCHASED FROM: PURCHASE DATE: (staple copy of invoice to this manual) SUPPORT CONTACTS PHONE: 718-392-5380 x2 EMAIL: support@recordexusa.com MAIL: 10-50 46th AVENUE, LONG ISLAND CITY, NY 11101 Recordex iMMCam LBX-500 Instruction Manual Page 15... -
Page 16: Warranty Statement
Alaska, Hawaii and any address outside of the United States. If the Product is repaired out of warranty then you are responsible for shipping both ways. Recordex is not re- sponsible for any shipping damage that may occur in transit to the service depot.
