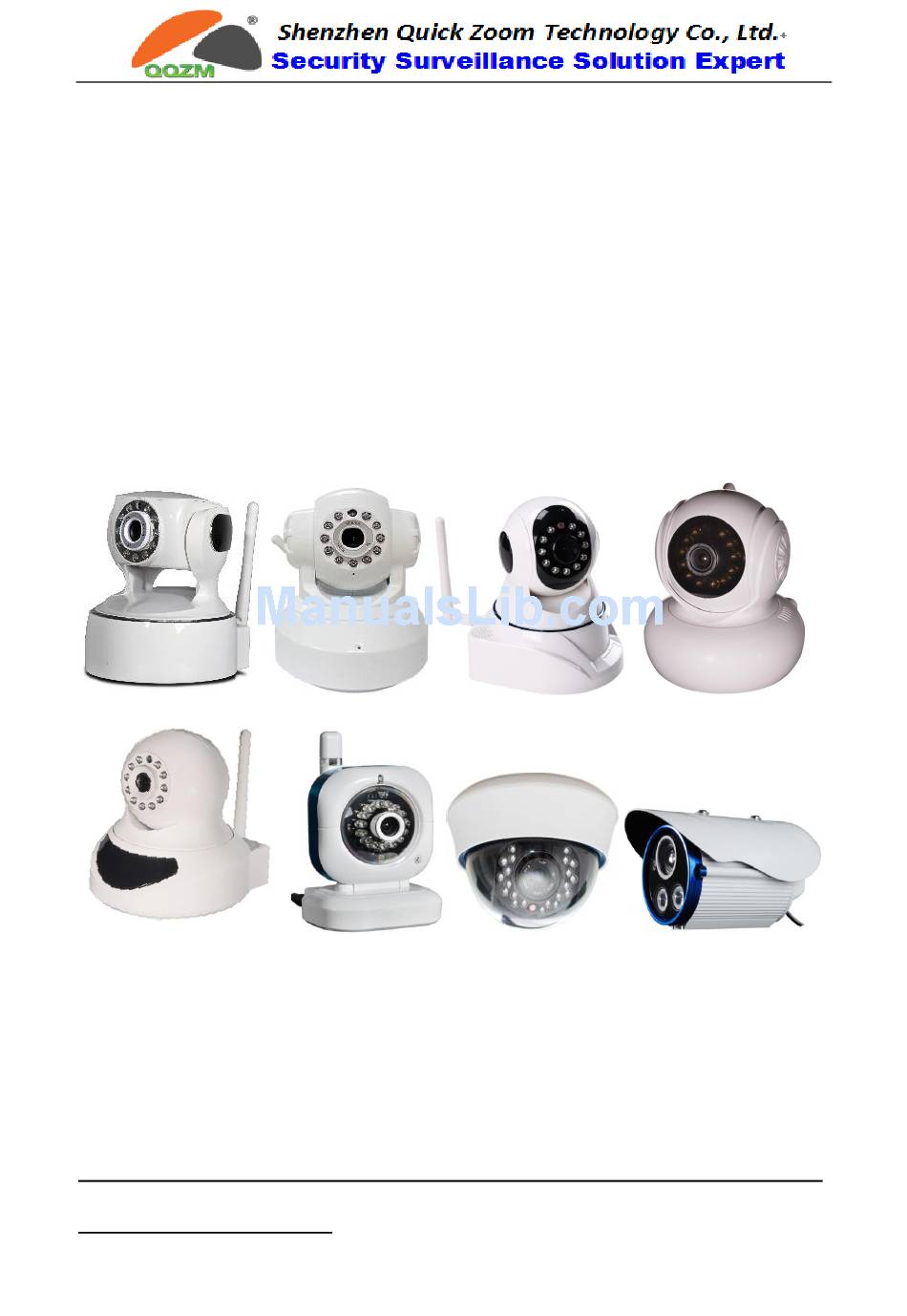

This user manual applies to all the QQZM PnP IP Cameras below:
(1) Home Pan-tilt Wireless IP Cameras
(2) Outdoor Wireless Bullet IP Cameras
(3) Dome/ Cube Wireless IP Cameras
NOTICE:
1. Please use Power Adapter and other accessories come with camera
2. Please CHANGE Camera Password and REMEMBER the New One!
Thank you for reading this user manual, if any problems you find out,
please kindly inform us!
Manual for PnP IP Camera
Copyright © Shenzhen Quick Zoom Technology Co., Ltd., All Rights Reserved
Updated on 9 Sept., 2014
--------IPCameraV
1
Advertisement
Table of Contents
Related Manuals for QQZM PnP
Summary of Contents for QQZM PnP
- Page 1 Updated on 9 Sept., 2014 Manual for PnP IP Camera --------IPCameraV This user manual applies to all the QQZM PnP IP Cameras below: (1) Home Pan-tilt Wireless IP Cameras (2) Outdoor Wireless Bullet IP Cameras (3) Dome/ Cube Wireless IP Cameras NOTICE: 1.
-
Page 2: Table Of Contents
Content 1. Hardware Installation ..................3 2. Software Installation ..................4 3. Access to Camera ....................5 3.1 Login IP Camera Client ........................5 3.2 Adding IP Camera Device ........................6 3.2.1 Using Auto Setting Guide to Add Camera in LAN ................6 3.2.2 Using “Add”... -
Page 3: Hardware Installation
1. Hardware Installation Please Connect camera to the Router FIRST and then Power on the camera , like the following way: Use the correct power supply for camera, and connect it to router or switch. Please check whether the working status of “Network Indicator” and Note: “Data Indicator”... -
Page 4: Software Installation
Definition Description Network Indicator Orange color, it is always on when power and network cable are connected correctly Data Indicator Green color, it is blinking when data is transmitting 2. Software Installation (1) Insert the CD into CD driver of your PC (2) It will pop up the auto installation windows like below: (3) Click the button of “Install CMS Software”... -
Page 5: Access To Camera
3. Access to Camera 3.1 Login IP Camera Client (1) Double click the icon to login in; you will see the following interface (2) After click “Login”, you will see the client interface as below: Copyright © Shenzhen Quick Zoom Technology Co., Ltd., All Rights Reserved... -
Page 6: Adding Ip Camera Device
3.2 Adding IP Camera Device 3.2.1 Using Auto Setting Guide to Add Camera in LAN The first time running the CMS, setting guide will pop up automatically (you can click button “Install Wizard” on top right of software on menu bar);... - Page 7 3. Select the camera and click button “Next (Modify Network Param)” 4. The camera will be added on the left. After successfully adding the camera, you can also set up the Wi-Fi next step; Copyright © Shenzhen Quick Zoom Technology Co., Ltd., All Rights Reserved...
- Page 8 5. Select your SSID on the list and input the Password, click “Connect” 6. After about 5-7 seconds, the Wi-Fi connection will be done Copyright © Shenzhen Quick Zoom Technology Co., Ltd., All Rights Reserved...
-
Page 9: Using "Add" Function To Add Camera In Lan
3.2.2 Using “Add” Function to Add Camera in LAN 1. Click “Add” button, the cameras connected to LAN will be shown in the list: 1. Click “Add“Button 2. Tick the Check box of Cameras that Connected in LAN 3. Click to Add Camera 2. -
Page 10: Wi-Fi Setting
3. Fill in a name of 5. Fill in camera and any Device ID information you want to describe it Password 6. Click “Finished” 4. Click “Next” 7. Double click the camera added under the folder of “Device”, you will see the video successfully 4. -
Page 11: Pt And Color Setting
2. Click “Wi-Fi” tag 4. Select your Wi-Fi SSID 5. Input the WIFI password and click “Connect” 3. Click “search” After about 8-15 seconds, the camera will connect to the Wi-Fi SSID 5. PT and Color Setting 5.1 PT Control Panel 1. -
Page 12: Color Control Panel
5.2 Color Control Panel 1. Brightness Adjustment 2. Saturation Adjustment 3. Contrast Adjustment 4. Saturation Adjustment 5. Image Mirror Setting 6. Restore Color Setting to Factory Default 5.3 IR-Cut Filter Control 1. Select the video of the camera you want to set IR Cut, right click the mouse, and click... -
Page 13: Record, Snapshot And Two Way Audio
6. Record, Snapshot and Two way Audio 6.1 Operation of alarm, snapshot and two way audio ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Function Icon Description Full Definition Monitor in Best Video Quality Video Quality Smooth Monitor in Medium Video Quality Top Speed Monitor in Medium in Best Video Fluency Record Folder... -
Page 14: Schedule Record
Schedule Record 5. Set the schedule of recording, red square means the 4. Select Camera 1. Click “Manage” camera will record video at this selected time 2. Click “Record Manage” 3. Click “Schedule Record” 6. Click “Save” to save the schedule 8. -
Page 15: Playback Video
7. Playback Video 7.1 Playback Video Recorded onto Local Computer 4. Set start time and end time, and then click “Search” 1. Click “Manage” 3. Select Camera 2. Click “Record onto Computer” 5. The video recorded during the selected time will be shown up, click “Play”... -
Page 16: Alarm Setting
8. Alarm Setting 8.1 Alarm Introduction Alarm Setting includes “Alarm Source” and “Alarm Strategy”. Alarm Source means what will trigger alarm. Alarm Linkage means how the camera will notify the alarm to us 1. Alarm Source: (1) Motion Detection: Alarm will be triggered when the camera detects the motion object. -
Page 17: Motion Detection Description
8.3 Motion Detection Description The Motion Detection function of our cameras is much more intelligent and flexible. The special designed “Six Areas Linkage Control” System greatly reduces the false alarm. The actualizing form of Motion Detection consists of Group, Area, Sensitivity, and Interval. -
Page 18: Alarm Record
Application 2: Several areas trigger: For example: Only when a person is getting in door, the alarm is triggered. If only a dog (or some other little animal) is getting in the door, the alarm will be not triggered, as the dog can’t trigger THREE areas at the same time. (This system greatly reduces false alarm) 1. -
Page 19: Alarm Email
3. Select “On” 2. Click “Alarm record” 4. Fill in recording time 5. Click “Save” 8.5 Alarm Email When alarm is trigged, you will be notified via email 1. Select the video of the camera you want to set alarm, right click the mouse, and click “Alarm... -
Page 20: Alarm Snapshot
8.6 Alarm Snapshot Camera takes snapshot when alarm if the email function is opened, the pictures will be sent to the email address. dsafdsaf 1. Select the video of the camera you want to set alarm, right click the mouse, and click “Alarm Setting”... -
Page 21: Osd Setting
9. OSD Setting 1. OSD 2. Time OSD 2. Select the video of the camera you want to set OSD, right click the mouse, and click “Setup” 2. Switch on the Time and OSD 3. Input the Letter (Within 18 characters) 4. -
Page 22: Time Setting
10. Time Setting 1. Select “Time Setting”” 2. Tick “NTP”, ”Manual” or “From PC” 3. Click “Setting” 11. Camera Password and Factory Reset 11.1 Password of Camera The camera ID & Password are shown on the label attaching at the bottom of camera house. -
Page 23: Factory Reset
11.2 Factory Reset You can reset the camera to the factory setting like below 1. Select the camera you want to Restore, then right click the mouse, and then click “Setup” 2. Click “Advance Setting” 3. Click “Res Default” to reboot the camera 11.3 Password of Client Software The default password of the client software is “123456”, we recommend... -
Page 24: Setup Camera Over Smart Phone
12. Setup Camera over Smart Phone 12.1 Download App 1. IOS System: Download “Qvision” from “App Store” 2. Android System: input “play.google.com” into web browser and search “Qvision” or copy from CD. 12.2 Use Smart Phone to Setup Wi-Fi Connection Via AP Function 1. - Page 25 Select Click Password Click After Click “OK”, It will show the “Successfully Changed”; So the camera is successfully setup to the router by wireless network and you can use your cell phone to visit the camera in LAN or WAN Click video, you will see Four arrows, click the arrow to move the monitoring area...
