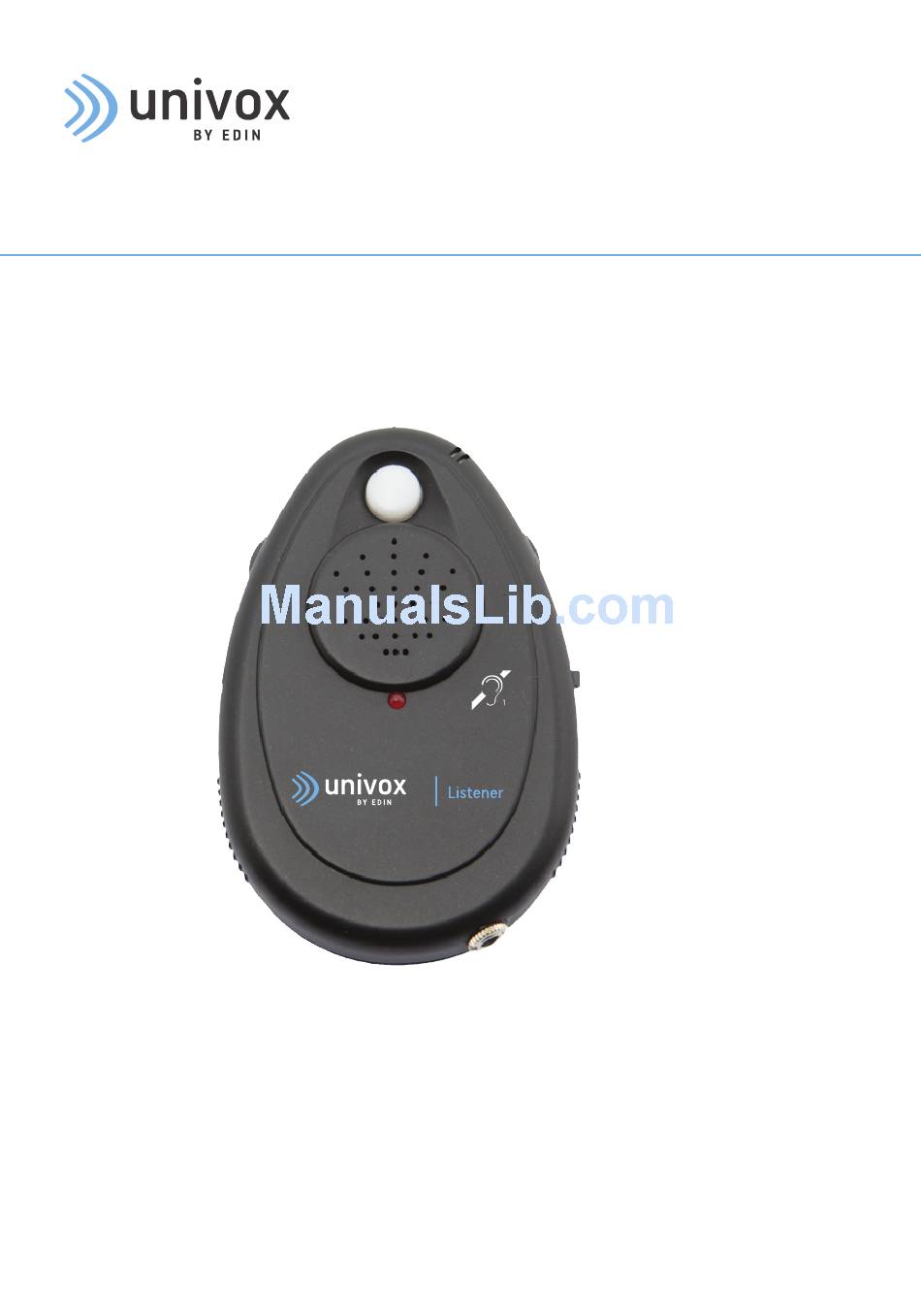

- Page 1 Univox Loop Listener Loop receiver and testing device User Guide Univox® Loop Listener Part No 230450/230453...
-
Page 2: Table Of Contents
Content Introduction ................3 Buttons and controls ............... 4 Use Listener as a loop receiver ..........6 Use Listener as a testing device ........... 7 Accessories ................9 Warranty ..................9 Maintenance and care ............. 9 Troubleshooting and service ..........10 Technical data .................11 Environment ................11... -
Page 3: Introduction
As a testing device Listener can check that the system works and verify the basic signal strength according to the international standard IEC 60118-4. Thank you for chosing a Univox product. We hope that you will be satisfied! -
Page 4: Buttons And Controls
Buttons and controls Tone control Built-in speaker LED loop check: LED on/off indicator Green= 0 dB On/off switch Yellow= -6 dB Outlet for headphones/ Neck strap earphone Volume control... - Page 5 – Battery compartment...
-
Page 6: Use Listener As A Loop Receiver
Use Listener as a loop receiver Turn on Listener with the on/off switch. When Listener is on, the red LED on the front is flashing. The sound can either be heard through the built-in speaker or using separate headphones or an earphone with 3.5 mm stereo plug which is connected to the outlet at the bottom. -
Page 7: Use Listener As A Testing Device
(for example background noise and frequency distribution) a professional measuring instrument, like the Univox FSM 2.0 has to be used. It may be difficult to monitor the LED if wearing the Listener around the neck by the strap. We therefore recommend to hold the Listener in front of you at the height where you want to check the field strength. - Page 8 floor when the user is seated. For standing height, hold Listener 160-170 cm above the floor. Note! Hold Listener in a straight vertical position to receive the signal at full strength. If Listener is tilted, its ability to receipe the signal will decrease.
-
Page 9: Accessories
Accessories Part No Description 239005 Headphones, 3.5 mm male stereo 581407 Single sided earphone, outside use, 3.5 mm male stereo Warranty Please note that warranty is not valid for any damage or defects due to incorrect or incautious usage. Maintenance and care Under normal circumstances the product does not need maintenance. -
Page 10: Troubleshooting And Service
Troubleshooting and service Make sure that Listener is turned on (red LED flashes). If the red LED does not start flashing, make sure that the batteries are correctly inserted and are working properly. If the batteries are not working, please replace them with new. -
Page 11: Technical Data
2 pcs AAA/LR3, 1.5 V batteries (included) For additional information, please refer to product data sheet/brochure and CE certificate which can be downloaded from “Product databank” at www.univox.eu. If required, other technical documents can be ordered through support@edin.se. Environment When this product is finished with, please follow existing disposal regulations. - Page 16 Distributor Univox by edin, the world’s leading expert and producer of high quality hearing loop systems, created the very first true loop amplifier 1969. Ever since our mission is to serve the hearing community with the highest degree of service and performance with strong focus on Research and Development for new technical solutions.
