- Page 1 GPA-500W User manual UHF Wireless Receiver System...
- Page 2 Preface: Thank you for buying GPA-500W wireless receiver system. This user manual includes complete description on function and operation of GPA-500W series, please read this manual before your use.

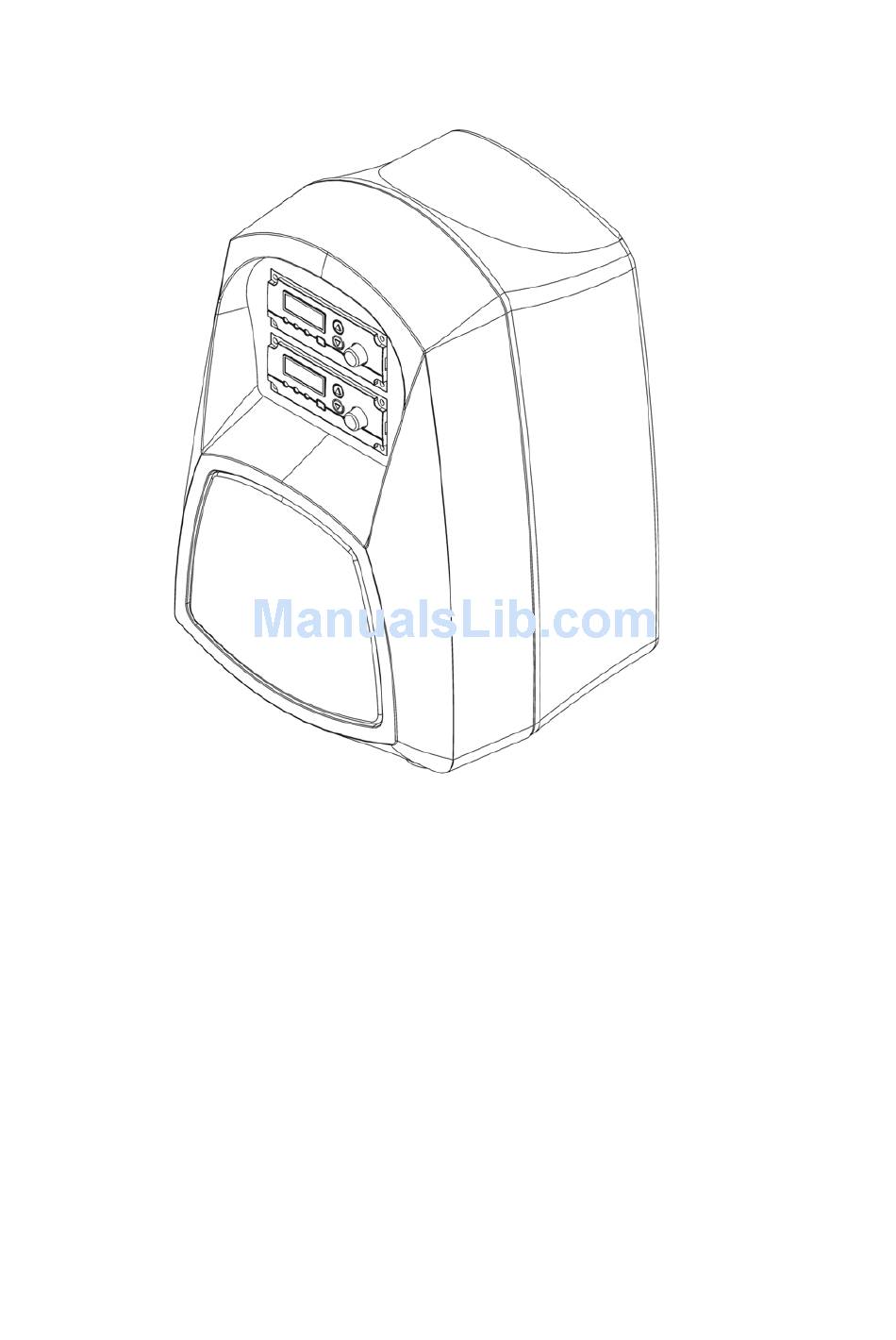

- Page 3 GPA-500W Illustrations: 1. Receiver Module 2. Speaker 3. MP3 player Module (Optional) 4. Operation Module (MASTER, TONE, Aux IN, MIC, MIC IN AUX) 5. Battery 6. Charging indicator 7. On / Off switch 8. DC input...
- Page 4 E. Illustrations of Each Module UHF Wireless Receiver Module (DR-701) 1. LCD screen 2. A/B Antenna indicator 3. RX indicator 4. AF indicator 5. Set button 6. Up / Down button 7. Power & Volume control How to use DR-701: 1.
- Page 5 UM-500 Digital MP3 Player Module 1. Power on/off 2. LCD screen 3. Back button 4. Forward button 5. Repeat button 6. Pause button 7. Play button 8. Slot for SD card 9. Pitch control 10. USB port 11. Volume control...
- Page 6 UHF Handheld Microphone (EJ-701TS / EJ-701TM) 1. Microphone grill 5. Frequency selection button 2. Microphone body 6. LED power indicator 3. Frequency set-up button 7. Switch on/off 4. LCD screen 8. Charging jack UHF Body-pack transmitter (EJ-7LT / EJ-7XT) 1. Antenna 2.
- Page 7 F. GPA-500W Specifications 1.740~752MHz(96 frequencies)2.794~806MHz(96 frequencies) 3.863~865MHz(16 Carrier frequency range frequencies) Display status LCD indicator displays channel or frequency, battery life (transmitter) Channel select SET, UP and DOWN keys Switching bandwidth Max. 12 MHz ℃ Ambient Temperature ~ 50 ℃...
- Page 8 EJ-701TS/EJ-701TM UHF Wireless Handheld Microphone Mike Cardioid condenser capsule (EJ-701TM), or dynamic capsule (EJ-701TS) Antenna Built-in RF output 10 mW Spurious emission Less than 250 nW AF control Hi / Low / Mute switch Battery 1.2V (Ni-MH.1600 mAh) x 2 AA rechargeable battery, 1.5V x 2 AA Alkaline disposable Operation life 11 hours typical (NiMH rechargeable), 14 hours tipical (Alkaline disposable) Dimensions...
-
Page 9: Operation
Operation Turn GPA-500W on and select required channel on DR-701. Then turn on any transmitter to a matched channel. Well, you can use it now. Simply adjust the volume or any requirement needed from control module. Cautions 1. It takes at least 1 meter between receiver and transmitter when they are in use.
