Contemporary Research ICC1-IR Product Manual

Ir tv controller, 1-way rf coax control
Hide thumbs Also See for ICC1-IR:
Table of Contents

Advertisement

Quick Links

Download this manual

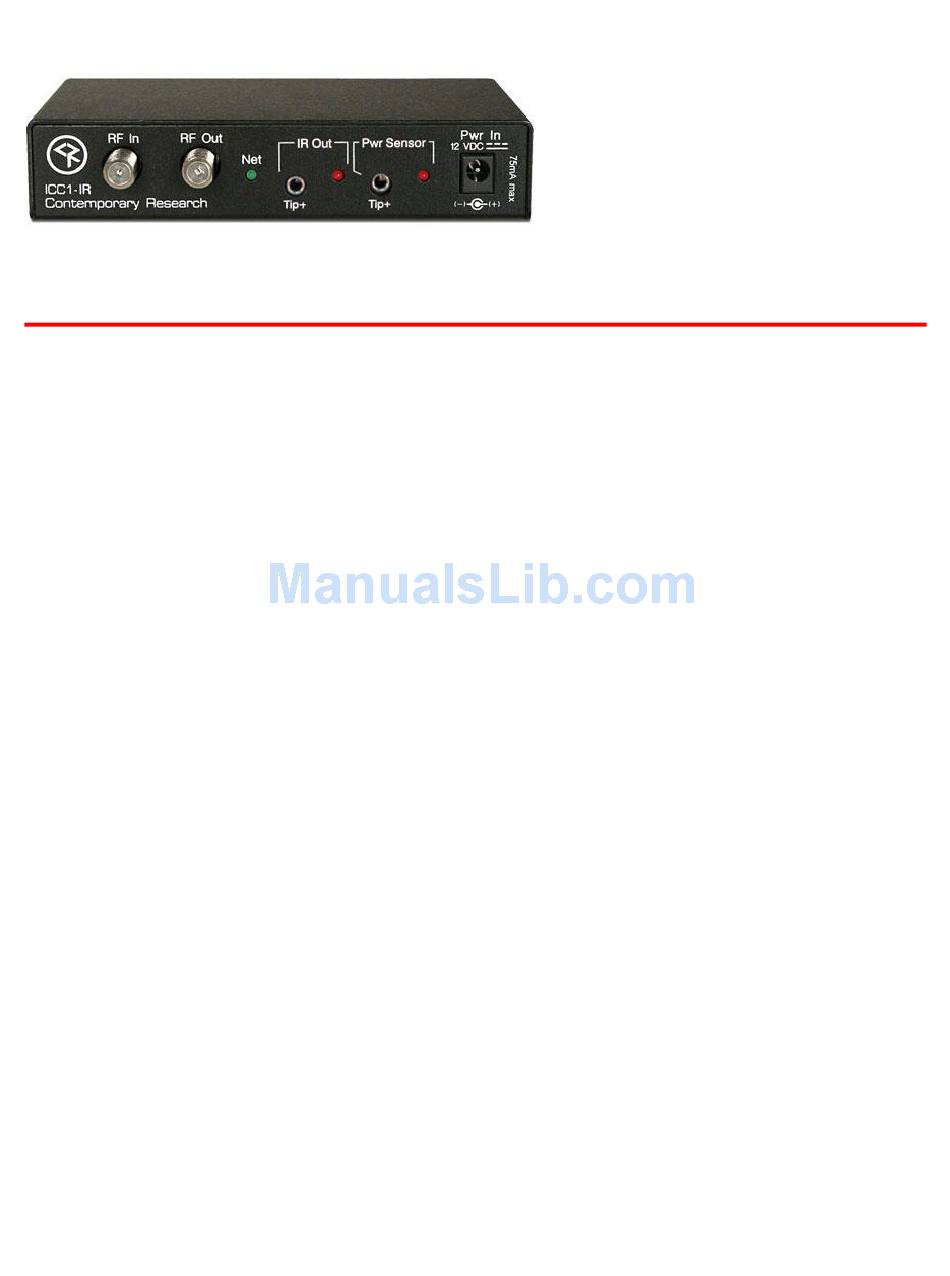

Product Manual
ICC1-IR
IR TV Controller, 1-way RF Coax Control
Ver. 7.0 March 3, 2014
Contemporary Research
1
ICC1-IR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICC1-IR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Contemporary Research ICC1-IR

Summary of Contents for Contemporary Research ICC1-IR

  • Page 1 Product Manual ICC1-IR IR TV Controller, 1-way RF Coax Control Ver. 7.0 March 3, 2014 Contemporary Research ICC1-IR...

  • Page 2: Table Of Contents

    Overview ..............................14 Command String Structure ........................14 RS-232 Commands..........................15 iC-Net SmartZones ..........................18 System Map ............................19 Typical RF and ICC-Net Signal Flow ....................20 Safety Instructions ........................... 22 Limited Warranty and Disclaimer ..................... 23 Contemporary Research ICC1-IR...

  • Page 3: Overview

    The ICC1-IR IR TV Controller delivers economical 1-way control for TV power, volume, and channels, receiving iCC-Net network commands over the same broadband coax that carries the CATV channels. Compact in size and price, the ICC1-IR features sensed power on/off control and intelligent tuning from a channel list stored in onboard non-volatile memory.

  • Page 4: Specifications

    Senses presence of TV scanning, from 15-35 KHz, magnetic pick-up Includes: 3.5mm plug, 4ft. cable, stick-on TV sensor Includes CC-HSD Scan Sensor CC-IRE IR Emitter RF Loop cable, 18” 12 VDC power supply, 500 mA Mounting Velcro for unit and CC-HSD Contemporary Research ICC1-IR...

  • Page 5: Installation

    If needed, fix CATV problems before installing the system. 2. Connect the CATV RF Coax cable into the RF In input on the iCC1-IR. 3. If the iCC-Net signal is operating, the Net LED will blink once per second.

  • Page 6: Setting Ir Control Codes (Ir Type Mode)

    See the section on page 11 on using our software to set the IR code set. The DIP switches S1 and S1 at the bottom of the ICC1-IR serve in two modes, IR Type, Channel Entry and Device Number, determined by S2 Switch 6 and S2 Switch 5.

  • Page 7: Ir Control Codes

    Discrete* Input selects Sony Discrete FWD-50PX2 Vizio Discrete Input selects Panasonic Discrete Input selects Sharp_3 Discrete Fixes dash tuning SRT902A Sylvania Toggle Toshiba 3 Discrete Philips RC6 Discrete 8300HD Scientific Atlanta Cable Box Toggle Insignia, Dynex Discrete Contemporary Research ICC1-IR...
  • Page 8 PC Sensor Setup: LCD marked PC Sensor (Power Current Sensor) do not have discrete IR power commands. Instead, the ICC1-IR will wait for an “OFF” signal from a power sensor before it sends an ON IR command. Go to our Support blog page Power Current Sensing for info on sensed absolute power control.

  • Page 9: Setting Device Number And Parameters (Device Mode)

    Turn enclosure so the DIP switches are on the bottom In the next step, you’ll need to set up the device number and operation parameters for the ICC1-IR. Notice that the functions of the S1 and S2 switches change when you set the unit in Device mode.

  • Page 10: Unit Address Settings

    1. Connect the CC-IRE IR Emitter plug into the IR Out jack. 2. Mount the emitter cube to the TV case where the TV receives IR commands. 3. Mount the ICC1-IR to the TV using included Velcro tape. 4. Connect DC power to unit.

  • Page 11: Writing Your Own Control Code

    Standard Hex (no denotation) = A5 01 04 05 54 48 02 02 03  Crestron Hex Format = \xA5\x01\x04\x05\x54\x48\x02\x02\x03  RTI = Select port, Hex mode, enter A5 01 04 05 54 48 02 02 03 Go to www.asciitable.com for a handy Decimal/ASCII/Hex conversion chart. Contemporary Research ICC1-IR...

  • Page 12: Using Display Express Or Ic Send Software

    2 = Virtual HD Major-Minor tuning (tunes to virtual channel ID in display) 3 = Physical HD Major-Minor tuning (physical channel, minor digital) HD Tuning <H1 Style><Major>,<Minor> Example: TH,2,15,1 tunes channel 15-1 IR Code Sets IR control code. T1,46 sets controller to Sharp Contemporary Research ICC1-IR...
  • Page 13 You can use the Preset Edit page to send the same command. Select the TV (s) you want to change, check Use Commands and Command String, then enter “T1,code #” (example, T1,46 for Sharp TVs). Click Send to send the command. If you haven’t defined a Display database in DX yet, manually enter the device # as shown. Contemporary Research ICC1-IR...

  • Page 14: Rs-232 Control Protocol

    The unit or low order byte of the device (0 for global zone) <ncb> The number of command bytes to follow <cmd1> The first command byte <parameter> Command parameters (not used by all commands) [<cmdN>] Multiple commands can be concatenated, with byte count added to <ncb> Contemporary Research ICC1-IR...

  • Page 15: Rs-232 Commands

    Identical to using DIP switch to set IR control codes. Specify value to match IR code type. Add 64 to the IR code to set the ICC1-IR to ignore the power sensor – if the type is specified as Sensor – discrete types always ignore the sensor input.
  • Page 16 Locks power operation – only functional with display with power current sensor. When the control is locked, the display is locked to the power state of the ICC1-IR. For example, if the ICC1-IR power state is off, the display can’t be turned on from the IR remote or TV front panel.
  • Page 17 A few TVs, such as some Visio models, will respond to every repeat, so that channel 3-1 appears as 3311. Making the pulse shorter, typically N1,2, fixes the problem. Sending an N1,0 command resets the controller to the default pulse length. Contemporary Research ICC1-IR...

  • Page 18: Ic-Net Smartzones

    The ICC1-IR and ICC1-232 controllers typical for many SignStream display control systems are designed to follow a Zone address format. You can use the 4 top switches in the second DIP switch (S2) to define the controller’s Zone.

  • Page 19: System Map

    1025 E254 1026 1280 Coffee Areas G100 1281 G150 1282 G151 1283 1536 Day Care TV 1 1537 TV 2 1538 1792 Hallways 1793 1794 1795 1796 2048 Office Admin 2049 A/V Center 2050 4095 All Zones Contemporary Research ICC1-IR...

  • Page 20: Typical Rf And Icc-Net Signal Flow

    Typical RF and ICC-Net Signal Flow The diagram below shows the structure of a typical Contemporary Research media retrieval system. One of the key aspects for iCC-Net communication is to provide a forward and return (sub-channel) path for data if you’re using ICC2 2-way TV Controllers.
  • Page 21 Contemporary Research ICC1-IR...

  • Page 22: Safety Instructions

    Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as possible. Contemporary Research ICC1-IR...

  • Page 23: Limited Warranty And Disclaimer

    Limited Warranty and Disclaimer Contemporary Research Corporation (CR) warrants this product to be free from defects in material and workmanship under normal use for a period of two years from the date of purchase from CR. Should such a defect occur CR will repair or replace, at their option, the defective product at no cost for parts or labor.
