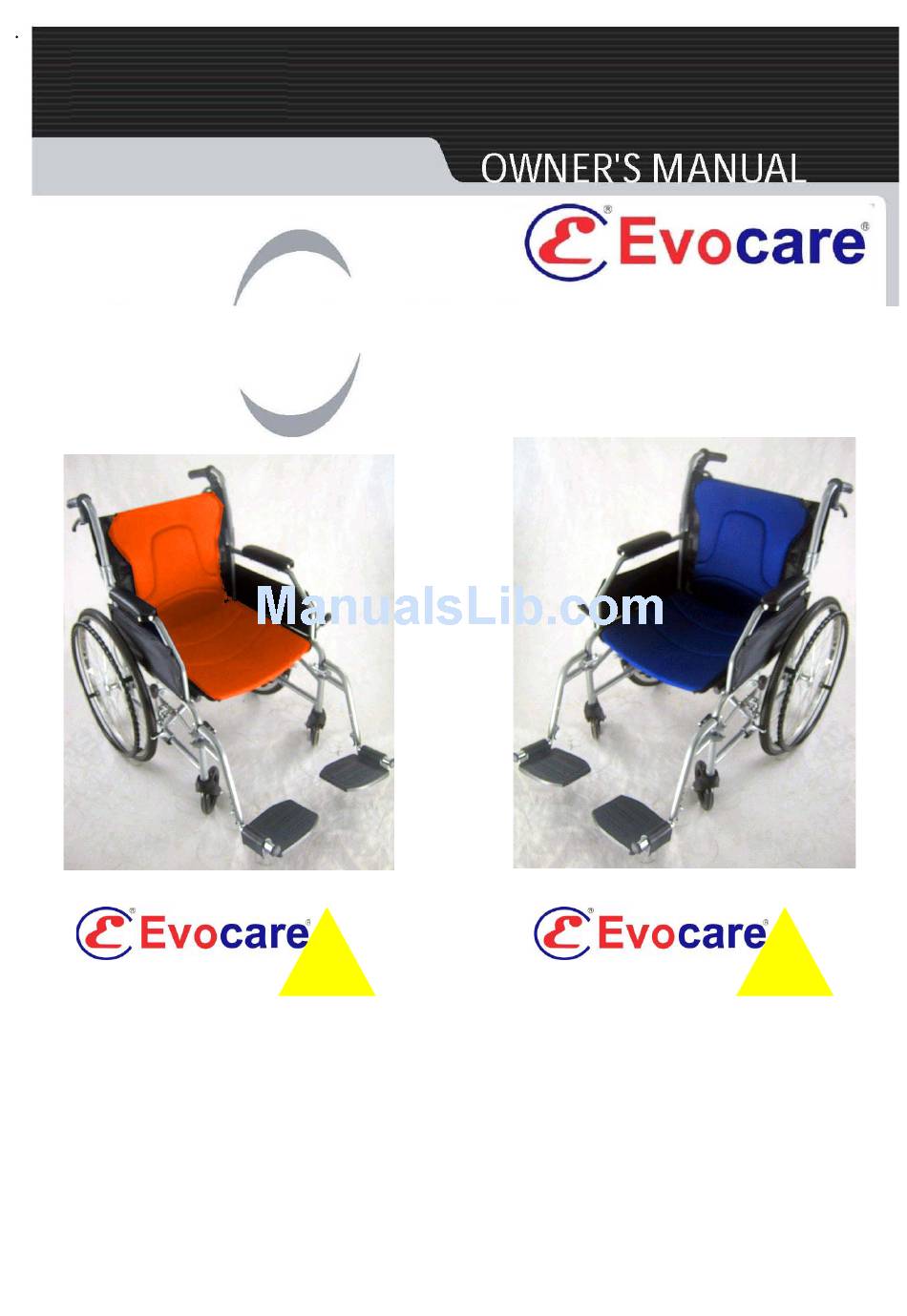

Wheelchair

LM9434SO

LM9434SB

136kg

Thank you for purchasing this Wheelchair. It is strongly recommended

that you read through this user manual prior to using your Wheelchair for

the first time. Your Wheelchair should provide years of trouble-free use,

provided that you adhere to these recommendations.

Need help?

Do you have a question about the LM9434SO and is the answer not in the manual?

Questions and answers

Summary of Contents for Evocare LM9434SO

Page 1 Wheelchair LM9434SO LM9434SB 136kg 136kg Thank you for purchasing this Wheelchair. It is strongly recommended that you read through this user manual prior to using your Wheelchair for the first time. Your Wheelchair should provide years of trouble-free use, provided that you adhere to these recommendations.
Page 2 2 ...
Page 3 Gross Weight 15.9kgs Carton 915 x 910 x 280mm Carton 915 x 910 x 280mm Evocare is a quality endorsed company and supplies equipment listed with the Therapeutic Goods Administration. The ARTG number for the LM9434SO & LM9434SBWheelchair is 218602.
Page 4 SPARE P ARTS Evocare Code Description Spare Parts for (LM9434SB and LM9434SO) 9SK1U4041B Seat pad with double cloth. BLUE. 9SK1U4042B Back pad with double cloth. BLUE. 9SK1U4041O Seat pad with double cloth. ORANGE 9SK1U4042O Back pad with double cloth. ORANGE.
Page 5 Safety / Handling of Wheelchairs Safety and handling of the wheelchair requires the close attention of the wheelchair user as well as the assistant. This manual points out the most common procedures and techniques involved in the safe operation and maintenance of the wheelchair.
Page 6 Operating Instructions To determine and establish your particular safety limits, practice bending, reaching and transferring activities in several combinations in the presence of a qualified health professional before attempting active use of the wheelchair. ALWAYS check hand grips for looseness before using the wheelchair. If loose and/or worn, replace immediately.
Page 7 Using the Stepper Tube Use the stepper tube to raise the front castors (when mounting a low kerb for example). To use, push down on the stepper tube with your foot. DO NOT raise the front castors by pushing down on the push handles as this could tip the wheelchair.
Page 8 WARNING After any adjustments, and before use, make sure all attaching hardware is tightened securely. Otherwise, injury or damage may result. Installing Swingaway Removable Legrest Assembly NOTE: For this procedure refer to FIGURE 1. Turn the footrest to the side (open footplate perpendicular to wheelchair).
Page 9: Maintenance
Model Overall Folded Between Arms Rear Wheel Front Wheel Seat Height (mm) (mm) (mm) Dia. (mm) Dia. (mm) (mm) LM9434SO 559mm (22”) LM9434SB Model Height to Seat Width Backrest Height SWL (kg) Gross Weight Nett Weight Grips (mm) (mm) (mm)
Page 10 (a) The consumer must contact the Retailer or Evocare upon becoming aware of any defect to a Product upon which the consumer will be required to complete a Form and provide...
Page 11 Your Evocare Wheelchair is warranted to be free of defects in material and workmanship for 12 months, for the original consumer. This warranty does not cover device failure due to owner misuse, negligence, or normal wear and tear. The warranty does not extend to non-durable components such as rubber accessories, brakes and grips, which are subject to normal wear and tear.

This manual is also suitable for:

Lm9434sb
