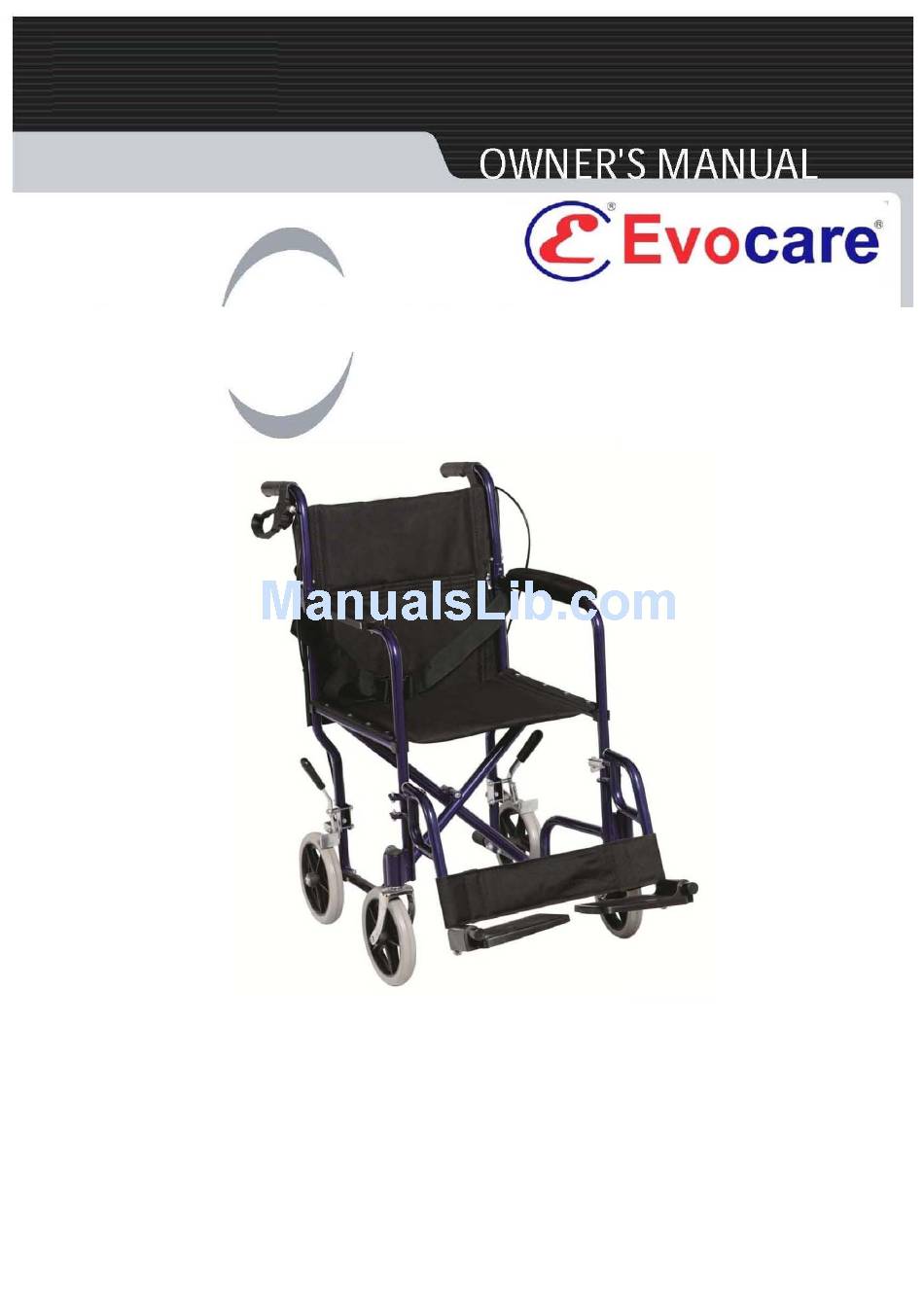

Evocare LM9712 Owner's Manual

Transport wheelchair—aluminium frame
Hide thumbs

Advertisement

Quick Links

Download this manual
Transport Wheelchair
—Aluminium Frame
LM9712
Thank you for purchasing this Transport Wheelchair. It is strongly
recommended that you read through this user manual prior to using
your Transport Wheelchair for the first time. Your Transport
Wheelchair should provide years of trouble-free use, provided that
you adhere to these recommendations.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LM9712 and is the answer not in the manual?

Questions and answers

Related Manuals for Evocare LM9712

Summary of Contents for Evocare LM9712

  • Page 1 Transport Wheelchair —Aluminium Frame LM9712 Thank you for purchasing this Transport Wheelchair. It is strongly recommended that you read through this user manual prior to using your Transport Wheelchair for the first time. Your Transport Wheelchair should provide years of trouble-free use, provided that...
  • Page 3 Transport Wheelchair Note: Maximum user weight for this wheelchair is 100kg Evocare is a quality endorsed company and supplies equipment listed with the Therapeutic Goods Administration. The ARTG number for the LM9712 Transport Wheelchair is 175495. Page 3.
  • Page 4 Safety / Handling of Transport Wheelchairs Safety and handling of the transport wheelchair requires the close attention of the transport wheelchair user as well as the assistant. This manual points out the most common procedures and techniques involved in the safe operation and maintenance of the transport wheelchair.
  • Page 5 Operating Instructions To determine and establish your particular safety limits, practice bending, reaching and transferring activities in several combinations in the presence of a qualified health professional before attempting active use of the transport wheelchair. ALWAYS check hand grips for looseness before using the transport wheelchair. If loose and/or worn, replace immediately.
  • Page 6 Using the Stepper Tube Use the stepper tube to raise the front castors (when mounting a low kerb for example). To use, push down on the stepper tube with your foot. DO NOT raise the front castors by pushing down on the push handles as this could tip the wheelchair.
  • Page 7 WARNING After any adjustments, and before use, make sure all attaching hardware is tightened securely. Otherwise, injury or damage may result. Installing Swingaway Removable Legrest Assembly NOTE: For this procedure refer to FIGURE 1. Turn the footrest to the side (open footplate perpendicular to transport wheelchair).
  • Page 8 WARNING After any adjustments, and before use, make sure all attaching hardware is tightened securely. Otherwise, injury or damage may result. Locking / Unlocking / Using Hand Brakes Locking Hand Brake NOTE: For this procedure refer to FIGURE 3. Push down on the bottom portion of the brake handle until an audible click is heard.
  • Page 9 Adjusting Hand Brakes NOTE: Counterclockwise / clockwise directions are determined by standing behind the Transport Wheelchair (user’s position) Adjusting Brake Handle NOTE: For this procedure refer to FIGURE 4. NOTE: Test brake handle. Observe how the brake lever engages the wheel. If the tension of the brake is to loose or too tight, adjust using the following steps: Loosen the brake handle adjustment nut by turning clockwise.
  • Page 10 WARNING After any adjustments, and before use, make sure all attaching hardware is tightened securely. Otherwise, injury or damage may result. Unfolding / Folding the Fold-Down Back NOTE: For this procedure refer to FIGURE 7. Folding Disengage the release mechanism on the back frame tubes.
  • Page 11 WARNING After any adjustments, and before use, make sure all attaching hardware is tightened securely. Otherwise, injury or damage may result. CAUTION As with any vehicle, the wheels and tyres should be checked periodically for cracks and wear, and should be replaced when necessary. Replacing / Adjusting Front Forks NOTE: For this procedure, refer to FIGURE 10.
  • Page 12 WARNING After any adjustments, and before use, make sure all attaching hardware is tightened securely. Otherwise, injury or damage may result. CAUTION As with any vehicle, the wheels and tyres should be checked periodically for cracks and wear, and should be replaced when necessary. Removing / Installing Rear Wheels NOTE: For this procedure, refer to FIGURE 11.
  • Page 13 LM9712 Wheelchair Parts List Page 13.
  • Page 14 (as the case may be) free of charge provided that the following procedures are met (a) The consumer must contact the Retailer or Evocare upon becoming aware of any defect to a Product upon which the consumer will be required to complete a Form and provide...
  • Page 15 Your Evocare Transport Wheelchair is warranted to be free of defects in material and workmanship for 12 months, for the original consumer. This warranty does not cover device failure due to owner misuse, negligence, or normal wear and tear. The warranty does not extend to non-durable components such as rubber accessories, brakes and grips, which are subject to normal wear and tear.
