Summary of Contents for Coolzone CZ55582

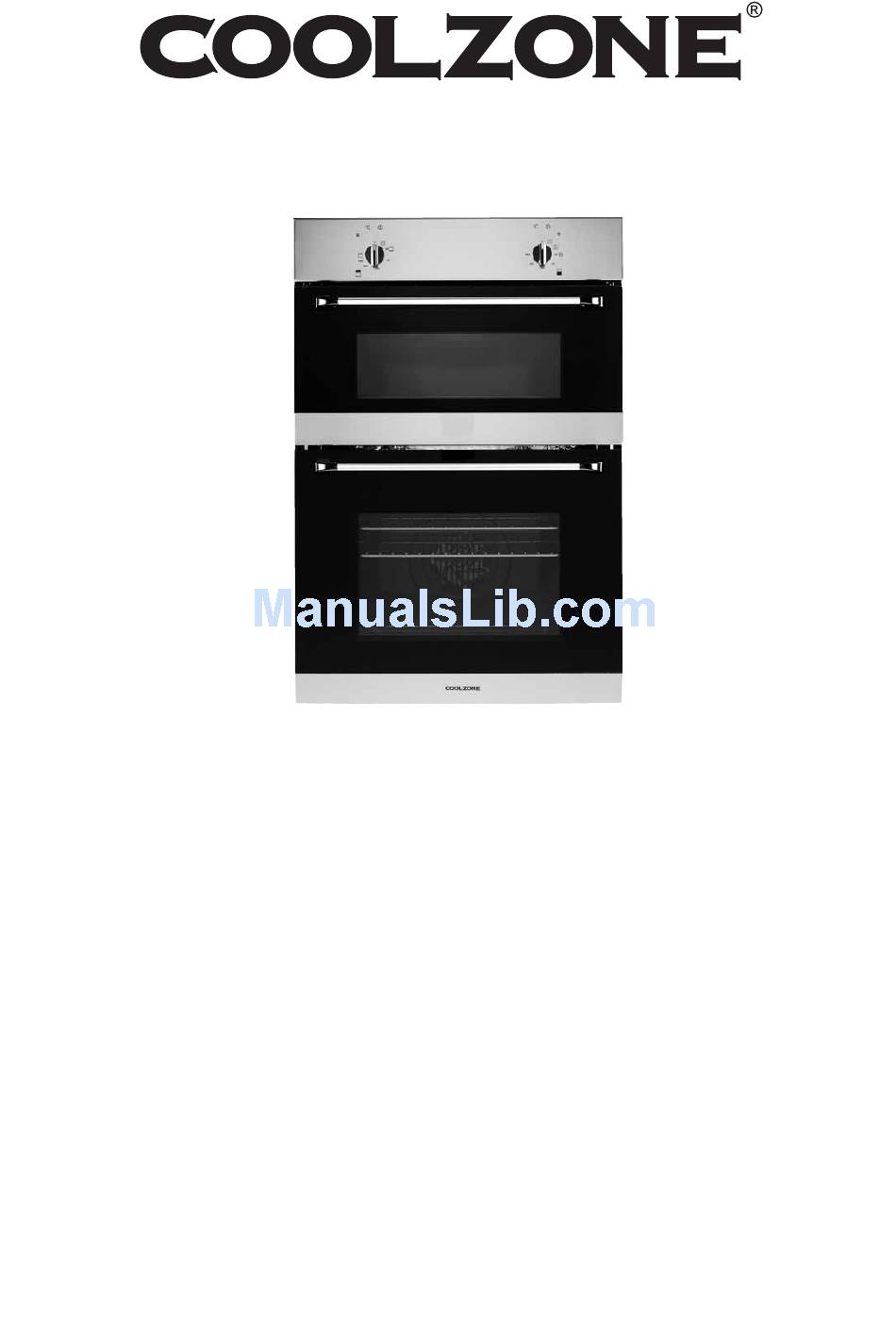

- Page 1 Built-in Multi-function Double Oven CZ55582 INSTALLATION AND OPERATING INSTRUCTIONS The product may differ from the one illustrated but the installation and operation procedure remains the same...
-
Page 2: Table Of Contents
Contents Introduction Unpacking Before installation Location Housing dimensions Electricity supply Electrical connection Installing the oven Safety notes Using the oven Main oven controls Top oven controls Using the grill Cleaning the oven Cleaning the glass door Changing the lamp Mains lead replacement For best cooking results Troubleshooting guide Safe oven disposal... -
Page 3: Unpacking
Introduction This quality oven has been designed to provide trouble-free service provided it is installed and maintained correctly. This oven is for domestic use only. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference. -
Page 4: Location
Location Avoid installing the oven too close to a fridge or boiler. The oven should be installed into an oven housing unit as shown in Figure 1. Ensure that the surrounding material is heat resistant and non-combustible. Certain minimum clearances must be allowed for when planning the unit’s location. Figure 1 - housing unit Housing dimensions Figure 2 shows the housing dimensions in millimetres. -
Page 5: Electricity Supply
Electricity supply Once a satisfactory location has been established, the electrical supply to the appliance must be arranged. The mains voltage must correspond to that which is specified on the data plate. The supply should be from a 30 amp fused spur, with an isolator switch installed above the work surface and to one side of the unit in case of emergency. -
Page 6: Electrical Connection
Electrical connection The appliance must be properly connected to the mains supply by a qualified electrician according to current safety regulations. This appliance must be earthed. 1. Lift up the cover (Figure 4). 2. Loosen the cable clamp (Figure 4). 3. -
Page 7: Safety Notes
Please read these safety notes before using the oven • Never leave children unsupervised where the • Make sure you understand what the oven controls do before using the oven. oven is installed as the appliance will get hot during and after use. •... -
Page 8: Using The Oven
Using the oven Please note: When using for the first time the oven may smell for a short time while burning off dust and manufacturing residues from the heating elements. This is normal and does not indicate a fault with the oven. TEMPERATURE TEMPERATURE INDICATOR... -
Page 9: Top Oven Controls
Top oven controls The thermostat determines the temperature inside the oven during cooking. Turn the control knob clockwise to align the cooking temperature with the marker on the control panel. The temperature indicator will light up when a temperature is set, and turn off when the temperature has been reached. -
Page 10: Cleaning The Oven
Cleaning the oven Before cleaning the oven, wait for it to cool down. It is best to clean the bottom of the oven after every use and not allow the food or spots of oil to remain and become permanent stains. Wash surfaces in warm soapy water. -
Page 11: For Best Cooking Results
For best cooking results Grill Even cooking: • Ensure that the grill pan is positioned centrally below the grill element. Fat splattering: To avoid fat splattering onto the oven interior • Ensure that the grill pan is not lined with foil General Baking Uneven rising of cakes: •... -
Page 12: Safe Oven Disposal
Safe oven disposal To help the environment, Local authority instructions should be followed for the disposal of your product This appliance/fitting is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help pre- vent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
